1140-Z-2512-B-001500 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1140-Z-2512-B-001500

1140-Z-2512-B-001500: DescriptionMains Power Connector, 10A, 125VAC, Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size213KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

1140-Z-2512-B-001500 Overview

Mains Power Connector, 10A, 125VAC, Male, Solder Terminal, Plug, ROHS COMPLIANT

1140-Z-2512-B-001500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	UL, CSA
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	10A, 125VAC
Manufacturer's serial number	1140
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYVINYLCHLORIDE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

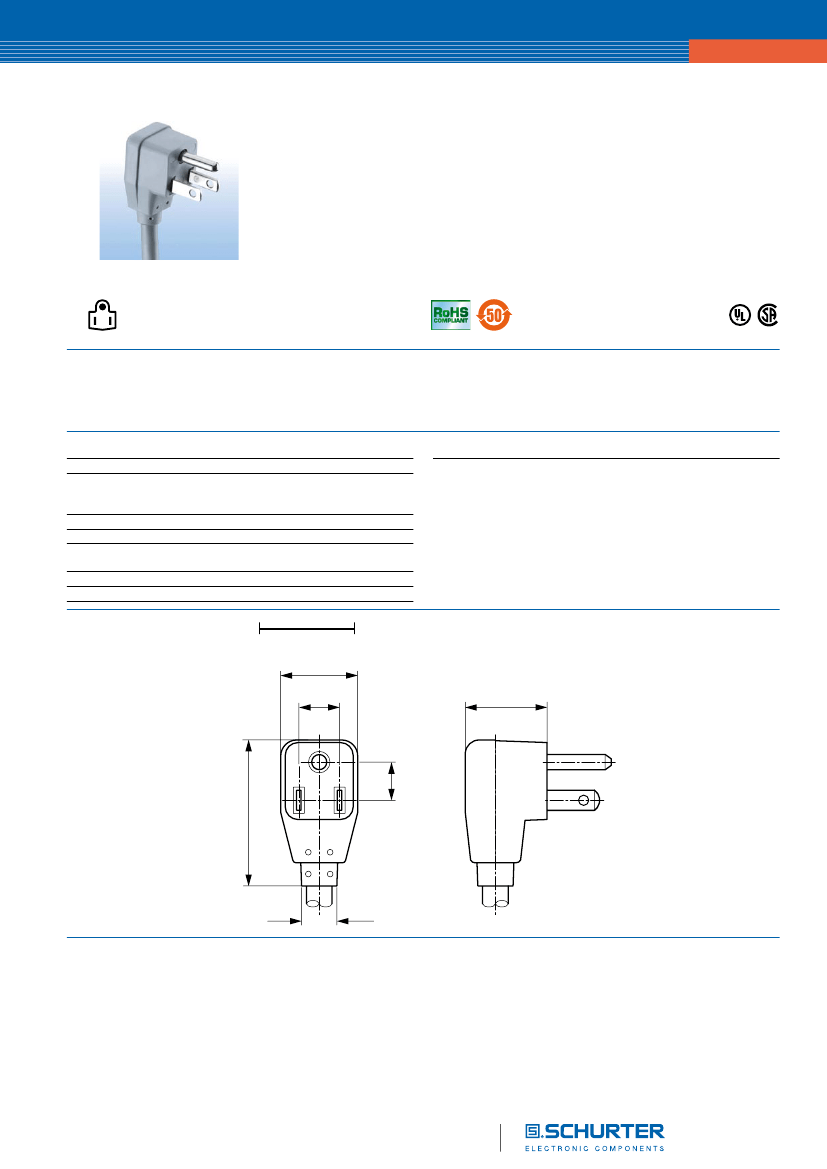

Cord Sets

www.schurter.com/pg07_2

Power Supply Cord with NEMA 5-15 Power (Mains) Plug 3-pole, Angled

North America

NEMA 5-15

Description

Approvals

Power Supply Cord, Protection class I, Pin temperature 70 °C, Cable

- UL File Number: E45116

- CSA File Number: 32338

Technical Data

Ratings UL/CSA

Dielectric Strength

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

45.5

ø 11

11.9

24 mm

10 A / 125 VAC; 60 Hz

> 4 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

moulded

PVC, black or grey

12.7

-O

Weblinks

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories, Detailed request for product

25.5
