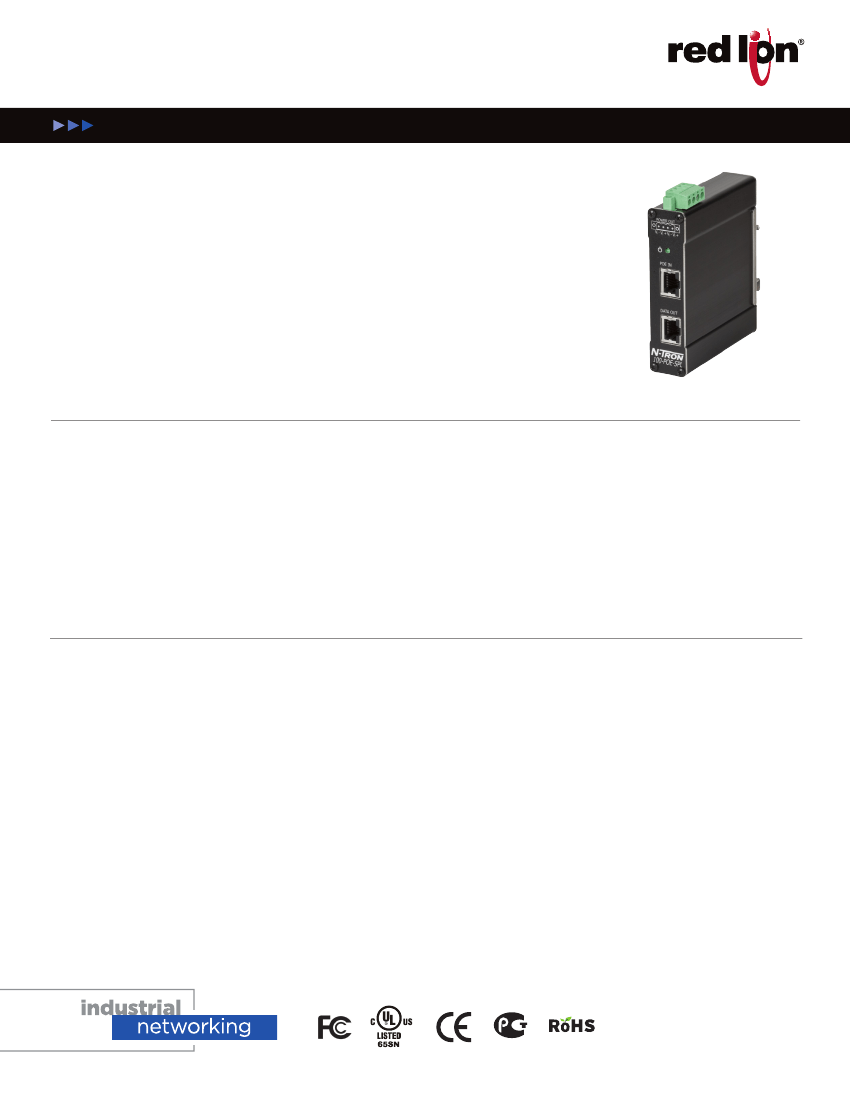

100-POE-SPL PoE Splitter
N-Tron
®
Networking Series
PoE Splitter
Industrial PoE Mid-Span Injector
The N-Tron 100-POE-SPL is a Power over Ethernet splitter
designed to accept Ethernet with PoE via Cat5 cable and
output power via terminal block and Ethernet via RJ45.
This allows devices which are not PoE capable to be connected and powered by a Cat5 cable.
The 100-POE-SPL also allows legacy devices which are not PoE capable to be deployed without
the need to provide a dedicated power supply. The 100-POE-SPL is ideal for use with N-Tron’s
105TX-POE, 105FX-POE, 100-POE4 or other PoE sourcing equipment. The 100-POE-SPL can
be ordered with 12, 24, or 48 volt DC output.
APPLICATIONS
>
Factory Automation
>
Utilities
>
SCADA
>
Security Surveillance
>
Transportation
>
Alternative Energy
PRODUCT HIGHLIGHTS
>
Compact, Industrial Design
>
Up to 5 port connections
>
High Environmental Specifications
>
N-Ring Advanced Ring Technology
>
Increased Networking Performance
>
Plug-and-Play Operation
FEATURES & BENEFITS
>
Compact, Space Saving Package
>
IEEE 802.3af Compliant
>
One RJ-45 PoE Port (Data & Power In)
>
One RJ-45 Port (Data Out)
>
Unmanaged Operation
>
Extended Environmental Specifications
• -40ºC to 85ºC Operating Temperature
>
Supports up to 15.4 Watts (Cable and PSE Dependent)
>
Full Wire Speed Communications
>
Built in Transient Voltage Suppression
>
Power Status LED
>
Hardened Metal DIN-Rail Enclosure
compliant
Industrial Unmanaged Ethernet Switch Specifications
SWITCH PROPERTIES
Compact, Space Saving Package
IEEE 802.3af Compliant
One RJ-45 PoE Port (Data & Power In)
One RJ-45 Port (Data Out)
Unmanaged Operation
Extended Environmental Specifications
-40ºC to 85ºC Operating Temperature
Supports up to 15.4 Watts (Cable and PSE Dependent)
Full Wire Speed Communications
Built in Transient Voltage Suppression
Power Status LED
Hardened Metal DIN-Rail Enclosure
POWER INPUT
Input Voltage: 46-54 VDC
Steady Output Current Under Full Load: 320 mA@48VDC
Steady Input Current Under No Load: 10 mA@48V
CONNECTORS
10/100BaseTX: Two (2) RJ45 copper ports
NETWORK MEDIA
10BaseT: >Cat3 cable
100BaseTX: >Cat5 cable
RECOMMENDED WIRING CLEARANCE
Front: 2” (5.08 cm)
Top: 1” (2.54 cm)
100-POE-SPL
4.37"
[110.97mm]
POWER OUT
V
1
- V
1
+ V
2
- V
2
+
DIMENSIONS
1.00"
[25.40mm]
3.85"
[97.71mm]
3.61"
[91.65mm]
3.85"
[97.77mm]
1.20"
[30.42mm]
POE IN
4.00"
[101.60mm]
DATA OUT
CERTIFICATION & COMPLIANCE
Product Safety: UL/cUL: Class I, Division 2, Groups A, B, C and D;
T4 UL 508, ICE and ANSI/ISA-12.12.01-2007
Emissions: EN 55011, ICES-003, FCC/CE (CFR 47, Part 15,
Subpart B, Class A)
Immunity: EN 61000-6-2/4, IEC 61000-4-2/3/4/5/6
Other: ABS type approval for shipboard applications
DNV Type Approval Certification
RoHS Compliant
IEEE 1613 for Electric Utility Substations
NEMA TS1/TS2 for Traffic Control
ENVIRONMENTAL
Operating Temperature: -40
o
C to 85
o
C
MECHANICAL
Case Dimensions
Height: 4” (10.2 cm)
Width: 1.0” (2.6 cm)
Depth: 3.7 (9.3 cm)
Depth (incl. DIN rail mount): 3.9” (9.8 cm)
Weight (max): 0.60 lbs. (0.27 kg)
Mount: DIN Rail 35mm
All specifications are subject to change. Consult the company website for more information.
ORDERING GUIDE
PART NUMBER
100-POE-SPL-12
100-POE-SPL-24
100-POE-SPL-48
100-POE-SPL-XX
*Call for pricing
DESCRIPTION
Ethernet PoE splitter, 12VDC output
Ethernet PoE splitter, 24VDC output
Ethernet PoE splitter, 48VDC output
Ethernet PoE splitter, Custom VDC output*
