LEJ & LEJA Series
Hydraulic-Magnetic Circuit Breakers
INTRODUCTION
The LEJ/LEJA series circuit breaker meets the evolving demand for the high performance protection of critical data center and
telecommunications applications requiring up to 277VAC per pole, UL 489 listing in the smallest case size currently available in the
marketplace. The LEJ/LEJA platform is based on the highly successful and field proven LEG/LEGA designs while incorporating
state-of-the-art arc quenching technologies and offering voltage ratings that are well suited for global applications that require
208VAC through 277VAC ratings for increased power efficiency.
Typical applications include power distribution units (PDUs) used in data center enclosures, telecom AC power supplies and a
variety of Industrial applications benefiting from the higher power density. Like the LEG/LEGA product family, the LEJ/LEJA series
offers a variety of features including different terminations and actuators to meet most any requirements.
FEATURES
•
•
•
•
•
Up to two poles, 2 amps to 20 amps rated current at 240VAC per pole
UL 489 listed and TÜV approvals available
Up to 10,000AIC short circuit amperage rating
Low Depth “A” option provides a 31% lower depth compared to standard LEJ product
Maintains the high performance characteristics, reliability, panel cut out and mounting dimensions of LEG/LEGA products
SPECIFICATIONS
Agency Certification
UL 489
TÜV (EN60947-2)
UL489
UL489
Rated Amperage
2 to 20 amps
2 to 20 amps
2 to 20 amps
2 to 20 amps
Maximum Voltage per Pole
240 VAC, 50/60 Hz
240 VAC, 50/60 Hz
240 VAC, 50/60 Hz
277 VAC, 50/60 Hz
Short Circuit Amperage
5000
5000
10000
10000
133
LEJ & LEJA Series - Introduction
http://airpax.sensata.com

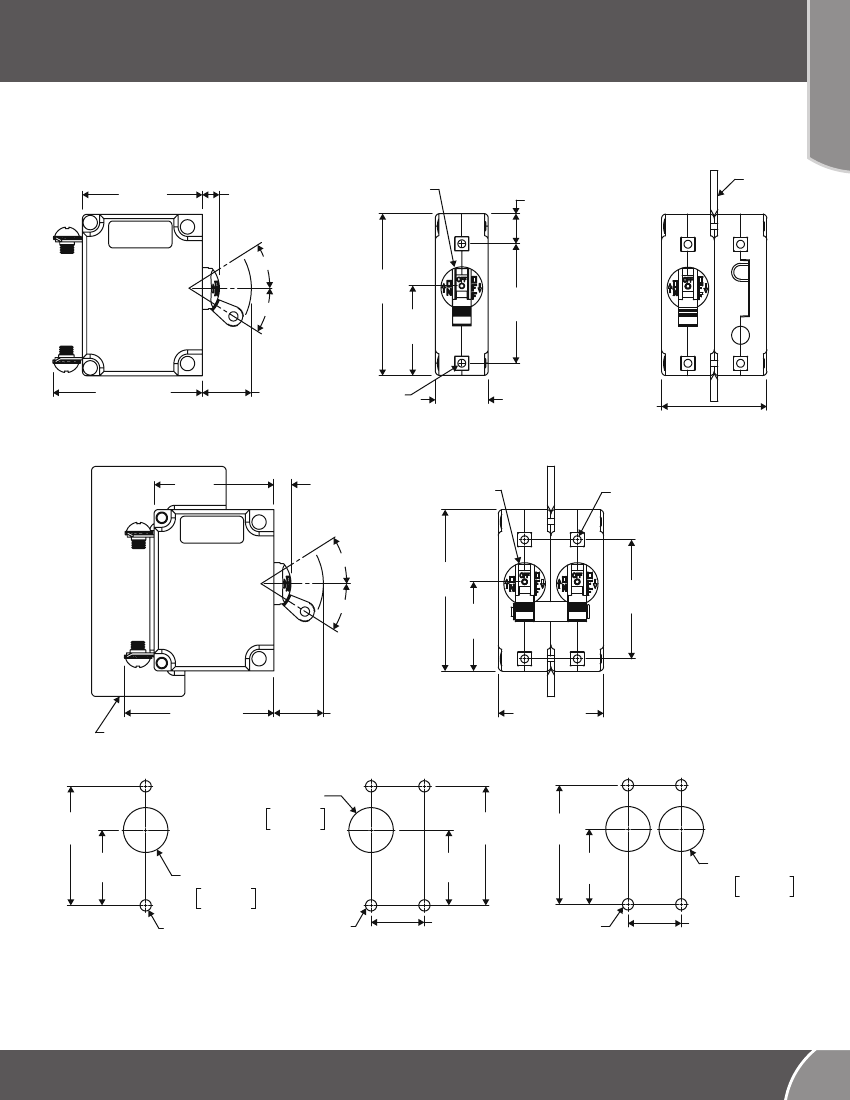

CONFIGURATIONS: LEJ TOGGLE HANDLE
SINGLE POLE
1.687
[42.85]
0.240
[6.10]
Ø
0.590
MAX
[14.99]
0.420
[10.67]
TWO POLE, 1 HANDLE
BARRIER
LINE
ON
32º
2.250
[57.15]
32º
OFF
1.220
[30.99]
1.660
[42.16]
2.075
MAX
[52.71]
0.690
[17.53]
TWO POLE, 2 HANDLE
1.687
[42.85]
2x 6-32 THREAD
0.140 [3.56] DEEP
(M3 ISO THREAD
OPTIONAL)
0.750
[19.05]
1.515
MAX
[38.48]
OPTIONAL, HANDLE MAY BE IN
POLE 1 INSTEAD OF POLE 2
0.240
[6.10]
Ø
0.590
MAX
[14.99]
4x 6-32 THREAD
0.140 [3.56] DEEP
(M3 ISO THREAD OPTIONAL)
LINE
ON
32º
2.250
[57.15]
1.220
[30.99]
32º
OFF
1.660
[42.16]
BARRIER
2.075
MAX
[52.71]
0.690
[17.53]
PANEL MOUNT CUTOUT - 2 POLE, 1 HANDLE
Ø 0.625
-0.00
+.010
1.515
MAX
[38.48]
PANEL MOUNT CUTOUT - 2 POLE, 2 HANDLE
PANEL MOUNT CUTOUT - 1 POLE
1.660
[42.16]
1.050
[26.67]
+.010
0.625
-0.00
+0.25
15.88
-0.00
15.88
-0.00
+0.25
1.660
[42.16]
1.050
[26.67]
1.660
[42.16]
1.050
[26.67]
2x Ø 0.625
-0.00
15.88
-0.00
0.750
[19.05]
+.010
Ø
+0.25
2x Ø
0.156
[3.96]
4x Ø
0.156
[3.96]
0.750
[19.05]
4x Ø
0.156
[3.96]
NOTES:
1.
All mounting inserts shall be utilized when panel mounting circuit breakers. Panel mounting screws shall have recommended torque applied:
6/32 mounting inserts 6 - 8 inch pounds. M3 mounting inserts 4 - 5 inch pounds.
2.
Panel mounting screws shall not extend beyond back of mounting panel more than speci ed mounting insert depth.
3.
Mounting detail tolerance: ± 0.005 [0.13] unless noted.
LEJ & LEJA Series - Configurations
134
LEJ & LEJA Series

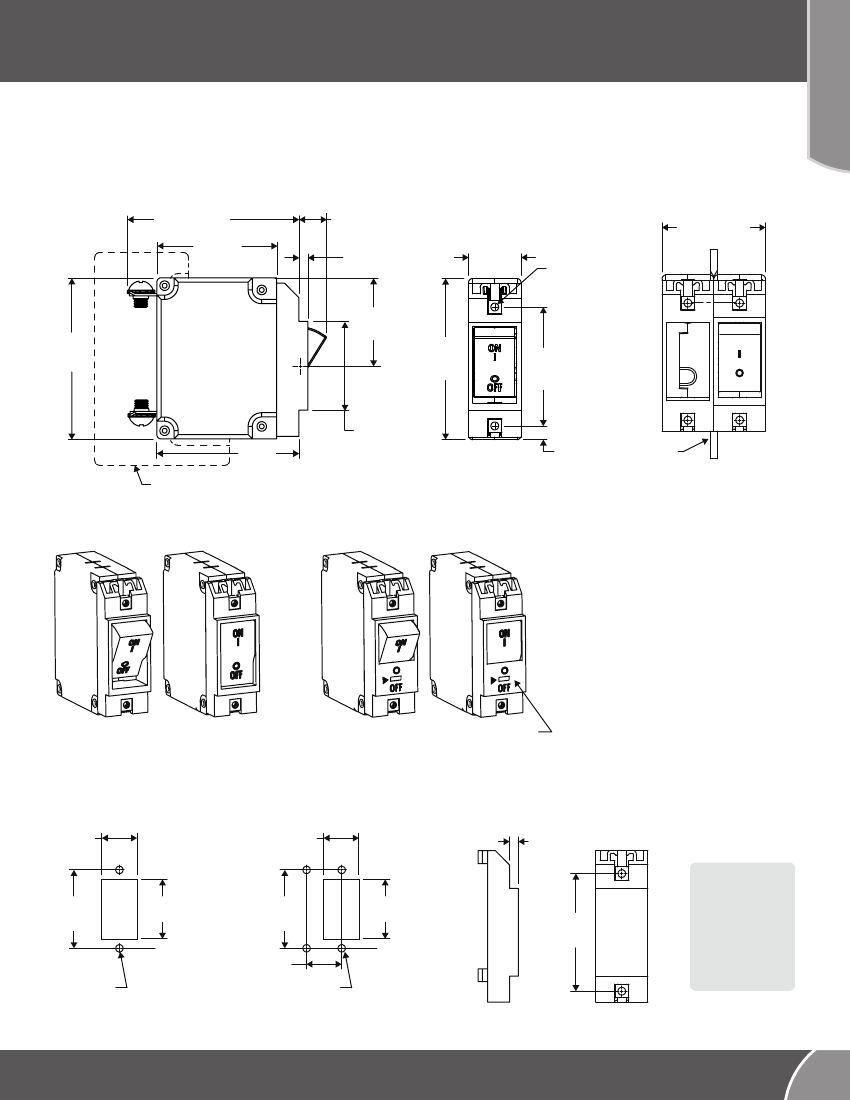

CONFIGURATIONS: LEJZX ROCKER HANDLE
SINGLE POLE
2.378
MAX
[60.40]
1.687
[42.85]
0.420
[10.67]
0.125
[3.18]
2x 6-32 THREAD
(M3 ISO THREAD
OPTIONAL)
0.750
[19.05]
1.220
[30.99]
2.250
[57.15]
2.250
[57.15]
1.660
[42.16]
1.239
[31.47]
2.077
[52.76]
0.430
[10.92]
OPTIONAL
HANDLE GUARDS
OPTIONAL GUARD
(SEE DETAIL “A”)
0.191
[4.85]
TWO POLE
1.515
MAX
[38.48]
PANEL MOUNT CUTOUT - 1 or 2 POLE
2x Ø
0.156
[3.96]
1.660
[42.16]
2.250
[57.15]
4x 6-32 THREAD
(M3 ISO THREAD
OPTIONAL)
1.660
[42.16]
1.260
[32.00]
BARRIER
OPTIONAL, HANDLE MAY BE IN
POLE 2 INSTEAD OF POLE 1
0.750
[19.05]
0.200
[5.08]
NOTES:
1.
All mounting inserts shall be utilized when panel mounting circuit breakers. Panel mounting screws shall have
recommended torque applied: 6/32 mounting inserts 6 - 8 inch pounds. M3 mounting inserts 4 - 5 inch pounds.
2.
Panel mounting screws shall not extend beyond back of mounting panel more than speci ed mounting insert depth.
3.
Mounting detail tolerance: ± 0.005 [0.13] unless noted.
4.
Two pole ZX has standoffs (as shown). It uses 2 panel screws. A higher shock capability (4 panel screws) is available (consult factory).
135
LEJ & LEJA Series - Series - Configurations
http://airpax.sensata.com

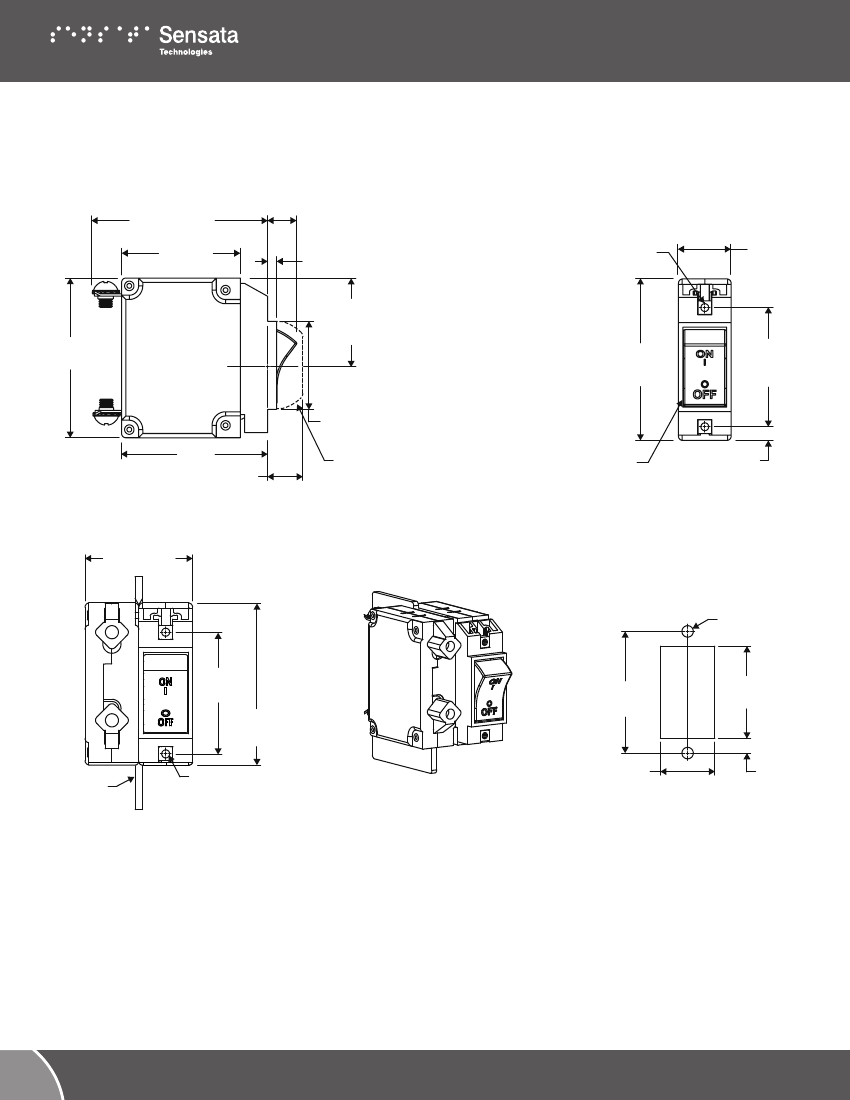

CONFIGURATIONS: LEJBX ROCKER HANDLE
