MediaConverter
Series
Operation Manual
FCC Radio Frequency Interference Statement
MediaConverter/1 and /4
This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference
in which the user will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class B limits for
radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe B
prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.
MediaConverter/8 and /12
This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference
in which the user will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class A limits for
radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe A
prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.
ii
Limited Lifetime Warranty
Effective for products of B+B SmartWorX shipped on or after May 1, 2013, B+B SmartWorX warrants that each such product
shall be free from defects in material and workmanship for its lifetime. This limited lifetime warranty is applicable solely to the
original user and is not transferable.
This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of products
in accordance with their written specifications.
Pursuant to the warranty, within the warranty period, B+B SmartWorX, at its option will:
1. Replace the product with a functional equivalent;
2. Repair the product; or
3. Provide a partial refund of purchase price based on a depreciated value.
Products of other manufacturers sold by B+B SmartWorX are not subject to any warranty or indemnity offered by B+B
SmartWorX, but may be subject to the warranties of the other manufacturers.
Notwithstanding the foregoing, under no circumstances shall B+B SmartWorX have any warranty obligations or any other
liability for: (i) any defects resulting from wear and tear, accident, improper use by the buyer or use by any third party except
in accordance with the written instructions or advice of the B+B SmartWorX or the manufacturer of the products, including
without limitation surge and overvoltage conditions that exceed specified ratings, (ii) any products which have been adjusted,
modified or repaired by any party other than B+B SmartWorX or (iii) any descriptions, illustrations, figures as to performance,
drawings and particulars of weights and dimensions contained in the B+B SmartWorX’ catalogs, price lists, marketing materials
or elsewhere since they are merely intended to represent a general idea of the products and do not form part of this price
quote and do not constitute a warranty of any kind, whether express or implied, as to any of the B+B SmartWorX’ products.
THE REPAIR OR REPLACEMENT OF THE DEFECTIVE ITEMS IN ACCORDANCE WITH THE EXPRESS WARRANTY SET FORTH ABOVE
IS B&B ELECTRONIC’ SOLE OBLIGATION UNDER THIS WARRANTY. THE WARRANTY CONTAINED IN THIS SECTION SHALL
EXTEND TO THE ORIGINAL USER ONLY, IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ALL SUCH
WARRANTIES AND INDEMNITIES ARE EXPRESSLY DISCLAIMED, INCLUDING WITHOUT LIMITATION (I) THE IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY AND (II) ANY WARRANTY THAT THE
PRODUCTS ARE DO NOT INFRINGE OR VIOLATE THE INTELLECTUAL PROPERTY RIGHTS OF ANY THIRD PARTY. IN NO EVENT
SHALL B+B SMARTWORX BE LIABLE FOR LOSS OF BUSINESS, LOSS OF USE OR OF DATA INTERRUPTION OF BUSINESS, LOST
PROFITS OR GOODWILL OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES. B&B ELECTRONIC
SHALL DISREGARD AND NOT BE BOUND BY ANY REPRESENTATIONS, WARRANTIES OR INDEMNITIES MADE BY ANY OTHER
PERSON, INCLUDING WITHOUT LIMITATION EMPLOYEES, DISTRIBUTORS, RESELLERS OR DEALERS OF B&B ELECTRONIC WHICH
ARE INCONSISTENT WITH THE WARRANTY, SET FORTH ABOVE.
iii
Table of Contents
FCC Radio Frequency Interference Statement
.................................................ii
Limited Lifetime Warranty
......................................................................... iii
About the Modular Media Converters & Chassis
............................................ 1
About McPIMs
........................................................................................ 1
About McLIMs
........................................................................................ 2
About McGigabit
..................................................................................... 2
Configuring Media Conversion Modules
....................................................... 2
LinkLoss, FiberAlert and Link Fault Pass-Through
............................................ 4
Installing Media Converter Modules
............................................................ 8
LED Operation
........................................................................................ 9
Installation Troubleshooting
.................................................................... 12
Specifications
....................................................................................... 14
B+B SmartWorX Technical Support
............................................................ 15
Fiber Optic Cleaning Guidelines
................................................................ 16
Electrostatic Discharge Precautions
........................................................... 16
Safety Certifications
............................................................................... 17
iv
About the Modular Media Converters & Chassis
The Modular Media Converter Series includes modules that convert copper to single-
mode or multi-mode fiber at Ethernet, Fast Ethernet and Gigabit speeds. All Modules
are unmanaged media converters, to allow simple installation.
Modular Media Converter series chassis provide power to media converter modules,
and are available with one, four, eight or twelve slots for installing any combination of
McPIMs (10Mbps Ethernet), McLIMs (100 Mbps Fast Ethernet), McLIM TP-TX/FX
(Switching 10/100 Mbps) and McGigabit modules (1.25 Gbps Ethernet). All chassis
include internal AC power, and a country-specific power cord is included with each
chassis.

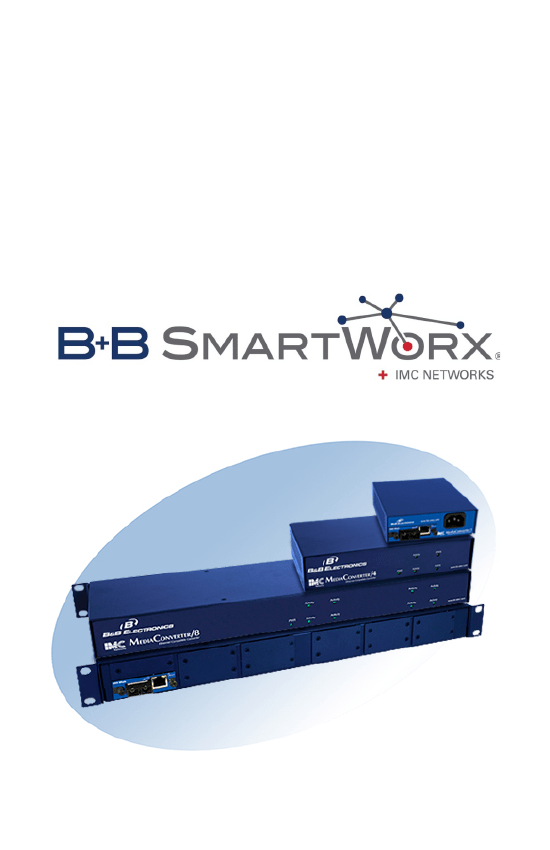

Media
Converter
1
4
8
12
Description
Is a standalone chassis which includes one media conversion module slot,
and a fixed, internal 115/230 VAC power supply.
Is a standalone chassis which includes four media conversion module
slots, and a fixed, internal 120/240 VAC power supply.
Is a 1U high, Rackmountable chassis that includes eight media module
slots and a fixed 120/240 VAC power supply.
Is a Rackmountable chassis and includes twelve media conversion module
slots and a 115/230 VAC power supply. MediaConverter/12 is 1U high
and has the power on the rear of the chassis with media conversion
module slots on the front. For redundancy a second power supply maybe
installed.
About McPIMs
McPIMs (Media Converter Port Interface Modules) are 10 Mbps Ethernet modules
which provide a single-conversion between 10Base-T twisted pair and 10Base-FL single-
mode or multi-mode fiber. McPIMs include one RJ-45 connector and one pair of ST or
SC fiber optic connectors. Each McPIM requires one slot in a media converter chassis.
