5-6605728-8 datasheet, PDF - EEWORLD Datasheet

5-6605728-8: DescriptionCONN MAGJACK 1PORT 100 BASE-T; CategoryThe connector; File Size215KB，1 Pages; ManufacturerTRP Connector (Bel Fuse); Environmental Compliance

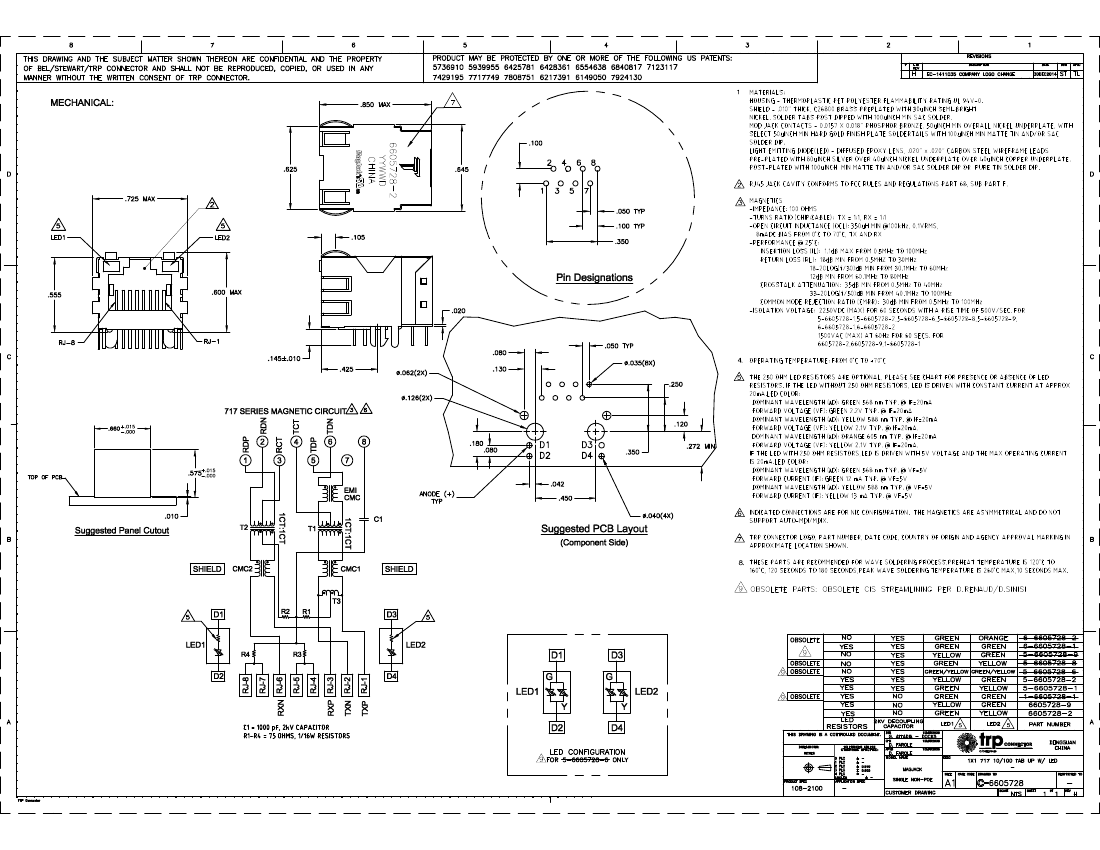

Download Datasheet Parametric Compare View All

5-6605728-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6605728-8	-	-	View	Buy Now

CONN MAGJACK 1PORT 100 BASE-T

Parameter Name	Attribute value
Connector type	RJ45
Number of ports	1
Number of rows	1
application	10/100 Base-T，AutoMDIX
Installation type	Through hole
towards	90° angle (right angle)
Termination	welding
board height	0.555"（14.10mm）
LED color	green-yellow
Number of cores per jack	6
shield	Shielded, EMI refers
characteristic	Board lock, decoupling capacitor
tab direction	superior
Contact material	Phosphor bronze
Contact plating	gold
Operating temperature	0°C ~ 70°C
Contact plating thickness	50.0µin（1.27µm）
shielding material	brass
Shell material	Polyethylene terephthalate (PET), polyester

	5-6605728-8	5-6605728-2	5-6605728-1	6605728-2
Description	CONN MAGJACK 1PORT 100 BASE-T	CONN MAGJACK 1PORT 100 BASE-T	CONN MAGJACK 1PORT 100 BASE-T	CONN MAGJACK 1PORT 100 BASE-T
Connector type	RJ45	RJ45	RJ45	RJ45
Number of ports	1	1	1	1
Number of rows	1	1	1	1
application	10/100 Base-T，AutoMDIX	10/100 Base-T，AutoMDIX	10/100 Base-T，AutoMDIX	10/100 Base-T，AutoMDIX
Installation type	Through hole	Through hole	Through hole	Through hole
towards	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)	90° angle (right angle)
Termination	welding	welding	welding	welding
board height	0.555"（14.10mm）	0.555"（14.10mm）	0.555"（14.10mm）	0.555"（14.10mm）
LED color	green-yellow	yellow-green	green-yellow	green-yellow
Number of cores per jack	6	6	6	6
shield	Shielded, EMI refers	Shielded, EMI refers	Shielded, EMI refers	Shielded, EMI refers
characteristic	Board lock, decoupling capacitor	Board lock, decoupling capacitor	Board lock, decoupling capacitor	plate lock
tab direction	superior	superior	superior	superior
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold	gold	gold
Operating temperature	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C
Contact plating thickness	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）
shielding material	brass	brass	brass	brass
Shell material	Polyethylene terephthalate (PET), polyester	Polyethylene terephthalate (PET), polyester	Polyethylene terephthalate (PET), polyester	Polyethylene terephthalate (PET), polyester
