Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 40mm
All using 105
℃
long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 years warranty
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-300B-5
5V
42A
0 ~ 42A
210W
RSD-300B-12 RSD-300B-24 RSD-300B-48 RSD-300C-5
12V
22.5A
0 ~ 22.5A
270W
120mVp-p
±2.0%
±0.3%
±1.0%
24V
11.3A
0 ~ 11.3A
271.2W
150mVp-p
±2.0%
±0.2%
±1.0%
48V
5.7A
0 ~ 5.7A
273.6W
180mVp-p
±2.0%
±0.5%
±1.0%
5V
42A
0 ~ 42A
210W
100mVp-p
±2.0%
±0.5%
±1.0%
RSD-300C-12 RSD-300C-24 RSD-300C-48
12V
25A
0 ~ 25A
300W
120mVp-p
±2.0%
±0.3%
±1.0%
24V
12.5A
0 ~ 12.5A
300W
150mVp-p
±2.0%
±0.2%
±1.0%
48V
6.3A
0 ~ 6.3A
302.4W
180mVp-p
±2.0%
±0.5%
±1.0%
RIPPLE & NOISE (max.)
Note.2
100mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE
RANGE
CONTINUOUS
1 SEC.
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±1.0%
800ms, 50ms at full load
B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load
16.8 ~ 31.2VDC
14.4 ~ 33.6VDC
89%
9.7A/24V
45A/24VDC
89.5%
14.6A/24V
90%
14.6A/24V
91.5%
14.6A/24V
33.6 ~ 62.4VDC
28.8 ~ 67.2VDC
90.5%
4.8A/48V
45A/48VDC
91%
7.2A/48V
91.5%
7.2A/48V
92%
7.2A/48V
INPUT
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
55.2 ~ 64.8V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
no derating with external base plate, TX class compliance
5 ~ 95% RH non-condensing
-40 ~ +85
℃
, 5 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 55
℃
)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
IEC60950-1(LVD)
,
EAC TP TC 004 approved
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B,
EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A,
EAC TP TC 020
EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
;
EN45545-2 for fire protection
130.7K hrs min.
MIL-HDBK-217F (25
℃
)
216*96.5*40mm (L*W*H)
1.19Kg ; 12pcs/15.3Kg/1.12CUFT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY &
EMC
(Note 5)
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 24,48VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Strongly recommended that external output capacitance should not exceed 5000uF.
(Only
for: RSD-300-5 / -12)
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-300-SPEC 2018-01-15
300W Railway Single Output DC-DC Converter
RSD-300
series
■
Features :
Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 40mm
All using 105
℃
long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 years warranty
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-300D-5
5V
42A
0 ~ 42A
210W
RSD-300D-12 RSD-300D-24 RSD-300D-48 RSD-300E-5
12V
25A
0 ~ 25A
300W
120mVp-p
±2.0%
±0.2%
±1.0%
24V
12.5A
0 ~ 12.5A
300W
150mVp-p
±2.0%
±0.2%
±1.0%
48V
6.3A
0 ~ 6.3A
302.4W
180mVp-p
±2.0%
±0.5%
±1.0%
5V
42A
0 ~ 42A
210W
100mVp-p
±2.0%
±0.5%
±1.0%
RSD-300E-12 RSD-300E-24 RSD-300E-48
12V
25A
0 ~ 25A
300W
120mVp-p
±2.0%
±0.3%
±1.0%
24V
12.5A
0 ~ 12.5A
300W
150mVp-p
±2.0%
±0.2%
±1.0%
48V
6.3A
0 ~ 6.3A
302.4W
180mVp-p
±2.0%
±0.5%
±1.0%
RIPPLE & NOISE (max.)
Note.2
100mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE
RANGE
CONTINUOUS
1 SEC.
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±1.0%
800ms, 50ms at full load
D-type and E-5 comply with S2 level @ full load; other E- type comply with S1 level @ full load, comply with S2 level @ 70% load
67.2 ~ 143VDC
57.6 ~ 154VDC
90%
2.1A/110V
45A/110VDC
91.5%
3.1A/110V
91.5%
3.1A/110V
91.5%
3.1A/110V
25.2 ~ 46.8VDC
21.6 ~ 50.4VDC
88%
6.5A/36V
45A/36VDC
90%
9.2A/36V
91%
9.2A/36V
91%
9.2A/36V
INPUT
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
55.2 ~ 64.8V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
no derating with external base plate, TX class compliance
5 ~ 95% RH non-condensing
-40 ~ +85
℃
, 5 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 55
℃
)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
IEC60950-1(LVD)
,
EAC TP TC 004 approved
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B,
EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A,
EAC TP TC 020
EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
;
EN45545-2 for fire protection
130.7K hrs min.
MIL-HDBK-217F (25
℃
)
216*96.5*40mm (L*W*H)
1.19Kg ; 12pcs/15.3Kg/1.12CUFT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY &
EMC
(Note 5)
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 36,110VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Strongly recommended that external output capacitance should not exceed 5000uF.
(Only
for: RSD-300-5 / -12)
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-300-SPEC 2018-01-15

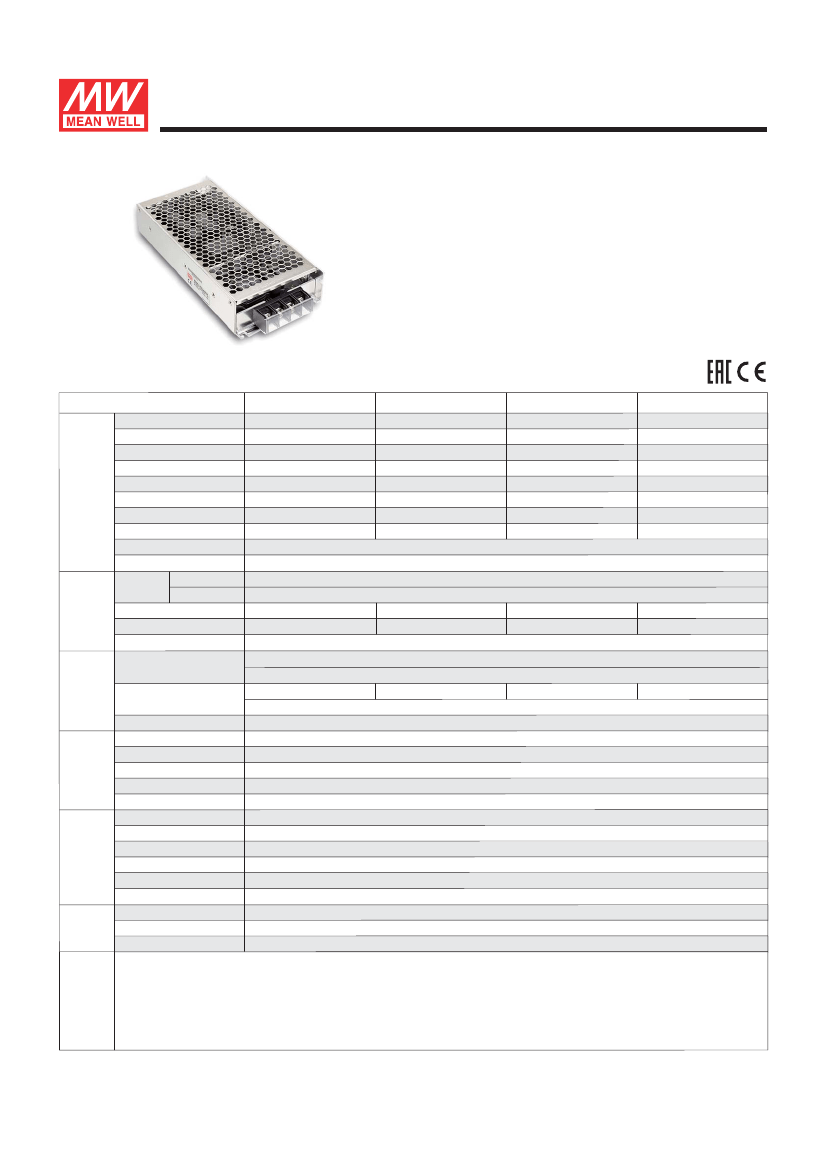

300W Railway Single Output DC-DC Converter
RSD-300
series
■
Features :
Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input reverse polarity
4000VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
•
1U low profile 40mm
LED indicator for power on
100% full load burn-in test
3 years warranty
•
All using 105
℃
long life electrolytic capacitors
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-300F-5
5V
42A
0 ~ 42A
210W
RSD-300F-12
12V
25A
0 ~ 25A
300W
120mVp-p
±2.0%
±0.3%
±1.0%
RSD-300F-24
24V
12.5A
0 ~ 12.5A
300W
150mVp-p
±2.0%
±0.2%
±1.0%
RSD-300F-48
48V
6.3A
0 ~ 6.3A
302.4W
180mVp-p
±2.0%
±0.5%
±1.0%
RIPPLE & NOISE (max.)
Note.2
100mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE
RANGE
CONTINUOUS
1 SEC.
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±1.0%
800ms, 50ms at full load
F-type comply with S2 level @ full load
50.4 ~ 93.6VDC
43.2 ~ 100.8VDC
89%
3.25A/72V
45A/72VDC
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
no derating with external base plate, TX class compliance
5 ~ 95% RH non-condensing
-40 ~ +85
℃
, 5 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 55
℃
)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
IEC60950-1(LVD)
,
EAC TP TC 004 approved
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B,
EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A,
EAC TP TC 020
EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
;
EN45545-2 for fire protection
130.7K hrs min.
MIL-HDBK-217F (25
℃
)
216*96.5*40mm (L*W*H)
1.19Kg ; 12pcs/15.3Kg/1.12CUFT
91%
4.6A/72V
91%
4.6A/72V
91.5%
4.6A/72V
INPUT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY &
EMC
(Note 5)
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 72VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Strongly recommended that external output capacitance should not exceed 5000uF.
(Only
for: RSD-300-5 / -12)
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-300-SPEC 2018-01-15
300W Railway Single Output DC-DC Converter

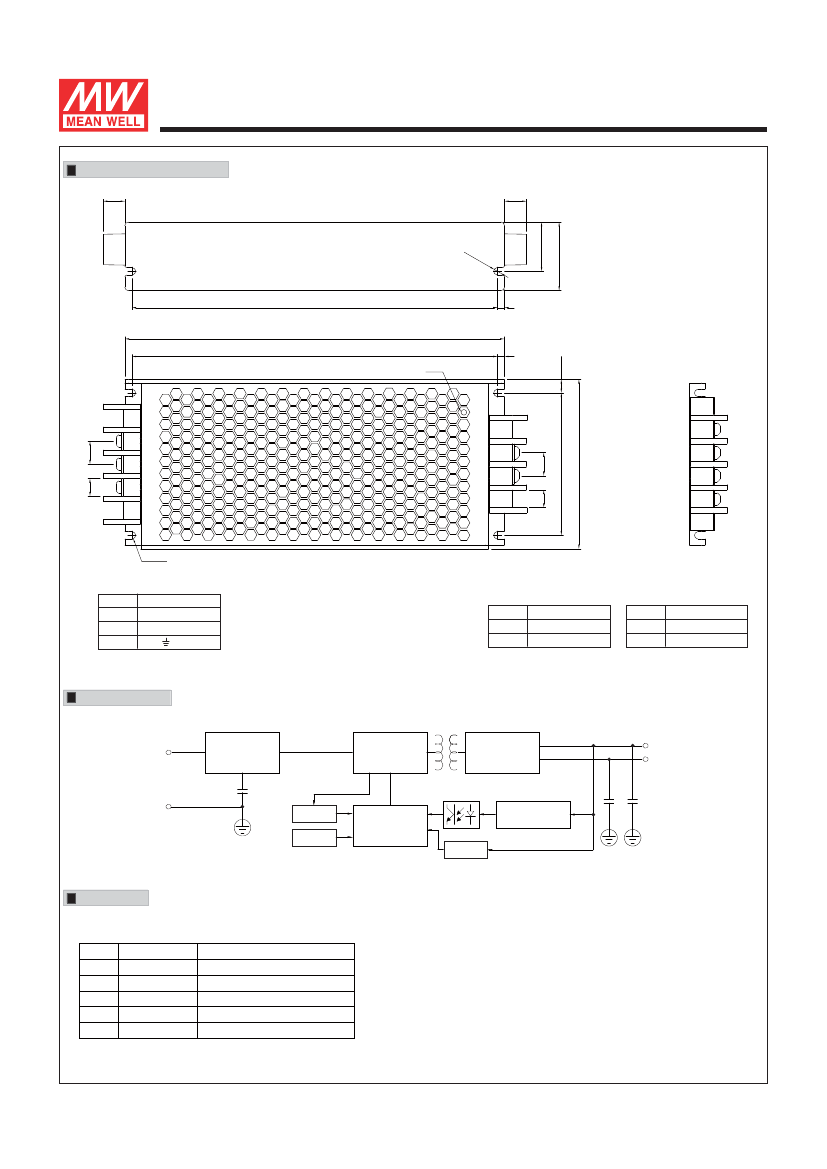

Mechanical Specification
15max.
15max.
RSD-300
Case No.205
series
Unit:mm
208
4
216
208
LED
4
7.75
I/P
1
13
40
2-R
2.1
28
1
O/P
13
96.5
81
1
2
2
2
3
10
3
10
4
4-R2.1
Input Terminal Pin No. Assignment :
Pin No.
1
2
3
Assignment
DC INPUT V+
DC INPUT V-
FG
Output Terminal Pin No. Assignment :
(For 12V, 24V, 48V)
(For 5V)
Pin No.
1
2
Assignment
DC OUTPUT -V
DC OUTPUT +V
Pin No.
1,2
3,4
Assignment
DC OUTPUT -V
DC OUTPUT +V
Block Diagram
RECTIFIERS
&
FILTER
fosc : 130KHz
I/P
EMI
FILTER
POWER
SWITCHING
+V
-V
FG
O.L.P.
O.T.P.
PWM
CONTROL
O.V.P.
DETECTION
CIRCUIT
Input Fuse
There are one or two fuses connected in series to the positive input line, which are used to protect against abnormal surge. Fuse specifications of each model are shown
as below.
Type
B
C
D
E
F
Fuse Type
Fast
Time-Lag
Time-Lag
Time-Lag
Time-Lag
Reference and Rating
Littelfuse 257, 30A, 32V
Conquer UDA-A, 16A, 250V
Conquer UDA-A, 8A, 250V
Conquer UDA-A, 20A, 250V
Conquer UDA-A, 10A, 250V
File Name:RSD-300-SPEC 2018-01-15
300W Railway Single Output DC-DC Converter

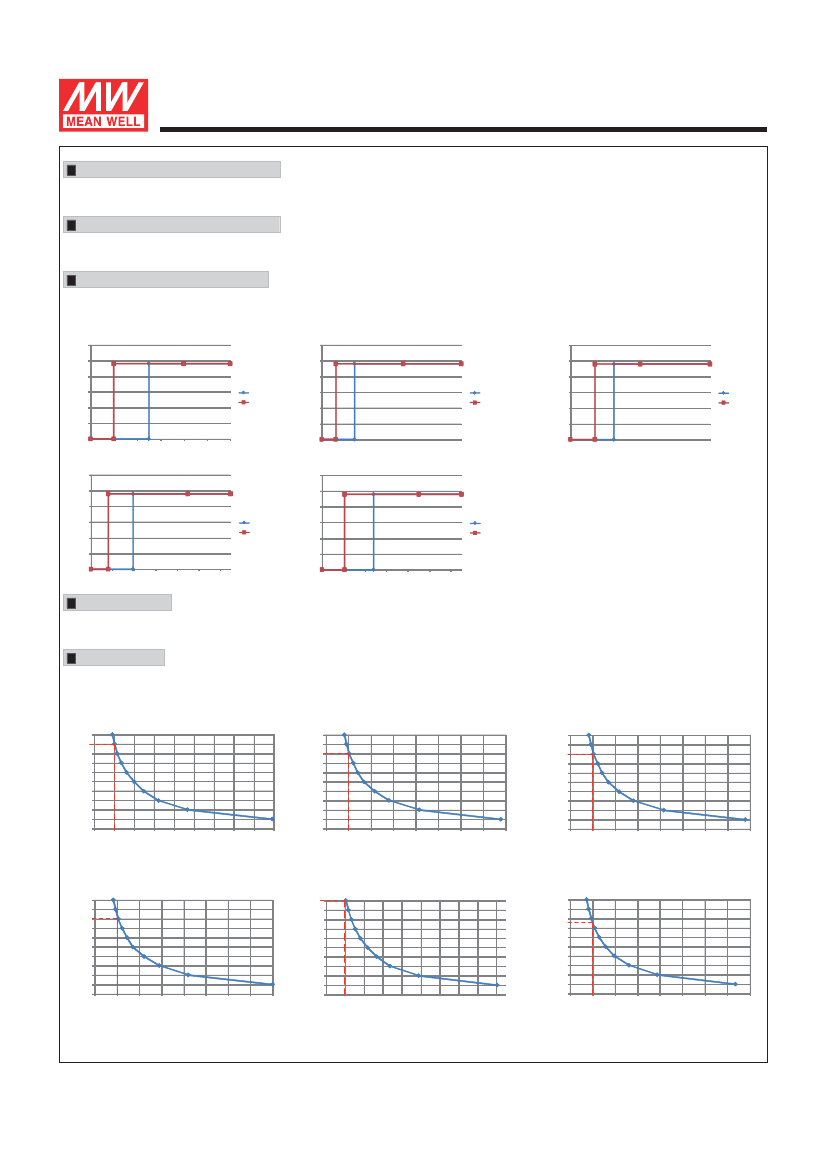

Input Reverse Polarity Protection
RSD-300
series
There is a MOSFET connected in series to the negative input line. If the input polarity is connected reversely, the MOSFET opens and there will be no output to protect
the unit.
Input Range and Transient Ability
The series has a wide range input capability. Within
±
30% of rated input voltage, it can be executed at full-load operation and operate properly; with
±
40% of rated input
voltage, it can withstand that for 1 second.
Input Under-Voltage Protection
If input voltage drops below Vimin, the internal control IC shuts down and there is no output voltage. It recovers automatically when input voltage reaches above Vimin,
please refer to the cruve below.
RSD-300B-24
Vo
30
25
20
15
10
5
12
0
11
12
13
14
15
16
17
13.5
Turn On
Turn Off
10
5
RSD-300C-24
Vo
30
25
30
20
15
Turn On
Turn Off
RSD-300D-24
Vo
30
25
20
15
10
5
Turn On
Turn Off
Vin
24.2
0
23
25
25.8
27
29
31
33
35
Vin
53.5
0
50
55
56.2
60
65
70
Vin
RSD-300E-24
Vo
30
25
20
15
10
5
18.6
0
17
19
21
23
25
27
29
20.9
Turn On
Turn Off
RSD-300F-24
Vo
30
25
20
15
10
5
Turn On
Turn Off
Vin
39.1
0
37
39
41
41.8
43
45
47
49
Vin
Inrush Current
Inrush current is suppressed by a resistor during the initial start-up, and then the resistor is bypassed by a MOSFET to reduce power consumption after accomplishing
the start-up.
Hold-up Time
D and F and E-5 types are in compliance with S2 level, while B and C and E types are in compliance with S1 level at full load output condition.
To fulfil the requirements of S2 level, B and C and E types require de-rating their output load to 70%, please refer to the curve diagrams below.
I used FedEx to send the items I sold at TI estore to China. I changed the address twice and they still didn't deliver it. It shows that the address is wrong. How can I contact them?...
:) This will be a short and sharp tutorial. It is used when you are in the process of designing a project or other situations where you need to open some files after opening the software. Here I will ...
Can I read the ADC conversion structure in an interrupt? Why do some people say that the interrupt flag is set only after the data register is updated?...
[i=s]This post was last edited by elec32156 on 2021-5-25 13:34[/i]Please tell me how to do ESD protection design in the whole circuit system as shown in the figure below?1. Equipment situation: The wh...
Tesla and BYD, vying for dominance in the global electric vehicle market, are reportedly considering adopting Samsung's AMOLED (active-matrix organic light-emitting diode) technology for their next...[Details]
introduction
With the development of digital and network technologies, broadcasting technology has become increasingly diversified, with the most significant trend being the transition from an...[Details]
"Have you set your calendar reminder?"
On August 24, Nvidia Robotics' official account posted a photo of a black gift box on a social media platform, with an attached greeting card sig...[Details]
The mass production process of the new generation of cockpit platform has started, and the smart cockpit market has entered a new bonus cycle of technology iteration and platform upgrade.
...[Details]
Current Development Status of DVR Market
A DVR, or digital video recorder, uses a hard disk for recording, unlike traditional analog video recorders. It's often called a DVR because it's a com...[Details]
On August 25th, TSMC, the world's leading contract chip manufacturer, attracted significant attention for its decision to build a chip manufacturing facility in Arizona. TSMC primarily manufactures...[Details]
According to foreign media reports, researchers at the University of Surrey have developed an artificial intelligence system that can accurately locate the location of equipment in densely populate...[Details]
On August 22, Lantu Motors officially launched its Lanhai Intelligent Hybrid technology via an online livestream. This intelligent hybrid technology, which integrates a full-range 800V high-voltage...[Details]
As AI accelerates across industries, the demand for data center infrastructure is also growing rapidly.
Keysight Technologies, in collaboration with Heavy Reading, released the "Beyo...[Details]
Learned the following information.
Customer product: industrial computer motherboard
Glue application area: CPU/BGA filling
Glue color requirements: black or t...[Details]
According to foreign media reports, Ford Motor has applied to the U.S. Patent and Social Security Office (USPTO) for a patent for a door anti-collision system that may be used in future Ford vehicl...[Details]
HTTP is the abbreviation of Hypertext Transfer Protocol. It is an application protocol based on TCP/IP communication protocol used to transmit HTML and image files. It is an application-level objec...[Details]
With the support and encouragement of national policies, some Internet car manufacturers have also joined the new energy vehicle manufacturing industry. From the perspective of new car manufacturer...[Details]
Renesas Electronics' new ultra-low-power RA4C1 MCU features advanced security and a dedicated peripheral set, making it ideal for metering and other applications.
The new product mee...[Details]
Shanghai, China, August 21, 2025 –
Toshiba Electronic Devices & Storage Corporation (“Toshiba”) today announced the launch of the TLX9161T
, an automotive photorelay in a compact SO12L-T pa...[Details]
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
