IXFN50N120SIC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> IXFN50N120SIC

IXFN50N120SIC: DescriptionMOSFET N-CH; Categorysemiconductor Discrete semiconductor; File Size425KB，7 Pages; ManufacturerIXYS ( Littelfuse ); Websitehttp://www.ixys.com/

Download Datasheet Parametric View All

IXFN50N120SIC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IXFN50N120SIC	-	-	View	Buy Now

IXFN50N120SIC Overview

MOSFET N-CH

IXFN50N120SIC Parametric

Parameter Name	Attribute value
FET type	N channel
technology	SiC (Silicon Carbide Crystal Transistor)
Drain-source voltage (Vdss)	1200V
Current - Continuous Drain (Id) at 25°C	47A（Tc）
Drive voltage (maximum Rds On, minimum Rds On)	20V
Rds On (maximum value) when different Id, Vgs	50 milliohms @ 40A, 20V
Vgs (th) (maximum value) when different Id	2.2V @ 2mA
Gate charge (Qg) at different Vgs (maximum value)	100nC @ 20V
Vgs (maximum value)	+20V，-5V
Input capacitance (Ciss) at different Vds (maximum value)	1900pF @ 1000V
FET function	-
Power dissipation (maximum)	-
Operating temperature	-40°C ~ 150°C（TJ）
Installation type	Base installation
Supplier device packaging	SOT-227B
Package/casing	SOT-227-4，miniBLOC

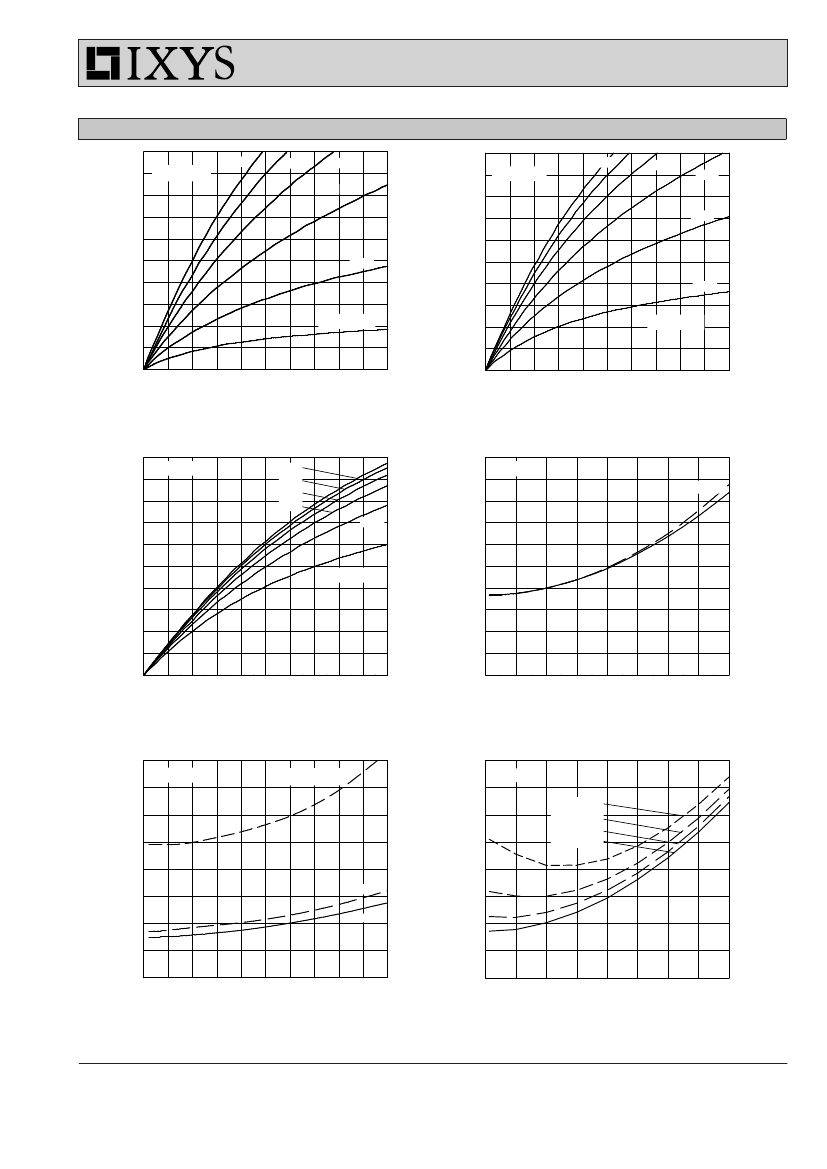

Preview

Download Datasheet

View All

IXFN50N120SiC

preliminary

SiC Power MOSFET

D25

47 A

DSS

= 1200 V

DS(on) max

= 50 mΩ

Part number

IXFN50N120SiC

Backside: isolated

UL pending

D (3)

(2)

S (1, 4)

Features / Advantages:

• High speed switching

with low capacitances

• High blocking voltage

with low R

DS(on)

• Easy to parallel and simple to drive

• Avalanche ruggedness

• Resistant to latch-up

Applications:

• Solar inverters

• High voltage DC/DC converters

• Motor drives

• Switch mode power supplies

• UPS

• Battery chargers

• Induction heating

Package:

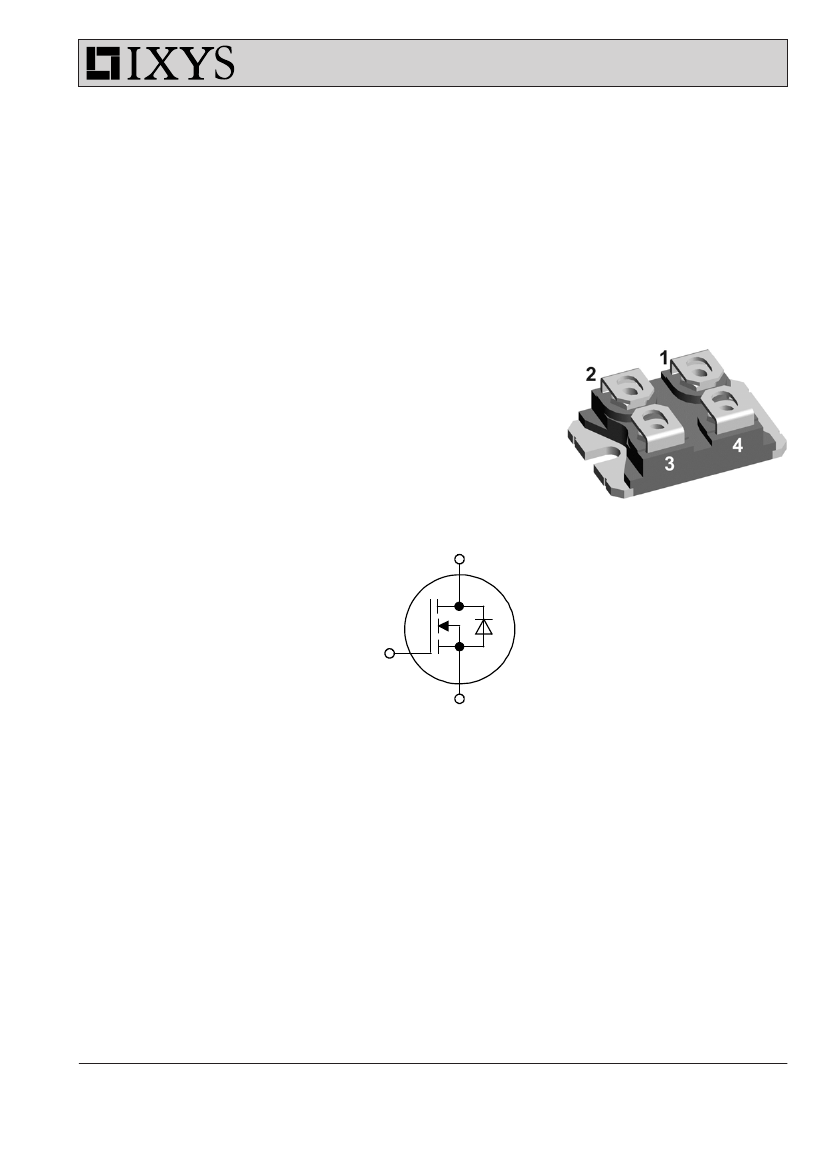

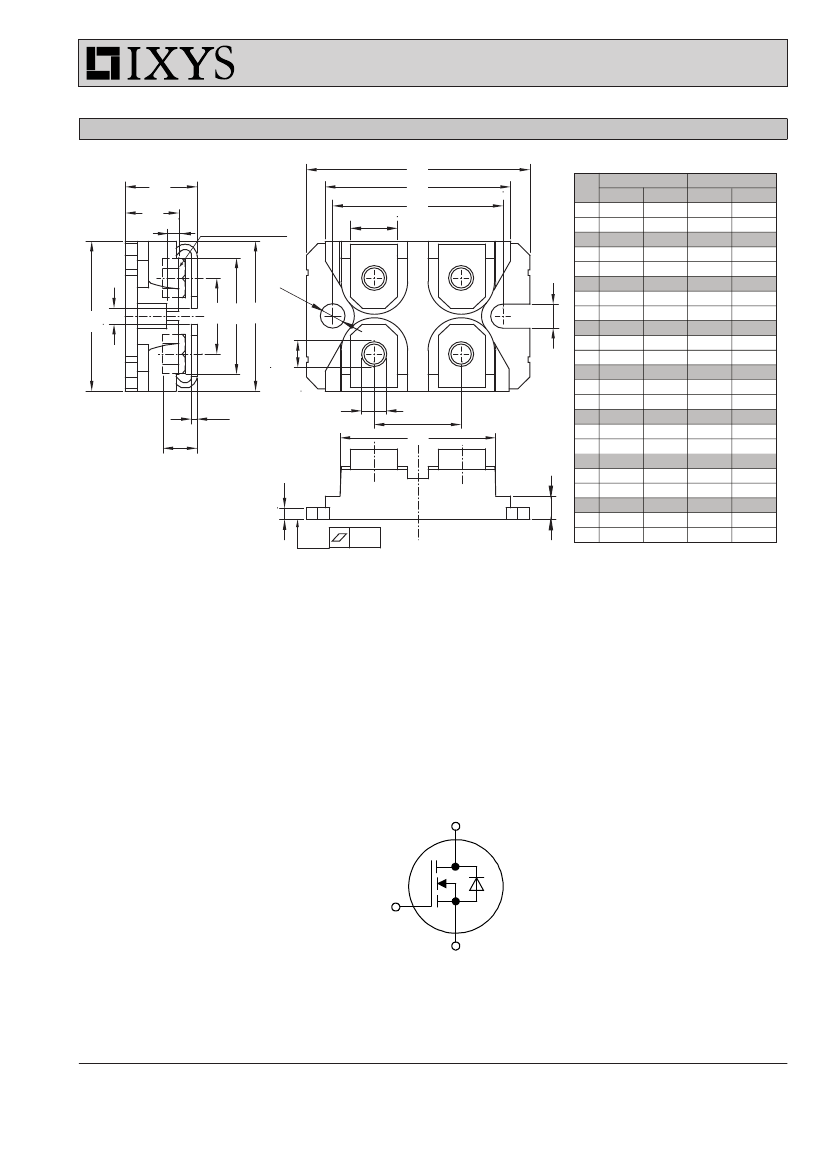

SOT-227B (minibloc)

• Isolation Voltage: 3000 V~

• Industry standard outline

• RoHS compliant

• Epoxy meets UL 94V-0

• Base plate with Aluminium nitride

isolation

• Advanced power cycling

Terms & Conditions of usage

The data contained in this product data sheet is exclusively intended for technically trained staff. The user will have to evaluate the suitability of the product for the intended application and the completeness of

the product data with respect to his application. The specifications of our components may not be considered as an assurance of component characteristics. The information in the valid application- and assembly

notes must be considered. Should you require product information in excess of the data given in this product data sheet or which concerns the specific application of your product, please contact your local sales

office.

Due to technical requirements our product may contain dangerous substances. For information on the types in question please contact your local sales office.

Should you intend to use the product in aviation, in health or life endangering or life support applications, please notify. For any such application we urgently recommend

- to perform joint risk and quality assessments;

- the conclusion of quality agreements;

- to establish joint measures of an ongoing product survey, and that we may make delivery dependent on the realization of any such measures.

IXYS reserves the right to change limits, test conditions and dimensions.

20180223b

1-7
