One terminator in free topology (TP/FT-10, TP/FT-10F only),
two terminators in doubly-terminated bus topology for all others
-40 to +85°C (excluding flash memory)
-40 to +85°C
25 - 90% RH @ 50°C, non-condensing
95% RH @ 50°C, non-condensing
61 mm x 18 mm x 41 mm (2.4″ x 0.7″ x 1.6″)

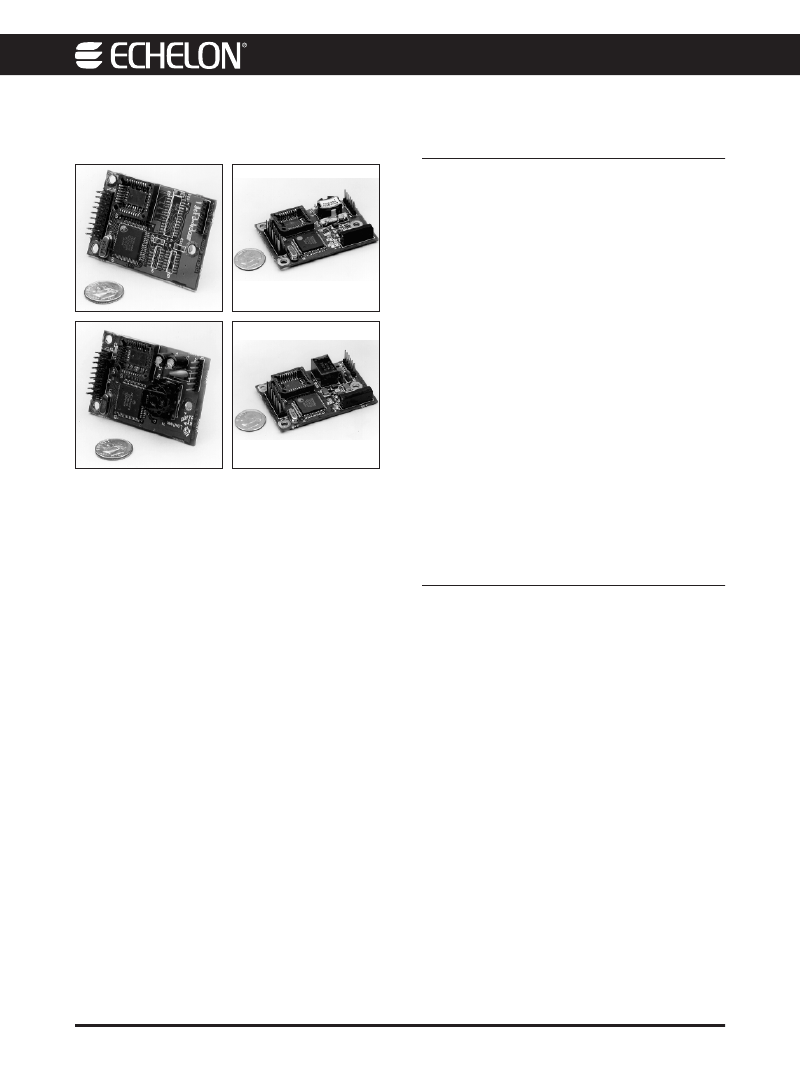

Ordering Information
Product
TP/FT-10 Module
TP/FT-10F Module
TP/XF-78 Module
TP/XF-78F Module
TP/XF-1250 Module
L
ON
W
ORKS
Twisted Pair Control Module User’ Guide
s
(order separately–not shipped with product)
Echelon Model Number
55020-01, 55020R-01 (RoHS-compliant)
55020-10, 55020R-10 (RoHS-compliant)
55010-00, 55010R-00 (RoHS-compliant)
55010-10, 55010R-10 (RoHS-compliant)
55030-10, 55030R-10 (RoHS-compliant)
078-0015-01
Notes:
1. Worst case distance figures are based on variations in node distribution, node temperature, node voltage, wire characteristics, transceiver characteristics,
and Neuron Chip characteristics, and allow for an average wire temperature of up to +55°C.
2. Network length for TP/FT-10 varies depending on wire type. See LonWorks FTT-10 Free Topology Transceiver User’s Guide for detailed specifications.
3. Safety agency hazardous voltage barrier requirements are not supported.
4. These figures include typical PROM current consumption of 4mA @ 5MHz or 5mA @ 10MHz. During flash memory write cycles an additional 50mA will
be consumed by the TP/XF-78F module. These figures exclude current due to loading on the I/O connector pins.
5. The I/O pins of P1 connect directly to the Neuron Chip and do not contain additional protection beyond what is available with a typical advanced CMOS device.
6. See Motorola or Toshiba Neuron Chip Data Book for operational temperature limitations of the Neuron Chip. In particular, versions of the Neuron Chip may
be unable to write to the EEPROM at temperatures below -20°C, even though all other non-write operations are supported at -40°C.
7. For wire specifications, see Junction Box and Wiring Guidelines for Twisted Pair LonWorks Networks, 005-0023-01 Rev D or later.
8. Wiring topology restrictions apply to TP/XF-1250 modules for proper operation. No more than eight (8) TP/XF-1250 modules may be located within any sixteen
(16) meter section of bus cable. Topology restrictions apply to TPM-1250 SMX Transceiver Modules as well, and each TPM-1250 module equals two TP/XF-1250
or TPT/XF-1250 modules from the perspective of number of devices on a channel.
* Neuron Chips and Control Modules were not designed for use in equipment or systems which involve danger to human health or safety or a risk of property damage
and Echelon assumes no responsibility or liability for use of the Neuron Chips or Control Modules in such applications.
ShortStack, Panoramix, LonMaker, the Echelon logo, and the LonUsers logo are trademarks of Echelon Corporation registered in the United States and other countries. LonLink, LonResponse, LonSupport, LONews,
Open Systems Alliance, OpenLDV, Powered by Echelon, LNS Powered by Echelon, Panoramix Powered by Echelon, L
ON
W
ORKS
Powered by Echelon, Networked Energy Services Powered by Echelon, NES Powered
by Echelon, Digital Home Powered by Echelon, Pyxos, and Thinking Inside the Box are trademarks of Echelon Corporation. Other trademarks belong to their respective holders.
Disclaimer
Neuron Chips, Free Topology Twisted Pair Transceiver Modules, and other OEM Products were not designed for use in equipment or systems which involve danger to human health or safety or a risk of property
damage and Echelon assumes no responsibility or liability for use of the Neuron Chips or Free Topology Twisted Pair Transceiver Modules in such applications. ECHELON MAKES AND YOU RECEIVE NO
WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED, STATUTORY OR IN ANY COMMUNICATION WITH YOU, AND ECHELON SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY
