0026624020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0026624020

0026624020: DescriptionKK 156 HDR ASSY FRLK 2POS; CategoryThe connector; File Size240KB，12 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0026624020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0026624020	-	-	View	Buy Now

0026624020 Overview

KK 156 HDR ASSY FRLK 2POS

0026624020 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.156"（3.96mm）
Number of pins	2
Number of rows	1
Line spacing - patching	-
Number of pins loaded	1
style	Board to Board or Cable
shield	Covered - 1 wall
Installation type	Through hole
Termination	welding
Fastening type	friction lock
Contact Length - Mating	0.450"（11.43mm）
Contact length - terminal	0.140"（3.56mm）
Overall contact length	0.720"（18.29mm）
Insulation height	0.446"（11.33mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	60.0µin（1.52µm）
Contact Surface Preparation - Column	tin
Contact material	-
Insulation Materials	Polyester, fiberglass reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	60.0µin（1.52µm）
application	Automotive, general, industrial, medical, telecommunications

Preview

Download Datasheet

View All

CKT

DIM. A

7.77

.306

11.73

.462

15.70

.618

19.66

.774

23.62

.930

27.58

1.086

31.55

1.242

35.51

1.398

39.47

1.554

43.43

1.710

47.40

1.866

51.36

2.022

55.32

2.178

59.28

2.334

63.25

2.490

67.21

2.646

71.17

2.802

DIM. B

SLOT LOC

BETWEEN CKTS

3.96

0.05

.156

.002

7.92

0.08

.312

.003

11.89

0.08

.468

.003

15.85

0.10

.624

.004

19.81

0.10

.780

.004

23.77

0.10

.936

.004

27.74

0.13

1.092

.005

31.70

0.13

1.248

.005

35.66

0.13

1.404

.005

39.62

0.15

1.560

.006

43.59

0.15

1.716

.006

47.55

0.15

1.872

.006

51.51

0.18

2.028

.007

55.47

0.18

2.184

.007

59.44

0.18

2.340

.007

63.40

0.20

2.496

.008

67.36

0.20

2.652

.008

NONE

3&4

4&5

5&6

6&7

4&5

8&9

4&5

9 & 10

5&6

9 & 10

5&6

10 & 11

5&6

11 & 12

6&7

11 & 12

6&7

12 & 13

2.41

.095

5.11

.201

DIM. A REF

DIM. B

1.91

.075

CENTERLINE OF PIN AT TIP

NOT TO VARY FROM

CENTERLINE OF PIN AT DATUM -D-

BY MORE THAN 0.20/.008 IN ANY DIRECTION.

FEATURE MAY BE ON EITHER

SIDE OF THE PART

3.96REF.

.156

TYP. BETWEEN ANY

2 CONSECUTIVE

CKTS. AT -D-

11.33

0.51

.446

.020

0.38

.015

DETAIL Z

GOLD

CKT. NO. 1

SEE NOTE 9

TYP

SEE NOTE 10

AND DETAIL Z

3.30

0.25

.130

.010

TIN

VOIDED CKT.

SEE CHART FOR LOCATION

-D-

TYP

REF

10.01

0.51

.394

.020

CENTERLINE OF PIN AT TIP

NOT TO VARY FROM

CENTERLINE OF PIN AT DATUM -D-

BY MORE THAN 0.13/.005 IN ANY DIRECTION.

NOTES:

1. MATERIAL: HEADER-GLASS FILLED POLYESTER, 94V-0, MOLDED NATURAL (WHITE).

2. FINISH:

(154-TIN)

OVERALL TIN: 0.00254/.000100 MIN.

OVER 0.00127/.000050 MIN NICKEL.

(197-TIN)

OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN.

OVER 0.00127/.000050 MIN. NICKEL OVERALL.

(222-TIN)

OVERALL MATTE TIN: 0.00254/.000100 MIN.

OVER 0.00127/.000050 MIN NICKEL.

(208-15 GOLD) SELECT GOLD: 0.00038/.000015 MIN, SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(228-30 GOLD) SELECT GOLD: 0.00076/.000030 MIN, SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(241-20 GOLD) 0.00051/.000020 MIN.

SELECT TIN: 0.00254/.000100 MIN.

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

3. PRODUCT SPECIFICATION AND PROCESS PARAMETERS: SEE PS-08-50.

4. PACKAGING INFORMATION: SEE CHARTS.

5. SOLDERABILITY: PER SMES-152.

6. PIN PUSH-OUT FORCE: PRIOR TO SOLDERING, A 3 LB. MINIMUM FORCE (IN EITHER DIRECTION)

7. PARTS ARE STACKABLE END TO END ON 3.96/.156 CENTERS.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002.

9. SLOTS ON BACKWALL ARE BETWEEN CIRCUITS. SEE CHART FOR LOCATION.

10 FEATURE MAY OR MAY NOT EXTEND ACROSS THE ENTIRE FACE OF THE PART "SEE DETAIL Z".

DETAIL Z

SCALE 4:1

3.96

0.05

TYP

.156

.002 NON-ACCUM

5.08

.200

MIN

1.70

0.05

.067

.002

DIA TYP

2016/08/01

2016/08/18

2016/08/25

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

RECOMMENDED P.C.BOARD LAYOUT

ADD 41791-0090

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

2:1

2003/11/07

DATE

INCH

0.015

0.01

4 PLACES

3 PLACES

2 PLACES

0.25

0.38

JSCHAFER

CHK'D BY

107107

MKIPPER

JBELL

FSMITH

KSAMIEC

APPR BY

DATE

2003/11/07

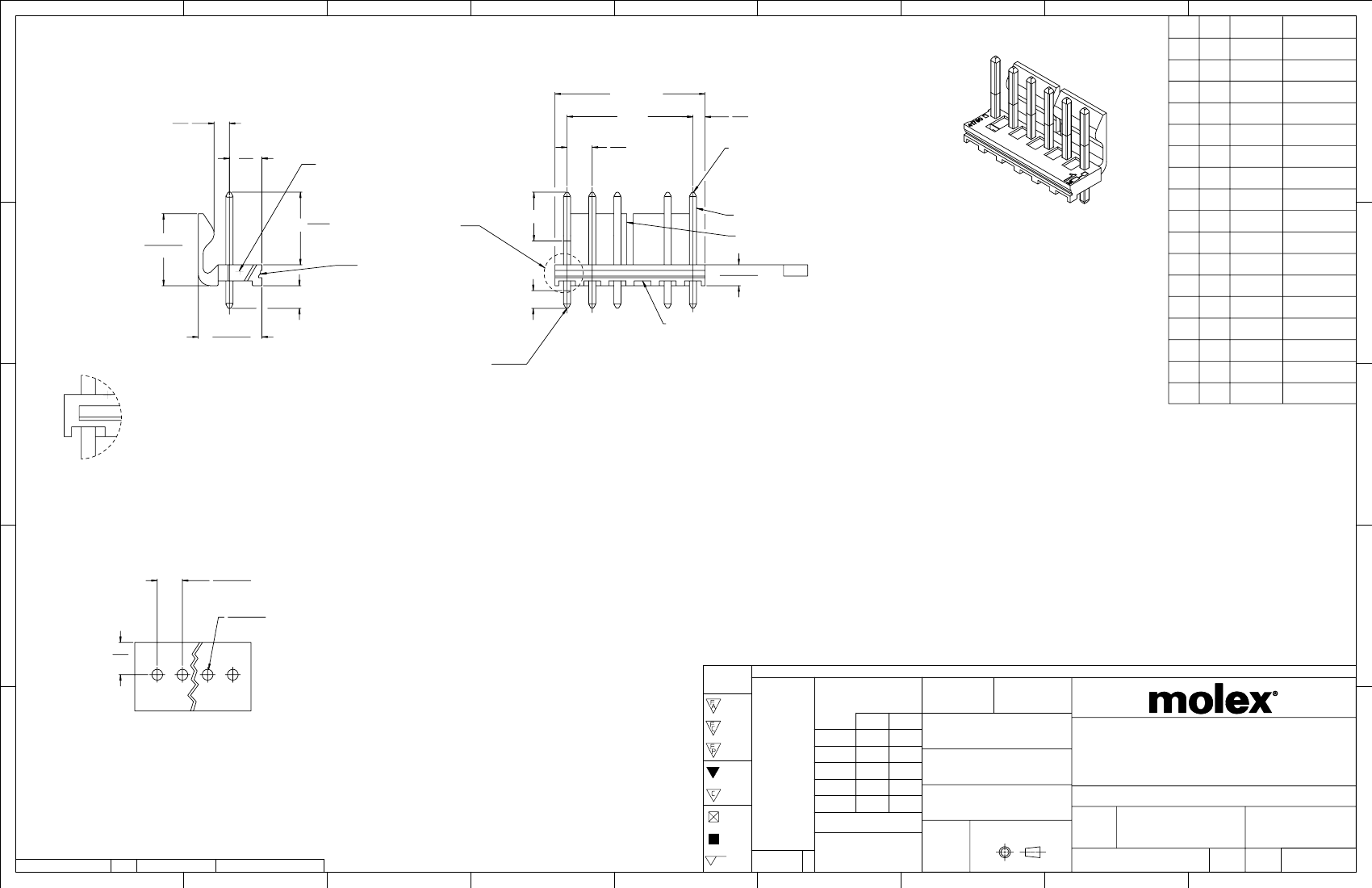

KK 156 HEADER ASSEMBLY

FRICTION LOCK VERTICAL SOLID BODY W/O PEGS

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

MARGULIS

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: C

DATE: 2016/04/04

RELEASE DATE

41791

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

SDA-41791

PSD

000

1 OF *

REV
