Surface Mount Aluminum Electrolytic Capacitors
EXV, +105°C
Overview
Applications
Typical applications include audio/visual (AV), computer/
monitor, communications, and switch mode power supplies
(SMPS).

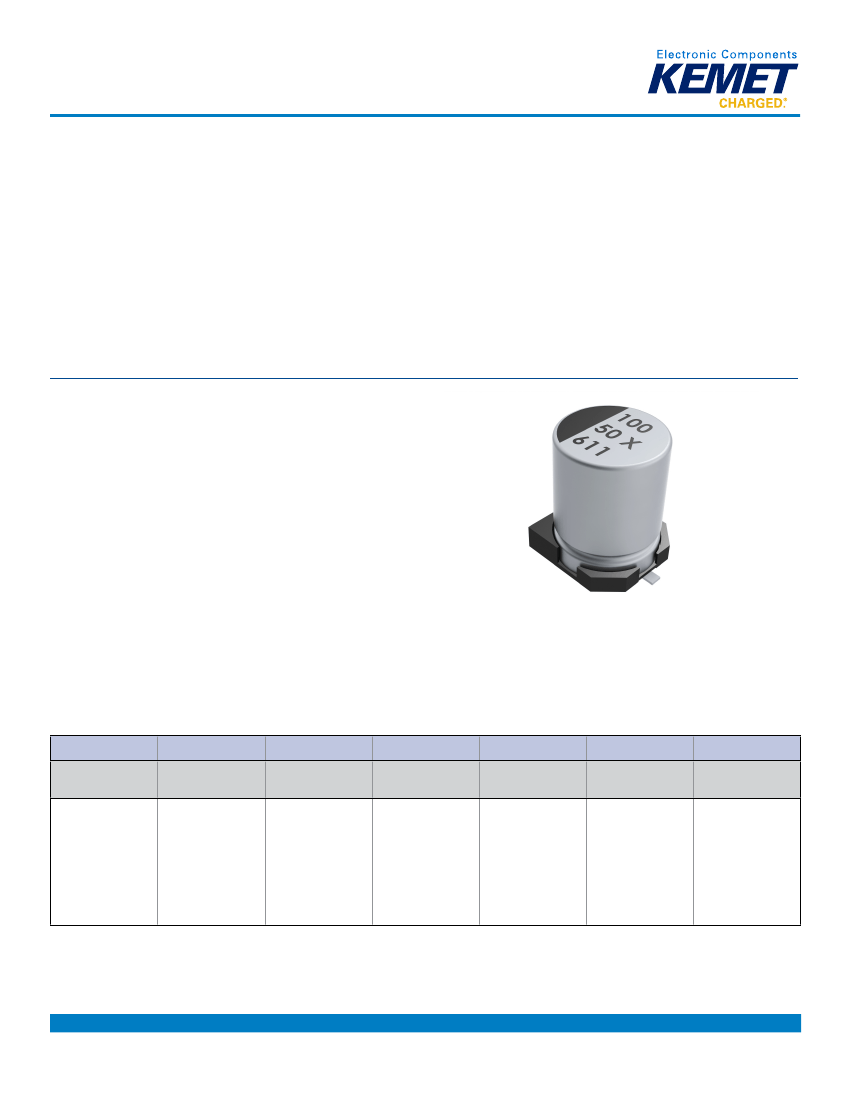

The KEMET EXV aluminum electrolytic surface mount
capacitors are designed for applications requiring ultra low
impedance and a low profile vertical chip.
Benefits
• Surface mount lead terminals
• Low profile vertical chip
• Ultra-low impedance
• +105°C/3,000 – 5,000 hours
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
EXV
Series
Surface Mount
Aluminum
Electrolytic
226
Capacitance Code
(pF)
First two digits
represent
significant figures
for capacitance
values. Last digit
specifies the
number of zeros to
be added.
M
Tolerance
M = ±20%
6R3
Rated Voltage
(VDC)
6R3 = 6.3
010 = 10
016 = 16
025 = 25
035 = 35
050 = 50
A
Electrical
Parameters
A = Standard
S = AEC-Q200
9B
Size Code
See Dimension
Table
AA
Packaging
AA = Tape & Reel
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 5/22/2018
1
Surface Mount Aluminum Electrolytic Capacitors – EXV, +105°C
Dimensions – Millimeters
D
C
B
G
P
L
A
W
F
E
D
Nominal
4
5
6.3
6.3
8
10
Tolerance
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Nominal
5.4
5.4
5.4
7.7
10.2
10.2
E
E
Size Code
9B
9D
9G
9H
9M
9P
L
Tolerance
+0.25/−0.1
+0.25/−0.1
+0.25/−0.1
±0.3
±0.3
±0.3
Nominal
4.3
5.3
6.6
6.6
8.3
10.3
A/B
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
5.5
6.5
7.8
7.8
10
13
C
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
1.8
2.2
2.6
2.6
3.4
3.5
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Size Code
9B
9D
9G
9H
9M
9P
F
Nominal
0.3
0.3
0.3
0.3
0.3
0.3
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.35
0.35
0.35
0.35
0.70
0.70
G
Tolerance
+0.15/−0.2
+0.15/−0.2
+0.15/−0.2
+0.15/−0.2
±0.2
±0.2
Nominal
1.0
1.5
1.8
1.8
3.1
4.6
P
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
0.65
0.65
0.65
0.65
0.9
0.9
W
Tolerance
±0.1
±0.1
±0.1
±0.1
±0.2
±0.2
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 5/22/2018
2
Surface Mount Aluminum Electrolytic Capacitors – EXV, +105°C
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental
effects of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like
China, legislation has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic
equipment. All products in this catalog are produced to help our customers’ obligations to guarantee their products and fulfill
these legislative requirements. The only material of concern in our products has been lead (Pb), which has been removed
from all designs to fulfill the requirement of containing less than 0.1% of lead in any homogeneous material. KEMET will
closely follow any changes in legislation world wide and make any necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode
coatings. To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels
for RoHS compatible capacitors.
Due to customer requirements, there may appear additional markings such as lead free (LF) or lead-free wires (LFW) on the
label.
Performance Characteristics
Item
Capacitance Range
Capacitance Tolerance
Rated Voltage
Life Test
Operating Temperature
Leakage Current
1 – 1,000 µF
±20% at 120 Hz/20°C
6.3 – 50 VDC
3,000 – 5,000 hours (see conditions in Test Method & Performance)
−55°C to +105°C
I ≤ 0.01 CV or 3 µA
C = rated capacitance (µF), V = rated voltage (VDC). Voltage
applied for 2 minutes at 20°C.
Performance Characteristics
Impedance Z Characteristics at 120 Hz
Rated Voltage (VDC)
Z (−25°C)/Z (20°C)
Z (−40°C)/Z (20°C)
6
2
3
10
2
3
16
2
3
25
2
3
35
2
3
50
2
3
Compensation Factor of Ripple Current (RC) vs. Frequency
Frequency
Coefficient
120 Hz
0.70
1 kHz
0.80
10 kHz
0.90
100 kHz
1.00
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 5/22/2018
3
Surface Mount Aluminum Electrolytic Capacitors – EXV, +105°C
Test Method & Performance
Conditions
Temperature
Test Duration
Ripple Current
Voltage
Can Ø = 4, 5, 6.3 mm
Can Ø = 8, 10 mm
Load Life Test
105°C
3,000 hours
5,000 hours
Shelf Life Test
105°C
1,000 hours
No ripple current applied
No voltage applied
Maximum ripple current specified at 120 Hz 105°C
The sum of DC voltage and the peak AC voltage must not
exceed the rated voltage of the capacitor.
Performance
Capacitance Change
Dissipation Factor
Leakage Current
The following specifications will be satisfied when the capacitor is restored to 20°C:
Within ±30% of the initial value
Does not exceed 200% of the specified value
Does not exceed specified value
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however,
the leakage current will very slowly increase.
The KEMET E aluminum electrolytic capacitors should not be stored in high temperatures or where there is a high level of
humidity. The suitable storage condition for KEMET's E aluminum electrolytic capacitors is +5 to +35°C and less than 75%
in relative humidity. KEMET's E aluminum electrolytic capacitors should not be stored in damp conditions such as water,
saltwater spray or oil spray. KEMET's E aluminum electrolytic capacitors should not be stored in an environment full of
hazardous gas (hydrogen sulphide, sulphurous acid gas, nitrous acid, chlorine gas, ammonium, etc.) KEMET's E aluminum
electrolytic capacitors should not be stored under exposure to ozone, ultraviolet rays or radiation.
If a capacitor has been stored for more than 18 months under these conditions and it shows increased leakage current,
then a treatment by voltage application is recommended.
Re-Age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen
to a steady value below the specified limit. During re-aging a maximum charging current of twice the specified leakage
current or 5 mA (whichever is greater) is suggested.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 5/22/2018
4
Surface Mount Aluminum Electrolytic Capacitors – EXV, +105°C
Table 1 – Ratings & Part Number Reference
VDC
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
16
16
16
25
25
25
25
25
25
25
25
25
25
35
35
35
35
35
35
35
35
35
35
50
50
VDC Surge
Voltage
8
8
8
8
8
8
8
8
8
8
13
13
13
13
13
13
13
13
13
13
20
20
20
20
20
20
20
20
20
20
20
20
20
20
32
32
32
32
32
32
32
32
32
32
44
44
44
44
44
44
44
44
44
44
63
63
Rated
Capacitance
120 Hz 20°C
(µF)
22
33
47
100
150
220
330
470
680
1000
22
33
47
100
150
220
330
470
680
1000
10
22
22
33
47
100
100
150
220
220
330
470
470
680
10
22
33
47
68
100
150
220
330
470
4.7
10
22
33
47
68
100
150
220
330
1
2.2
Case Size
D x L (mm)
4 x 5.4
4 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
8 x 10.2
6.3 x 7.7
8 x 10.2
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
DF
120 Hz
20°C
(tan δ %)
26
26
26
26
26
26
26
26
26
26
19
19
19
19
19
19
19
19
19
19
16
16
16
16
16
16
16
16
16
16
16
16
16
16
14
14
14
14
14
14
14
14
14
14
12
12
12
12
12
12
12
12
12
12
12
12
RC
100 kHz
105°C
(mA)
90
90
160
240
240
240
600
600
850
850
90
160
190
190
240
600
600
850
850
850
90
160
160
240
240
240
280
370
280
370
600
600
850
850
90
160
240
240
280
300
600
600
850
850
90
160
160
240
280
280
600
850
850
850
60
60
Z
100 kHz
20°C
(Ω)
1.93
1.93
1.00
0.52
0.3
0.3
0.16
0.16
0.12
0.12
1.93
1.00
0.52
0.52
0.34
0.16
0.16
0.12
0.12
0.12
1.93
1.00
1.00
0.52
0.52
0.52
0.34
0.22
0.34
0.22
0.16
0.16
0.12
0.12
1.93
1.00
0.52
0.52
0.34
0.34
0.16
0.16
0.12
0.12
1.93
1.00
1.00
0.52
0.34
0.34
0.16
0.12
0.12
0.12
5.00
5.00
LC
20°C
2 Minutes
(µA)
3.0
3.0
3.0
6.3
9.5
13.9
20.8
29.6
42.8
63.0
3.0
3.3
4.7
10.0
15.0
22.0
33.0
47.0
68.0
100.0
3.0
3.5
3.5
5.3
7.5
16.0
16.0
24.0
35.2
35.2
52.8
75.2
75.2
108.8
3.0
5.5
8.3
11.8
17.0
25.0
37.5
55.0
82.5
117.5
3.0
3.5
7.7
11.6
16.5
23.8
35.0
52.5
77.0
115.5
3.0
3.0
Part Number
EXV226M6R3(1)9BAA
EXV336M6R3(1)9BAA
EXV476M6R3(1)9DAA
EXV107M6R3(1)9GAA
EXV157M6R3(1)9HAA
EXV227M6R3(1)9HAA
EXV337M6R3(1)9MAA
EXV477M6R3(1)9MAA
EXV687M6R3(1)9PAA
EXV108M6R3(1)9PAA
EXV226M010(1)9BAA
EXV336M010(1)9DAA
EXV476M010(1)9GAA
EXV107M010(1)9GAA
EXV157M010(1)9HAA
EXV227M010(1)9MAA
EXV337M010(1)9MAA
EXV477M010(1)9PAA
EXV687M010(1)9PAA
EXV108M010(1)9PAA
EXV106M016(1)9BAA
EXV226M016(1)9BAA
EXV226M016(1)9DAA
EXV336M016(1)9GAA
EXV476M016(1)9GAA
EXV107M016(1)9GAA
EXV107M016(1)9HAA
EXV157M016(1)9MAA
EXV227M016(1)9HAA
EXV227M016(1)9MAA
EXV337M016(1)9MAA
EXV477M016(1)9MAA
EXV477M016(1)9PAA
EXV687M016(1)9PAA
EXV106M025(1)9BAA
EXV226M025(1)9DAA
EXV336M025(1)9GAA
EXV476M025(1)9GAA
EXV686M025(1)9HAA
EXV107M025(1)9HAA
EXV157M025(1)9MAA
EXV227M025(1)9MAA
EXV337M025(1)9PAA
EXV477M025(1)9PAA
EXV475M035(1)9BAA
EXV106M035(1)9DAA
EXV226M035(1)9DAA
EXV336M035(1)9GAA
EXV476M035(1)9HAA
EXV686M035(1)9HAA
EXV107M035(1)9MAA
EXV157M035(1)9PAA
EXV227M035(1)9PAA
EXV337M035(1)9PAA
EXV105M050(1)9BAA
EXV225M050(1)9BAA
VDC
VDC Surge
Rated Capacitance
Case Size
DF
RC
Z
LC
Part Number
(1) Insert Electrical Parameters code. See Part Number System for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 5/22/2018
5
京公网安备 11010802033920号
EEWORLD
