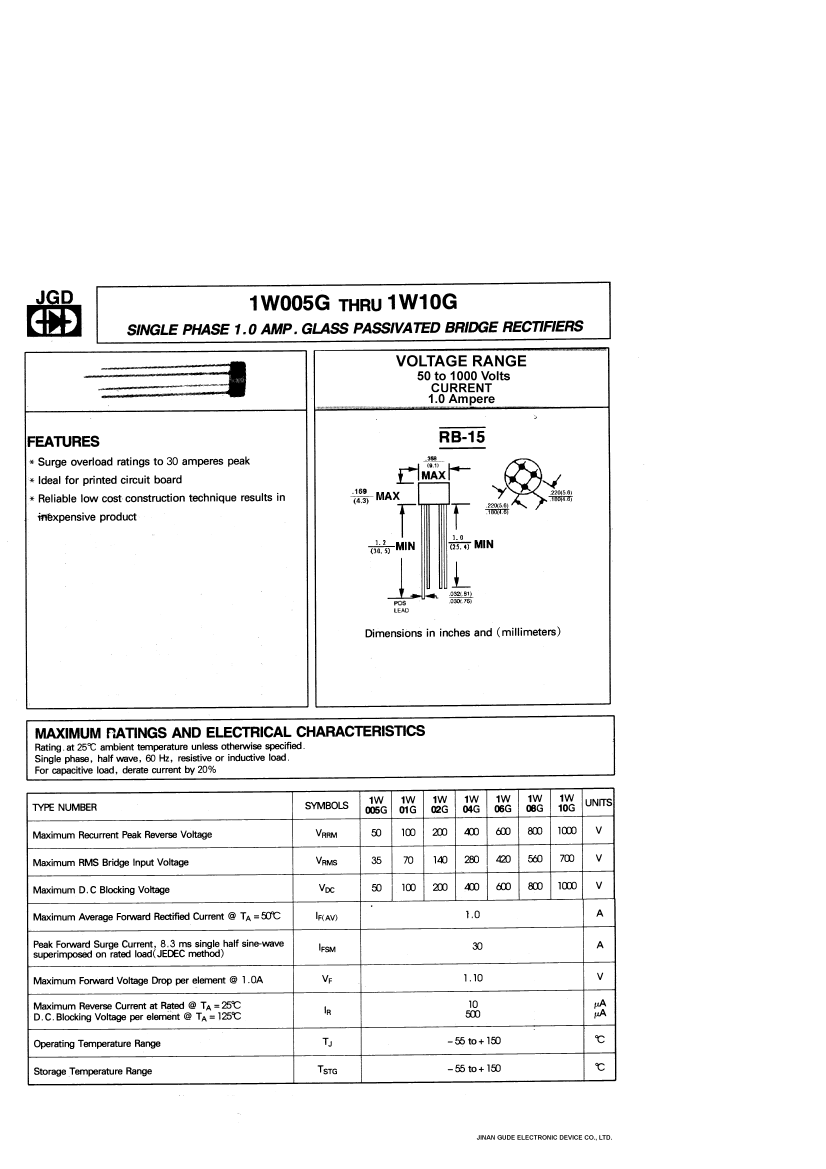

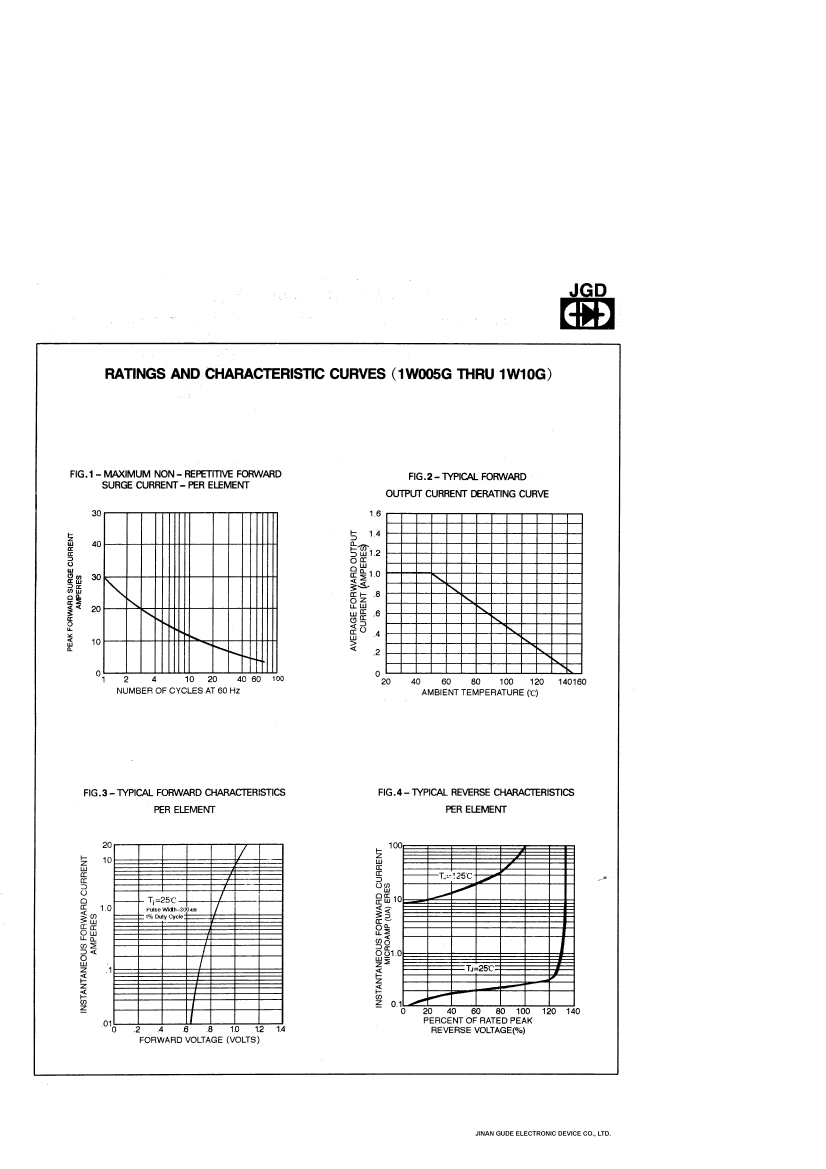

1W06G: DescriptionSINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS　　; CategoryDiscrete semiconductor diode; File Size118KB，2 Pages; ManufacturerJGD（Jinan Gude Electronic Device）; Websitehttp://www.jgd.com.cn/

Download Datasheet Parametric Compare View All

1W06G Overview

SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS　　

1W06G Parametric

Parameter Name	Attribute value
Maker	JGD（Jinan Gude Electronic Device）
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	30 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	600 V
surface mount	NO

Preview

Download Datasheet

View All

1W06G Related Products

	1W06G	1W01G	1W005G	1W04G	1W02G	1W08G	1W10G
Description	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS	SINGLE PHASE 1.0 AMP. GLASS PASSIVATED BRIDGE RECTIFIERS
Maker	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	600 V	100 V	50 V	400 V	200 V	800 V	1000 V
surface mount	NO	NO	NO	NO	NO	NO	NO
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
