LAO-80V472MS57PX#B: DescriptionCAP ALUM 4700UF 20% 80V SNAP; CategoryPassive components; File Size158KB，2 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric Compare View All

LAO-80V472MS57PX#B Overview

CAP ALUM 4700UF 20% 80V SNAP

LAO-80V472MS57PX#B Parametric

Parameter Name	Attribute value
capacitance	4700µF
Tolerance	±20%
Voltage - Rated	80V
ESR (equivalent series resistance)	-
Service life at different temperatures	1000 hours at 85°C
Operating temperature	-40°C ~ 85°C
polarization	polarization
grade	-
application	Audio
Ripple current @ low frequency	2.7A @ 120Hz
Ripple current @ high frequency	3.105A @ 20kHz
lead spacing	0.394"（10.00mm）
size/dimensions	1.378" diameter (35.00mm)
Height - Installation (maximum)	1.969"（50.00mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can - snap-in

Preview

Download Datasheet

View All

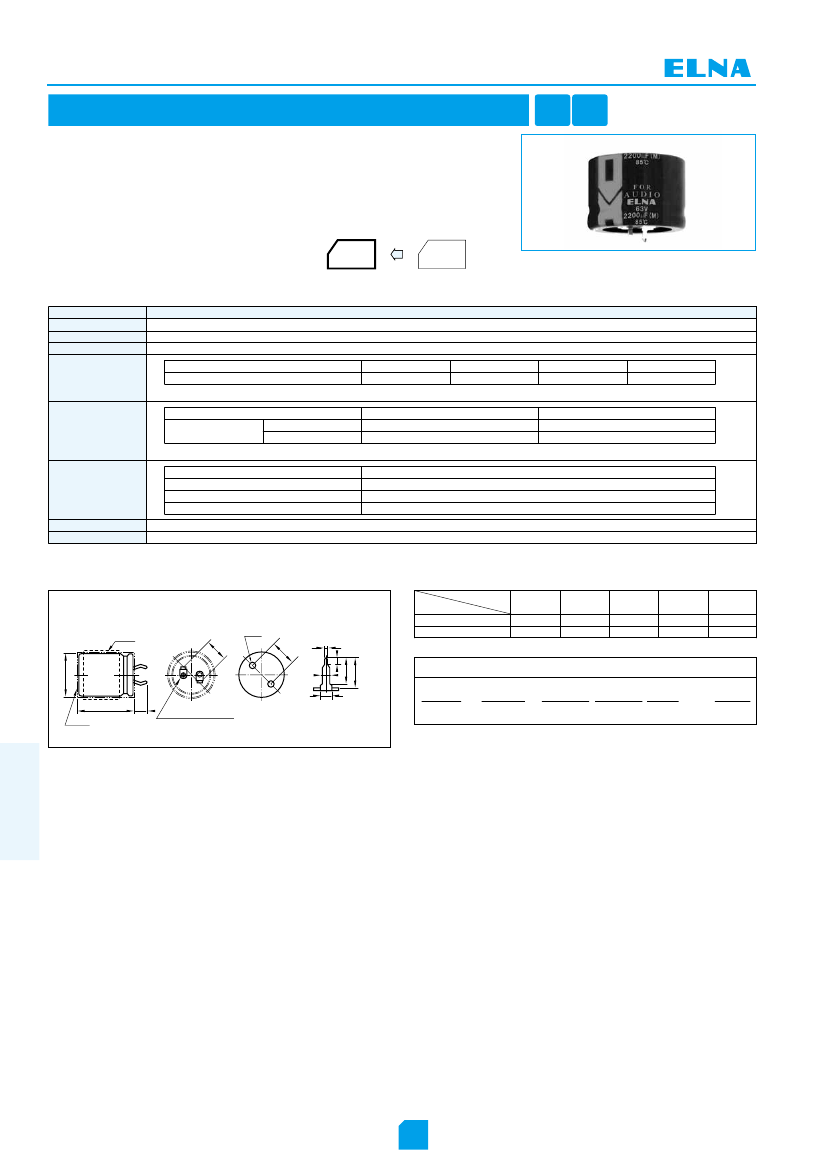

LAO

●

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC

CAPACITORS FOR AUDIO

GREEN

CAP

For

Audio

®

Power Supply Smoothing Use,Standard Capacitors for Audio

Best suited as power supply ﬁlters for sound quality priority audio equipment.

Printed circuit board terminal snap-in type.

For audio

LAO

LA5

Marking color : Gold print on a black sleeve

Speciﬁcations

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Leakage current (µA)

Tangent of loss angle

(tanδ)

Performance

ー40 to ＋85

±20

Less than 0.03CV or 5mA whichever is smaller (after 5 minutes) C : Rated capacitance (µF), V : Rated voltage (V)

Rated voltage (V)

tanδ (max.)

16

0.40

25

0.40

35

0.35

50 to 100

0.30

(20℃,120Hz)

(20℃)

(20℃,120Hz)

Rated voltage (V)

Impedance ratio

Ｚ

−25℃/Ｚ+20℃

Ｚ

−40℃/Ｚ+20℃

(max.)

16 to 35

4

15

50 to 100

3

10

(120Hz)

Characteristics at high

and low temperature

Endurance (85℃)

(Applied ripple current)

Shelf life (85℃)

Applicable standards

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

1000 hours

The initial speciﬁed value or less

Within ±20% of initial value

150% or less of the initial speciﬁed value

Test time : 1000 hours. Other have same as endurance. Voltage application treatment : According to JIS C5101 -1

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Outline Drawing

Printed circuit board snap-in type (Series LAO)

Sleeve

2−

φ2

Unit : mm

Coeﬃcient of Frequency for Rated Ripple Current

Frequency (Hz)

Rated voltage (V)

50

0.95

120

1

1k

1.10

1.16

10k

1.15

1.30

20k

1.15

1.33

Lug terminal details

0.9±0.1 Thickness : 0.8t

16 to 50

63 to 100

10

±

0.

1

φD＋1max.

4.7

Markings

kings

5.4

1.5±0.1

Part numbering system (example : 63V6800µF)

LAO

̶

63

Rated voltage

symbol

0.9

V

682

M

S57 PX #

Casing

symbol

B

Optional

symbol

L＋2max.

Vent

4.0±0.5

(‒)Negative terminal

indicated by cross notching

Position of PC board holes

2.1

(For 4.0±0.5)

Series code

Rated capacitance

Capacitance

symbol

tolerance symbol

FOR AUDIO

ALUMINUM

CAT.No.2015/2016E

176

NOTE : Design, Specifications are subject to change without notice.

It is recommended that you shall obtain technical specifications

from ELNA to ensure that the component is suitable for your use.

LAO-80V472MS57PX#B Related Products

	LAO-80V472MS57PX#B	LAO-50V472MS37PX#B	LAO-80V332MS55PX#B	LAO-50V682MS47PX#B	LAO-25V682MS26PX#B	LAO-25V103MS37PX#B	LAO-100V681MS24PX#B
Description	CAP ALUM 4700UF 20% 80V SNAP	CAP ALUM 4700UF 20% 50V SNAP	CAP ALUM 3300UF 20% 80V SNAP	CAP ALUM 6800UF 20% 50V SNAP	CAP ALUM 6800UF 20% 25V SNAP	CAP ALUM 10000UF 20% 25V SNAP	CAP ALUM 680UF 20% 100V SNAP
capacitance	4700µF	4700µF	3300µF	6800µF	6800µF	10000µF	680µF
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%	±20%
Voltage - Rated	80V	50V	80V	50V	25V	25V	100V
Service life at different temperatures	1000 hours at 85°C	1000 hours at 85°C	1000 hours at 85°C	1000 hours at 85°C	1000 hours at 85°C	1000 hours at 85°C	1000 hours at 85°C
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
polarization	polarization	polarization	polarization	polarization	polarization	polarization	polarization
application	Audio	Audio	Audio	Audio	Audio	Audio	Audio
Ripple current @ low frequency	2.7A @ 120Hz	2.4A @ 120Hz	2.2A @ 120Hz	3.1A @ 120Hz	2.2A @ 120Hz	3A @ 120Hz	800mA @ 120Hz
lead spacing	0.394"（10.00mm）	0.394"（10.00mm）	0.394"（10.00mm）	0.394"（10.00mm）	0.394"（10.00mm）	0.394"（10.00mm）	0.394"（10.00mm）
size/dimensions	1.378" diameter (35.00mm)	0.984" diameter (25.00mm)	1.378" diameter (35.00mm)	1.181" diameter (30.00mm)	0.866" diameter (22.00mm)	0.984" diameter (25.00mm)	0.866" diameter (22.00mm)
Height - Installation (maximum)	1.969"（50.00mm）	1.969"（50.00mm）	1.575"（40.00mm）	1.969"（50.00mm）	1.772"（45.00mm）	1.969"（50.00mm）	1.378"（35.00mm）
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Package/casing	Radial, Can - snap-in	Radial, Can - snap-in	Radial, Can - snap-in	Radial, Can - snap-in	Radial, Can - snap-in	Radial, Can - snap-in	Radial, Can - snap-in
Ripple current @ high frequency	3.105A @ 20kHz	2.76A @ 20kHz	-	-	2.53A @ 20kHz	-	1.064A @ 20kHz
