0.4 mm Pitch, Space-saving Interface Connectors
GX Series
Small size
5
2.4
Receptacle
Plug
(18 conductors)
Receptacle
* Overmold
* Shown for reference only - not supplied
GX60-18P

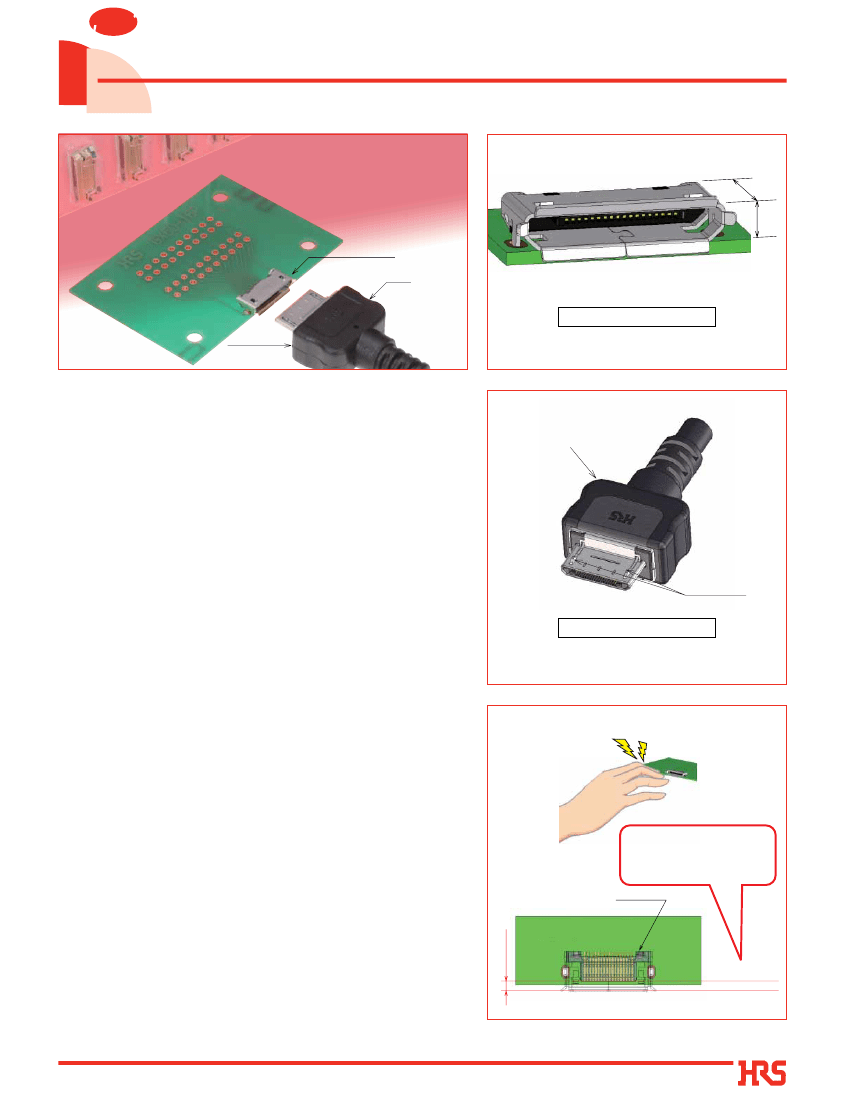

■Overview
Developed as input/output connectors for use in portable
devices requiring reliable high durability connection.
*Overmold
■Features
1. Small size
With a width of 5 mm and 2.4 mm height above the mounting
surface the connectors may be used in applications where
board and volume space is restricted.
2. Strong construction
Single piece shell increases the board retention and resists
rotational forces encountered in demanding consumer
environment
Plug
GX40-18S
Locks
3. High durability
Unique lock latches will maintain high retention force (plug
with corresponding receptacle) up to 10,000 cycles,
confirming fully mated condition with a distinctive tactile
“click” sensation.
* Shown for reference only - not supplied.
ESD protection
4. ESD protection
Increased distance from the edge of the metal shell to the
front of the contacts offers circuit protection from electrostatic
discharge.
5. RoHS compliant
All components and materials comply with the requirements
of EU Directive 2002/95/EC
Despite its miniature size the long
distance from the metal shell edge to
the front of the contacts provides
protection from electrostatic discharge.
Receptacle
■Applications
1.4mm
DSC, PDA, notebook computers, mobile phones and other
portable devices requiring high durability interface connectors.
Front of the contacts
Edge of the metal shell
2008.3
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been
mm Pitch, Space-saving
soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GX Series●0.4
discontinued, or will be discontinued
Interface Connectors
■Specifications
Ratings
Current rating
Voltage rating
0.5 A (1 A / contact, each contact at the end, 2 contacts only)
30 V AC
Specification
100 mA DC
100 V DC
100 V AC / 1 minute
10,000 cycles
Acceleration of 490m/s
2
, 11 ms duration, sine half-wave,
3 cycles, 3 axis
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
3 directions for 2 hours
Temperature: -55°C
➝
+15ç to 35ç
➝
+85ç
➝
+15ç to 35ç
Time:
30min.
➝
2min. to 3min.
➝
30min.
➝
2min. to 3 min.
5 cycles
96 hours at a 40 ±3ç, RH of 90 to 95%,
then leave for 1 to 2 hours at normal temperature and humidity
96 ±4 hours at +85 ±2ç
96 ±4 hours at -40 ±3ç
48 hours at a concentration of 5% ±1%, and humidity of 85 ±3ç
Operating temperature range
Storage temperature range
-30ç to +80ç Note 1
-40ç to +85ç Note 2
Item
Conditions
1. Contact resistance
60 mø max.
2. Insulation resistance 100 Mø min.
3. Withstanding voltage No flashover or insulation breakdown
Contact resistance: 100 mø max.
4. Durability
No damage cracks or parts dislocation.
No electrical discontinuity of 1 μs or longer.
5. Shock
No damage, cracks or parts dislocation.
No electrical discontinuity of 1 μs or longer.
6. Vibration
No damage, cracks or parts dislocation.
7. Temperature cycle
Contact resistance: 100 mø max.
No damage, cracks or parts dislocation.
Insulation resistance: 100 mø min.
Insulation resistance: 10 Mø min.
Contact resistance: 100 mø max.
Contact resistance: 100 mø max.
Contact resistance: 100 mø max.
8. Humidity
9. Heat resistance
10. Cold resistance
11. Salt spray test
Note 1. Includes temperature raise caused by current flow.
Note 2. The term “storage” refers to products stored for long period, prior to mounting and use.
■Materials
●Receptacle
Part
Insulator
Contacts
Shell
Material
Synthetic resin
Copper alloy
Stainless steel
Finish
Color: Black
Gold plated
Selective gold plated
Remarks
UL94V-0
-------------------
-------------------
●Plug
Part
Insulator
Contacts
Shells
Lock
Material
Synthetic resin
Copper alloy
Stainless steel
Stainless steel
Finish
Color: Black
Gold plated
Nickel plated
-------------------
Remarks
UL94V-0
-------------------
-------------------
-------------------
■Ordering
information
●Receptacle
GX60 - 18 P
1
2
3
1
Series name: GX60 (Receptacles)
GX40 (Plugs)
2
Number of contacts : 18
3
Contacts type
P: Male
S: Female
●Plug
GX40 - 18 S
1
2
3
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at
mm Pitch, Space-saving Interface Connectors
GX Series●0.4
www.hirose-connectors.com, or contact your Hirose sales representative.

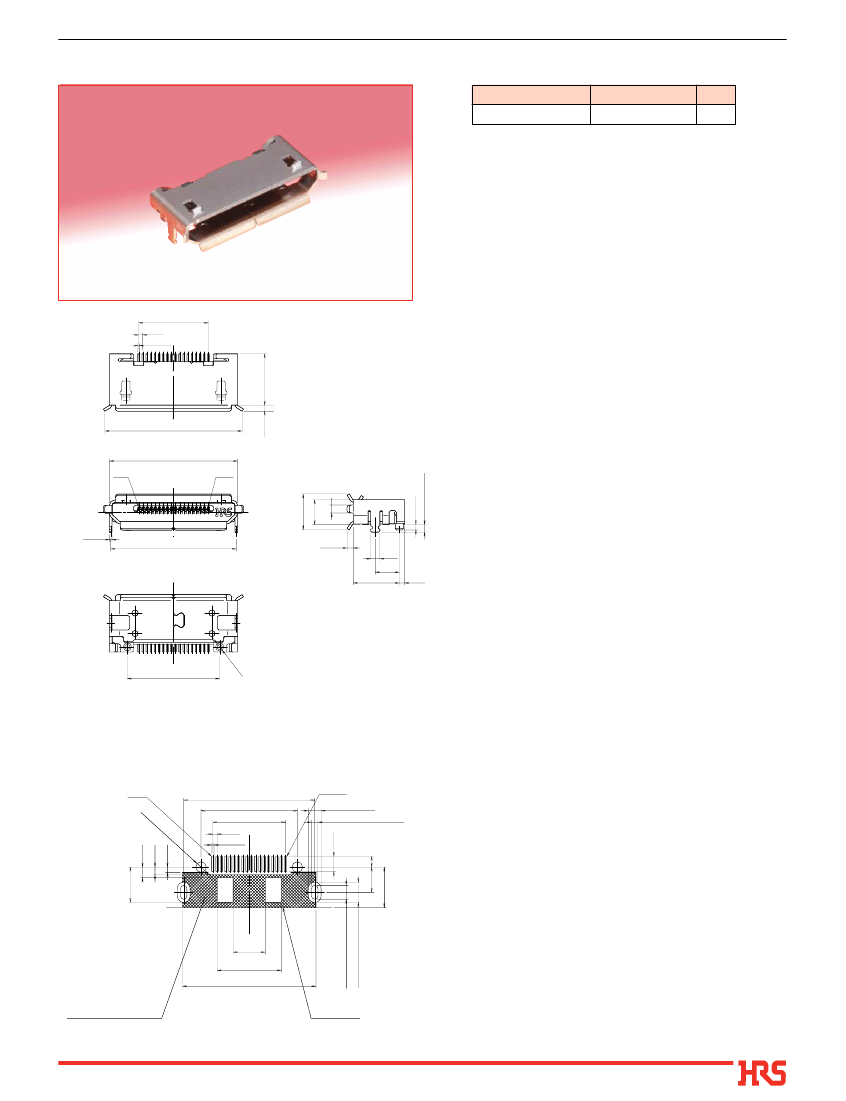

■Receptacle
Part Number
GX60-18P
CL No.
247-0001-3
RoHS
YES
Note : Tape and reel packaging (1,500 pieces/reel).
Order by number of reels.
6.8
0.4
0.15
(13.4)
12.5
0.25
12.25
(3.5)
2.4
(0.78)
(0.6)
0.9
2.35
4.5
9
All dimensions: mm
BRecommended
PCB mounting pattern
No.1
Ø1
(H
ol
1(Land)
0.7
0.5
1.4
e)
12.25
9
6.8
0.4
0.23
No.18
1.2(Land)
0.6(Through hole)
3.3(Land)
3(Land)
6(Land)
12.5
No conductive traces
PCB edge
All dimensions: mm
1.3(Through hole)
1.9(Land)
2.35 1
3.8
0.55
0.5
0.75
.8
No.1
No.18
(0.6)
Ø0
5
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status
GX
the Hirose website
mm Pitch, Space-saving Interface Connectors
sales represent
on
Series●0.4
RoHS search at www.hirose-connectors.com, or contact your Hirose

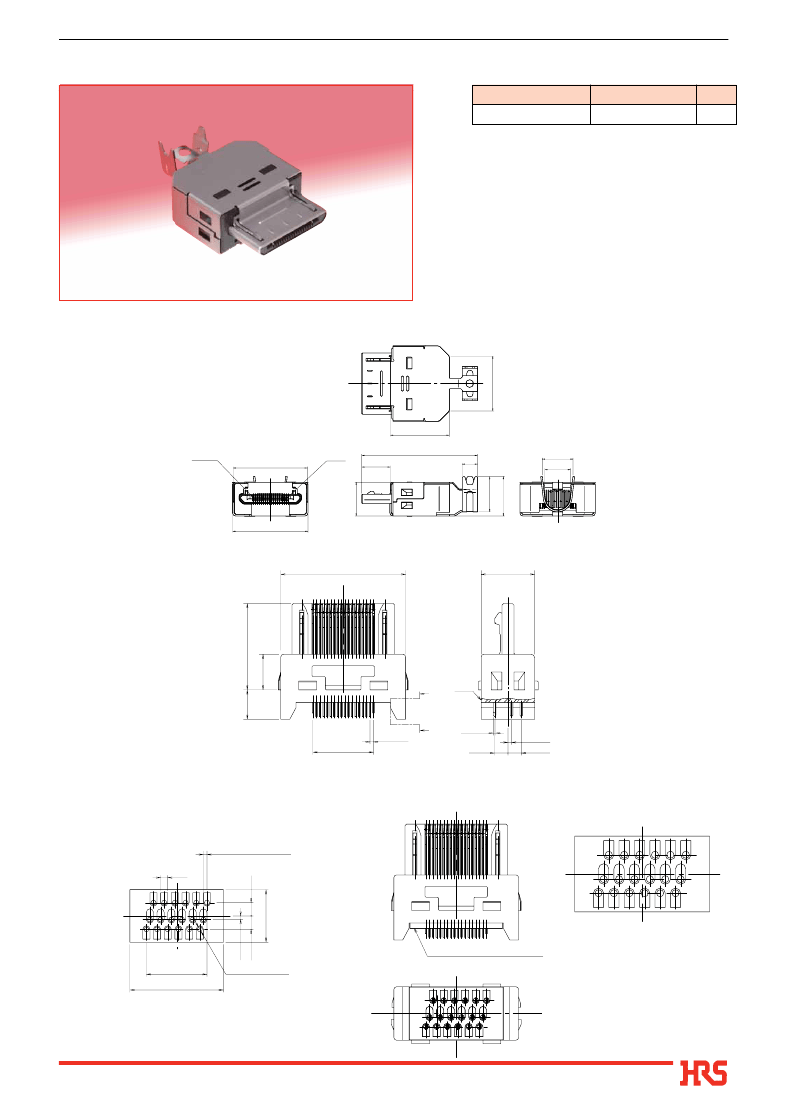

■Plug
Part Number
GX40-18S
CL No.
247-0002-6
RoHS
YES
●Assembled
components - Supplied non-terminated, without overmold
11.5
No.18
14.5
No.1
22.6
(5.6)
6.6
3
(6.9)
(7.7)
6
5
14.7
10.7
All dimensions: mm
14
6
●Assembly
(insulator/ contact/lock)
9.7
4
3.3
A
A-A
P=0.4
6.8
A
(0.3)
1.5
0.4
1.5
All dimensions: mm
BRecommended
PCB mounting
pattern (Thickness=0.6mm)
P=0.4(Hole pitch)
1.5
0.8
BPCB
installed
BContact
Number
Identification
03 06 09 12 15 18
02 05 08 11 14 17
5.9(MAX)
01 04 07 10 13 16
0.4
1.5
6.8
10.5(MAX)
18-Ø0.55(MIN)
PCB (Thickness=0.6mm)
Shown for reference only - not supplied
All dimensions: mm
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status
GX
the Hirose website
mm Pitch, Space-saving Interface Connectors
sales represent
on
Series●0.4
RoHS search at www.hirose-connectors.com, or contact your Hirose
