Z-Power LED X10490
Technical Data Sheet
Application Note 1-1
Z-POWER LED series
Binning and Labeling
Z-Power series is designed for
high current operation and
high flux output applications.
Z-Power LED's thermal management
perform exceeds other power LED solutions.
It incorporates state of the art SMD design and Thermal
emission material.
Z Power LED is ideal light sources for general illumination
applications, custom designed solutions, automotive large
LCD backlights
This application note provides binning and labeling
information of Z-Power LED series.
It includes the Z-Power LED bins for luminous flux,
wavelength (or x,y coordinates), correlated color temperature
(CCT) for white and forward voltage.
P3-II
Features
• Super high flux output

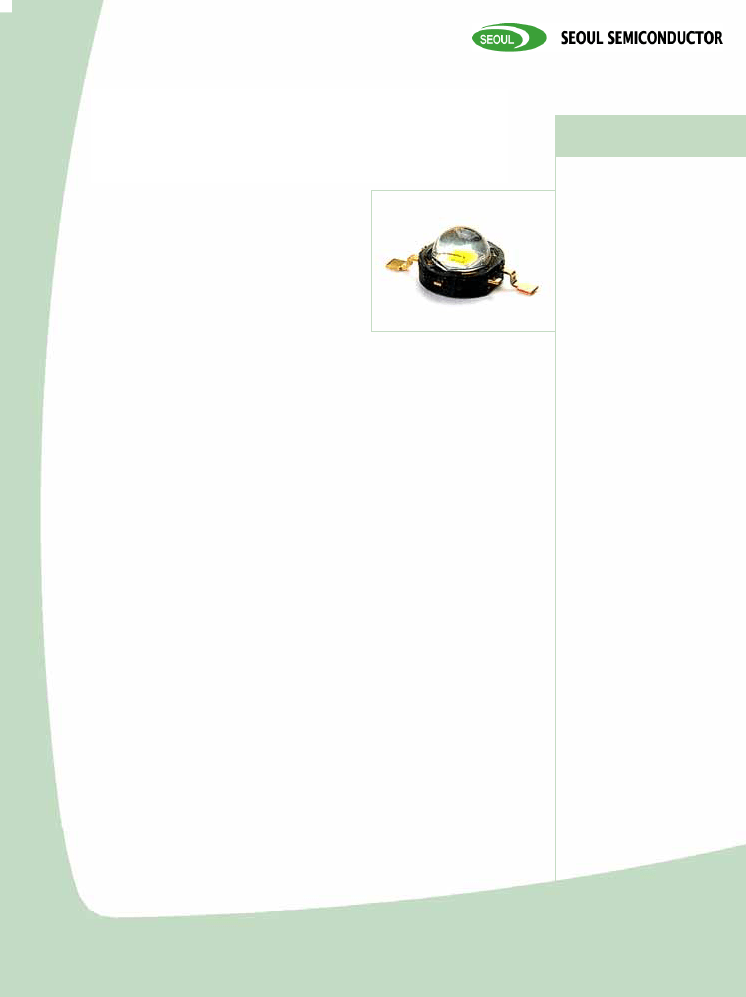

사진
and high luminance
• Designed for high
current operation
• Low thermal resistance
• SMT solderability
• Lead free product
• RoHS compliant
Applications
• Mobile phone flash
• Automotive interior /
Exterior lighting
• Automotive signal lighting
• Automotive forward
lighting
• Torch
• Architectural lighting
• LCD TV / Monitor backlight
• Projector light source
• Traffic signals
• Task lighting
• Decorative / Pathway
lighting
• Remote / Solar powered
lighting
• Household appliances
Rev. 02
November 2009
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Full Code of Z-Power LED Series
Full code form : X
1
X
2
X
3
X
4
X
5
X
6
– X
7
X
8
– X
9
X
10
X
11
X
12
X
13
1. Part Number
- X
1
: Color
- X
2
: Z-Power LED series number
- X
3
: LENS type
- X
4
: Chip quantity (or Power Dissipation)
- X
5
: Package outline size
- X
6
: Type of PCB
2. Internal Number
- X
7
- X
8
3. Code Labeling
- X
9
: Luminous flux (or Radiant flux for royal blue)
- X
10
X
11
X
12
: Dominant wavelength (or x,y coordinates rank code)
- X
13
: Forward voltage
4. Sticker Diagram on Reel & Aluminum Vinyl Bag
PART NO. :
X
1
X
2
X
3
X
4
X
5
X
6
– X
7
X
8
QUANTITY : ###
LOT NUMBER : ##########
BIN CODE :
X
10
X
11
X
12
X
13
X
14
For more information about binning and labeling, refer to the Application Note -1
Rev. 02
November 2009
2
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Part Number
Part numbers specify color, Z-Power series, Lens type, P
d
, size, PCB and Grade of
characteristic code type of Z-Power LED.
• Example: X
1
X
2
X
3
X
4
X
5
X
6
– X
7
X
8
1)
X
1
W
N
S
D
B
C
G
A
R
F
X
2
1
S
4
5
7
9
X
3
0
2
7
Color
Pure White
Warm White
Natural White
Royal Blue
Blue
Cyan
Green
Amber
Red
Full Color (7-color)
Z-Power Series
P1
P3-II
P4
P5-II
P7
P9
LENS Type
PI,P5-II Flat Type
P3-II,P4,P7,P9 Dome Type
P4 narrow Type
4)
3
)
Note:
1) X
7
, X
8
is a internal code number
2) Hemispherical dome type
3) View angle : white 70
O
Rev. 02
November 2009
3
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
X
4
0
1
2
3
4
X
5
9
8
6
5
X
6
0
2
Chip Quantity (or Power Dissipation)
1 chip(0.5W)
1 chip (1W)
2 chip (2.5W)
Full Color (7-color)
4 chip (5W)
Package Outline Size
9 X 9 mm
D 8 mm
5 X 6 mm
D 5 mm
Metal PCB Type
Emitter Only
Star
Rev. 02
November 2009
4
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
Code Labeling
1. Luminous Flux Bins
- Luminous flux bin structure for pure white, warm white, blue, cyan, green, amber
and red Z-Power.
Bin Code
J
K
L
M
O
P
Q
R
S1
S
S2
T1
T
T2
U1
U
V
W
X
Y
U2
Luminous Flux [lm]
6 ~ 8.5
8.5 ~ 11.0
11.0 ~ 14.5
14.5 ~ 19.0
19.0 ~ 24.5
24.5 ~ 32.0
32.0 ~ 41.5
41.5 ~ 54.0
54.0 ~ 60.0
60.0 ~ 70.0
70.0 ~ 80.0
80.0 ~ 91.0
91.0 ~ 100.0
100.0 ~ 118.5
118.5 ~ 154.0
154.0 ~ 200.0
200.0 ~ 260.0
260.0 ~ 340.0
The list explains the photometric luminous flux bins for Z-Power LED. Z-Power LED are
tested and binned by photometric luminous flux. Not all bins are available in all colors.
Tolerance :
±10%
of Luminous flux value
Rev. 02
November 2009
5
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
