Bridgelux
V13 Array
®
Product Data Sheet DS44
BXRE-27x2000
|
30x2000
|
35x2000
|
40x2000
|
50x2000
Introduction
The V Series
™
LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These Chip-on-Board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility
not previously possible. This high flux density light source is designed to support a wide range of high quality, low cost
directional luminaires and replacement lamps for commercial and residential applications.
The V13 LED Array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility
and energy efficiencies.
Lighting system designs incorporating these LED Arrays deliver increased system level efficacy and longer service life.
Typical applications include, but are not limited to, replacement lamps, task, accent, spot, track, down light, wide area,
security, and wall pack.
Features
Benefits
• Market leading efficacy of 130 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 70, 80 and 90 CRI options
• Streamlined thermal path
• Energy Star / ANSI compliant color binning
structure with 3SDCM and 4SDCM options
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• Enhanced optical control
• Clean white light without pixilation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to
enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue
V Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Flux & Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
4
6
7
8
11
12
13
14
15
17
17
17
18
1

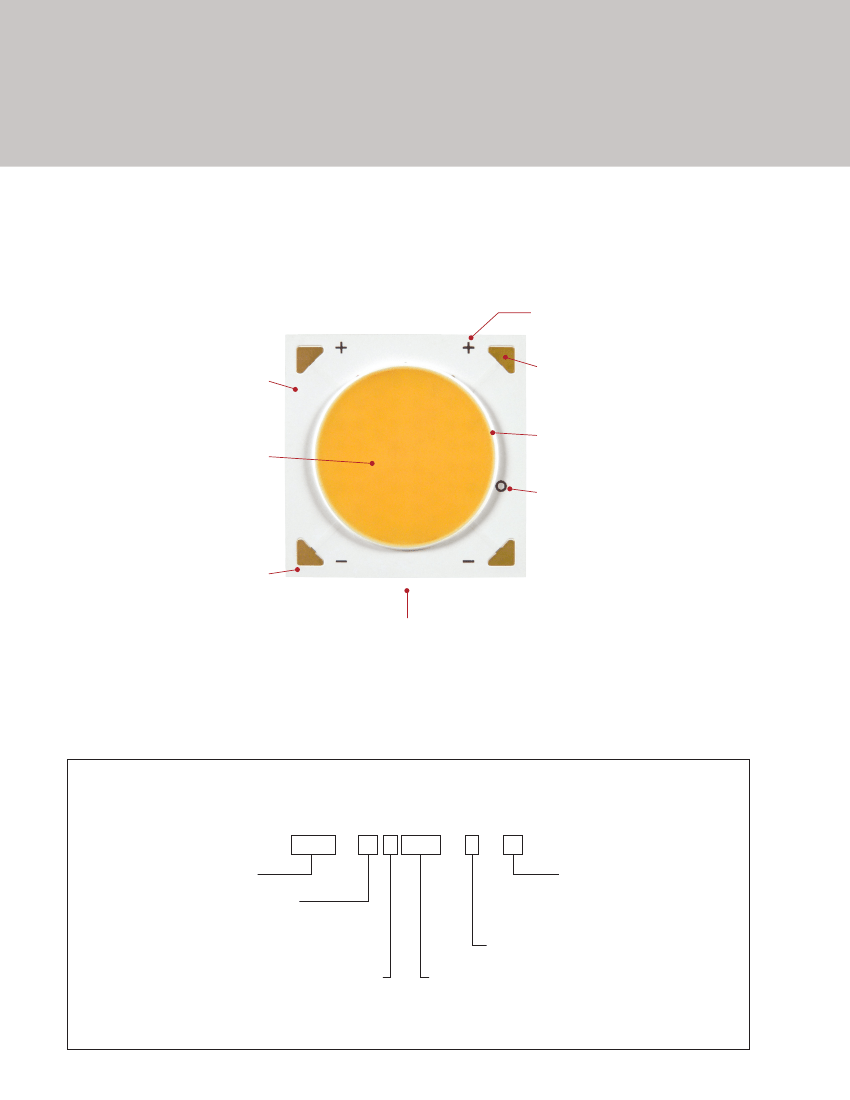

Product Feature Map
Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on an
engineered mechanical platform. The V Series arrays are
the most compact chip-on-board devices across all of
Bridgelux’s LED Array products. The arrays incorporate sev-
eral features to simplify design integration and assembly.
Polarity symbols
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Solder Pads
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) Measurement Point
Designed to comply with global
safety standards for creepage
and clearance distances
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
– 12
– 13 14
BXRE – 30 E 2000 – C – 23
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
CCT Bin Options
23 = 3 SDCM
24 = 4 SDCM
Array Configuration
Minimum CRI
C = 70 CRI
E = 80 CRI
G = 90 CRI
Nominal Flux
2000 = 2000lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Nominal CCT
1
(K)
2700
2700
3000
3000
3500
4000
4000
5000
5000
5000
Nominal Drive
Current
3
(mA)
500
500
500
500
500
500
500
500
500
500
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
1985
1660
2120
1682
2150
2200
1900
2315
2200
2015
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
1856
1549
1921
1570
1964
2022
1786
2134
1990
1809
Typical V
f
(V)
32.3
32.3
32.3
32.3
32.3
32.3
32.3
32.3
32.3
32.3
Typical
Power
(W)
16.2
16.2
16.2
16.2
16.2
16.2
16.2
16.2
16.2
16.2
Typical
Efficacy
(lm/W)
123
103
131
104
133
135
118
143
136
125
Part Number
CRI
2
BXRE-27E2000-C-23
BXRE-27G2000-C-23
BXRE-30E2000-C-23
BXRE-30G2000-C-23
BXRE-35E2000-C-23
BXRE-40E2000-C-23
BXRE-40G2000-C-23
BXRE-50C2000-C-24
BXRE-50E2000-C-24
BXRE-50G2000-C-24
80
90
80
90
80
80
90
70
80
90
Table 2:
Selection Guide, Stabilized DC Performance (T
c
= 85°C)
8,9
Nominal CCT
1
(K)
2700
2700
3000
3000
3500
4000
4000
5000
5000
5000
Nominal Drive
Current
3
(mA)
500
500
500
500
500
500
500
500
500
500
Typical DC Flux
T
c
= 85ºC
(lm)
1818
1461
1910
1480
1947
1984
1672
2037
1936
1773
Minimum DC
Flux
10
T
c
= 85ºC
(lm)
1700
1363
1730
1382
1779
1824
1572
1878
1751
1592
Typical V
f
(V)
31.3
31.3
31.3
31.3
31.3
31.3
31.3
31.3
31.3
31.3
Typical
Power
(W)
15.6
15.6
15.6
15.6
15.6
15.6
15.6
15.6
15.6
15.6
Typical
Efficacy
(lm/W)
116
93
122
95
123
127
107
130
124
113
Part Number
CRI
2
BXRE-27E2000-C-23
BXRE-27G2000-C-23
BXRE-30E2000-C-23
BXRE-30G2000-C-23
BXRE-35E2000-C-23
BXRE-40E2000-C-23
BXRE-40G2000-C-23
BXRE-50C2000-C-24
BXRE-50E2000-C-24
BXRE-50G2000-C-24
80
90
80
90
80
80
90
70
80
90
Notes for Tables 1 & 2:
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI Values are minimums. Minimum R9 value for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at nominal test current are guaranteed by 100% test.
8. Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
9. Typical performance is estimated based on operation under DC (direct current) with LED array mounted onto a heat sink with thermal interface
material and the case temperature maintained at 85°C. Based on Bridgelux test setup, values may vary depending on the thermal design of the
luminaire and/or the exposed environment to which the product is subjected.
10. Minimum flux values at elevated temperatures are provided for reference only and are not guaranteed by 100% production testing. Based on Bridgelux
test setup, values may vary depending on the thermal design of the luminaire and/or the exposed environment to which the product is subjected.
3
