EJH-107-01-F-D-TH datasheet, PDF

Datasheet> All Categories > The connector> The connector> EJH-107-01-F-D-TH

EJH-107-01-F-D-TH: Description.100 X .100 EJECTOR HEADER ASSEM; CategoryThe connector The connector; File Size767KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EJH-107-01-F-D-TH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EJH-107-01-F-D-TH	-	-	View	Buy Now

EJH-107-01-F-D-TH Overview

.100 X .100 EJECTOR HEADER ASSEM

EJH-107-01-F-D-TH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	POLARIZED, SHROUDED
Board mount options	SPLIT BOARD LOCK
body width	0.39 inch
subject depth	0.5 inch
body length	1.394 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

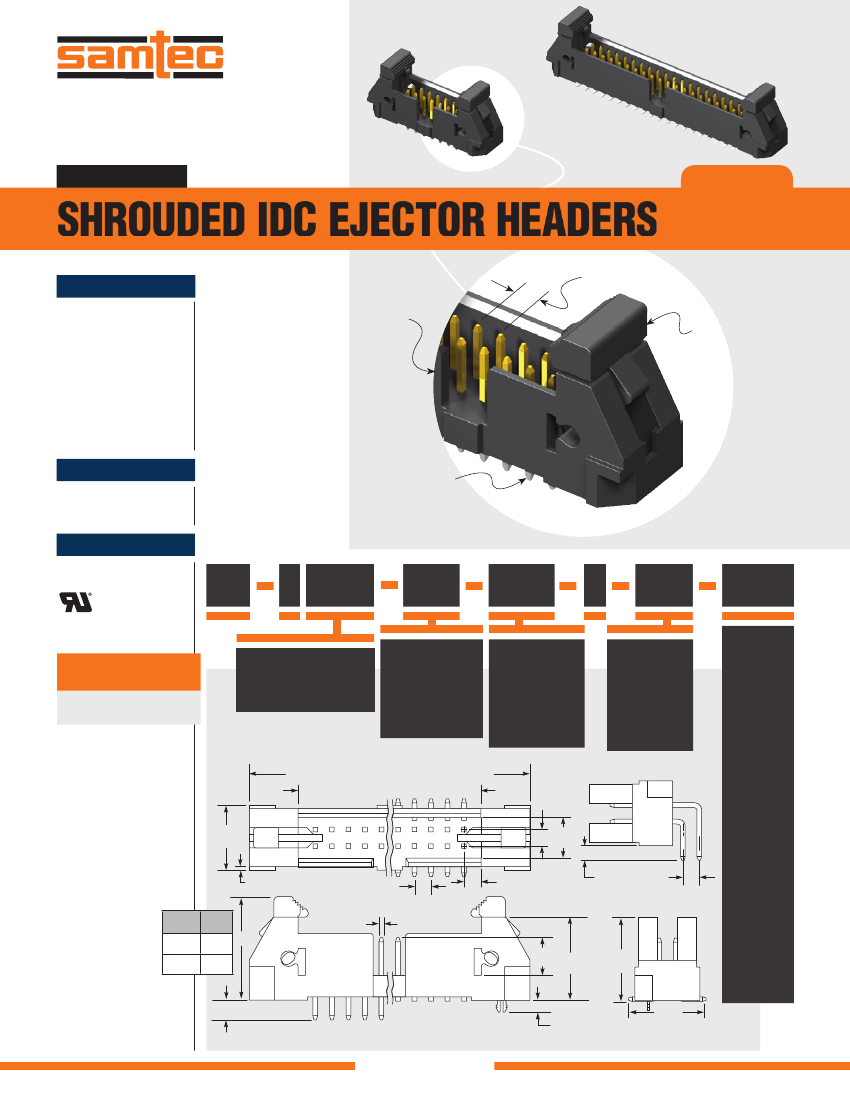

F-219

EJH–107–01–F–D–TH

EJH–120–01–L–D–SM

(2.54 mm) .100"

EJH SERIES

SHROUDED IDC EJECTOR HEADERS

SPECIFICATIONS

For complete specifications

and recommended PCB layouts

see www.samtec.com?EJH

Insulator Material:

-01: Black LCP

-02: Natural LCP

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

IDSD (EJH-01 Required),

HCSD (EJH-02 Required)

(2.54 mm)

.100" pitch

Polarized

Ejector

mechanism

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

Surface Mount,

Right-angle

or Through-hole

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

EJH

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

05, 07, 08, 10,

13, 15, 17, 20, 25

(Standard sizes)

= Standard

(Mates to IDSD)

–01

= Gold flash on post,

Matte Tin on tail

–F

= Surface Mount

–SM

–TH

= Polarized

Position

–“XX”

–LC

= Extended

(Mates to HCSD)

–02

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

–L

= Through-hole

=Right-angle

–RA

= Locking Clip

(-SM only)

(Manual

placement

required)

–01= No. of positions x (2.54) .100 + (17.63) .694

–02= No. of positions x (2.54) .100 + (20.70) .815

No. of positions x (2.54) .100 + (2.64) .104

(2.54)

.100

(6.35)

.250

(9.91)

.390

= .475"

(12.00 mm)

DIA

Polyimide

Film Pick &

Place Pad

(-SM only)

(2.3)

.09

(2.54)

.100

–RA OPTION

–K

(0.51) .020

(2.54)

.100

(0.64)

.025 SQ

(2.59)

.102 REF

LEAD

STYLE

–01

–02

= Pick &

Place Pad

(-SM only)

–P

(16.88)

.665

(17.39)

.685

(5.72)

.225 (12.70)

.500

(12.83)

.505

= Tape & Reel

Packaging

(-SM only)

(25 position

not available)

–TR

(3.05)

.120

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–LC OPTION

(1.52)

.060

(11.87)

.467

–SM OPTION

(Latch removed for clarity)

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
