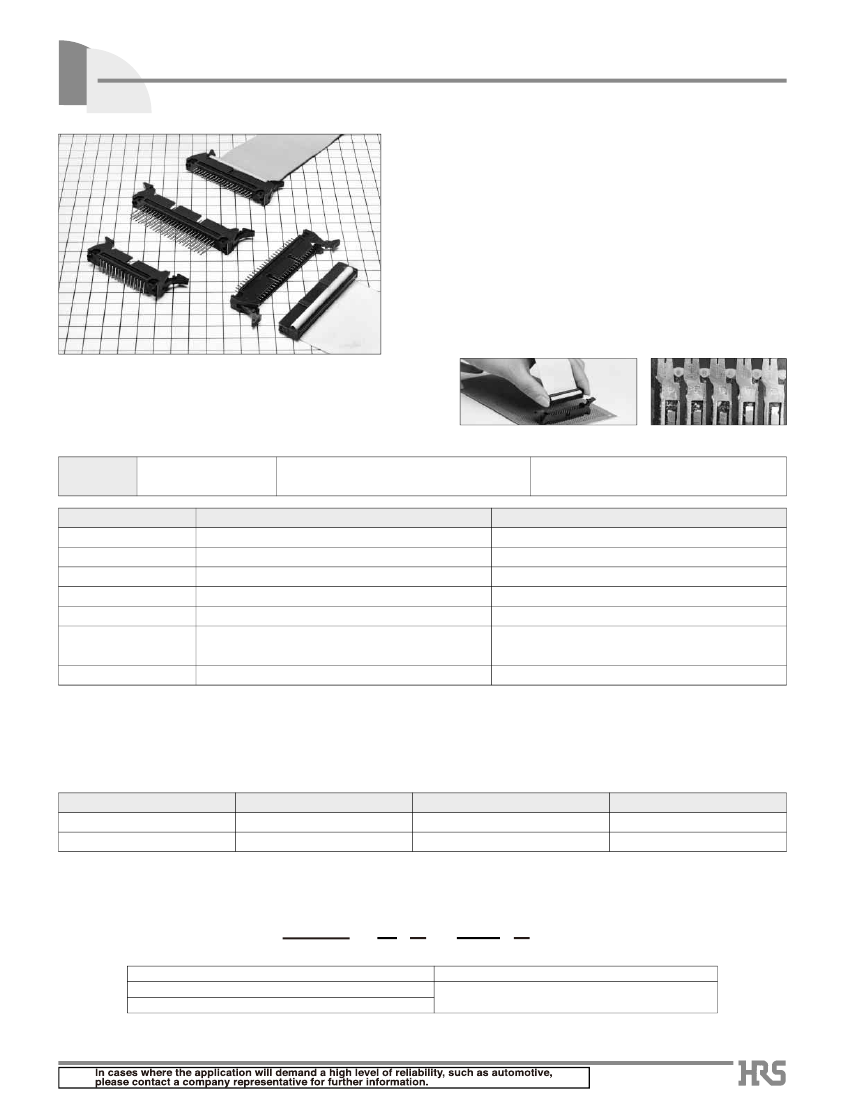

High Performance Ribbon Cable Connector
HIF3A Series
■Features
1. Two-Point Contact Structure
This connector is designed in the two-point contact structure with high
reliability.
2. Compatibility with HIF3 Series
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
This connector is compatible with HIF3B series products compliant with
MIL standard and other HIF series headers.(Except HIF3B-60 pos.)
3. Applicable Cable AWG#28
The applicable cable is UL2651 AWG#28 flat cable
(7 cores./0.127mm, jacket dia 0.9±0.1mm).
■Applications
Computers, terminal equipment, PPC, various kinds of electronic
equipment, and office automation machines
■Product
Specifications
Rating
Current rating : 1A
Operating Temperature Range :
–55 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range
Condition
500V DC
650V AC/1 minute
0.1A
: 40
to
70% (Note 2)
Voltage rating : 200V AC Operating Moisture Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M
ohms
min
Specification
No flashover or insulation breakdown.
15m
ohms
max
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes
➝
15
to
35ç: 5 minutes max.
125ç: 30 minutes
➝
15
to
35ç: 5 minutes max.) 5 cycles
500 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 15m
ohms
max.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Part
Insulator
Contact
Material
PBT
Beryllium copper
Finish
Black
Gold plated over nickel underplated
Remarks
UL94V-0
––––––
■Ordering
Information
HIF3A -
*
D - 2.54 R
q
w
e
r
t
: 2.54mm
: ID type
q
Series Name
: HIF3A
w
Number of Contacts : 16, 20, 26, 30, 34, 40, 50, 60
e
Contact alignment
: D : Double
r
Contact Pitch
t
Connection type R
B13

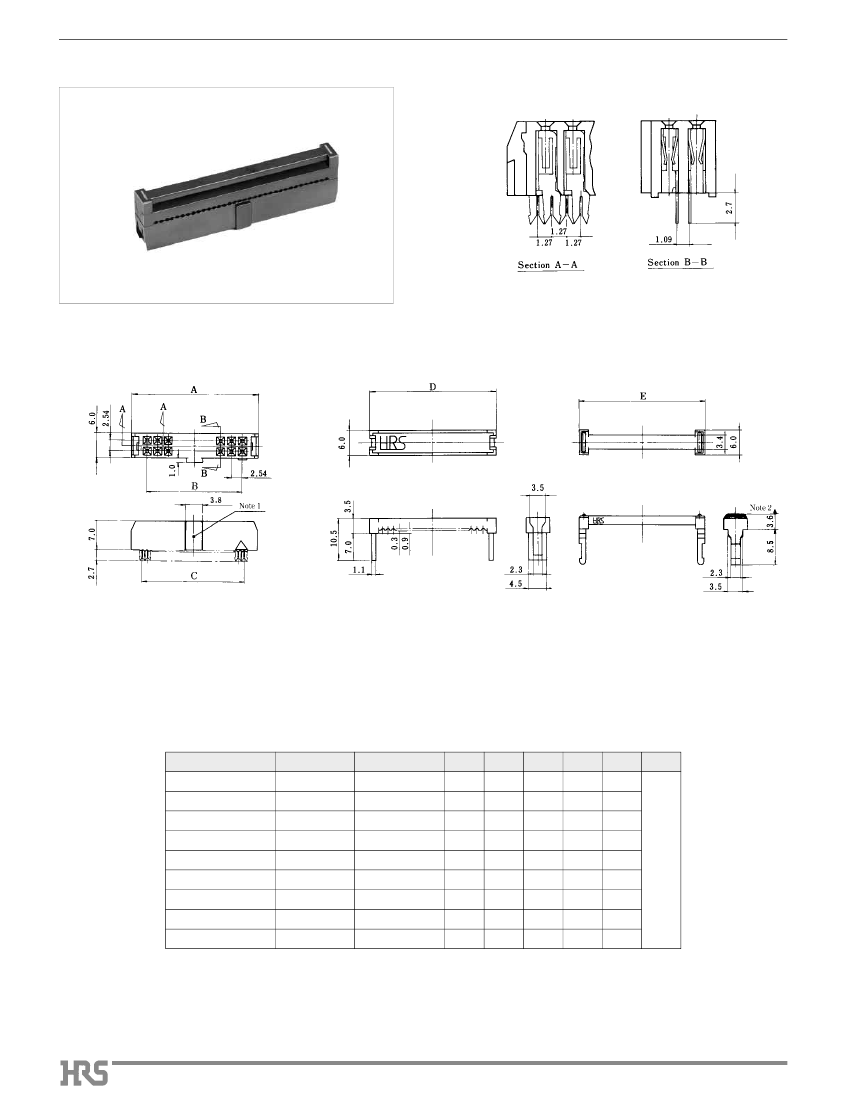

HIF3A Series●High Performance Ribbon Cable Connector
■Socket
Type
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Body
Protector
Clamp
Note1: The 50 contact and 60 contact connectors
contain convex area at two points.
Note2: The 60 contact connector indicates 5.6.
The applicable pin header is HIF3BAF type.
Unit:mm
Part Number
HIF3A-10D-2.54R
HIF3A-16D-2.54R
HIF3A-20D-2.54R
HIF3A-26D-2.54R
HIF3A-30D-2.54R
HIF3A-34D-2.54R
HIF3A-40D-2.54R
HIF3A-50D-2.54R
HIF3A-60D-2.54R
CL No.
562-0057-5
562-0058-8
562-0059-0
562-0060-0
562-0055-0
562-0061-2
562-0062-5
562-0063-8
562-0056-2
Number of Contacts
10
16
20
26
30
34
40
50
60
A
B
C
D
E
RoHS
17.27 10.16 11.43 17.27 17.27
24.89 17.78 19.05 24.89 24.89
29.97 22.86 24.13 29.97 29.97
37.59 30.48 31.75 37.59 37.59
42.67 35.56 36.83 42.67 42.67
47.75 40.64 41.91 47.75 47.75
55.37 48.26 49.53 55.37 55.37
68.07 60.96 62.23 68.07 68.07
80.77 73.66 74.93 80.77 80.77
YES
B14
