AVAILABLE SIZES
Item
Size - L" x W" x TH" Snap
37670
11-3/4 x 35-1/2 x 1/16 Male
39780
11-3/4 x 35-1/2 x 1/16 Female
37671
11-3/4 x 47-1/2 x 1/16 Male
39784
11-3/4 x 47-1/2 x 1/16 Female
37672
11-3/4 x 59-1/2 x 1/16 Male

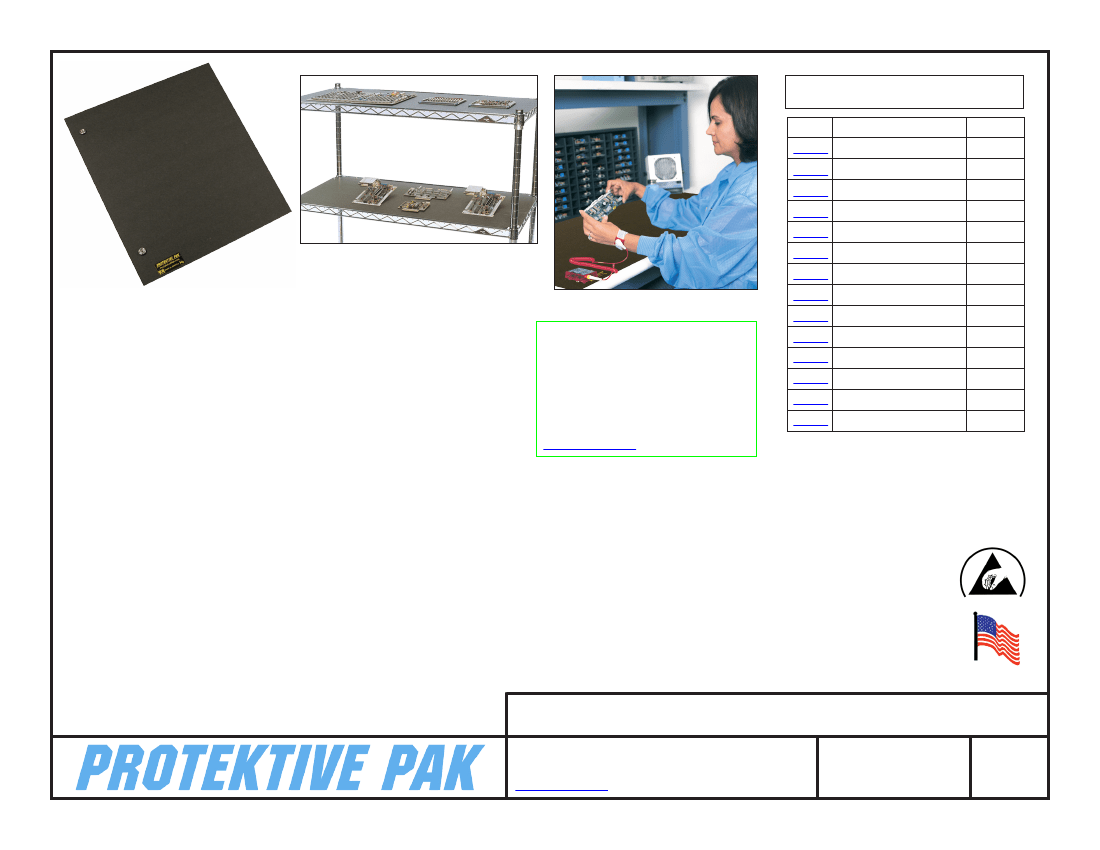

Pro-mat shown being used on
shelving and as a worksurface
39787
11-3/4 x 59-1/2 x 1/16 Female
37673
17-1/2 x 35-1/2 x 1/16 Male
39792
17-1/2 x 35-1/2 x 1/16 Female
RoHS Compliance Statement
None of the following materials are
intentionally added in manufacturing
this product: lead, mercury, cadmium,
hexavalent chromium, polybrominated
biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE) as outlined in
the Directive 2002/95/EC Article 4.1.
See Protektive Pak Inc. letter on-line at
ProtektivePak.com.
Features
•
•
•
•
•
•
•
•
•
•
Rtt 1 x 10E6 < 1 x 10E9 ohms, meets worksurface recommendation of ANSI/ESD S4.1
Economical ESD worksurface or shelving
Meets required limits of ANSI/ESD S20.20 for worksurface and for shelving
Low charging antistatic, dissipative surface
Includes two 10mm (3/8”) male stud or female socket grounding snaps
Chemical resistant
Great choice for shelves and transportation carts, or for messy soldering applications
Impregnated material; greater durability
Made from 100% recycled material, and is 100% recyclable
Made in United States of America
37676
23-1/2 x 35-1/2 x 1/16 Male
39858
23-1/2 x 35-1/2 x 1/16 Female
37674
23-1/2 x 47-1/2 x 1/16 Male
39796
23-1/2 x 47-1/2 x 1/16 Female
37675
23-1/2 x 59-1/2 x 1/16 Male
39800
23-1/2 x 59-1/2 x 1/16 Female
Custom sizes available. Ask for quote.
PROPERTIES
Surface Resistance
Corrosivity
Sloughing Test
Recyclability
Biodegradability
TYPICAL VALUES
1 x 10E6 < 1 x 10E9 ohms
Contains 1-3 ppm reducible sulfur
Negligible surface damage at 10 cycles and <5% of surface
damage at 200 cycles in Taber Abrasion Test.
No conductive particles abrased from surface
Complete recyclability of package
Biodegradation in or on moist soil
TEST PROCEDURES/METHOD
ANSI/ESD S4.1 and ESD TR53
FED-STD-101, Method 3005 for reducible sulfur
ASTM D4060 at 70 rpm with CS-17 abrasive-coated
wheels and 1000 grams load
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
“The most important functional consideration for worksurfaces is the resistance from the top
of the surface to the groundable point. This establishes the resistance of the primary path
to ground for items placed on the surface. When worksurface materials are being selected,
consideration should be given to possible CDM damage to ESD sensitive products. If CDM
damage is a concern, then setting a lower resistance limit for the worksurface should be
considered. Typically, the lower limit for these types of worksurfaces is 1 x 10E6 ohms.”
[ESD Handbook ESD TR20.20 Worksurface section 5.3.1.7 Electrical Considerations]
*Colour and texture may vary between lots and mills
Specifications and procedures subject to change without notice.
Made in America
PRO-MATS
PROTEKTIVE PAK
13520 MONTE VISTA AVENUE, CHINO, CA 91710
PHONE (909) 627-2578, FAX (909) 363-7331
ProtektivePak.com
DRAWING NUMBER
37670
DATE:
August
2012
