Datasheet
AC/DC Drivers
Quasi-Resonant Control type
DC/DC Converter IC
BM1Q011FJ
●General
Description
The quasi-resonant controller typed AC/DC converter IC
BM1Q011FJ provides an optimum system for all products
that include an electrical outlet. Quasi-resonant operation
enables soft switching and helps to keep EMI low.
With MOSFET for switching and current detection
resistors as external devices, a higher degree of design
freedom is achieved.
This IC built in HV starter circuit, it contributes to low
consumption power and high speed start.
Because the burst mode is built-in and IC consumption
current is low, stand-by power becomes very low.
Because BM1Q011FJ series built-in soft-start, burst mode,
over current limiter which is cycle-by-cycle, over load
protection, over voltage protection, CS Open Protection
and so on, BM1Q011FJ are highly safety.
●Key
Specifications
Operating Power Supply Voltage Range:
:
VCC：8.9V to 26.0V
VH：
to 600V
Operating Current:
Normal：0.60mA (Typ.)
Burst
：
0.35mA(Typ.)
Max frequency:
120kHz(Typ.)
Operate temperature range:
-40
to +85
●Typical
Application Circuit
●Features
Quasi-resonant method
Built-in 650V tolerate start circuit
Low power at the light load (burst operation)
Maximum frequency control (120kHz)
Frequency reduction function
AC voltage correction function
VCC pin : under voltage protection
VCC pin : over voltage protection
Over-current protection (cycle-by-cycle)
Output driver 12V clamp circuits
Soft start function
ZT trigger mask function
Over Load protection [Auto-restart]
CS pin open protection [Auto-restart]
●Package
SOP-J7S
6.00mm × 4.90mm × 1.65mm
(Typ.)
(Typ.)
(Typ.)
●Applications
Air conditioner, AC adapters, TV such as the products
which need the outlet.

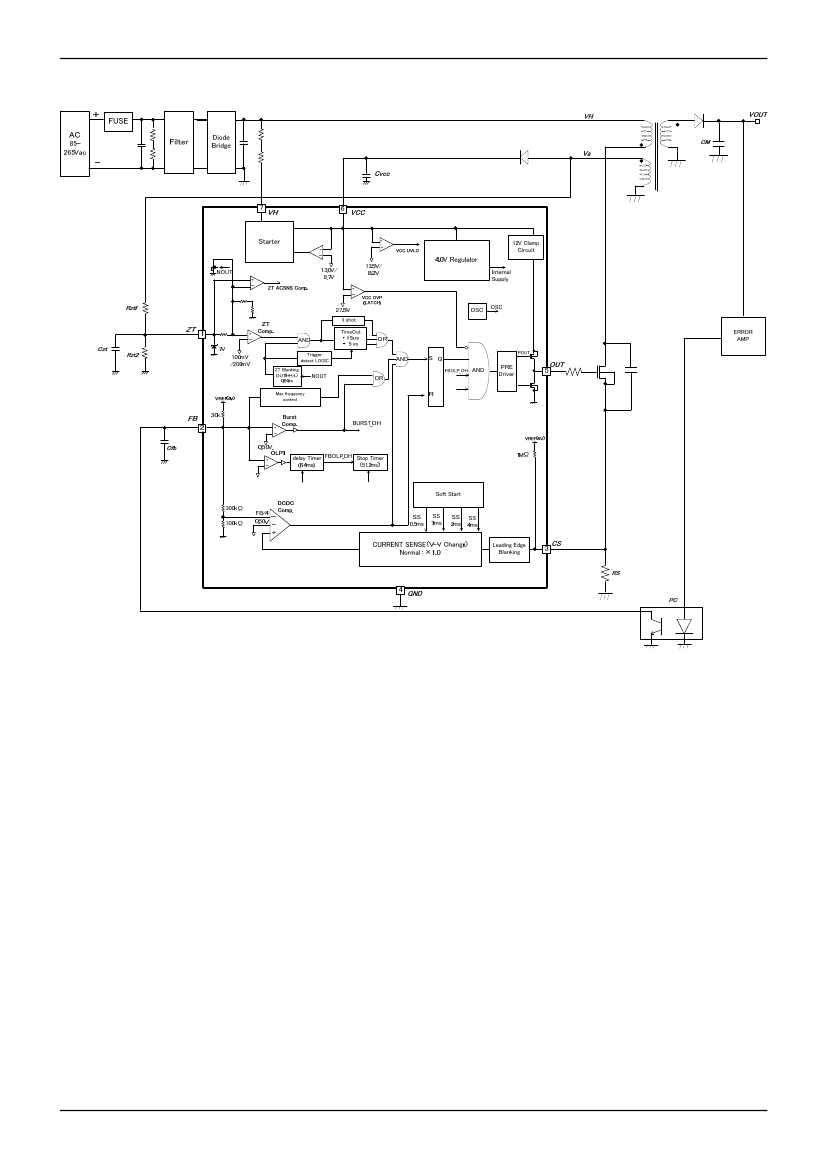

Figure 1. Application Circuit
○Product
structure：Silicon monolithic integrated circuit
.
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product is not designed protection against radioactive rays
1/26
TSZ02201-0F1F0A200180-1-2
21.Jan.2016 Rev.001
BM1Q011FJ
●Absolute
Maximum Ratings（Ta=25C）
Item
Symbol
Rating
Unit
Condition
Input voltage range 1
Vmax1
-0.3 ~ 30
V
VCC
Input voltage range 2
Vmax2
-0.3 ~ 6.5
V
FB, CS
Input voltage range 3
Vmax3
-0.3 ~ 7.0
V
ZT
Input voltage range 4
Vmax4
-0.3 ~ 15
V
OUT
Input voltage range 5
Vmax5
-0.3 ~ 650
V
VH
OUT pin out peak current1
I
OH
-0.5
A
OUT pin out peak current2
I
OL
1.0
A
ZT pin current1
I
SZT1
-3.0
mA
ZT pin current2
I
SZT2
3.0
mA
CS pin current1
I
SCS1
-0.45
mA
Sink current
Allowable dissipation
Pd
0.675 (Note1)
W
o
Operating temperature
Topr
-40
½
+85
C
o
Max junction temperature
Tjmax
150
C
o
Storage temperature range
Tstr
-55
½
+150
C
(Note1) When mounted on 70 mm × 70 mm × 1.6 mm (glass epoxy on single-layer substrate).
Reduce to 5.4 mW/C when Ta = 25C or above.
●Operating
Conditions（Ta=25C）
Parameter
Power supply voltage range 1
Power supply voltage range 2
Symbol
VCC
VH
Rating
8.9½26.0
80½600
Unit
V
V
Conditions
VCC
VH
Datasheet
●Electrical
Characteristics (Unless otherwise noted, Ta = 25C, VCC = 15 V)
Specifications
Parameter
Symbol
MIN
TYP
MAX
［Circuit
current½
Circuit current (ON)1
Circuit current (ON)2
Circuit current(OFF)
［VH
pin starter½
VH Start current 1
VH Start current 2
VH OFF current
VH start current switched voltage
［VCC
pin protection½
VCC UVLO voltage1
VCC UVLO voltage2
VCC UVLO hysteresis
VCC charge start voltage
VCC charge end voltage
VCC OVP voltage1
VCC OVP voltage2
VCC OVP hysteresis
［OUT
pin½
OUT pin H voltage
OUT pin L voltage
OUT pin Pull-down resistor
V
OUTH
V
OUTL
R
PDOUT
10.5
-
75
12.5
-
100
14.5
0.30
125
V
UVLO1
V
UVLO2
V
UVLO3
V
CHG1
V
CHG2
V
OVP1
V
OVP2
V
OVP3
12.50
7.50
-
7.70
12.00
26.00
-
-
13.50
8.20
5.30
8.70
13.00
27.50
23.50
4.00
14.50
8.90
-
9.70
14.00
29.00
-
-
I
START1
I
START2
I
START3
V
SC
0.400
1.00
-
0.400
0.700
3.00
10
0.800
1.000
6.00
20
1.400
I
ON1
I
ON2
I
OFF
-
-
-
600
350
-
1000
450
25
Unit
Conditions
uA
uA
uA
FB=2.0V
(Switching operation)
FB=0.5V
(Switching OFF)
VCC=12V , VH: open
VCC UVLO = disable
VCC= 0V
VCC=10V
After releasing VCCUVLO
VH pin current
VCC pin
VCC rise
VCC fall
V
UVLO3=
V
UVLO1
-V
UVLO2
Starter circuit
Stop voltage from V
CHG1
VCC rise
VCC fall
mA
mA
uA
V
V
V
V
V
V
V
V
V
V
V
kΩ
IO=-20mA, VCC=15V
IO=+20mA
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/26
TSZ02201-0F1F0A200180-1-2
21.Jan.2016 Rev.001
BM1Q011FJ
●IC
control unit Electrical Characteristics (Unless otherwise noted, Ta = 25C, VCC = 15 V)
Specifications
Parameter
Symbol
Unit
MIN
TYP
MAX
[ DC/DC converter unit
（Turn-off）]
Pull-up resistor of FB pin
CS over current voltage 1A
CS over current voltage 1B
CS over current voltage 2A
CS over current voltage 2B
Voltage gain1
（∆VFB/∆VCS）
Voltage gain 2
（∆VFB/∆VCS）
ZT current switched CS 1
ZT current switched CS 2
ZT current hysteresis
switched CS voltage
CS Leading Edge Blanking time
Turn-off time
Minimum ON width
Maximum ON width
[ DC/DC converter unit
（Turn-on）]
ZT input current 1
ZT input current 2
ZT input current 3
Max frequency 1
Max frequency 2
Frequency reduction start
voltage
Frequency reduction end voltage
ZT comparator voltage1
ZT comparator voltage2
ZT trigger mask time
ZT trigger Timeout1
ZT trigger Timeout2
[DC/DC protection ]
Soft start time1
T
SS1
0.35
0.50
Soft start time 2
T
SS2
0.70
1.00
Soft start time 3
T
SS3
1.40
2.00
Soft start time 4
T
SS4
2.80
4.00
FB Burst voltage
V
BURST
0.42
0.50
FB OLP voltage a
V
FOLP1A
2.6
2.8
FB OLP voltage b
V
FOLP1B
-
2.6
FB OLP detection timer
T
FOLP
44.8
64
FBOLP stop timer
T
OLPST
358
512
Latch mask time
T
LATCH
50
100
* Definition of ACSNS (L :
ZT current < I
ZT1
、H
:
ZT current > I
ZT1
)
0.65
1.30
2.60
5.20
0.58
3.0
-
83.2
666
200
ms
ms
ms
ms
V
V
V
ms
ms
ms
I
ZT1
I
ZT2
I
ZT3
F
SW1
F
SW2
V
FBSW1
V
FBSW2
V
ZT1
V
ZT2
T
ZTMASK
T
ZTOUT1
T
ZTOUT2
4
6
8
108
-
1.10
0.42
60
120
-
10.5
3.5
14
16
18
120
30
1.25
0.50
100
200
0.6
15.0
5.0
24
26
28
132
-
1.40
0.58
140
280
-
19.5
6.5
uA
uA
uA
kHz
kHz
V
V
mV
mV
us
us
us
R
FB
V
lim1A
V
lim1B
V
lim2A
V
lim2B
AV
CS1
AV
CS2
I
ZT1
I
ZT2
I
ZTHYS
T
LEB
T
OFF
T
min
T
max
22.5
0.475
0.310
-
-
3.40
4.86
0.93
0.82
-
-
-
-
30.0
30.0
0.500
0.350
0.125
0.088
4.00
5.71
1.00
0.90
0.10
0.250
0.150
0.400
39.0
37.5
0.525
0.390
-
-
4.60
6.57
1.07
0.98
-
-
-
-
50.7
kΩ
V
V
V
V
V/V
V/V
mA
mA
mA
us
us
us
us
Datasheet
Conditions
FB=2.2V (ACSNS＝L)
FB=2.2V (ACSNS＝H)
FB=0.5V (ACSNS＝L)
FB=0.5V (ACSNS＝H)
ACSNS＝L
ACSNS＝H
T
LEB
＋T
OFF
OUT=L, ZT=4.65V
OUT=L, ZT=5.00V
OUT=L, ZT=5.35V
FB=2.0V
FB=0.5V
ZT fall
ZT rise
In OUT H ->L,
prevent noise
Without bottom detection
Count from final ZT trigger
FBOLP detect（FB rise）
FBOLP detect（FB fall）
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/26
TSZ02201-0F1F0A200180-1-2
21.Jan.2016 Rev.001
BM1Q011FJ
●Pin
Configuration
Table 1 Input-Output PIN Function
NO.
1
2
3
4
5
6
7
●
External Dimensions
(TOP VIEW)
ZT
FB
CS
GND
1
2
3
4
6
5
VCC
OUT
7
VH
Pin Name
ZT
FB
CS
GND
OUT
VCC
VH
I/O
I
I
I
I/O
O
I/O
I
Function
Zero current detect pin
Feedback signal input pin
Primary current sensing pin
GND pin
External MOS drive pin
Power supply pin
Starter circuit pin
ESD Diode
VCC
-
○
○
○
○
-
-
GND
○
○
○
-
○
○
○
Datasheet
Figure 2. SOP-J7 package external dimensions
●I/O
Equivalent Circuit Diagram
Figure 3. I/O Equivalent Circuit Diagram
