Issue Number │001
February 2015
Announcement
New Product
PAM8009
3W Stereo Class-D Audio Amplifier and
Class-AB Headphone Driver

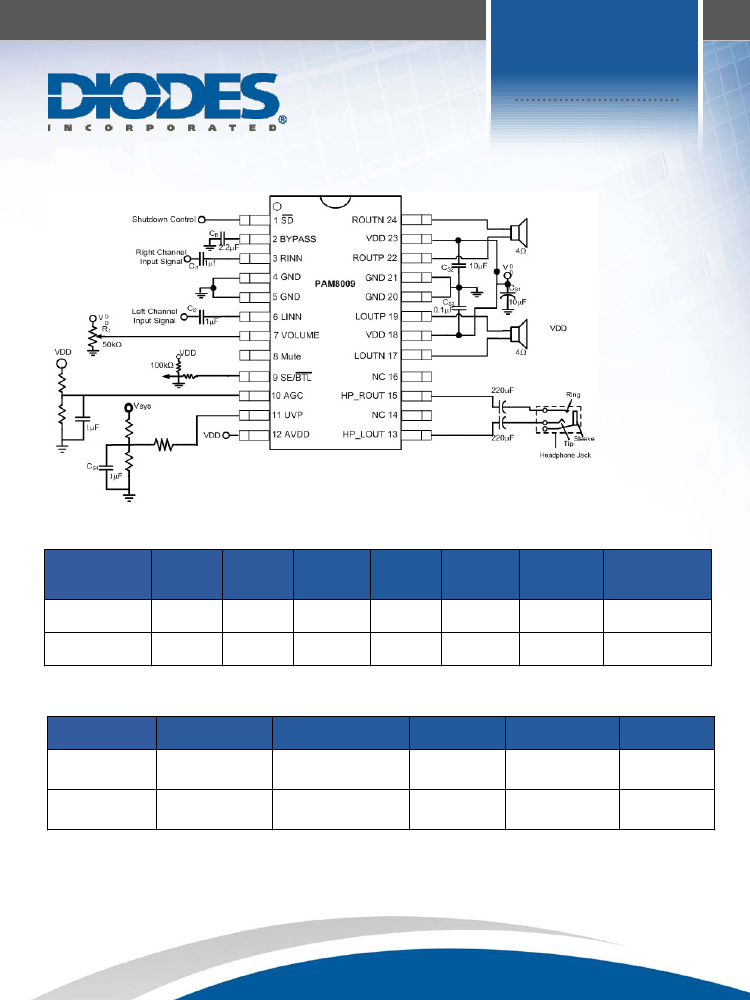

The PAM8009 is a highly
integrated 3W Class-D audio
power amplifier for driving
bridged-tied (BTL) stereo
speakers and includes a
stereo Single ended (SE)
headphone amplifier.
Packaged in two power
efficient packages, the
PAM8009 provides excellent
audio performance and
numerous features to
provide complete system
flexibility.
Advanced DC volume
control minimizes external
components required and
allows precise volume
control with 64 steps over
the range of +20dB to -60dB.
Mute and standby modes
are provided to reduce noise
or to minimize power.
The Auto Gain Control
(AGC) function allows the
PAM8009 to maximize the
output power whilst
protecting the speakers.
The Diodes’ Advantage
3W Stereo Class-D with built-in Head Phone Driver
Provides a reliable, high audio performance and integrated
solution for multiple applications
Full Audio Control allows the Audio amp to have full
system control
- 64 Step volume control over the range of +20dB to -60dB
- Mute disables the outputs
- Standby functions puts the PAM8009 asleep minimizing
power consumption
Enhanced System Protection
- Integrated Auto Gain Control function for speaker protection
- Integrated power limit function (for output power limit)
- Thermal and Over-Current protection with auto-recovery
- Under voltage shut down ensures the amplifier is always fully
functional
Applications
LCD monitor / TV
Projector
Computing
All-in One Computers
Game machines
DVD player
www.diodes.com
