PCMFXHDMI2S series
Common-mode EMI filter for differential channels with
integrated ESD protection
Rev. 2 — 19 April 2016
Product data sheet
1. Product profile
1.1 General description
Common-mode ElectroMagnetic Interference (EMI) filters with integrated ElectroStatic
Discharge (ESD) protection for one, two and three differential channels. The devices are
designed to provide low insertion loss for differential high-speed signals on each channel
while unwanted common-mode signals are attenuated.
Each differential channel incorporates two signal lines that are coupled by integrated coils.
Diodes provide protection to downstream components from ESD voltages up to
15
kV on
each signal line.
Table 1.
Product overview
Number of channels
1
2
3
Package Name
WLCSP5
WLCSP10
WLCSP15
Type number
PCMF1HDMI2S
PCMF2HDMI2S
PCMF3HDMI2S
1.2 Features and benefits
One, two and three differential channels common-mode EMI filters with integrated
ESD protection
ESD protection up to
15
kV contact discharge according to IEC 61000-4-2
Superior common-mode suppression over a wide frequency range
Superior RF performance compared to other integrated filters or discrete filters with
external ESD protection
Extremely high symmetry between line pairs
Industry-standard Wafer Level Chip Scale Packages: WLCSP5, 10 and 15 for smaller
footprint
1.3 Applications
Smartphone, cellular and cordless phone
Tablet PC and Mobile Internet Device (MID)
HDMI 2.0, HDMI 1.4
MIPI M-PHY and D-PHY as used in Camera Serial Interface (CSI) and Display Serial
Interface (DSI)
General-purpose EMI and Radio-Frequency Interference (RFI) filter and downstream
ESD protection
Nexperia
PCMFXHDMI2S series
Common-mode EMI filter for differential channels with ESD protection
2. Pinning information
Table 2.
Pin
A1
A2
B1
C1
C2
Pinning
Description
channel 1+, external
channel 1, external
ground channel 1
channel 1+, internal
channel 1, internal
1
A
B
C
A1
2
B1
A2
C1
C2
Symbol
CH1_IN+
CH1_IN
GND_CH1
CH1_OUT+
CH1_OUT
Simplified outline
Graphic symbol
PCMF1HDMI2S (WLCSP5_2-1-2)
Transparent top view
WLCSP5_2-1-2
B1
aaa-019784
PCMF2HDMI2S (WLCSP10_4-2-4)
A1
A2
A3
A4
B1
B2
C1
C2
C3
C4
CH1_IN+
CH1_IN
CH2_IN+
CH2_IN
GND_CH1
GND_CH2
CH1_OUT+
CH1_OUT
CH2_OUT+
CH2_OUT
channel 1+, external
channel 1, external
channel 2+, external
channel 2, external
ground channel 1
ground channel 2
channel 1+, internal
channel 1, internal
channel 2+, internal
channel 2, internal
1
A
B
C
3
A1, 3
4
B2
A2, 4
C1, 3
C2, 4
2
B1
B1, B2 - no internal connection
aaa-019785
Transparent top view
WLCSP10_4-2-4
PCMF3HDMI2S (WLCSP15_6-3-6)
A1
A2
A3
A4
A5
A6
B1
B2
B3
C1
C2
C3
C4
C5
C6
CH1_IN+
CH1_IN
CH2_IN+
CH2_IN
CH3_IN+
CH3_IN
GND_CH1
GND_CH2
GND_CH3
CH1_OUT+
CH1_OUT
CH2_OUT+
CH2_OUT
CH3_OUT+
CH3_OUT
channel 1+, external
channel 1, external
channel 2+, external
channel 2, external
channel 3+, external
channel 3, external
ground channel 1
ground channel 2
ground channel 3
channel 1+, internal
channel 1, internal
channel 2+, internal
channel 2, internal
channel 3+, internal
channel 3, internal
A
B
C
Transparent top view
2
B1
1
3
5
A1, 3, 5
6
B3
A2, 4, 6
C1, 3, 5
C2, 4, 6
4
B2
B1, B2, B3 - no internal connection
aaa-019786
WLCSP15_6-3-6
PCMFXHDMI2S_SER
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 2 — 19 April 2016
2 of 20
Nexperia
PCMFXHDMI2S series
Common-mode EMI filter for differential channels with ESD protection
3. Ordering information
Table 3.
Ordering information
Package
Name
PCMF1HDMI2S
PCMF2HDMI2S
PCMF3HDMI2S
WLCSP5
Description
Version
PCMF2HDMI2S
PCMF3HDMI2S
wafer level chip-size package; 5 bumps (2-1-2) PCMF1HDMI2S
Type number
WLCSP10 wafer level chip-size package;
10 bumps (4-2-4)
WLCSP15 wafer level chip-size package;
15 bumps (6-3-6)
4. Marking
Table 4.
Marking codes
Marking code
PF1S
PF2S
PF3S
Type number
PCMF1HDMI2S
PCMF2HDMI2S
PCMF3HDMI2S
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
I
V
ESD
Parameter
input voltage
electrostatic discharge
voltage
IEC 61000-4-2, level 4;
all input pins to ground
contact discharge
air discharge
IEC 61000-4-2, level 4;
all output pins to ground
contact discharge
air discharge
I
PPM
T
stg
T
amb
rated peak pulse
current
storage temperature
ambient temperature
t
p
= 8/20
s
2
2
7
40
40
2
2
7
+125
+85
kV
kV
A
C
C
15
15
15
15
kV
kV
Conditions
Min
0.5
Max
5
Unit
V
PCMFXHDMI2S_SER
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 2 — 19 April 2016
3 of 20
Nexperia
PCMFXHDMI2S series
Common-mode EMI filter for differential channels with ESD protection
6. Characteristics
6.1 Channel characteristics
Table 6.
Channel characteristics
T
amb
= 25
C unless otherwise specified.
Symbol Parameter
R
s(ch)
C
d
I
RM
V
BR
V
F
V
CL
diode capacitance
reverse leakage current
breakdown voltage
forward voltage
clamping voltage
Conditions
f = 1 MHz; V
I
= 2.5 V
per line; V
I
= 5 V
I
R
= 1 mA
I
F
= 10 mA
TLP
I
PP
=
16
A
I
PP
=
8
A
I
PP
= 8 A
I
PP
= 16 A
R
dyn
dynamic resistance
TLP
positive transient
negative transient
surge
positive transient
negative transient
[1]
[2]
[3]
This parameter is guaranteed by design.
100 ns Transmission Line Pulse (TLP); 50
;
pulser at 70 ns to 90 ns.
According to IEC 61000-4-5 (8/20
s).
[3]
[2]
[2]
[1]
Min
-
-
-
6
-
-
-
-
-
-
-
-
-
Typ
3
0.25
-
9
0.8
3.7
2.5
2.8
4
0.16
0.16
0.22
0.22
Max
-
-
100
-
-
-
-
-
-
-
-
-
-
Unit
pF
nA
V
V
V
V
V
V
channel series resistance single line; input to output
6.2 Frequency characteristics
Table 7.
Frequency characteristics
Conditions
[1]
Symbol Parameter
Common mode: S
21cc
il
insertion loss
Min
Typ
Max
Unit
f = 800 MHz
f = 1.7 GHz
f = 3 GHz
Differential mode: S
21dd
il
f
3dB
[1]
-
-
-
[1]
[1]
12
-
dB
dB
dB
dB
GHz
21.5
-
31.5
-
0.3
6
-
-
insertion loss
cut-off frequency
f = 1 MHz
-
-
Normalized to attenuation at 1 MHz.
PCMFXHDMI2S_SER
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 2 — 19 April 2016
4 of 20
Nexperia
PCMFXHDMI2S series
Common-mode EMI filter for differential channels with ESD protection
0
S
dd21
(dB)
-2
aaa-019777
0
S
cc21
(dB)
-10
aaa-019778
S
21dd pin 1 - 2
-4
S
21dd pin 5 - 6
-20
S
21cc pin 1 - 2
-30
S
21cc pin 5 - 6
-6
-40
-8
10
7
10
8
10
9
f (Hz)
10
10
-50
10
7
10
8
10
9
f (Hz)
10
10

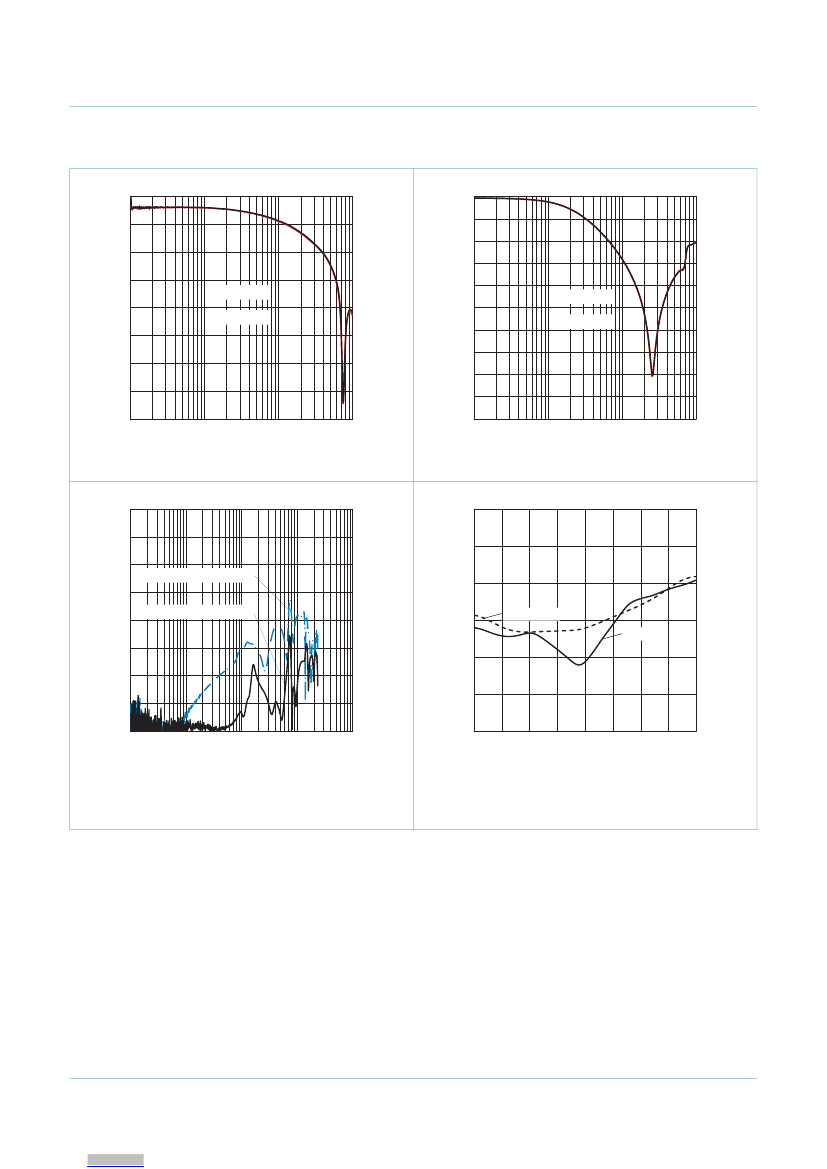

Fig 1.
0
S
dd21
(db)
-20
Differential-mode insertion loss; typical values
aaa-021982
Fig 2.
115
Z
dif
(Ω)
Common-mode insertion loss; typical values
aaa-019779
Mag S
21dd A3 - A4 > C1 - C2
105
Z reference
Z DUT
95
-40
Mag S
21dd A5 - A6 > C1 - C2
-60
-80
10
7
10
8
10
9
10
10
f (Hz)
10
11
85
40.4
40.6
40.8
41.0
t (ns)
41.2
t
r
= 200 ps
Fig 3.
Differential crosstalk; typical values
Fig 4.
Differential Time Domain Reflectometer (TDR)
plot; typical values
PCMFXHDMI2S_SER
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 2 — 19 April 2016
5 of 20
