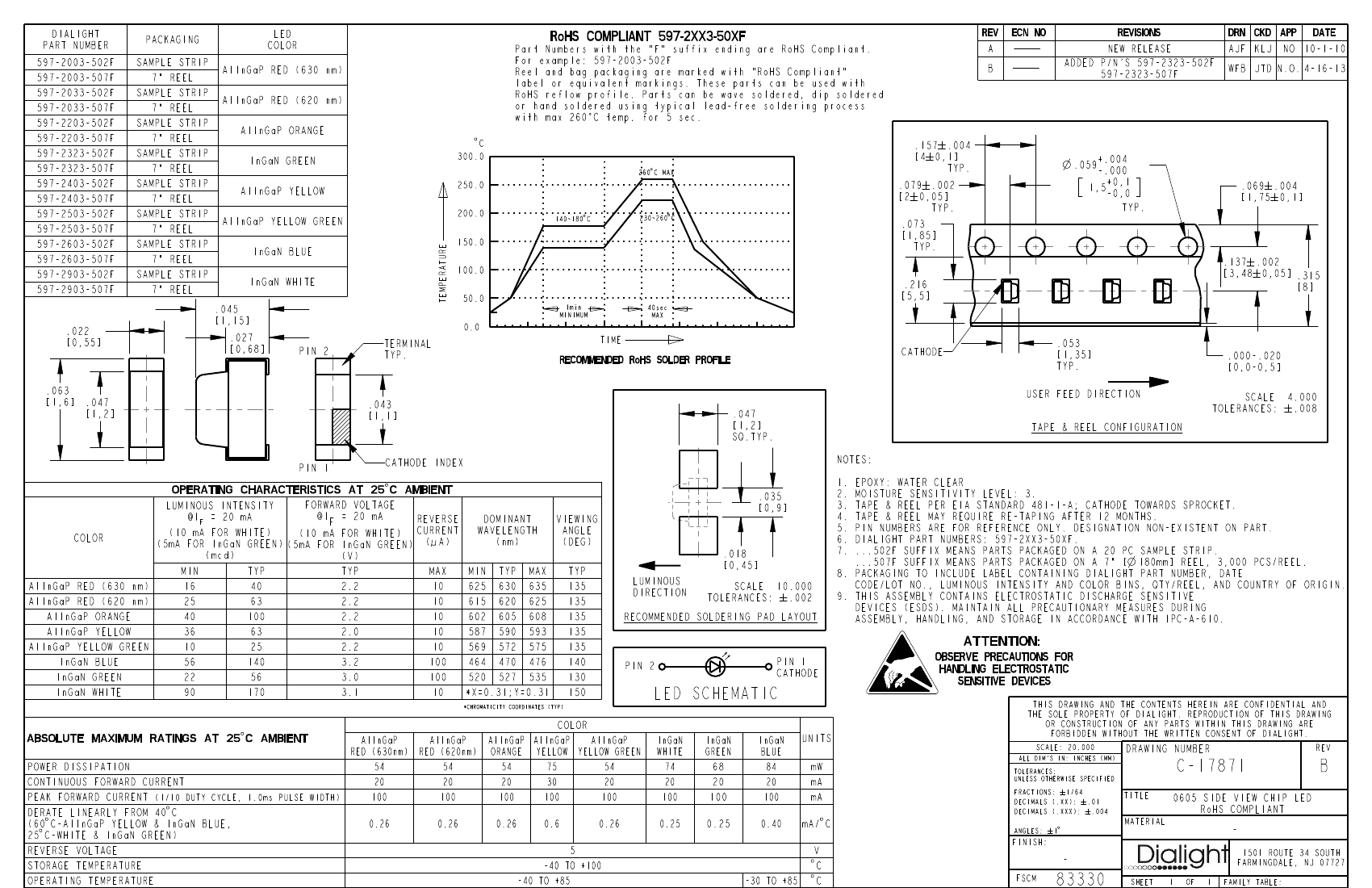

5972203507F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 5972203507F

Preview

5972203507F: DescriptionLED ORANGE CLEAR 0605 SMD R/A; CategoryLED optoelectronic/LED; File Size170KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5972203507F Overview

LED ORANGE CLEAR 0605 SMD R/A

5972203507F Parametric

Parameter Name	Attribute value
color	orange color
Lens color	colorless
Lens transparency	transparent
millicandela level	100mcd
Lens style/size	Rectangular, with flat top, 1.20mm x 0.55mm
Voltage - Forward (Vf) (Typical)	2.2V
Current - Test	20mA
perspective	135°
Installation type	Surface mount, right angle
Wavelength - Main	605nm
Wavelength - Peak	-
characteristic	-
Package/casing	2-SMD, no leads
Supplier device packaging	605
size/dimensions	1.60mm length x 1.15mm width
Height (maximum value)	0.55mm

Preview

Download Datasheet

View All

DIALIGHT

PART NUMBER

597-2003-502F

597-2003-507F

597-2033-502F

597-2033-507F

597-2203-502F

597-2203-507F

597-2323-502F

597-2323-507F

597-2403-502F

597-2403-507F

597-2503-502F

597-2503-507F

597-2603-502F

597-2603-507F

597-2903-502F

597-2903-507F

PACKAGING

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

SAMPLE STRIP

7" REEL

LED

COLOR

AlInGaP RED (630 nm)

AlInGaP RED (620 nm)

AlInGaP ORANGE

InGaN GREEN

AllnGaP YELLOW

AllnGaP YELLOW GREEN

InGaN BLUE

InGaN WHITE

.045

[1,15]

.027

[0,68]

PIN 2

TERMINAL

TYP.

TEMPERATURE

RoHS COMPLIANT 597-2XX3-50XF

Part Numbers with the "F" suffix ending are RoHS Compliant.

For example: 597-2003-502F

Reel and bag packaging are marked with "RoHS Compliant"

label or equivalent markings. These parts can be used with

RoHS reflow profile. Parts can be wave soldered, dip soldered

or hand soldered using typical lead-free soldering process

with max 260°C temp. for 5 sec.

C

300.0

260 C MAX

REV

A

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

AJF KLJ

NO 10-1-10

B

ADDED P/N'S 597-2323-502F

597-2323-507F

WFB JTD N.O. 4-16-13

.157 .004

[4 0,1 ]

TYP.

.079 .002

[2 0,05 ]

TYP.

.059

250.0

200.0

150.0

100.0

50.0

1min

MINIMUM

40sec

MAX

[

+.004

-.000

+0,1

1,5

-0,0

TYP.

]

.069 .004

[1,75 0,1 ]

140~180 C

230~260 C

.073

[1,85]

TYP.

.137 .002

[3,48 0,05 ] .315

[8]

.216

[5,5]

.022

[0,55]

0.0

TIME

RECOMMENDED RoHS SOLDER PROFILE

CATHODE

.053

[1,35]

TYP.

USER FEED DIRECTION

.000 -.020

[0,0 -0,5 ]

SCALE 4.000

TOLERANCES:

.008

.063

[1,6] .047

[1,2]

.043

[1,1]

.047

[1,2]

SQ.TYP.

TAPE & REEL CONFIGURATION

PIN 1

CATHODE INDEX

.035

[0,9]

DOMINANT

WAVELENGTH

(nm)

MIN

625

615

602

587

569

464

520

TYP

630

620

605

590

572

470

527

MAX

635

625

608

593

575

476

535

VIEWING

ANGLE

(DEG)

TYP

135

140

130

150

COLOR

.018

[0,45]

LUMINOUS

DIRECTION

SCALE 10.000

TOLERANCES:

.002

NOTES:

1.

2.

3.

4.

5.

6.

7.

EPOXY: WATER CLEAR

MOISTURE SENSITIVITY LEVEL: 3.

TAPE & REEL PER EIA STANDARD 481-1-A; CATHODE TOWARDS SPROCKET.

TAPE & REEL MAY REQUIRE RE-TAPING AFTER 12 MONTHS.

PIN NUMBERS ARE FOR REFERENCE ONLY. DESIGNATION NON-EXISTENT ON PART.

DIALIGHT PART NUMBERS: 597-2XX3-50XF.

...502F SUFFIX MEANS PARTS PACKAGED ON A 20 PC SAMPLE STRIP.

...507F SUFFIX MEANS PARTS PACKAGED ON A 7" [

180mm] REEL, 3,000 PCS/REEL.

8. PACKAGING TO INCLUDE LABEL CONTAINING DIALIGHT PART NUMBER, DATE

CODE/LOT NO., LUMINOUS INTENSITY AND COLOR BINS, QTY/REEL, AND COUNTRY OF

ORIGIN.

9. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE

DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING

ASSEMBLY, HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.

OPERATING CHARACTERISTICS AT 25 AMBIENT

C

FORWARD VOLTAGE

@I = 20 mA

REVERSE

F

CURRENT

(10 mA FOR WHITE)

(5mA FOR InGaN GREEN) (5mA FOR InGaN GREEN) ( A)

(mcd)

(V)

LUMINOUS INTENSITY

@I

F

= 20 mA

MIN

AlInGaP RED (630 nm)

AlInGaP RED (620 nm)

AlInGaP ORANGE

AllnGaP YELLOW

AllnGaP YELLOW GREEN

InGaN BLUE

InGaN GREEN

InGaN WHITE

16

25

40

36

10

56

22

90

TYP

40

63

100

63

25

140

56

170

TYP

2.2

2.0

2.2

3.2

3.0

3.1

MAX

10

100

10

COLOR

RECOMMENDED SOLDERING PAD LAYOUT

*X=0.31;Y=0.31

*CHROMATICITY COORDINATES (TYP)

ABSOLUTE MAXIMUM RATINGS AT 25 AMBIENT

C

POWER DISSIPATION

CONTINUOUS FORWARD CURRENT

PEAK FORWARD CURRENT

(1/10 DUTY CYCLE, 1.0ms PULSE WIDTH)

DERATE LINEARLY FROM 40 C

(60 C-AllnGaP YELLOW & InGaN BLUE,

25 C-WHITE & InGaN GREEN)

REVERSE VOLTAGE

STORAGE TEMPERATURE

OPERATING TEMPERATURE

AlInGaP

RED (630nm)

54

20

100

0.26

AlInGaP

RED (620nm)

54

20

100

0.26

AllnGaP

AlInGaP AllnGaP

ORANGE YELLOW YELLOW GREEN

54

20

100

0.26

75

30

100

0.6

5

-40 TO +100

-40 TO +85

54

20

100

0.26

InGaN

WHITE

74

20

100

0.25

InGaN

GREEN

68

20

100

0.25

InGaN

BLUE

84

20

100

0.40

UNITS

mW

mA

mA/ C

V

C

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND

THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING

OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE

FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.

SCALE: 20.000

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

DRAWING NUMBER

REV

C-17871

TITLE

MATERIAL

B

FRACTIONS:

1/64

DECIMALS (.XX):

.01

DECIMALS (.XXX):

.004

ANGLES:

1

0605 SIDE VIEW CHIP LED

RoHS COMPLIANT

-

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

FINISH:

-

FSCM

-30 TO +85

C

83330

SHEET

1

OF

1

FAMILY TABLE:

5972203507F Related Products

	5972203507F	597-2323-502F	5972603507F	5972003507F	5972403507F	5972033507F	5972903507F	5972503507F
Description	LED ORANGE CLEAR 0605 SMD R/A	led chip green side VW 0605	LED BLUE CLEAR 0605 SMD R/A	LED RED CLEAR 0605 SMD R/A	LED YELLOW CLEAR 0605 SMD R/A	LED RED CLEAR 0605 SMD R/A	LED COOL WHT CLEAR 0605 SMD R/A	LED YLW/GRN CLEAR 0605 SMD R/A
color	orange color	-	blue	red	yellow	red	white, cool color	Yellow green
Lens color	colorless	-	colorless	colorless	colorless	colorless	colorless	colorless
Lens transparency	transparent	-	transparent	transparent	transparent	transparent	transparent	transparent
millicandela level	100mcd	-	140mcd	40mcd	63mcd	63mcd	170mcd	25mcd
Lens style/size	Rectangular, with flat top, 1.20mm x 0.55mm	-	Rectangular, with flat top, 1.20mm x 0.55mm	Rectangular, with flat top, 1.20mm x 0.55mm	Rectangular, with flat top, 1.20mm x 0.55mm	Rectangular, with flat top, 1.20mm x 0.55mm	Rectangular, with flat top, 1.20mm x 0.55mm	Rectangular, with flat top, 1.20mm x 0.55mm
Voltage - Forward (Vf) (Typical)	2.2V	-	3.2V	2.2V	2V	2.2V	3.1V	2.2V
Current - Test	20mA	-	20mA	20mA	20mA	20mA	10mA	20mA
perspective	135°	-	140°	135°	135°	135°	150°	135°
Installation type	Surface mount, right angle	-	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Wavelength - Main	605nm	-	470nm	630nm	590nm	620nm	-	572nm
Package/casing	2-SMD, no leads	-	2-SMD, side view	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads
Supplier device packaging	605	-	605	605	605	605	605	605
size/dimensions	1.60mm length x 1.15mm width	-	1.60mm length x 1.15mm width	1.60mm length x 1.15mm width	1.60mm length x 1.15mm width	1.60mm length x 1.15mm width	1.60mm length x 1.15mm width	1.60mm length x 1.15mm width
Height (maximum value)	0.55mm	-	0.55mm	0.55mm	0.55mm	0.55mm	0.55mm	0.55mm
