Datasheet
Single-Output LDO Regulators
35V Withstand Voltage
1A LDO Regulators
BDxxFC0 series
●Description
The BDxxFC0 series are low-saturation regulators. The
series’ output voltages are Variable, 3.0V, 3.3V, 5.0V, 6.0V,
7.0V, 8.0V, 9.0V, 10.0V, 12.0V and 15.0V and packages
are HTSOP-J8, TO252-3, and TO252-5. This series has a
built-in over-current protection circuit that prevents the
destruction of the IC due to output short circuits and a
thermal shutdown circuit that protects the IC from thermal
damage due to overloading.
●Key
Specifications
1) Output current capability: 1A
2) Output voltage: Variable, 3.0V, 3.3V, 5.0V, 6.0V, 7.0V,
8.0V, 9.0V, 10.0V, 12.0V and 15.0V
3) High output voltage accuracy (Ta=25°C): ±1%
4) Low saturation with PDMOS output
5) Built-in over-current protection circuit that prevents the
destruction of the IC due to output short circuits
6) Built-in thermal shutdown circuit for protecting the IC
from thermal damage due to overloading
7) Available Ceramic Capacitor to prevent oscillation
8) HTSOP-J8, TO252-3 and TO252-5 packages
●Features
・Output
Voltage:
1.0V to 15.0V
・Output
Voltage Precision(Ta=25°C):
±1%
V
O
+1.0V to 26.5V
・Supply
Voltage(V
O
≧3.0V):
・Supply
Voltage(V
O
＜3.0V):
4.0V to 26.5V
・Output
Current:
1A
・Operating
Temperature Range:
-25°C≦Ta≦+85°C
●Ordering
part number

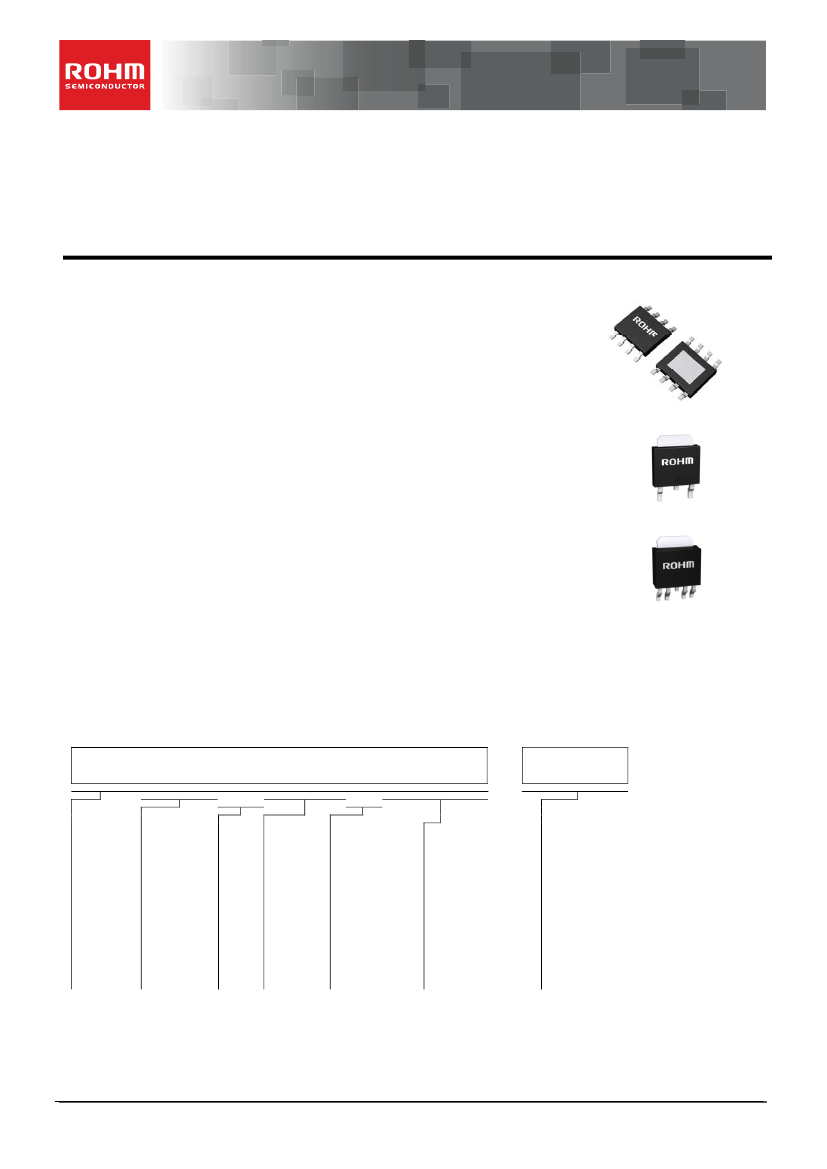

●Packages
HTSOP-J8
(Typ)
(Typ)
(Max)
4.90mm x 6.00mm x 1.00mm
TO252-3
6.50mm x 9.50mm x 2.50mm
TO252-5
6.50mm x 9.50mm x 2.50mm
B
Part
Number
D
x
x
F
C
0
W
Enable
x
x
x
-
E2
Packaging and forming specification
Output
voltage
00: Variable
30: 3.0V
33: 3.3V
50: 5.0V
60: 6.0V
70: 7.0V
80: 8.0V
90: 9.0V
J0: 10.0V
J2: 12.0V
J5: 15.0V
Input
Output
Voltage Current
F:35V
C0:1.0A
Package
EFJ: HTSOP-J8
FP: TO252-3/5
“W”: Included
Enable
None: Without
Enable
E2: Emboss tape reel
〇Product
structure : Silicon monolithic integrated circuit
www.rohm.com
.
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
〇This
product has no designed protection against radioactive rays
1/38
TSZ02201-0G2G0A600040-1-2
10.Jan.2017 Rev.005
BDxxFC0 Series
●Lineup
Articles
BDxxFC0WEFJ-E2
BDxxFC0FP-E2
BDxxFC0WFP-E2
(Note 1)
Variable
3.0
3.3
5.0
6.0
7.0
8.0
9.0
10.0
12.0
15.0
Datasheet
パッケージ
HTSOP-J8
TO252-3
TO252-5
Reel of 2500
Reel of 2000
Reel of 2000
○
-
○
○
-
○
○
○
○
○
○
○
○
-
○
○
-
○
○
-
○
○
-
○
○
-
○
○
-
○
○
-
○
(Note 1) under development except for Variable
●Typical
Application Circuits
〈Output
Voltage Variable Type (With Enable)〉
Vcc
Vcc
C
IN
EN
GND
R
2
FB
Vo
R
1
C
OUT
Figure 1. Typical Application Circuit
Output Voltage Variable Type(With Enable)
〈Output
Voltage Fixed Type (With Enable)〉
Vcc
Vcc
C
IN
EN
GND
Vo
C
OUT
Figure 2. Typical Application Circuit
Output Voltage Fixed Type(With Enable)
〈Output
Voltage Fixed Type (Without Enable)〉
Vcc
Vcc
C
IN
GND
Vo
C
OUT
Figure 3. Typical Application Circuit
Output Voltage Fixed Type (Without Enable)
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/38
TSZ02201-0G2G0A600040-1-2
10.Jan.2017 Rev.005
BDxxFC0 Series
●Pin
Configuration/Pin Description
〈With
Enable (HTSOP-J8)〉
Vo
FB/N.C.
GND
N.C
1
2
3
4
Datasheet
HTSOP-J8
(TOP VIEW)
8
7
6
5
Vcc
N.C
N.C
EN
Figure 4. Pin Configuration (With Enable)
Pin No.
1
2
3
4
5
6
7
8
Exposed
PAD
Pin name
Vo
FB/N.C.
(Note 1)
GND
N.C.
(Note 1)
EN
N.C.
(Note 1)
N.C.
(Note 1)
V
CC
GND
Pin Function
Output pin
Feedback pin (Variable Output Type)
No Connection (Fixed Output Type)
GND pin
No Connection (Connect to GND or leave OPEN)
Enable pin
No Connection (Connect to GND or leave OPEN)
No Connection (Connect to GND or leave OPEN)
Power supply pin
Substrate(Connect to GND)
(Note 1) N.C. Pin can be open, because it is not connected to the IC.
〈Without
Enable (TO252-3)〉
TO252-3
(TOP VIEW)
1
2
3
Figure 5. Pin Description (Without Enable)
Pin No.
1
2
3
FIN
Pin Name
Vcc
N.C.
(Note 1)
Vo
GND
Pin Function
Power Supply Pin
No Connection (leave OPEN)
Output Pin
GND
(Note 1) N.C.Pin can be open since it is not connected inside of IC.
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/38
TSZ02201-0G2G0A600040-1-2
10.Jan.2017 Rev.005
BDxxFC0 Series
〈With
Enable (TO252-5)〉
TO252-5
(TOP VIEW)
Datasheet
1 2
3 4 5
Figure 6. Pin Configuration (With Enable)
Pin No.
1
2
3
4
5
FIN
Pin Name
EN
Vcc
N.C.
(Note 1)
Vo
FB/N.C.
(Note 1)
GND
Pin Function
Enable Pin
Power Supply Pin
No Connection (leave OPEN)
Output Pin
Variable Pin (Variable Output Type)
N.C. Pin (Fixed Output Type)
GND
(Note 1) N.C.Pin can be open since it is not connected inside of IC.
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/38
TSZ02201-0G2G0A600040-1-2
10.Jan.2017 Rev.005
BDxxFC0 Series
●Block
diagrams
■
HTSOP-J8
〈BD00FC0WEFJ
(Output Voltage Variable Type) with Enable〉
Datasheet
VREF : Bandgap Reference
OCP : Over Current Protection Circuit
TSD : Thermal Shut Down Circuit
Driver : Power Transistor Driver
VREF
Driver
OCP
TSD
1
EN
2
Vcc
3
GND
4
Vo
5
FB
Figure 7. Block diagrams
BD00FC0WEFJ (Output Voltage Variable Type with Enable)
■
HTSOP-J8
〈BDxxFC0WEFJ
(Output Voltage Fixed Type) with Enable〉
VREF :
OCP :
TSD :
Driver :
Bandgap Reference
Over Current Protection Circuit
Thermal Shut Down Circuit
Power Transistor Driver
VREF
Driver
OCP
TSD
1
EN
2
Vcc
3
GND
4
Vo
5
N.C.
Figure 8. Block diagrams
BxxFC0WEFJ (Output Voltage Variable Type with Enable)
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/38
TSZ02201-0G2G0A600040-1-2
10.Jan.2017 Rev.005
