54122-3612 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 54122-3612

54122-3612: DescriptionTelecom and Datacom Connector, 36 Contact(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector; File Size115KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54122-3612 Overview

Telecom and Datacom Connector, 36 Contact(s), Female, Straight, Solder Terminal, Receptacle

54122-3612 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Other features	PANEL MOUNTABLE
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	54122
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

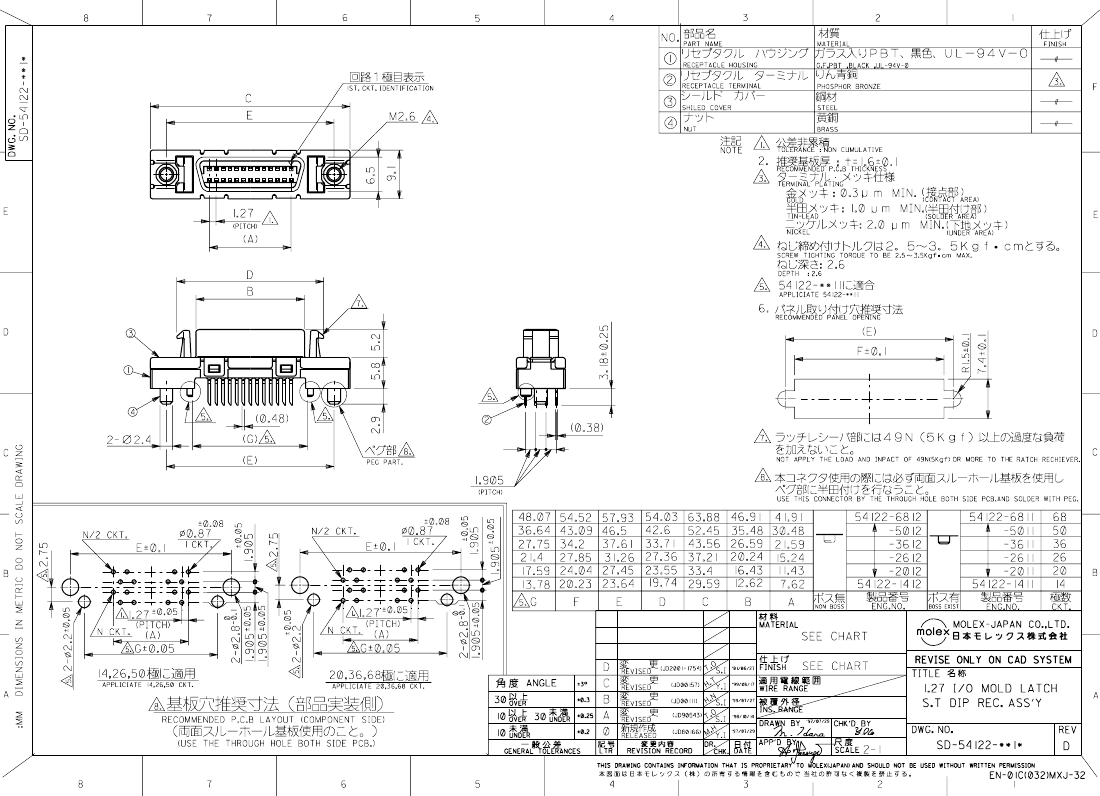

Preview

Download Datasheet

View All

54122-3612 Related Products

	54122-3612	54122-1411	54122-1412	54122-2611	54122-3611	54122-6811	54122-6812	54122-2612
Description	Telecom and Datacom Connector, 36 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 14 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 14 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle	Telecom and Datacom Connector, 26 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle	Telecom and Datacom Connector, 36 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle	Telecom and Datacom Connector, 26 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	36	14	14	26	36	68	68	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex	Molex
Manufacturer's serial number	54122	54122	54122	54122	54122	54122	-	-
Base Number Matches	1	1	1	1	1	-	-	-
Contact to complete cooperation	-	-	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	-	AU ON NI	NOT SPECIFIED
Contact material	-	-	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	-	PHOSPHOR BRONZE	NOT SPECIFIED
