C1206C330KBRAC7800

Description
CAP CER 33PF 630V X7R 1206
CategoryPassive components
File Size1MB,22 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

C1206C330KBRAC7800 Overview

CAP CER 33PF 630V X7R 1206

C1206C330KBRAC7800 Parametric

Parameter NameAttribute value
capacitance33pF
Tolerance±10%
Voltage - Rated630V
Temperature CoefficientX7R
Operating temperature-55°C ~ 125°C
characteristichigh voltage
grade-
applicationUniversal
failure rate-
Installation typeSurface mount, MLCC
Package/casing1206 (3216 metric)
size/dimensions0.126" long x 0.063" wide (3.20mm x 1.60mm)
Height - Installation (maximum)-
Thickness (maximum)0.069"(1.75mm)
lead spacing-
Lead form-
notifyThere is currently market demand for these product types, so lead times will change and extend. Lead times may vary.

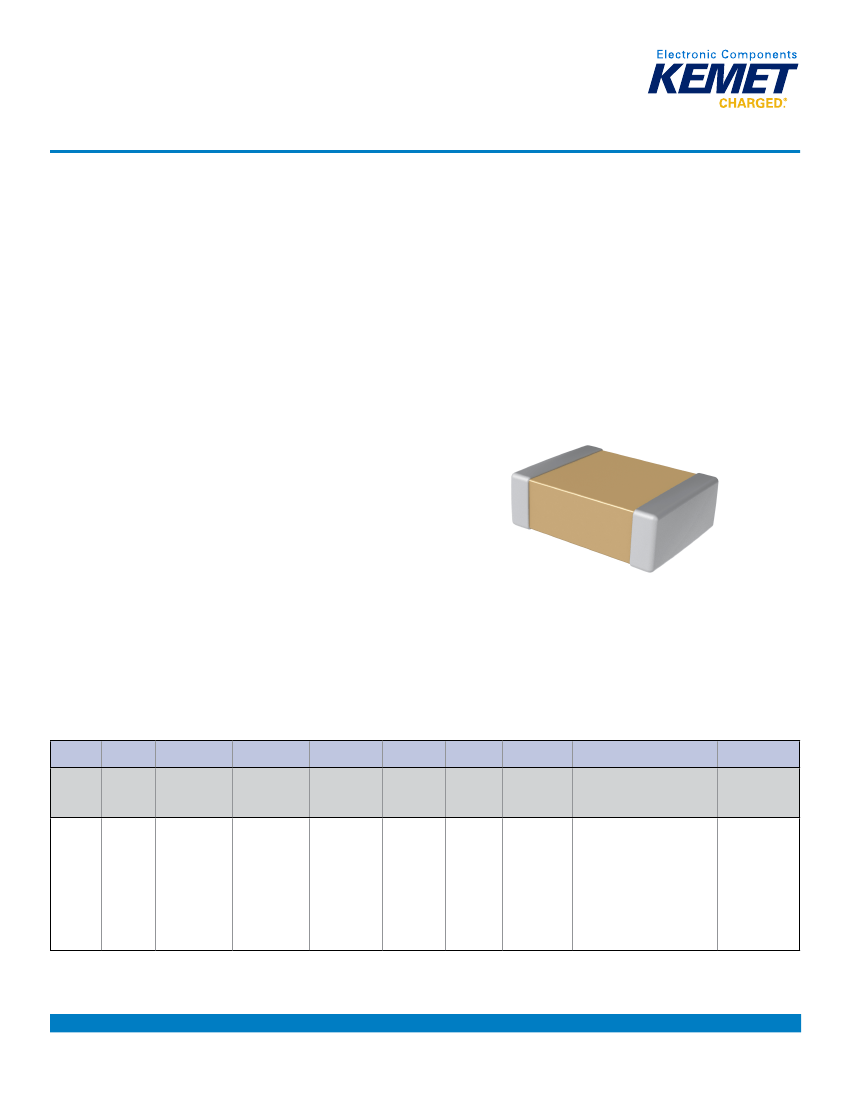

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage X7R Dielectric, 500 – 3,000 VDC
(Commercial Grade)
Overview
KEMET’s High Voltage surface mount MLCCs in X7R
Dielectric feature a 125°C maximum operating temperature
and are considered “temperature stable.” The Electronics
Industries Alliance (EIA) characterizes X7R dielectric as
a Class II material. Components of this classification
are fixed, ceramic dielectric capacitors suited for
bypass and decoupling applications or for frequency
discriminating circuits where Q and stability of capacitance
characteristics are not critical. X7R exhibits a predictable
change in capacitance with respect to time and voltage
and boasts a minimal change in capacitance with reference
to ambient temperature. Capacitance change is limited to
±15% from −55°C to +125°C.
Available in a variety of case sizes and industry leading
CV values (capacitance/voltage), these devices exhibit
low leakage current and low ESR at high frequencies.
Conventional uses include both snubbers and filters
in applications such as switching power supplies and
lighting ballasts. Their exceptional performance at
high frequencies has made high voltage MLCC's the
preferred dielectric choice of design engineers worldwide.
In addition to their use in power supplies, these capacitors
are widely used in industries related to automotive
(hybrid), telecommunications, medical, military, aerospace,
semiconductors and test/diagnostic equipment.
In addition to Commercial Grade, Automotive Grade devices
are available which meet the demanding Automotive
Electronics Council's AEC-Q200 qualification requirements.
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
1210
C
154
K
C
Rated
Voltage
(VDC)
C = 500
B = 630
D = 1,000
F = 1,500
G = 2,000
Z = 2,500
H = 3,000
R
Dielectric
R = X7R
A
Failure
Rate/Design
A = N/A
C
Termination Finish
1
C = 100% Matte Sn
L = SnPb (5% Pb minimum)
TU
Packaging/
Grade (C-Spec)
See
"Packaging
C-Spec
Ordering
Options
Table"
Case Size
Specification/
Capacitance Capacitance
Ceramic
(L" x W")
Series
Code (pF)
Tolerance
0603
0805
1206
1210
1808
1812
1825
2220
2225
1
C = Standard
Two
significant
digits and
number of
zeros.
J = ±5%
K = ±10%
M = ±20%
Additional termination finish options may be available. Contact KEMET for details.
