PRO-OB-536 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> PRO-OB-536

Preview

PRO-OB-536: DescriptionONBOARD SMD WLAN; CategoryTopical application Wireless rf/communication; File Size140KB，1 Pages; ManufacturerProant AB; Websitehttp://www.proant.se; Environmental Compliance

Download Datasheet Parametric Compare View All

PRO-OB-536 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PRO-OB-536	-	-	View	Buy Now

PRO-OB-536 Overview

ONBOARD SMD WLAN

PRO-OB-536 Parametric

Parameter Name	Attribute value
frequency group	UHF（2 GHz ~ 3 GHz），SHF（f > 4 GHz）
Frequency (center/band)	2.4GHz，5.5GHz
Frequency Range	2.4GHz ~ 2.5GHz，5.15GHz ~ 5.85GHz
Antenna type	stamped metal
Number of frequency bands	2
VSWR	-
Return loss	-8dB
Gain	-
characteristic	-
Termination	welding
Intrusion protection	-
Installation type	surface mount
Height (maximum value)	0.098"（2.50mm）
application	Bluetooth, WLAN, Zigbee™

Preview

Download Datasheet

View All

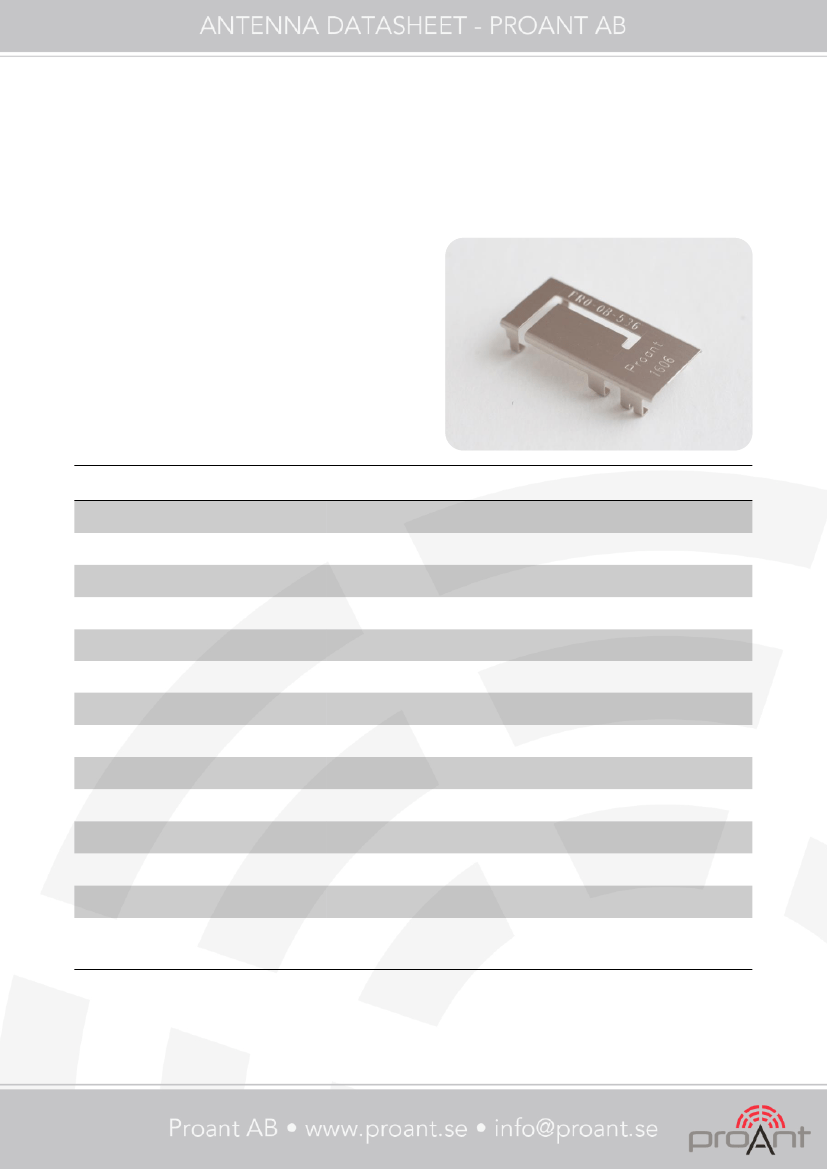

OnBoard™ SMD WLAN

Small antenna for embedded products that cover the ISM band 2400 -2500 MHz and 5180-

5850 MHz used for WLAN and is also suitable for applications in Bluetooth and ZigBee etc.

The OnBoard SMD concept offers features like:

-

SMD compatibility

-

Tape on reel delivery

-

Low loss material

-

PCB on-ground implementation

-

Simple fine tuning by matching network

-

RoHS compliance

-

Low cost

Technical data

Part number

Frequency

Impedance

Return loss

PRO-OB-536

2400

–

2500 MHz, 5150-5850 MHz

50 Ω

<- 8dB

Total efficiency

Dimensions

Assembly

Soldering

Packing

Temperature

RoHS status

Shelf life

MSL

Mechanical resistance

1

> 60% (-2.2dB)

14.2 x 6.6 x 2.5 mm (0.56 x 0.26 x 0.1 in)

Pick and place

Reflow or equivalent

Tape and reel

-40

to +125⁰ C

Compliant with EU directive 2011/65/EU (RoHS 2)

10 years

Level 1, unlimited

Immunity to vibrations IEC/EN 60068-2-6, Fc test

Immunity to shock IEC/EN 60068-2-27, Ea test

1) The product has been tested according to the standard IEC 60721-3-5

–

Class 5M3 (road vehicles in areas without well-

developed road systems, light-weighted vehicles, tracked vehicles and self-propelled machines)

Above specification is valid on the Proant evaluation board. See related application note for more information.

Patent: SE537042 + Pending

2018-02-23
