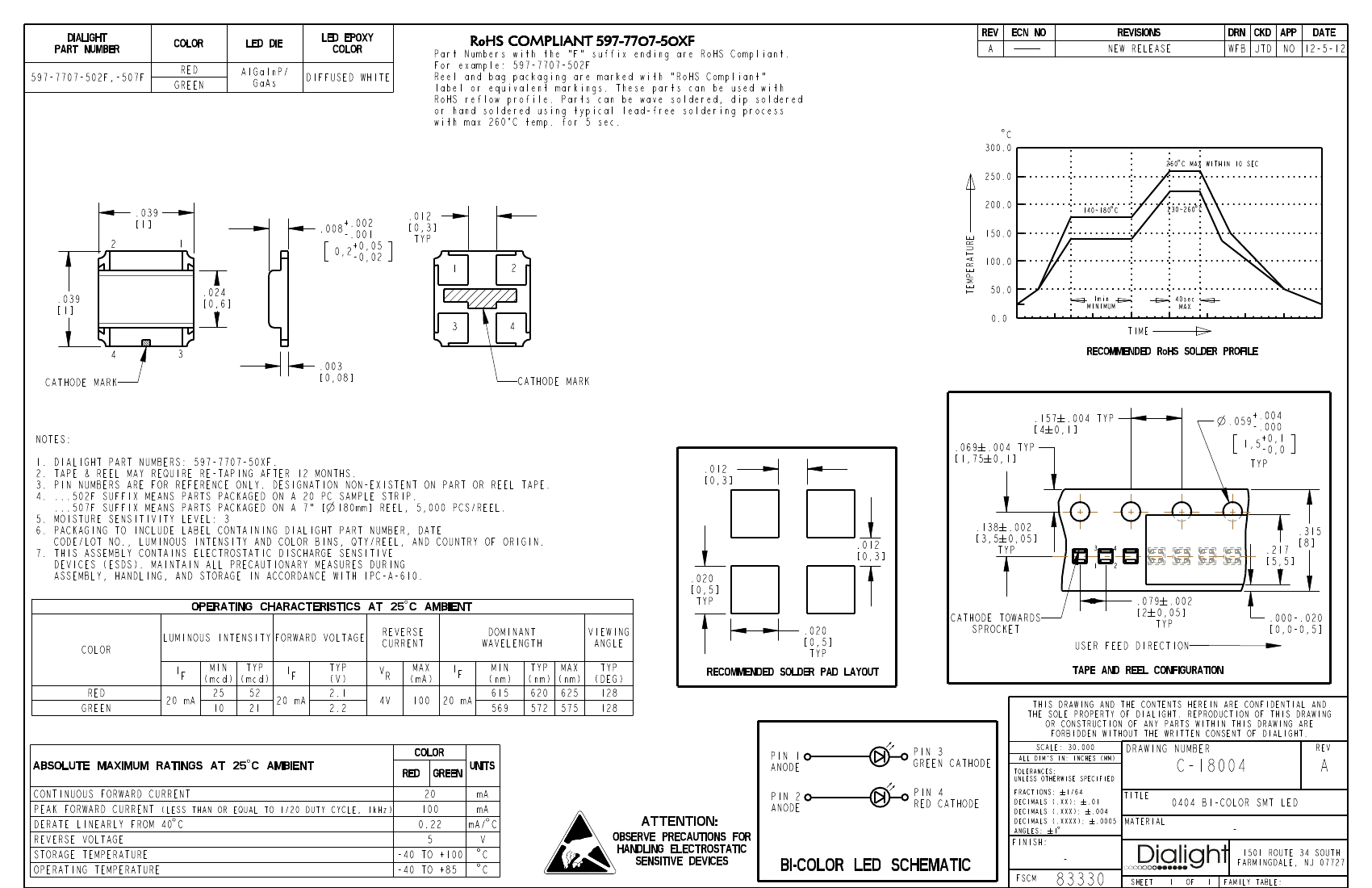

DIALIGHT
PART NUMBER
597-7707-502F,-507F
COLOR
RED
GREEN
LED DIE
AlGaInP/
GaAs
LED EPOXY
COLOR
DIFFUSED WHITE
Part Numbers with the "F" suffix ending are RoHS Compliant.
For example: 597-7707-502F
Reel and bag packaging are marked with "RoHS Compliant"
label or equivalent markings. These parts can be used with
RoHS reflow profile. Parts can be wave soldered, dip soldered
or hand soldered using typical lead-free soldering process
with max 260°C temp. for 5 sec.
RoHS COMPLIANT 597-7707-50XF
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
WFB JTD
NO 12-5-12
C
300.0
260 C MAX WITHIN 10 SEC
250.0
200.0
.039
[1]
2
1
.008
[
.024
[0,6]
]
TEMPERATURE
+.002
-.001
+0,05
0,2
-0,02
.012
[0,3]
TYP
1
2
140~180 C
230~260 C
150.0
100.0
50.0
1min
MINIMUM
40sec
MAX
.039
[1]
3
4
CATHODE MARK
3
.003
[0,08]
4
0.0
TIME
RECOMMENDED RoHS SOLDER PROFILE
CATHODE MARK
+.004
-.000
+0,1
1,5
-0,0
TYP
NOTES:
1.
2.
3.
4.
DIALIGHT PART NUMBERS: 597-7707-50XF.
TAPE & REEL MAY REQUIRE RE-TAPING AFTER 12 MONTHS.
PIN NUMBERS ARE FOR REFERENCE ONLY. DESIGNATION NON-EXISTENT ON PART OR REEL
TAPE.
...502F SUFFIX MEANS PARTS PACKAGED ON A 20 PC SAMPLE STRIP.
...507F SUFFIX MEANS PARTS PACKAGED ON A 7" [
180mm] REEL, 5,000 PCS/REEL.
5. MOISTURE SENSITIVITY LEVEL: 3
6. PACKAGING TO INCLUDE LABEL CONTAINING DIALIGHT PART NUMBER, DATE
CODE/LOT NO., LUMINOUS INTENSITY AND COLOR BINS, QTY/REEL, AND COUNTRY OF
ORIGIN.
7. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE
DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING
ASSEMBLY, HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.
OPERATING CHARACTERISTICS AT 25 AMBIENT
C
LUMINOUS INTENSITY FORWARD VOLTAGE
COLOR
I
RED
GREEN
F
MIN
TYP
(mcd) (mcd)
25
52
10
21
I
F
TYP
(V)
2.1
2.2
REVERSE
CURRENT
V
R
MAX
(mA)
100
I
F
DOMINANT
WAVELENGTH
MIN
(nm)
615
569
TYP MAX
(nm) (nm)
620 625
572
575
VIEWING
ANGLE
TYP
(DEG)
128
128
.012
[0,3]
.157 .004 TYP
[4 0,1 ]
.069 .004 TYP
[1,75 0,1 ]
.059
[
]
.012
[0,3]
.020
[0,5]
TYP
.020
[0,5]
TYP
RECOMMENDED SOLDER PAD LAYOUT
.138 .002
[3,5 0,05 ]
TYP
3
1
4
2
.217
[5,5]
.315
[8]
CATHODE TOWARDS
SPROCKET
.079 .002
[2 0,05 ]
TYP
USER FEED DIRECTION
TAPE AND REEL CONFIGURATION
.000 -.020
[0,0 -0,5 ]
20 mA
20 mA
4V
20 mA
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
COLOR
C
ABSOLUTE MAXIMUM RATINGS AT 25 AMBIENT
CONTINUOUS FORWARD CURRENT
PEAK FORWARD CURRENT
(LESS THAN OR EQUAL TO 1/20 DUTY CYCLE, 1kHz)
DERATE LINEARLY FROM 40 C
REVERSE VOLTAGE
STORAGE TEMPERATURE
OPERATING TEMPERATURE
RED
GREEN
20
100
0.22
5
-40 TO +100
-40 TO +85
UNITS
mA
mA
mA/ C
V
C
C
PIN 1
ANODE
PIN 2
ANODE
PIN 3
GREEN CATHODE
PIN 4
RED CATHODE
SCALE: 30.000
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
DRAWING NUMBER
REV
C-18004
TITLE
MATERIAL
A
FRACTIONS:
1/64
DECIMALS (.XX):
.01
DECIMALS (.XXX):
.004
DECIMALS (.XXXX):
.0005
ANGLES:
1
0404 BI-COLOR SMT LED
-
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FINISH:
BI-COLOR LED SCHEMATIC
-
FSCM
83330
SHEET
1
OF
1
