is ideally suited for applications where very small
size and low cost are required.
Typical applications are transmit / receive (Tx / Rx)
switching in linear systems such as WLAN 802.11b/
g. Other applications include 1.9 GHz and 2.4 GHz
DECT and linear systems operating up to 3.0 GHz.
The MASWSS0136 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
RF1
GND
RF2
Pin 1
C = 39 pF
C = 39 pF
Pin Configuration
Pin No.
1
2
3
Pin Name
RF1
GND
RF2
V2
RFC
V1
Description
RF Port 1
Ground
RF Port 2
Control 2
RF Input
Control 1
Ordering Information
1
Part Number
MASWSS0136
MASWSS0136TR-3000
MASWSS0136SMB
4
Package
Bulk packaging
3000 piece reel
Sample Board
5
6
Absolute Maximum Ratings
2,3
Parameter
Input Power (0.5 - 3.0 GHz)
3 V Control
Voltage
Operating Temperature
Storage Temperature
1. Reference Application Note M513 for reel size information.
Absolute Maximum
+30 dBm
-8.5 V < Vc < +8.5 V
-40°C to +85°C
-65°C to +150°C
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASWSS0136
GaAs SPDT Switch
DC - 3.0 GHz

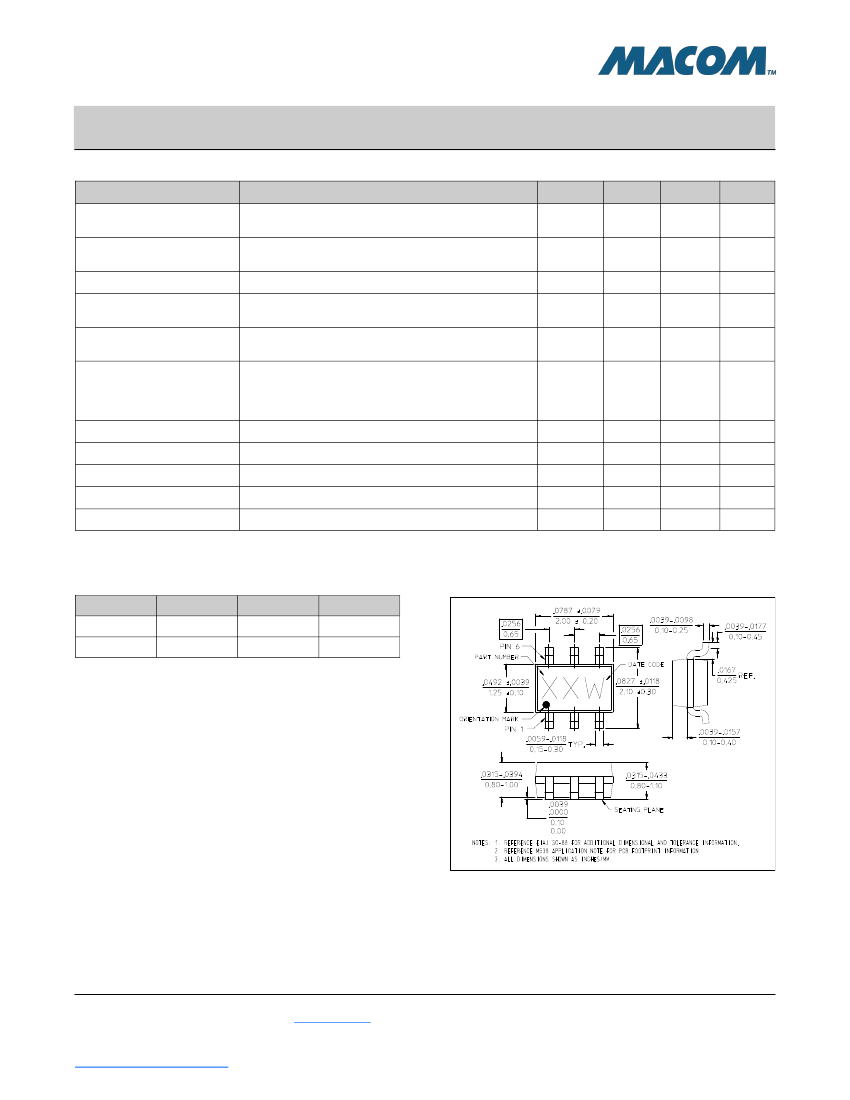

Electrical Specifications: T
A
= 25°C, V
C
= 0 V / 3 V, Z
0
= 50
4
Parameter
Insertion Loss
5
Isolation
VSWR
IP2
IP3
Rev. V2
Test Conditions
1.0 GHz
2.4 GHz
1.0 GHz
2.4 GHz
0.05 - 3.0 GHz
Two Tone, +5 dBm / Tone, 5 MHz Spacing
2.4 GHz
Two Tone, +5 dBm / Tone, 5 MHz Spacing
2.4 GHz
2.5 GHz, OFDM, QAM-64,54Mbps, EVM=2.5%
3.0 V
3.3 V
5.0 V
—
10% to 90% RF and 90% to 10% RF
50% control to 90% RF, 50% control to 10% RF
—
V
C
= 3.0 V
Units
dB
dB
dB
dB
Ratio
dBm
dBm
dBm
dBm
dBm
dBm
nS
nS
mV
µA
Min.
—
—
—
25
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.3
0.4
24
27
1.2:1
80
48
22.5
24.0
28.5
28
35
40
10
5
Max.
—
0.5
—
—
—
—
—
—
—
—
—
—
—
—
10
Linear Pout
P1dB
Trise, Tfall
Ton, Toff
Transients
Current
4. For positive voltage control, external DC blocking capacitors are required on all RF ports.
5. Insertion Loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 MHz – 1.0 GHz, 39 pF for 0.5 - 3.0 GHz.
Truth Table
6,7
Control V1
0
1
Lead-Free
SC-70 (SOT-363)
†
RFC-RF1
On
Off
Control V2
1
0
RFC-RF2
Off
On
6. Differential voltage, V (state 1) - V (state 0), must be +2.3 V
minimum and must not exceed 8.5 V.
7. 0 = 0 V ± 0.2 V, 1 = +2.5 V to 5.0 V
Qualification
Qualified to M/A-COM specification REL-201, Proc-
ess Flow –2.
Handling Procedures
The following precautions should be observed to
avoid damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be dam-
aged by static electricity. Proper ESD control tech-
niques should be used when handling these de-
vices.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
† Reference Application Note M538 for lead-free solder reflow

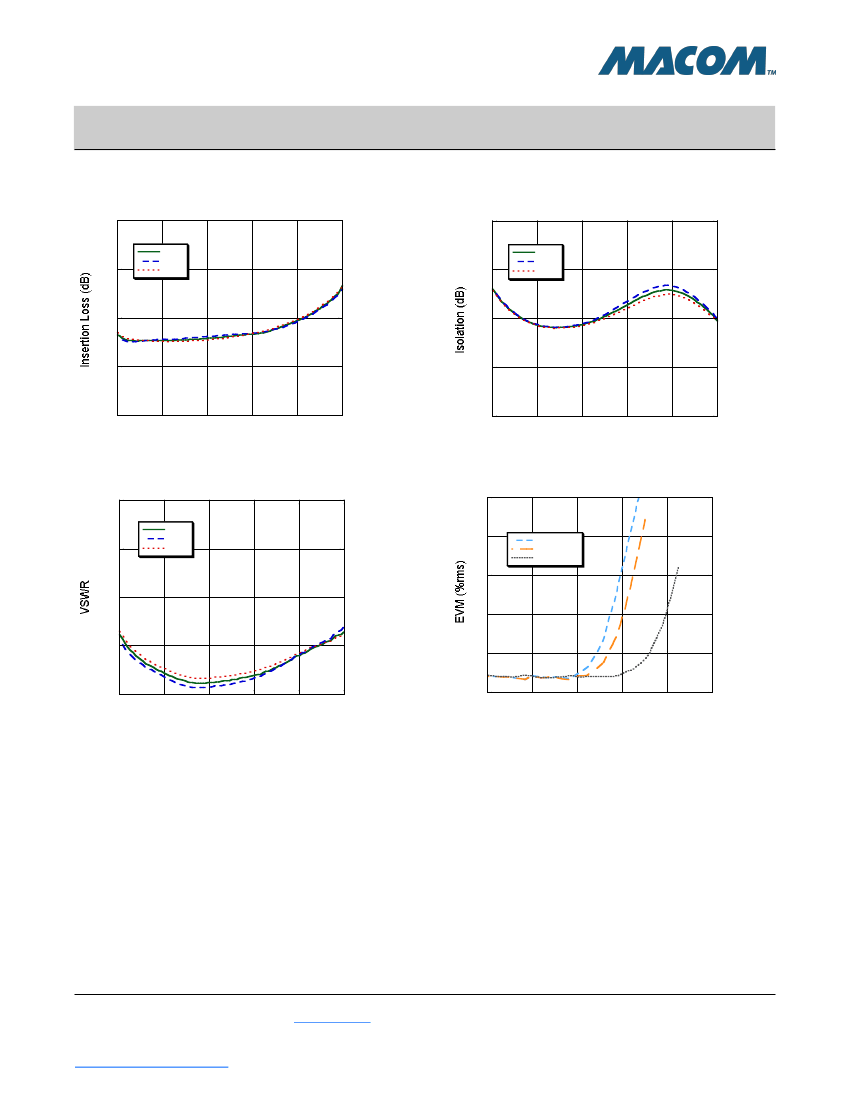

M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASWSS0136
GaAs SPDT Switch
DC - 3.0 GHz
Rev. V2
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
