Part Number

Search

54144-1441

Description
Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, White Insulator, Socket
CategoryThe connector

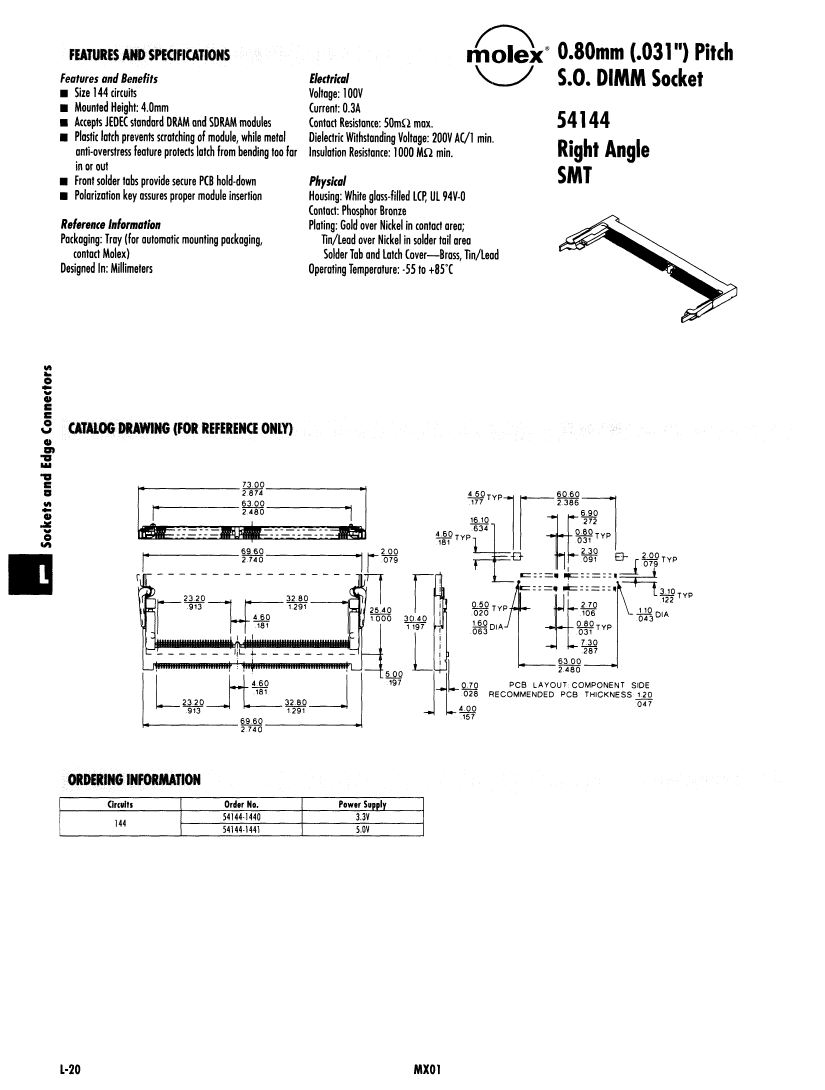

File Size52KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

54144-1441 Overview

Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, White Insulator, Socket

54144-1441 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresPOLARIZED
Board mount optionsPEG
body width0.157 inch
subject depth1.197 inch
body length2.874 inch
Body/casing typeSOCKET
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance50 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage200VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceNO
Manufacturer's serial number54144
Plug contact pitch0.031 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing0.323 mm
polarization keyPOLARIZED KEY
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length
Terminal pitch0.8 mm
Termination typeSURFACE MOUNT
Total number of contacts144
UL Flammability Code94V-0
Base Number Matches1

54144-1441 Related Products

54144-1441 54144-1440
Description Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, White Insulator, Socket Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch, White Insulator, Socket
Maker Molex Molex
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features POLARIZED POLARIZED
Board mount options PEG PEG
body width 0.157 inch 0.157 inch
subject depth 1.197 inch 1.197 inch
body length 2.874 inch 2.874 inch
Body/casing type SOCKET SOCKET
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contact to complete cooperation AU ON NI NOT SPECIFIED
Contact point gender FEMALE FEMALE
Contact material PHOSPHOR BRONZE NOT SPECIFIED
Contact resistance 50 mΩ 50 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE
DIN compliance NO NO
Dielectric withstand voltage 200VAC V 200VAC V
Durability 30 Cycles 30 Cycles
Filter function NO NO
IEC compliance NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color WHITE WHITE
insulator material GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance NO NO
Plug contact pitch 0.031 inch 0.031 inch
Mixed contacts NO NO
Installation option 1 LATCH LATCH
Installation option 2 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern STAGGERED STAGGERED
PCB contact row spacing 0.323 mm 0.323 mm
polarization key POLARIZED KEY POLARIZED KEY
Rated current (signal) 0.3 A 0.3 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.8 mm 0.8 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 144 144
UL Flammability Code 94V-0 94V-0
Base Number Matches 1 1
