RBP12 Series
1-6 Pole Miniature Rotary Switches

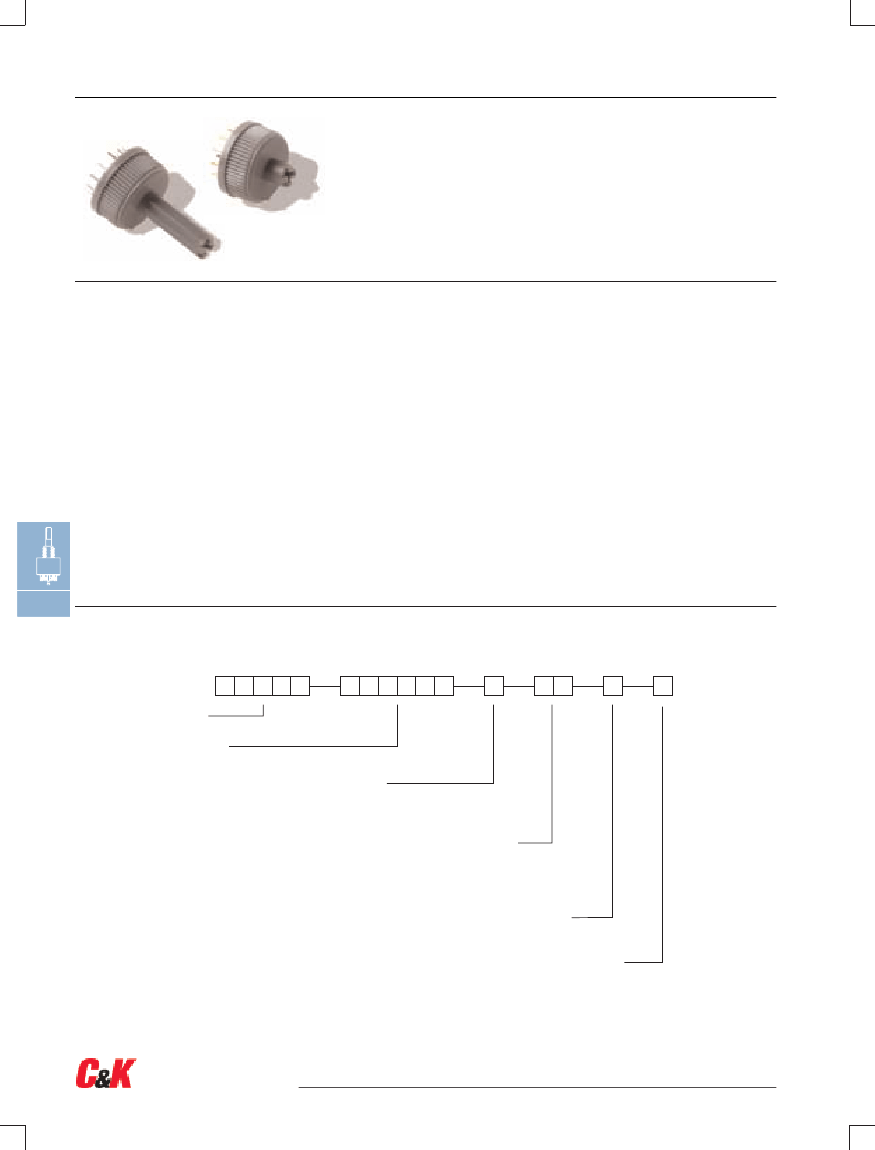

Features/Benefits
•
Rotary switch for low current
•
Shaft perpendicular to PCB
•
Index mechanism included in
thickness of switch
•
Several actuation modes
•
Low profile
Typical Applications
•
Medical
•
Instrumentation
•
Appliances
•
RoHS Compliant
Silver (S)
Gold (G)
MBB-BBM
MBB-BBM
Switching mode
Make Before Break, Break Before Make
5 VA (resistive)
0.5 VA (resistive)
Max. switching power
Max. switching current
130 mA
20 mA
Max. carrying current
3A
3A
Contact resistance
<
15 m ohms
<
25 m ohms
Dielectric strength
between contacts 1000 V
1000 V
at 50 Hz
1000 V
or contacts and ground 1000 V
Nominal voltage
150 V rms
150 V rms
Number of operations
15 ,000
20 ,000
Insulation resistance between contacts
>
5 x 10
9
ohms
>
5 x 10
9
ohms
and contacts and frame (500 Vcc)
Environmental data
Storage temperature
Salt spray
Further data
Solderability
Cleaning
Electrical Data
Mechanical Data
Max. number of banks
Operating torque
Stop strength
End stop
Contact material
Insulating material
1
2.5 Ncm ± 25% (1 pole)
> 40 Ncm
With/without or mobile
Silver, Gold
Thermoplastic
NOTE:
Specifications and materials listed above are for switches
with standard options. For informationon specific and custom
switches, consult Customer Service Center.
– 25°C to + 70°C
NA
– 25°C to + 85°C
48 H
Hand:
Wave:
350°C/5 s
260°C/5 s max.
Cleaning of modules prohibited
L
Build-A-Switch
Rotary
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L-19 thru L-21. For additional options not shown in catalog, consult Customer Service Center.
Designation
RBP12
Switch Function
SP, 30° Index, 12 pos. no stop
112S
103B03
SP, 30° Index, 3 pos.
Switching Mode
105B05
SP, 30° Index, 5 pos.
N
Non-shorting BBM (break-before-make)
107B07
SP, 30° Index, 7 pos.
C
Shorting, MBB (make-before-break)
108B08
SP, 30° Index, 8 pos.
110B10
SP, 30° Index, 10 pos.
112B12
SP, 30° Index, 12 pos.
Actuator
206S
DP, 30° Index, 6 pos. no stop
F
Screwdriver slot*
202B02
DP, 30° Index, 2 pos.
AD
Plastic shaft, <20mm (.787)*
203B03
DP, 30° Index, 3 pos.
S
Plastic shaft, 6mm (.236)*
205B05
DP, 30° Index, 5 pos.
M
Thumbwheel
304B04
3P, 30° Index, 4 pos.
403B03
4P, 30° Index, 3 pos.
Option
(NONE)
602B02
6P, 30° Index, 2 pos.
P
Lateral PCB adaptation
Contact Material
S
Silver
G
Gold
*Option: Metallic shaft available by request
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–18
www.ck-components.com

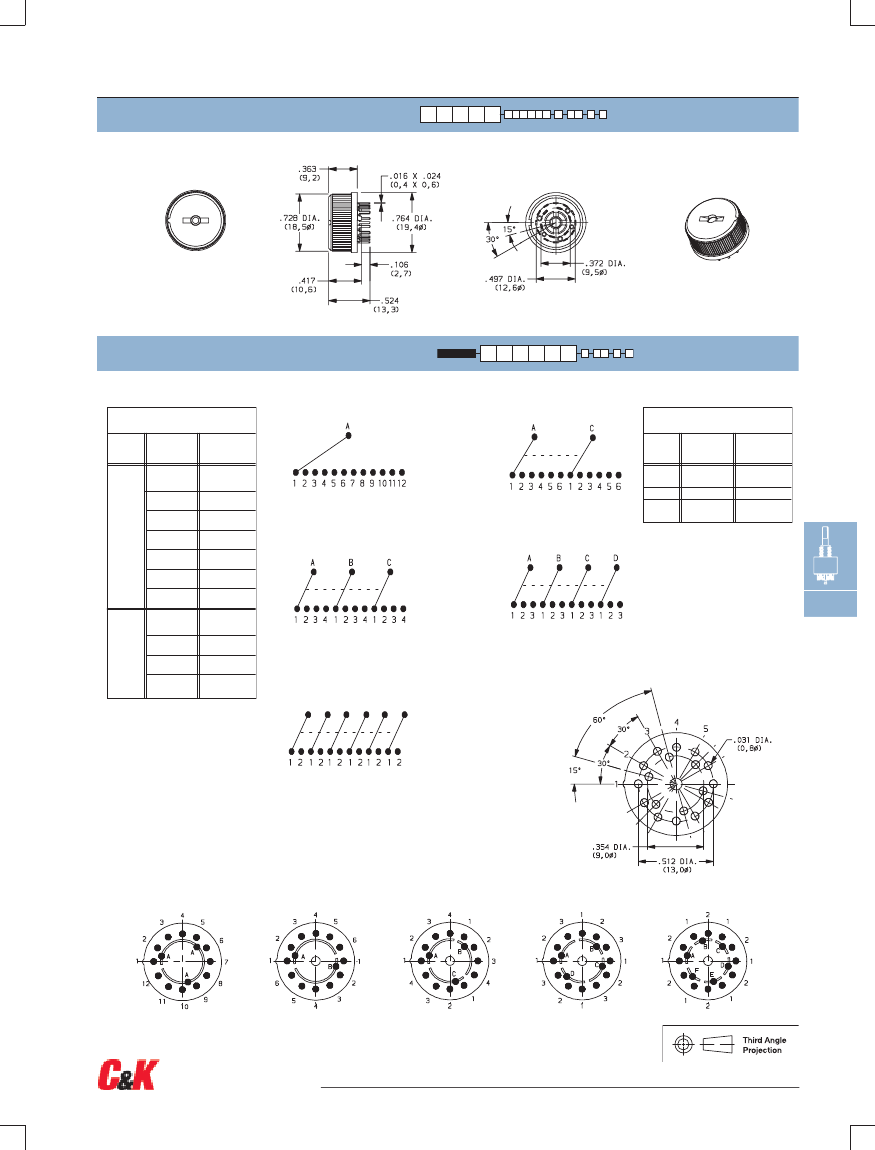

RBP12 Series
1-6 Pole Miniature Rotary Switches

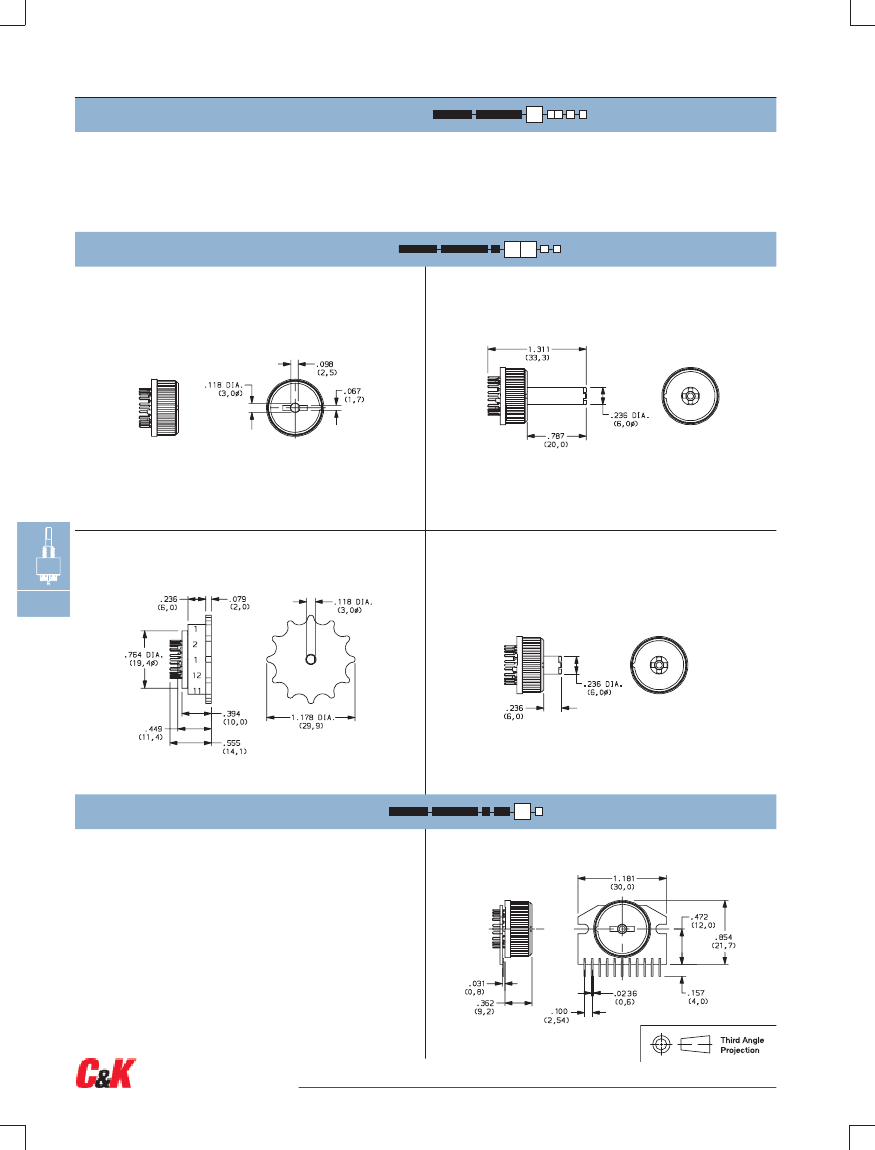

SWITCHING MODE
N
C
NON-SHORTING, BBM (break-before-make)
SHORTING, MBB (make-before-break)
ACTUATOR
F
SCREWDRIVER SLOT
AD
PLASTIC SHAFT, <20 mm (.787)
M
THUMBWHEEL
S
PLASTIC SHAFT, 6 mm (.236)
L
Rotary
OPTION
(NONE)
P
LATERAL PCB ADAPTATION
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–20
www.ck-components.com
RBP12 Series
1-6 Pole Miniature Rotary Switches
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
LOW LEVEL/DRY CIRCUIT
LOW LEVEL/DRY CIRCUIT
OR POWER
RATING
SWITCH: 130 mA, POWER: 5 VA MAXIMUM.
CARRY: 3 AMPS
SWITCH: 20 mA, POWER: 0.5 VA MAXIMUM.
CARRY: 3 AMPS
S
G
GOLD
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definition and specifications.
AVAILABLE HARDWARE
F + FA SHAFT
AD + FA SHAFT
B
L
Rotary
Rotary
S + FA SHAFT
PART NUMBER
Y460P0067FP
Y460P0060FP
Y460P0090FP
Y460320100P
Y460P0018FP
C
Y460P0022FP
“A”
.394 (10,0)
.590 (15,0)
.787 (20,0)
.984 (25,0)
1.969 (50,0)
2.756 (70,0)
NOTE:
FA metallic shaft, consult customer service
for available lengths.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–21
www.ck-components.com
