Datasheet

PB-16

MOUNTING BOARD

•

Plug-compatible logic connections

•

Screw terminal barrier block for load connections

•

Resident pull-up resistors

•

5 amp field-replaceable fuses

•

(LITTELFUSE #251005 or equivalent)

LEDs indicate logic status

I/O Modules

•

All even-numbered logic connections are

•

logic ground

Input and output modules accepted interchangeably

Operate with 5, 15 or 24 volt logic supplies

Captive-screw retaining system for standard-size

modules

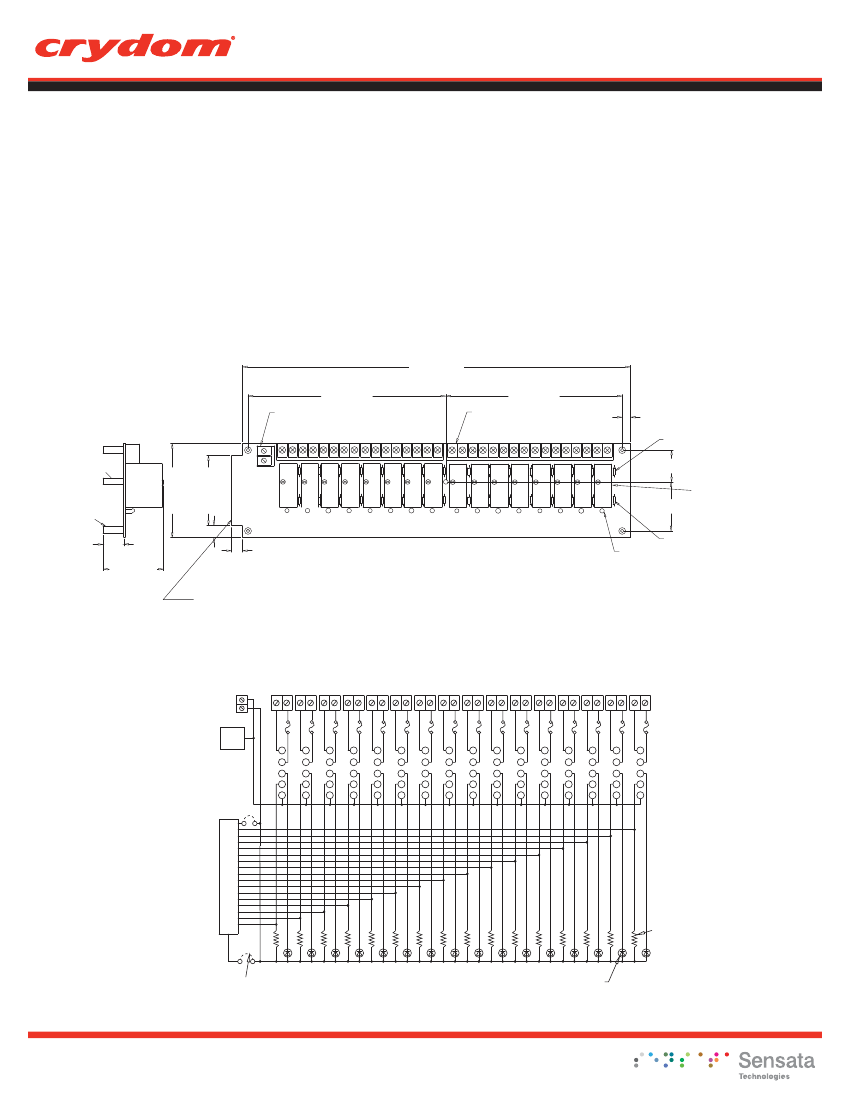

MECHANICAL SPECIFICATIONS

14.1 (356,9)

DIMENSIONS: INCHES (MILLIMETERS)

TOLERANCE:+0.020 ( + 0,50)

7.3 (185,4)

SCREW TERMINAL

LOGIC SUPPLY BARRIER STRIP

6.25 (158,8)

POWER BARRIER STRIP

(see notes 2,3)

10 11 12 13 14 15 16

17 18 19

20 21 22 23 24 25 26

0.2 (6,4)

27 28 29 30 31 32

NYLON STANDOFF

6-32 THD.

REPLACEABLE 5 AMP LINE FUSES (16)

(see note 4)

1.4 (35,6)

3.5 (88,9)

2.6 (66,0)

CRYDOM DIGITAL I/O

MODULES SOLD SEPARATELY

1.6 (40,6)

SWAGED STANDOFF

THRU HOLE

0.15 (3,2) DIA.

(4)

0.75 (19,1)

0.45 (11,4)

0.4 (10,2)

2.2 (55,9)

SIGNAL INPUT/OUTPUT 50 TRACE (0.1" CENTERS)

MALE CARD EDGE

(see note 1)

NOTES: 1) MATING CONNECTOR IS BERG 66317-150 OR EQUIVALENT. SPECIFY SUFFIX 'C'

FOR OPTIONAL 65823-093 OR EQUIVALENT MALE PIN CONNECTOR FOR THE

PARALLEL-TO-THE-BOARD CABLE CONNECTION. SPECIFY SUFFIX 'V' FOR

OPTIONAL CIRCUIT ASSEMBLY CA-50H-2B-SR OR EQUIVALENT MALE PIN CONNECTOR FOR

PERPENDICULAR-TO-THE-BOARD CABLE CONNECTION.

2) 6-32 SCREW TERMINAL BARRIER STRIPS ACCEPT WIRE SIZES FROM 24 TO 12 AWG.

3) OPTIONAL JUMPERS ARE AVAILABLE TO INTERCONNECT BARRIER STRIP COMMONS.

ORDER 1 EACH "JS2" AND 2 EACH "JS8".

4) LITTELFUSE 251005 OR EQUIVALENT.

LED STATUS

INDICATOR (16)

PULL UP RESISTOR

3.3K OHM (16)

POWER BARRIER STRIP

LOGIC SUPPLY

BARRIER STRIP

EDGE CONN +

BOTTOM

LOGIC

ALL

GND

EVEN

PINS

1 2

3 4

5 6

7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

5 AMP

LINE FUSES (16)

I/O MODULE

PIN SOCKETS

+LOGIC

SIGNAL

INPUT/OUTPUT

50 TRACE (0.1" CENTERS)

MALE CARD EDGE

OR OPTIONAL PIN

CONNECTOR

TOP

+LOGIC

PULL UP RESISTOR

3.3K OHM (16)

APPROVALS

E79183

CSA 38595

CUSTOMER INSTALLED

OPTIONAL JUMPERS TO

CONNECT LOGIC SUPPLY

TO EDGE CONNECTOR (2)

LED STATUS

INDICATOR (16)

Rev. 082516

Do not forget to visit us at:

www.crydom.com
