PB-24M-C Overview

I/O MOUNTING BOARD MINI 24POS

PB-24M-C Parametric

Parameter Name	Attribute value
style	mini
Number of channels	24
Connector type	Headers, threaded terminal blocks
Installation type	With bracket

Preview

Download Datasheet

View All

Datasheet

PB-24M

MOUNTING BOARD

•

Plug-compatible logic connections

•

Screw terminal barrier block for load connections

•

Resident pull-up resistors

•

5 amp field-replaceable fuses

•

(LITTELFUSE #251005 or equivalent)

LEDs indicate logic status

I/O Modules

•

All even-numbered logic connections are

•

logic ground

Input and output modules accepted interchangeably

Operate with 5, 15 or 24 volt logic supplies

Optional Hold Down Bar for retaining “M” series modules

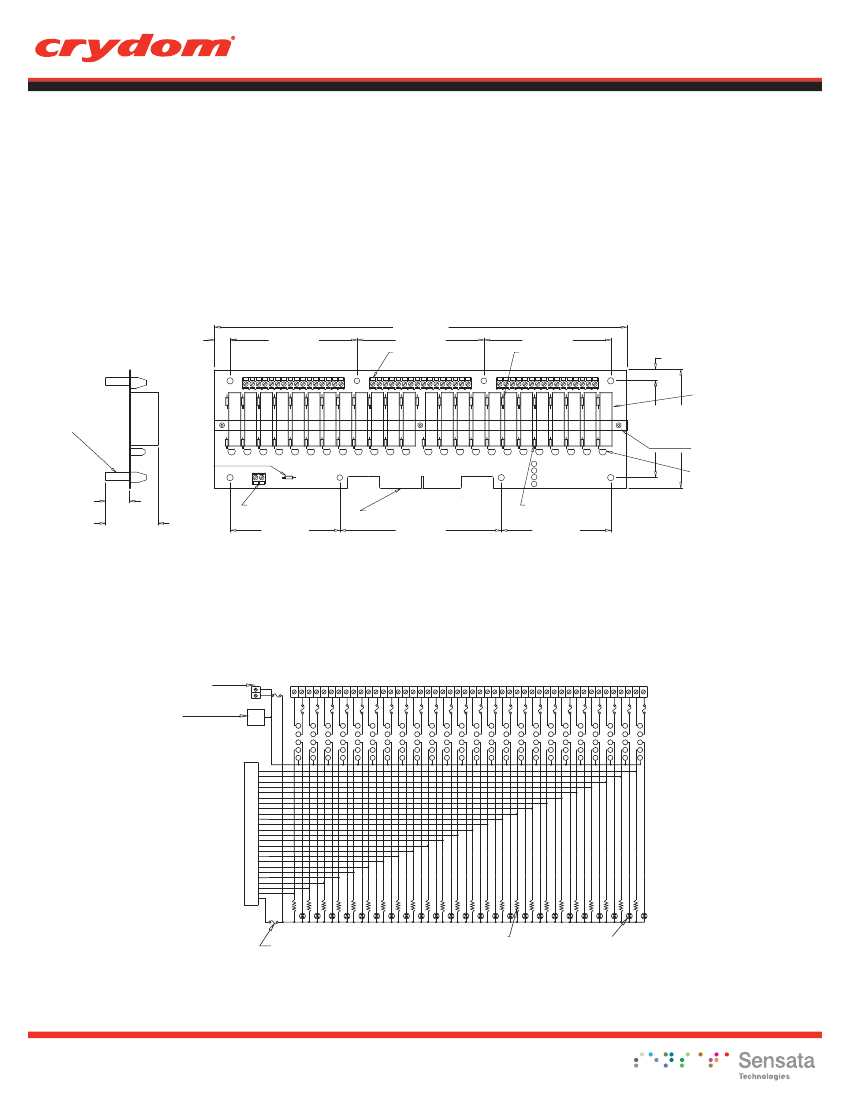

MECHANICAL SPECIFICATIONS

13.0 (330,2)

DIMENSIONS: INCHES (MILLIMETERS)

TOLERANCE:+0.020 ( + 0,50)

0.5 (12,7)

4.0 (101,6)

POWER TERMINAL STRIP

(see notes 2,3,4)

1 2 3 4 5 6 7 8 9 1011 1213 141516

17 1819 202122 2324 252627 282930 3132

4.0 (101,6)

REPLACEABLE 5 AMP

LINE FUSE (24)

(see note 6)

33 343536 3738 394041 4243 444546 4748

0.35 (8,9)

SWAGED STANDOFF

THRU HOLE 0.15 (3,8) DIA.

(8)

REPLACEABLE

1 AMP LOGIC

SUPPLY FUSE

(see note 5)

0.75 (19,1)

1.88 (47,6)

3.05 (77,5)

3.75 (95,3)

CRYDOM I/O MODULES SOLD

SEPARATELY

LOGIC SUPPLY

TERMINAL STRIP

(see note 2)

3.45 (87,6)

SIGNAL INPUT/OUTPUT 50

TRACE (0.1" CENTERS) MALE

CARD EDGE (see note 1)

5.1 (129,5)

AC INPUT

DC INPUT

AC OUTPUT

DC OUTPUT

OPTIONAL HOLD DOWN

BAR KIT (see note 7)

LED STATUS

INDICATOR (24)

PULL UP RESISTOR

3.3K OHM (24)

3.45 (67,6)

NOTES: 1) MATING CONNECTOR IS BERG 66317-150 OR EQUIVALENT.

SPECIFY SUFFIX 'C' FOR OPTIONAL 65823-093 OR EQUIVALENT

MALE PIN CONNECTOR FOR PARALLEL-TO-THE-BOARD CABLE

CONNECTION. SPECIFY SUFFIX 'V' FOR OPTIONAL CIRCUIT ASSEMBLY CA-50H-2B-SR

OR EQUIVALENT MALE PIN CONNECTOR FOR PERPENDICULAR-TO-THE-BOARD

CABLE CONNECTION.

2) 4-40 TERMINAL STRIPS ACCEPT WIRE SIZES FROM 26 TO 14 AWG.

3) OPTIONAL JUMPERS ARE AVAILABLE TO INTERCONNECT BARRIER STRIP

ORDER 3 EACH "JM8".

4) PHOENIX MKD51.5 5.08mm SERIES (OR EQUIVALENT) SCREW TERMINAL

BLOCKS STANDARD. SPECIFY SUFFIX "A" FOR BOARD-MOUNTED PHOENIX

MSTBVA 1.5/16-G-5.08 (OR EQUIVALENT) MALE CONNECTOR. SPECIFY

SUFFIX "B" FOR BOARD-MOUNTED PHOENIX MSTBVA 1.5/16-G-5.08

(OR EQUIVALENT) MALE CONNECTOR AND MATING PHOENIX MSTBVA 1.5/16-ST-5.08

(OR EQUIVALENT) FEMALE. SCREW-TERMINAL PLUG-IN CONNECTOR.

5) LITTELFUSE 251001 OR EQUIVALENT.

6) LITTELFUSE 251005 OR EQUIVALENT.

7) TWO HOLD-DOWN BAR KITS ARE AVAILABLE SEPARATELY. MODEL NO. 11.06.413 EMPLOYS

A PLAIN ALUMINUM CHANNEL WHILE MODEL NO. 11.06.288 PROVIDES POCKETS IN

THE CHANNEL FOR INDIVIDUAL MODULES.

POWER BARRIER STRIP

LOGIC SUPPLY

BARRIER STRIP

EDGE

CONN

BOTTOM

LOGIC

GRD

ALL

EVEN

PINS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

5 AMP LINE FUSE (24)

I/O MODULE PIN SOCKET

SIGNAL INPUT/OUTPUT

50 TRACE (0.1" CENTERS)

MALE CARD EDGE

OR OPTIONAL PIN

CONNECTOR

+LOGIC 49

1 AMP LOGIC

SUPPLY FUSE

PULL UP RESISTOR 3.3K OHM (24)

LED STATUS INDICATOR (24)

APPROVALS

E79183

CSA 38595

Rev. 082516

Do not forget to visit us at:

www.crydom.com
