1-223962-0

Description
3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT
CategoryThe connector    The connector
File Size111KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

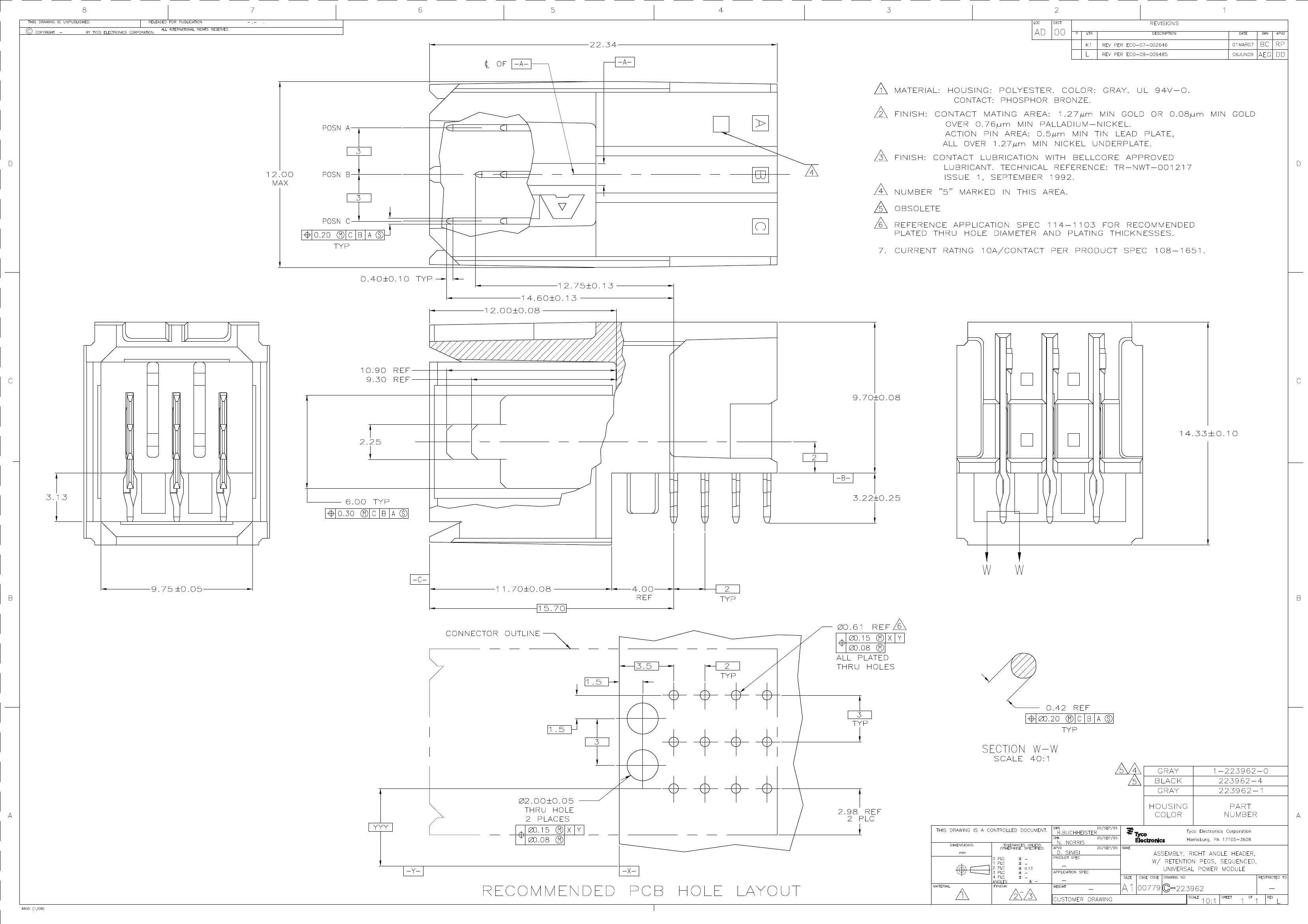

1-223962-0 Overview

3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT

1-223962-0 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresUNIVERSAL POWER MODULE
body width0.564 inch
subject depth0.88 inch
body length0.472 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50)/GOLD (3) OVER PALLADIUM NICKEL
Contact completed and terminatedTIN LEAD (20) OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBLADE PIN-SKT
DIN complianceNO
Durability250 Cycles
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialPOLYESTER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number223962
Plug contact pitch0.118 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.9972 mm
Plating thickness50u inch
Rated current (signal)7.8 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.127 inch
Terminal pitch3 mm
Termination typePRESS FIT
Total number of contacts3
UL Flammability Code94V-0
Base Number Matches1

1-223962-0 Related Products

1-223962-0 223962-4
Description 3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT 3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT
Reach Compliance Code unknow unknown
ECCN code EAR99 EAR99
Other features UNIVERSAL POWER MODULE UNIVERSAL POWER MODULE
body width 0.564 inch 0.564 inch
subject depth 0.88 inch 0.88 inch
body length 0.472 inch 0.472 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (50)/GOLD (3) OVER PALLADIUM NICKEL GOLD (50)/GOLD (3) OVER PALLADIUM NICKEL
Contact completed and terminated TIN LEAD (20) OVER NICKEL TIN LEAD (20) OVER NICKEL
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact style BLADE PIN-SKT BLADE PIN-SKT
DIN compliance NO NO
Durability 250 Cycles 250 Cycles
Filter function NO NO
IEC compliance NO NO
Insulator color GRAY BLACK
insulator material POLYESTER POLYESTER
JESD-609 code e0 e0
MIL compliance NO NO
Manufacturer's serial number 223962 223962
Plug contact pitch 0.118 inch 0.118 inch
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 3 3
Number of rows loaded 1 1
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.9972 mm 2.9972 mm
Plating thickness 50u inch 50u inch
Rated current (signal) 7.8 A 7.8 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.127 inch 0.127 inch
Terminal pitch 3 mm 3 mm
Termination type PRESS FIT PRESS FIT
Total number of contacts 3 3
UL Flammability Code 94V-0 94V-0
Base Number Matches 1 1
