Compact Type Low-profiled Waterproof Connector
CONNECTOR
MB-0094-2
June 2006
MX23A Series
RoHS Compliant

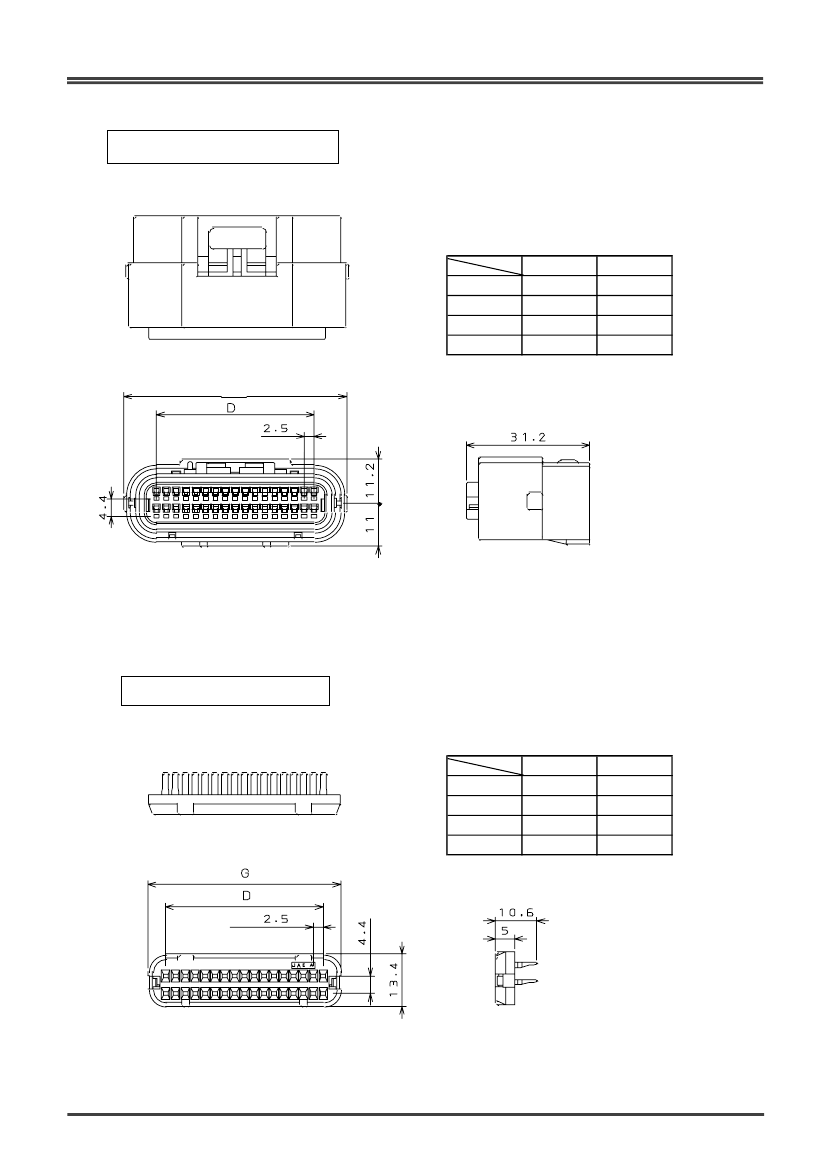

Socket Connector

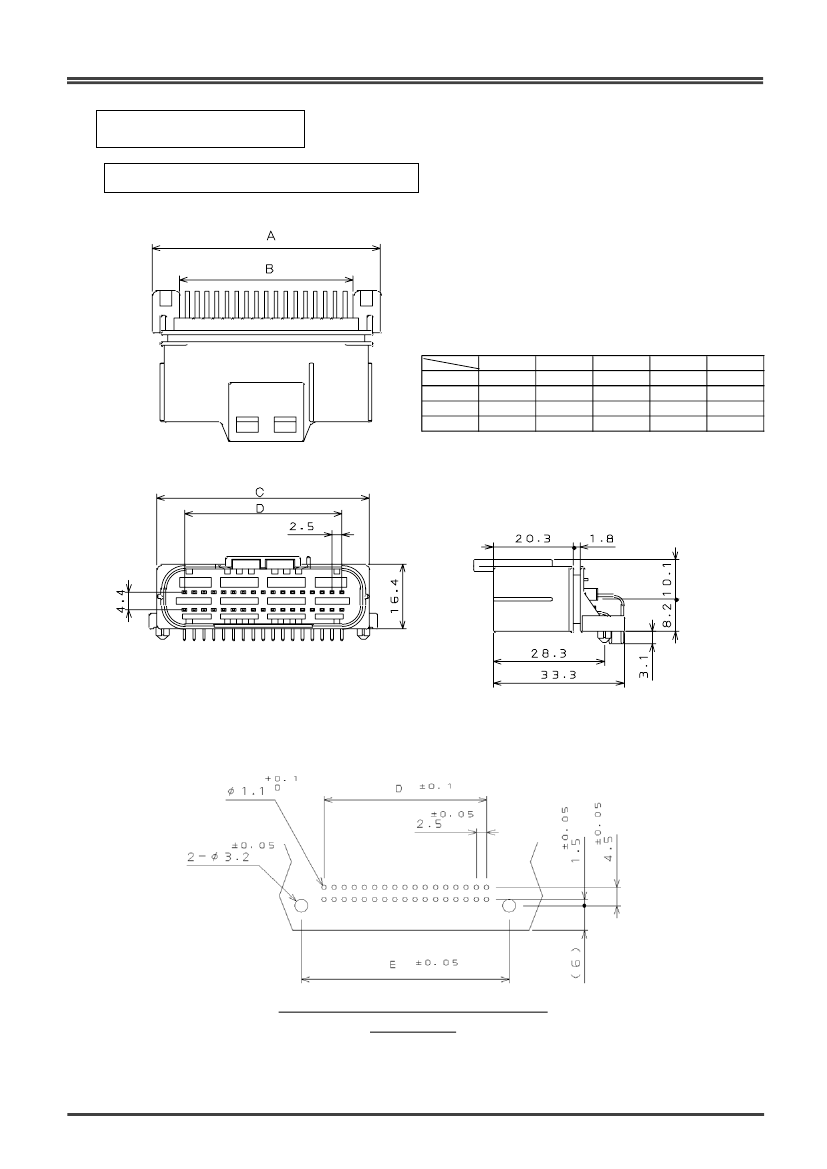

Pin
Connector
(Standard Type)

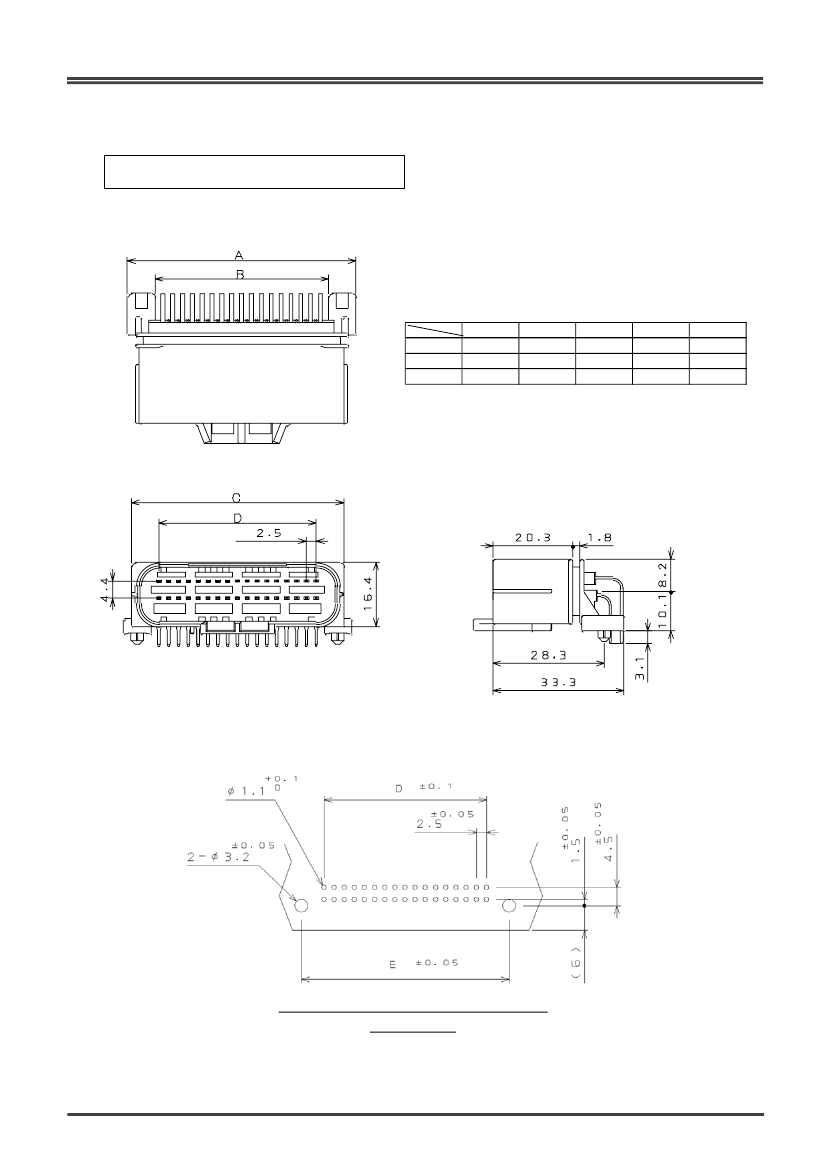

Pin
Connector
(Reverse
Type)

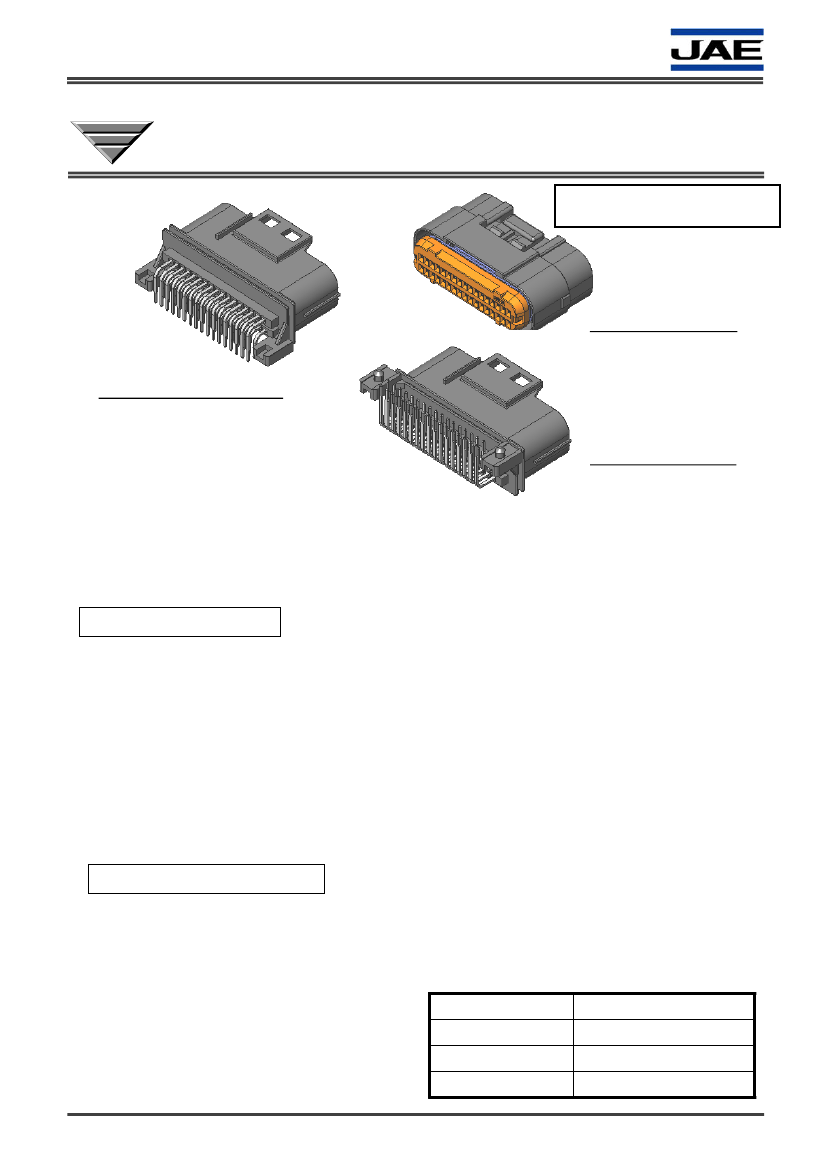

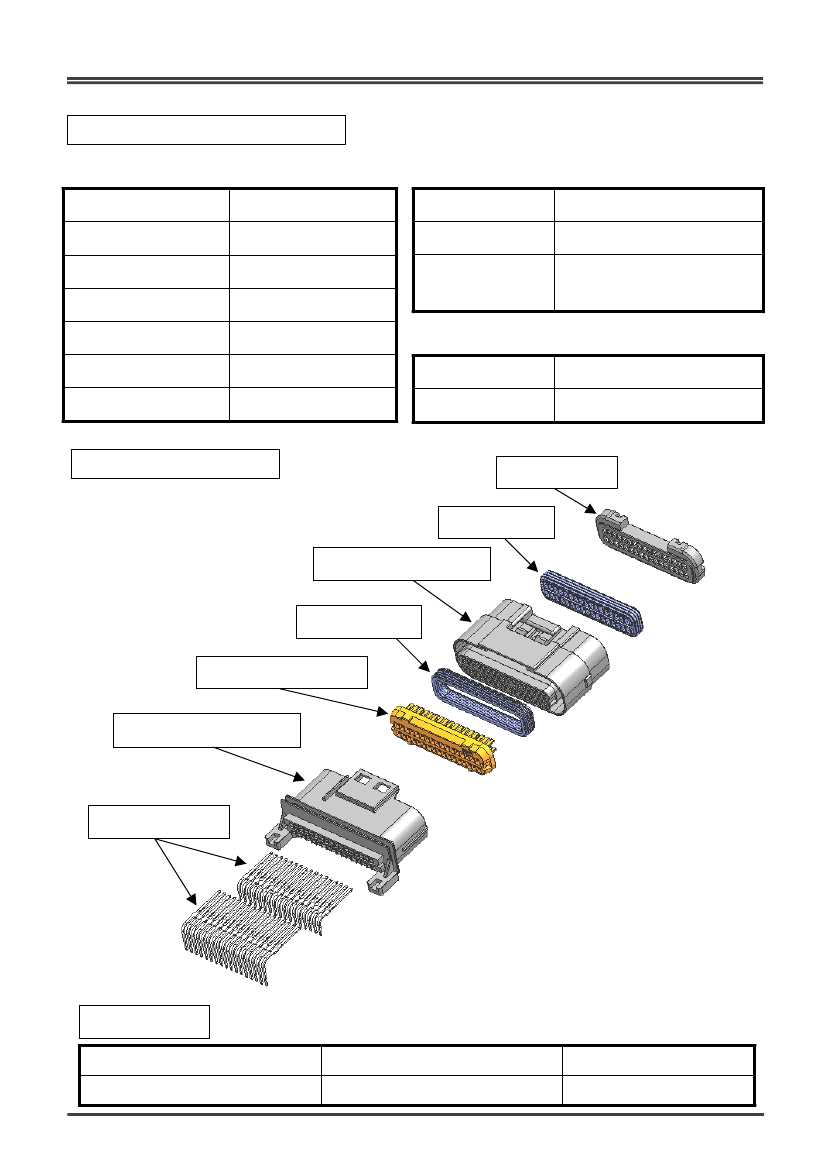

MX23A connector can be used for wide range water proof equipment including
automobiles, motorcycles and so on. This connector has high environmental capability
with waterproof structure by sealing in its mating area and by grommet in its wire crimping
area for full protection against water. Reverse type pin connector (with pins facing up) is
also available in consideration of mounting space.
Features
Low profiled type with board mounting height of 18.3mm and socket connector height of
22.2mm max.
Double fin structure with high reliability is adopted for socket contact and large chamfer
is prepared in the front-edge side to prevent grommet from damaging.
Incomplete insertion of socket contact into its housing can be detected with the front cap
mounting process.
Full water poof grommet is used for socket contact crimping area in order to reduce size.
Water protection seal ring is used in connector’s mating area. It realizes full protection
from hands touching on insulator wall.
Reverse type pin connector (with pins facing up) is also available.
General Specifications
•No. of contacts: 12 ,18, 26, 34 pos.
(Pin side 2types: Reverse and Standard
**excluding 12 pos.)
Contact
resistance: 10m ohm max.
•Dielectric withstanding voltage:
AC 1000 Vr.m.s (1 minute)
•Operating temperature: -40 to+125 Deg. C
(Including temperature rise caused by power
distribution)
•Current rating: 3A
•Insulation resistance: 100M ohm min.
•Life time: 50 times
•Applicable wire : Position of using wire is
specified.
Cable type
Conductive area
A.W.G No.
Sheath diameter
AVSS, AVS(partially)
0.3 to 1.25mm
2
#22 to #16
1.6dia. to 2.2dia. mm
1/7
