SAW Filters for Mobile Communications
Series/Type:
B9000
The following products presented in this data sheet are being withdrawn.
Ordering Code
B39162B9000C710
Substitute Product
B39162B9457P810
Date of Withdrawal
2012-07-27
Deadline Last
Orders
2012-10-31
Last Shipments
2013-01-31
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating Temperature Range:
Terminating source impedance:
Terminating load impedance:
B9000
1575,42 MHz
T
Z
S
Z
L
= -40˚C to 85˚C
= 50Ω
= 50Ω
min.
typ.
1575,42
max.
—
MHz
Center frequency
f
C
—
Maximum insertion attenuation
α
max
1574,42 ... 1576,42 MHz*)
1574,42 ... 1576,42 MHz
Amplitude ripple
1574,42 ... 1576,42 MHz

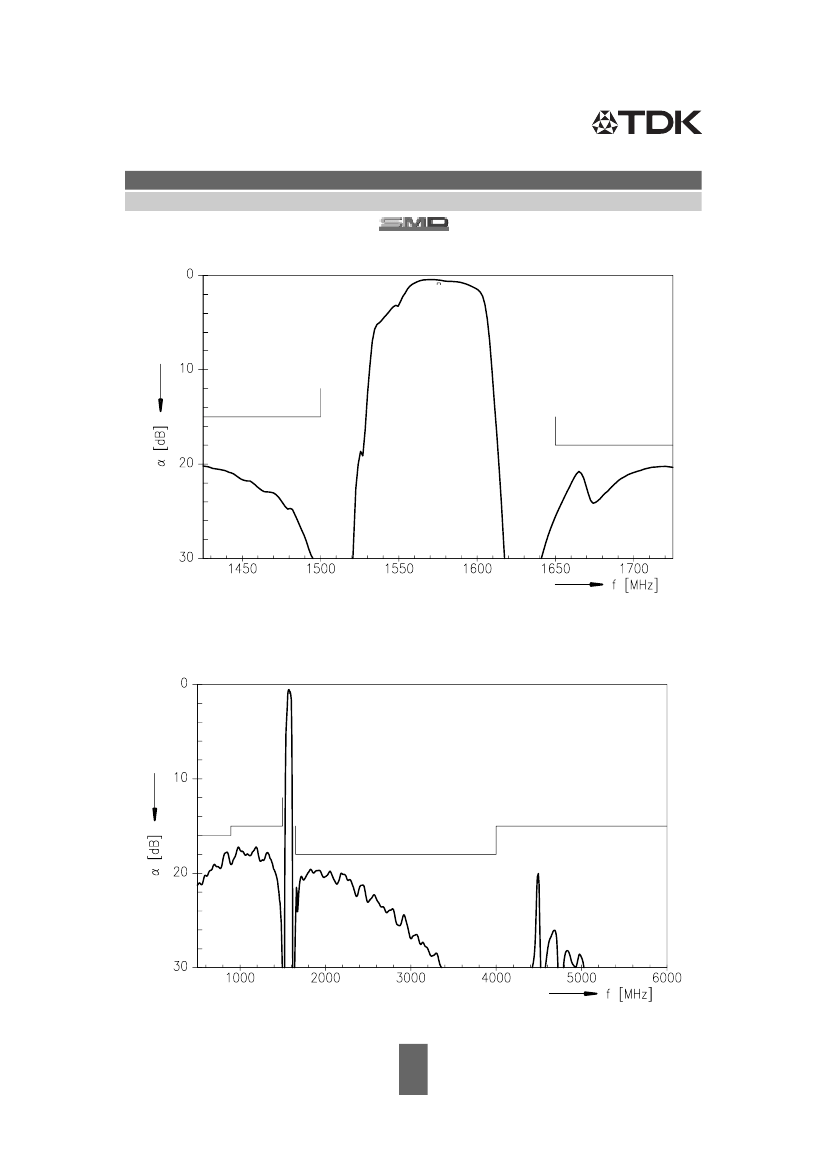

Absolute attenuation
500,0MHz ... 894,0 MHz
894,0MHz ... 1500,0 MHz
1650,0MHz ... 4000,0 MHz
4000,0MHz ... 6000,0 MHz
VSWR
1574,42MHz ...
1574,42MHz ...
1576,42MHz*)
1576,42 MHz
α
∆α
—
—
0,5
0,5
0,8
0,9
dB
dB
—
0,0
0,3
dB
16
15
18
15
18
17
20
20
—
—
—
—
dB
dB
dB
dB
—
—
1,1
1,1
1,5
1,6
*)
T
A
= -30 ... +70 ˚C
3
Jan 31, 2003
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
B9000
1575,42 MHz
Published by EPCOS AG
SAW MC WT, P.O. Box 80 17 09, 81617 Munich, GERMANY
TEL ++49 89 636 09, FAX ++49 89 636 2 26 89
©
EPCOS AG 2002. Reproduction, publication and dissemination of this brochure and the informa-
tion contained therein without EPCOS’ prior express consent is prohibited.
Purchase orders are subject to the General Conditions for the Supply of Products and Services of
the Electrical and Electronics Industry recommended by the ZVEI (German Electrical and Electronic
Manufacturers’ Association), unless otherwise agreed.
This brochure replaces the previous edition.
For questions on technology, prices and delivery please contact the Sales Offices of EPCOS AG or
the international Representatives.
Due to technical requirements components may contain dangerous substances. For information on
the type in question please also contact one of our Sales Offices.
5
Jan 31, 2003
