PJ-015A-SMT-TR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> PJ-015A-SMT-TR

Preview

PJ-015A-SMT-TR: DescriptionCONN PWR JACK 2X5.5MM SOLDER; CategoryThe connector; File Size471KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric View All

PJ-015A-SMT-TR Overview

CONN PWR JACK 2X5.5MM SOLDER

PJ-015A-SMT-TR Parametric

Parameter Name	Attribute value
Connector type	Jack
gender	male head
Industry recognized mating diameter	2.00mm inner diameter (0.079"), 5.50mm outer diameter (0.217")
actual diameter	0.078" (2.00mm inner diameter), 0.256" (6.50mm outer diameter)
Number of pins/contacts	2 wires, 3 contacts
internal switch	Single switch, normally closed
Installation type	surface mount
Installation features	-
Termination	welding
shield	No shielding
characteristic	board guide
Insulation color	-
Voltage - Rated	16VDC
Rated current	2.5A
Mating length/depth	-
Contact material - plating	silver
Matrix material	-
Operating temperature	-
include	-
Shell material	Polyamide (PA6T), Nylon 6T
Contact material	brass; copper alloy
Thread size	-
Body color	black
Material flammability rating	-
Intrusion protection	-

Preview

Download Datasheet

View All

For more information, please visit the

product page

REV.

A

B

|

For information on related products, view

External Power Supplies

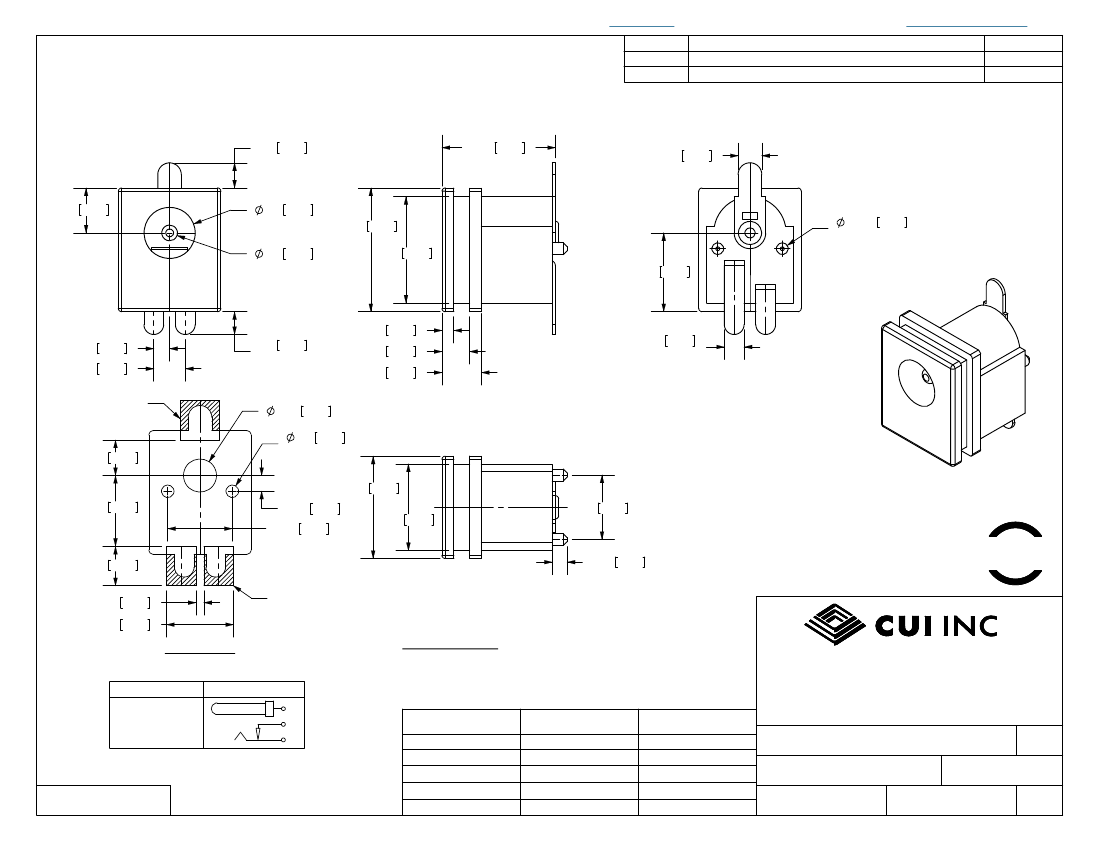

DESCRIPTION

NEW DRAWING

Changed housing material to PA6T from PBT

DATE

10/11/2005

1/10/2006

3.2 0.13

14.4 0.57

3.00 0.12

5.7 0.22

6.5 0.26

15.7 0.62

2.0 0.08

13.5 0.53

1.50 0.06

2.0 0.08

4.0 0.16

5.00X5.00

1

2.9 0.11

(TYP)

3.50 0.14

5.00 0.20

4.5 0.18

9.0 0.35

is

co

nt

1.6 0.06

(2 PLCS)

13.0 0.51

2.00 0.08

8.20 0.32

11.0 0.43

3

1.90 0.07

3.75X5.00

(2 PLCS)

PJ-015A-SMT

1

3

2

MATERIAL

CENTER PIN

TERMINAL 1

TERMINAL 2

TERMINAL 3

HOUSING

Copper

Brass

Copper Alloy

Brass

PA6T

4.20 0.17

in

2.5 0.10

(2 PLCS)

Nickel

Silver

ue

10.0 0.39

3

2

TOLERANCE:

X.X ±0.2mm

X.XX ±0.1mm

X.XXX ±0.05mm

PLATING

TITLE:

PART NO.

DRAWN BY:

d

1

1.500 0.06

(2 PLCS)

5.0 0.20

1.0 0.04

8.5 0.33

2

RoHS

20050 SW 112th Ave.

Tualatin, OR 97062

Phone: 503-612-2300

800-275-4899

Fax: 503-612-2383

Website: www.cui.com

PCB LAYOUT

TOP VIEW

MODEL NO.

SPECIFICATIONS:

RATING: 16V DC @ 2.5A

CONTACT RESISTANCE: 30m OHMS MAX

INSULATION RESISTANCE: 50M OHMS MIN: 100V DC

VOLTAGE WITHSTAND: 500V AC R.M.S. FOR 1 MINUTE

LIFE: 5,000 CYCLES

D

SCHEMATIC

DC POWER JACK

PJ-015A-SMT

APPROVED BY:

UNITS:

REV:

B

CENTER PIN DIAMETER 2.0mm Dia.

MM [INCHES]

SCALE:

PC FILE NAME:

PJ-015A-SMT

ZRJ

2:1
