PPTC031LGBN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PPTC031LGBN

PPTC031LGBN: DescriptionCONN FEMALE 3POS .100" R/A TIN; CategoryThe connector; File Size290KB，1 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

PPTC031LGBN Overview

CONN FEMALE 3POS .100" R/A TIN

PPTC031LGBN Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	female socket
style	board to board
Number of pins	3
Number of pins loaded	all
Spacing - Mating	0.100"（2.54mm）
Number of rows	1
Line spacing - patching	-
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Insulation color	black
Insulation height	0.100"（2.54mm）
Contact length - terminal	0.124"（3.15mm）
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	3A
Rated voltage	250V
application	-
Insulation Materials	polyester
Contact shape	Square
Contact material	Phosphor bronze
Contact Surface Treatment Thickness - Column	-

Preview

Download Datasheet

View All

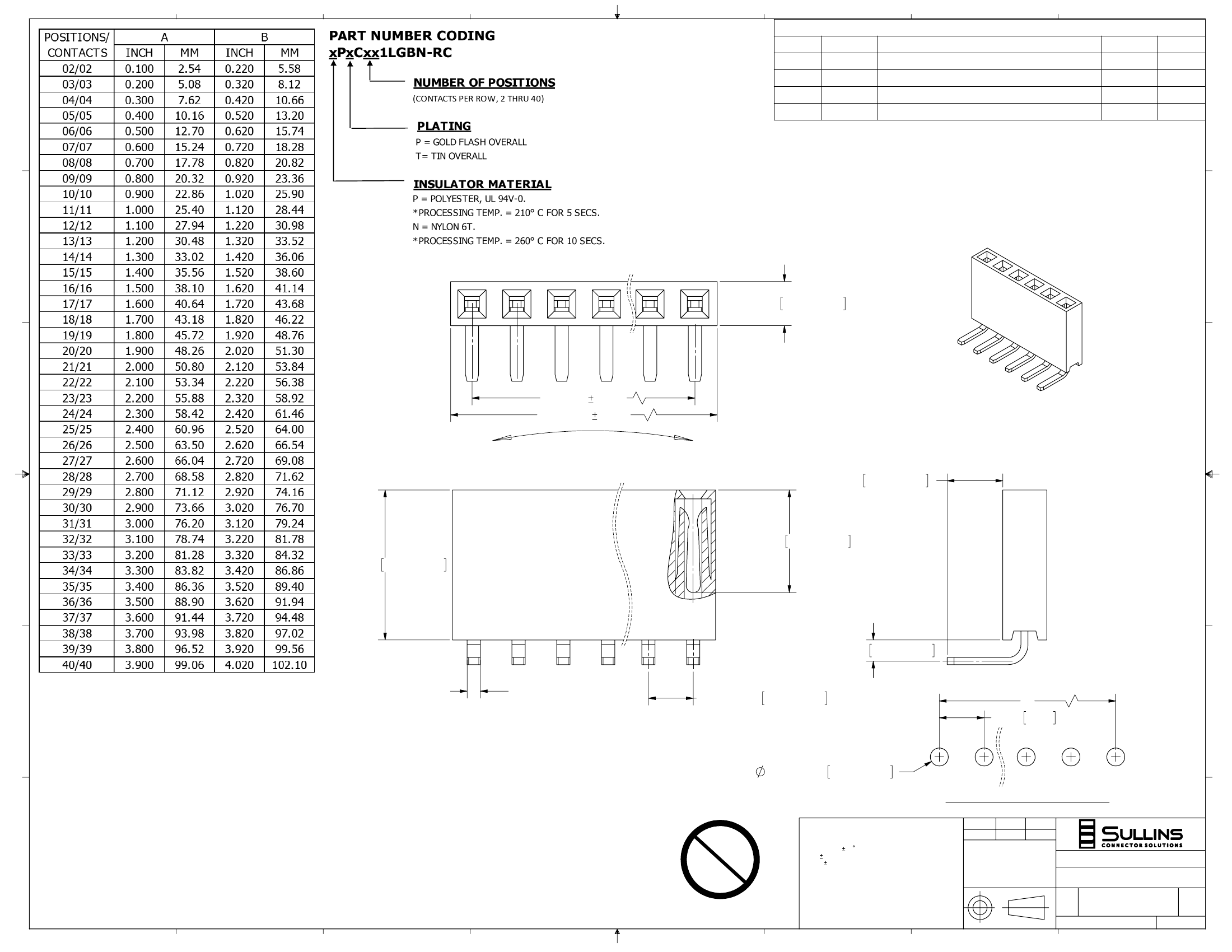

REVISIONS

REV.

ECO. NO

648

720

1126

1869

DESCRIPTION

INITIAL RELEASE

FROM 3.4 TO 3.15, 2.5 TO 2.4

DATE

6/15/2005

9/26/2005

UPDATE SPECIFICATIONS

9/12/2005

ADD CONTACT DEPTH 6.4mm, UPDATE TOP VIEW & 12/23/2008

TOLERANCE, WIDTH 2.54 WAS 2.4

.100±.008 2.54±0.20

A±.08 [ 0.20]

B±.014 [ 0.35]

02-20, 0.20mm MAX.

21-40, 0.30mm MAX.

.124±.012 3.15±0.30

.252±.008 6.40±0.20

.335±.010 8.50±0.25

.063±.010 1.60±0.25

.024(w) X .016(t)

[0.60 X 0.40]

.100±.004 2.54±0.10

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING.

2. CONTACT MATERIAL: PHOSPHOR BRONZE.

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 3 AMPS

5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

7. DIELECTRIC WITHSTANDING: AC 500V.

8. OPERATING TEMPERATURE: -40° C TO +105° C.

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

.100 2.54

.040±.002 1.02±0.05

RECOMMENDED PCB LAYOUT

oHS COMPLIANT

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR: 5

.XX= .014 [.35]

.XXX= .008 [.20]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

12/15/08

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

HEADER FEMALE,

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

2.54mm CC, 1 ROW, RA

xPxCxx1LGBN-RC

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 12:1

REV

10493

SHEET 1 OF 1

FILE NAME: Z:\COMPONENTS\Taiwan\10493, P(N)PxCxx1LGBN-RC PRINT: 2/3/2009
