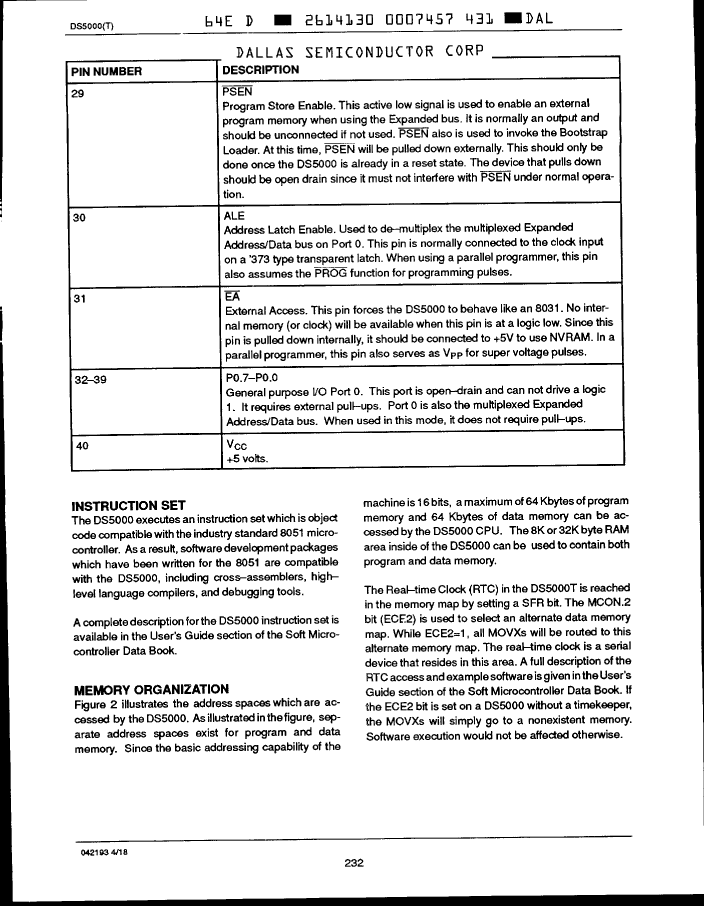

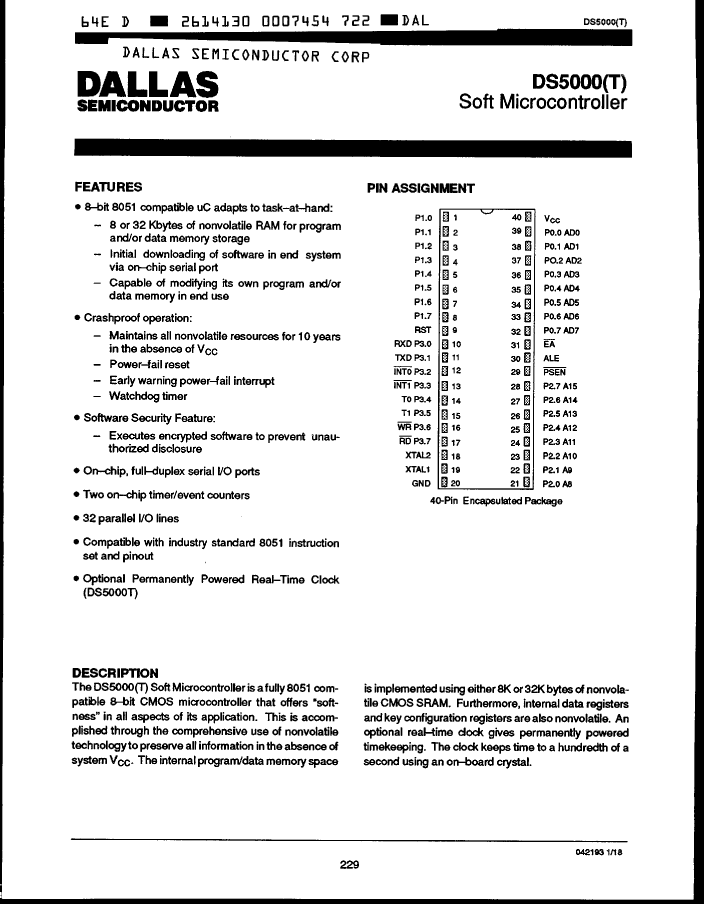

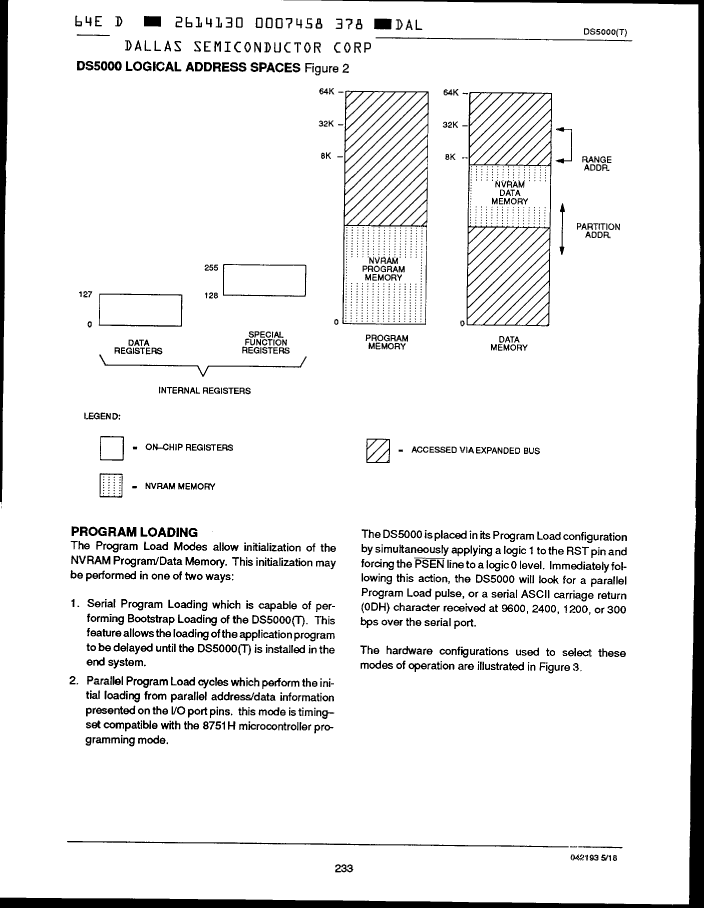

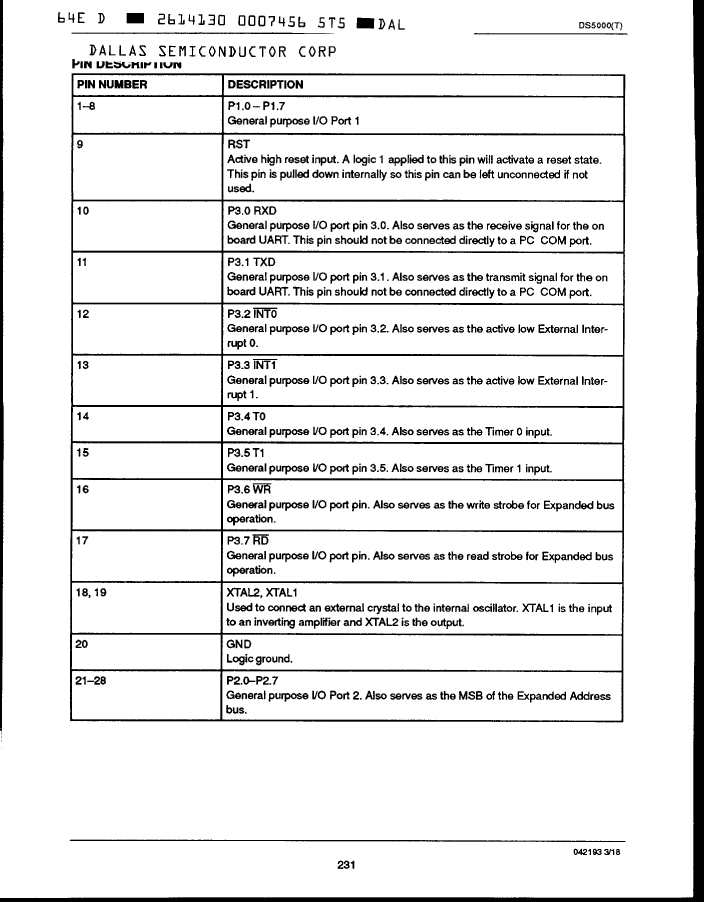

Microcontroller, 8-Bit, 8MHz, CMOS, PDIP40,

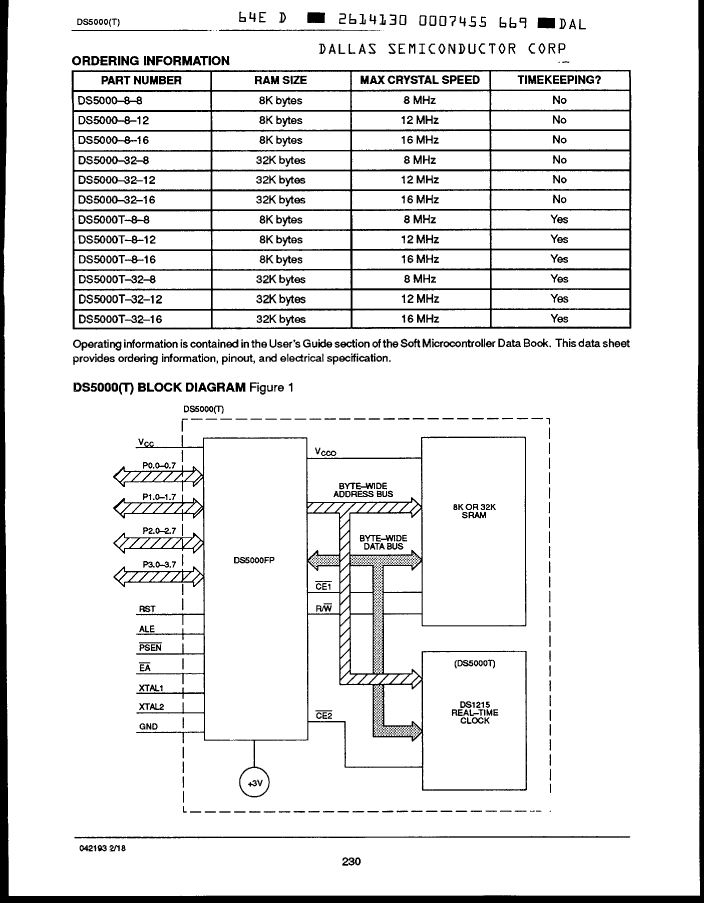

| Parameter Name | Attribute value |
| Maker | DALLAS |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Has ADC | NO |
| Address bus width | 16 |
| bit size | 8 |
| boundary scan | NO |
| maximum clock frequency | 8 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | R-PDIP-T40 |
| low power mode | NO |
| Number of DMA channels | |
| Number of external interrupt devices | 2 |
| Number of I/O lines | 32 |
| Number of serial I/Os | 1 |
| Number of terminals | 40 |
| Number of timers | 2 |
| On-chip data RAM width | 8 |
| On-chip program ROM width | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| RAM (number of words) | 8000 |
| rom(word) | 0 |
| speed | 8 MHz |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Base Number Matches | 1 |
| DS500008-08 | DS500032-08 | DS5000T08-08 | DS5000T32-08 | DS5000T08-12 | DS500008-12 | |
|---|---|---|---|---|---|---|
| Description | Microcontroller, 8-Bit, 8MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, 8051 CPU, 8MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, PDIP40, | Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, PDIP40, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Has ADC | NO | NO | NO | NO | NO | NO |
| Address bus width | 16 | 16 | 16 | 16 | 16 | 16 |
| bit size | 8 | 8 | 8 | 8 | 8 | 8 |
| boundary scan | NO | NO | NO | NO | NO | NO |
| maximum clock frequency | 8 MHz | 8 MHz | 8 MHz | 8 MHz | 12 MHz | 12 MHz |
| DAC channel | NO | NO | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO | NO | NO |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 |
| Format | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT |
| Integrated cache | NO | NO | NO | NO | NO | NO |
| JESD-30 code | R-PDIP-T40 | R-PDIP-T40 | R-PDIP-T40 | R-PDIP-T40 | R-PDIP-T40 | R-PDIP-T40 |
| low power mode | NO | NO | NO | NO | NO | NO |
| Number of external interrupt devices | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of I/O lines | 32 | 32 | 32 | 32 | 32 | 32 |
| Number of serial I/Os | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 40 | 40 | 40 | 40 | 40 | 40 |
| Number of timers | 2 | 2 | 2 | 2 | 2 | 2 |
| On-chip data RAM width | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| PWM channel | NO | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| RAM (number of words) | 8000 | 32000 | 4096 | 16384 | 4096 | 4096 |
| speed | 8 MHz | 8 MHz | 8 MHz | 8 MHz | 12 MHz | 12 MHz |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Maker | DALLAS | - | DALLAS | DALLAS | DALLAS | DALLAS |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | incompatible | incompatible |
| CPU series | - | 8051 | 8051 | 8051 | 8051 | 8051 |
| JESD-609 code | - | e0 | e0 | e0 | e0 | e0 |
| encapsulated code | - | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | - | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 |
| RAM (bytes) | - | 32768 | 8192 | 32768 | 8192 | 8192 |
| Maximum slew rate | - | 48.2 mA | 43.2 mA | 48.2 mA | 43.2 mA | 43.2 mA |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal pitch | - | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
