1. MATERIAL: HINGE AND COVER, POLYCARBONATE, CLEAR, UL 94 V0 RATED
2. RoHS COMPLIANT
3. COMPATIBLE WITH STANDARD RJ45 APERTURES TO IEC 60603.
D
4. SUPPLIED IN BAGS, 25 PARTS PER BAG WITH ASSEMBLY INSTRUCTIONS
D
14.0
NOM
4.7 NOM

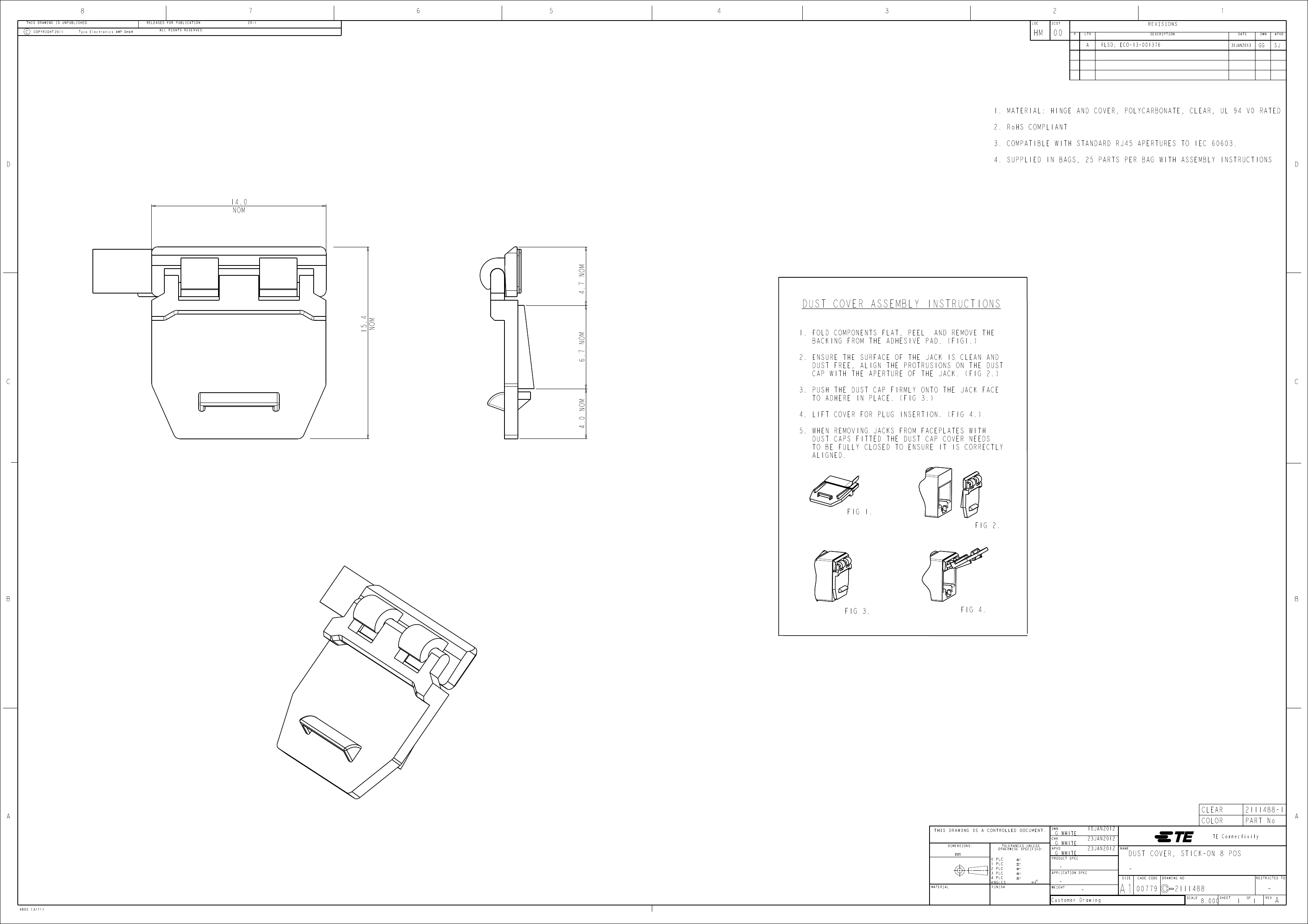

DUST COVER ASSEMBLY INSTRUCTIONS
15.4
NOM
6.7 NOM
1. FOLD COMPONENTS FLAT, PEEL AND REMOVE THE
BACKING FROM THE ADHESIVE PAD. (FIG1.)
2. ENSURE THE SURFACE OF THE JACK IS CLEAN AND
DUST FREE, ALIGN THE PROTRUSIONS ON THE DUST
CAP WITH THE APERTURE OF THE JACK. (FIG 2.)
3. PUSH THE DUST CAP FIRMLY ONTO THE JACK FACE
TO ADHERE IN PLACE. (FIG 3.)
4. LIFT COVER FOR PLUG INSERTION. (FIG 4.)
5. WHEN REMOVING JACKS FROM FACEPLATES WITH
DUST CAPS FITTED THE DUST CAP COVER NEEDS
TO BE FULLY CLOSED TO ENSURE IT IS CORRECTLY
ALIGNED.
C
C
4.0 NOM
FIG 1.
FIG 2.
B
FIG 3.
FIG 4.
B
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
APVD
PRODUCT SPEC
NAME
CLEAR
COLOR
2111488-1
PART No
A
TE Connectivity
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
APPLICATION SPEC
WEIGHT
A1
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
SCALE
SHEET
OF
REV
4805 (3/11)
