Sensor/actuator box - SACB-8/16-L-PT SCO P - 1412060
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

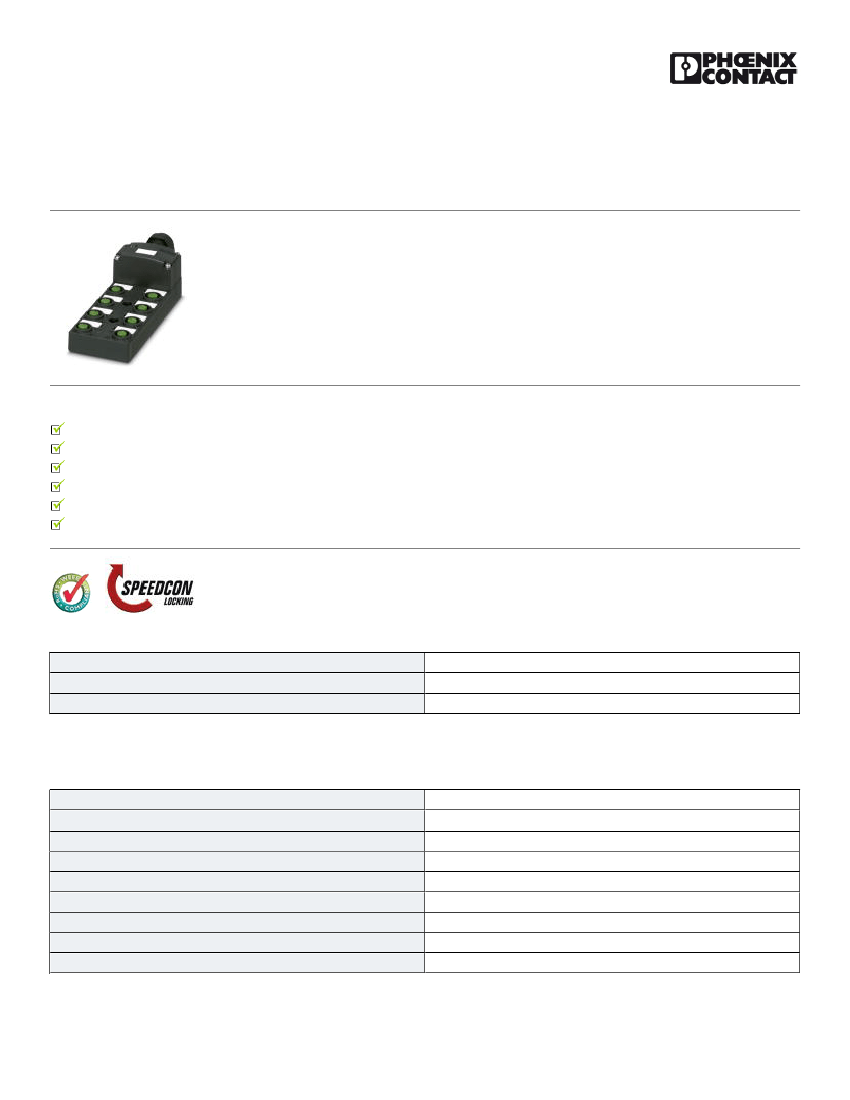

Sensor/actuator box, Connection method: M12-SPEEDCON-socket Plastic, Number of slots: 8, Number of
positions: 5, Coding: A - standard, Slot assignment: Double, Status indication: Yes, pnp; Master cable connection:
Push-in-/Spring-cage connection 180°, Shielding: No
Product Features
Safety in the field, thanks to molded housing and high degree of protection
Flexible, distributed bundling of signals in one master cable
Convenient: increased machine availability thanks to quick and easy diagnostics
Save space: distributor box with double occupancy for two sensors in one slot
Save time, thanks to installation with SPEEDCON fast locking system
Flexible: distributor box with connector hood for on-site assembly
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Poland
Key Commercial Data
Technical data
General
Rated voltage
Max. operating voltage U
max
Current carrying capacity per I/O signal
Current carrying capacity per slot
Total rated current
Number of positions
Number of slots
Flammability rating according to UL 94
Sensor/actuator connection system
24 V DC
30 V DC
2A
4A
8 A (Higher ratings can be achieved with different configurations)
5
8
V0
M12-SPEEDCON-socket
10/28/2015 Page 1 / 5
https://www.phoenixcontact.com/us/products/1412060
Sensor/actuator box - SACB-8/16-L-PT SCO P - 1412060
Technical data
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP65
IP67
-25 °C ... 80 °C
Local diagnostics function
Local diagnostics
Supply voltage Green LED
Status display I/O Yellow LED
Master cable connection data
Connection method
Conductor cross section min. (signal)
Conductor cross section max. (signal)
Conductor cross section AWG min. (signal)
Conductor cross section AWG max. (signal)
Conductor cross section min. (energy)
Conductor cross section max. (energy)
Conductor cross section AWG min. (energy)
Conductor cross section AWG max. (energy)
External cable diameter min.
External cable diameter max.
Stripping length
Tightening torque, cover screw
Tightening torque, union nut
Tightening torque slot sensor/actuator cable
Tightening torque of mounting screw for fixing the housing
Push-in-/Spring-cage connection
0.2 mm²
1 mm²
24
16
0.2 mm²
1 mm²
24
16
7 mm
12 mm
8 mm
1 Nm
2.5 Nm
0.4 Nm
0.5 Nm
Insulation material
Housing material
Material of the moulding mass
Contact material
Contact surface material
Contact carrier material
Material of the contact carrier on the master cable side
Material of threaded sleeve
O-ring material
Sealing material
PBT
PUR
Cu alloy
Gold-plated
PA
PA
PBT
NBR
NBR (Connector hood)
Pin assignment
Slot/position = Wire color or connection
1 / 4 (A) = WH
10/28/2015 Page 2 / 5
https://www.phoenixcontact.com/us/products/1412060
Sensor/actuator box - SACB-8/16-L-PT SCO P - 1412060
Technical data
Pin assignment
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
7 / 4 (A) = BK
7 / 2 (B) = WH/GY
8 / 4 (A) = VT
8 / 2 (B) = GY/BN
1-4 / 1 (+ 24 V) = BN
1-8 / 3 (0 V) = BU
1-8 / 5 (PE) = GN/YE
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27143423
27143423
27279219
ETIM
ETIM 4.0
ETIM 5.0
EC002585
EC002585
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
10/28/2015 Page 3 / 5
https://www.phoenixcontact.com/us/products/1412060
Sensor/actuator box - SACB-8/16-L-PT SCO P - 1412060
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
8A
24 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
8
24 A
EAC
cULus Recognized
Drawings
10/28/2015 Page 4 / 5
https://www.phoenixcontact.com/us/products/1412060
Sensor/actuator box - SACB-8/16-L-PT SCO P - 1412060

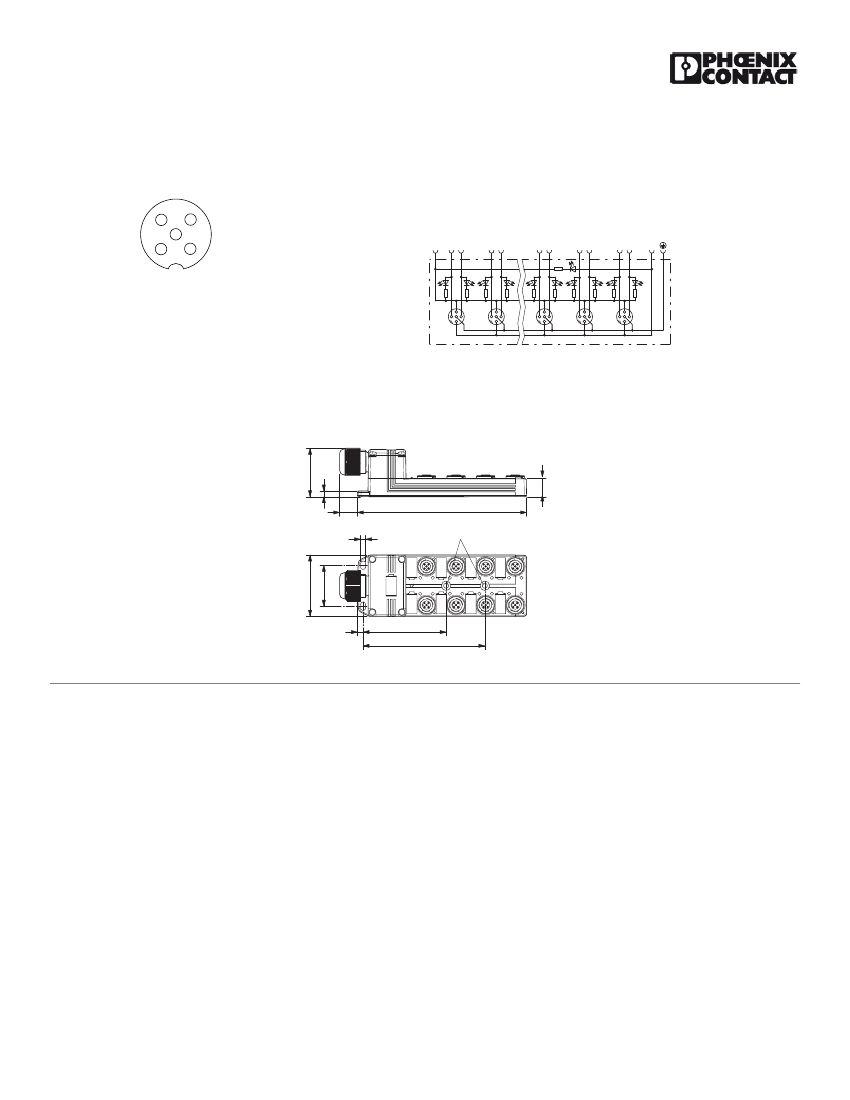

Schematic diagram
3
5
0V 1/2 1/4
2/2 2/4
6/2 6/4
7/2 7/4
8/2 8/4
U
N
Circuit diagram
4
2
1
M12 slot, socket, 5-pos.
3
2
1
1
5
4
2
1
2
5
3
4
2
1
6
5
3
4
2
1
7
5
3
4
2
1
8
5
3
4
Dimensional drawing
42,6
5
15,6
148,8
4,5
Ø4,5
54
36
5
73
107
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
16
7
1
2
3
5
B
B
B
B
B
A
A
A
A
A
B
B
B
A
A
A
8
4
6
10/28/2015 Page 5 / 5
