760154898 | Z-006-LN-6F-F06BK/25D/E
OptiSPEED® Indoor/Outdoor, Single Jacket All-Dielectric, Low Smoke
Zero Halogen (LSZH), Gel-Free, Stranded Loose Tube Cable
Product Classification
Portfolio
Product Type
Regional Availability
CommScope®
Fiber indoor/outdoor cable
Asia | Australia/New Zealand | EMEA | Latin America | North America
Standards And Qualifications
EN50575 CPR Cable EuroClass
Cable Qualification Standards
Eca
ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-20 | Telcordia GR-409

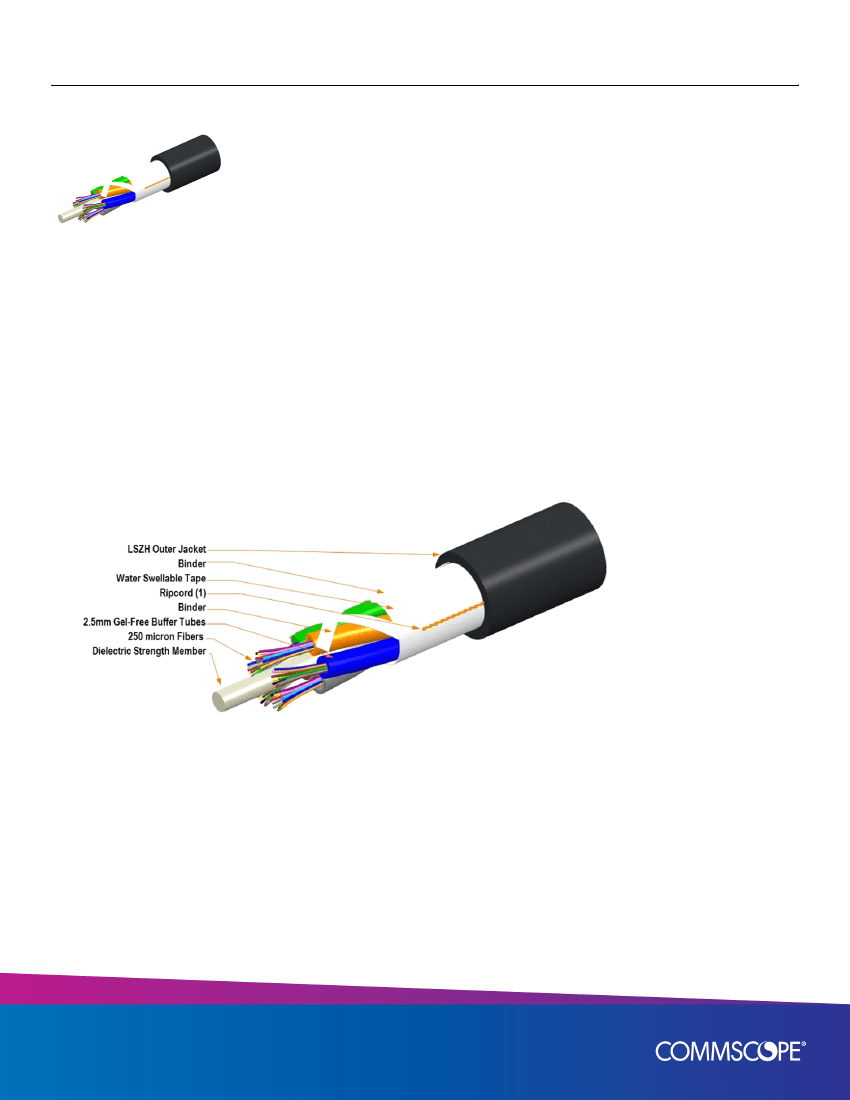

Representative Image
General Specifications
Construction Type
Cable Type
Subunit Type
Non-armored
Stranded loose tube
Gel-free
Construction Materials
Fiber Type Solution
Total Fiber Count
OM1, OptiSPEED®
6
page 1 of 3
March 26, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
760154898 | Z-006-LN-6F-F06BK/25D/E
Fiber Type
Fiber Type, quantity
Fibers per Subunit, quantity
Jacket Color
Jacket UV Resistance
OM1, OptiSPEED®
6
6
Black
UV stabilized
Dimensions
Buffer Tube/Subunit Diameter
Cable Weight
Diameter Over Jacket
Filler, quantity
Subunit, quantity
2.50 mm | 0.10 in
125.0 kg/km | 84.0 lb/kft
11.70 mm | 0.46 in
4
1
Physical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
17.5 cm | 6.9 in
11.7 cm | 4.6 in
Tensile Load, long term, maximum
180 lbf | 800 N
Tensile Load, short term, maximum
2700 N | 607 lbf
Vertical Rise, maximum
654.0 m | 2145.7 ft
Flame Test Specifications
Flame Test Listing
Flame Test Method
NEC OFN-LS (ETL) and c(ETL)
IEC 60332-3 | IEC 60754-2 | IEC 61034-2 | IEEE 1202 | IEEE 383 | UL 1685
Environmental Specifications
Environmental Space
Installation Temperature
Operating Temperature
Storage Temperature
Aerial, lashed | Buried | Low Smoke Zero Halogen (LSZH)
-30 °C to +60 °C (-22 °F to +140 °F)
-40 °C to +70 °C (-40 °F to +158 °F)
-40 °C to +75 °C (-40 °F to +167 °F)
Mechanical Test Specifications
Compression
Compression Test Method
Flex
Flex Test Method
Impact
Impact Test Method
Strain
125 lb/in | 22 N/mm
FOTP-41 | IEC 60794-1 E3
35 cycles
FOTP-104 | IEC 60794-1 E6
2.21 ft lb | 3.00 N-m
FOTP-25 | IEC 60794-1 E4
See long and short term tensile loads
page 2 of 3
March 26, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
760154898 | Z-006-LN-6F-F06BK/25D/E
Strain Test Method
Twist
Twist Test Method
Water Penentration
Water Penentration Test Method
FOTP-33 | IEC 60794-1 E1
10 cycles
FOTP-85 | IEC 60794-1 E7
24 h
FOTP-82 | IEC 60794-1 F5
Environmental Test Specifications
Cable Freeze
Cable Freeze Test Method
Drip
Drip Test Method
Heat Age
Heat Age Test Method
Low High Bend
Low High Bend Test Method
Temperature Cycle
Temperature Cycle Test Method
-2 °C | 28 °F
FOTP-98 | IEC 60794-1 F15
70 °C | 158 °F
FOTP-81 | IEC 60794-1 E14
-40 °C to +85 °C (-40 °F to +185 °F)
IEC 60794-1 F9
-30 °C to +60 °C (-22 °F to +140 °F)
FOTP-37 | IEC 60794-1 E11
-40 °C to +70 °C (-40 °F to +158 °F)
FOTP-3 | IEC 60794-1 F1
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
CENELEC
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
EN 50575 compliant, Declaration of Performance (DoP) available
Included Products
CS -6F-LT (Product Component—not orderable)
—
OptiSPEED® OM1 Multimode Fiber
CS-6F-
Component—
OptiSPEED®
* Footnotes
Operating Temperature
Specification applicable to non-terminated bulk fiber cable
