Specifications for TNC Connectors
TNC Series connectors are miniature sized, and weatherproof and are electrically similar to BNC Series, except that they
have a coupling method which utilizes a screw system giving them additional resistance against shock and vibration.
They are especially designed for use from DC to 18 GHz, in vibration exposed equipment like in commercial and
military radio telecommunications systems and avionics equipment. These connectors are particularly useful for
applications in computer and medical equipment and test instrumentation. TNC Series have a constant impedance of 50
ohms and are available in a variety of cable configurations.
MATERIALS
Connector Parts
Connector Body and Parts
Male Contact Pin
Commercial Grade
Outer Contact
Socket Contact
Socket Contact
Crimp Ferrule
Insulators, Standard Versions
Insulators, Standard Versions
Rubber Gaskets
Plating
Brass
Brass
Zinc Alloy/Brass
Brass
Beryllium Copper
Phosphor Bronze
Annealed Copper
Teflon
Delrin
Silicone Rubber
Nickel (Silver Optional)
Material
Equivalent Standard †
ISOCuZn38Pb2 Body Part
QQ-B-626
------
QQ-B-750
QQ-C-530/MIL-H-7199
CuBe2
QQ-C-576
L-P403/BS4271
Grade B
ASTM-E1418PSI
MIL-G-45204
ELECTRICAL
Requirement
Impedance
Frequency Range
VSWR
RF Insertion Loss
RF Leakage
Test Voltage (At Sea Level)
Working Voltage (At Sea
level)
Insulation Resistance
Contact Resistance
*Center Contact
*Outer Contact
Performance
50
75
Test †
Specification
-----
-----
MIL- C-39012
MIL- C-39012
MIL- C-39012
MIL-STD-202
MIL-STD-202
MIL-STD-202
MIL-C-39012
0-18 GHz
0-1 GHz
1.30 Max.
0.2 dB Max. at 3 GHz
-60 dB Min. at 3 GHz
1500V rms
500V rms
5000 Megohms Min.
5mW Maximum
2mW Maximum
MECHANICAL & ENVIRONMENTAL
Requirement
Durability
Shock
Vibration
Cable Retention (Cable Types)
Coupling Nut
Temperature Range
Moisture Resistance
Performance
500 Insertions & Extractions Min.
50 G
20 G from 80-2000 Hz
60 lbs. Minimum Pull Test
60 lbs. Maximum
Teflon: -55 to +199 C
Delrin: -40 to +85 C
Continuous Test
Test †
Specification
MIL-C-39012
MIL-STD-202
MIL-STD-202
MIL-C-39012
MIL-C-39012
--------
MIL-STD-202
Salt Spray
48 Hours
MIL-STD-202
†Products are made to conform to the Mil standard but are for commercial applications and not QPL
________________________
FOR TECHNICAL SUPPORT: PHONE 973-347-4040 / FAX 973-347-2111
Back to Index
11
- Page 11 -
- Page 12 -

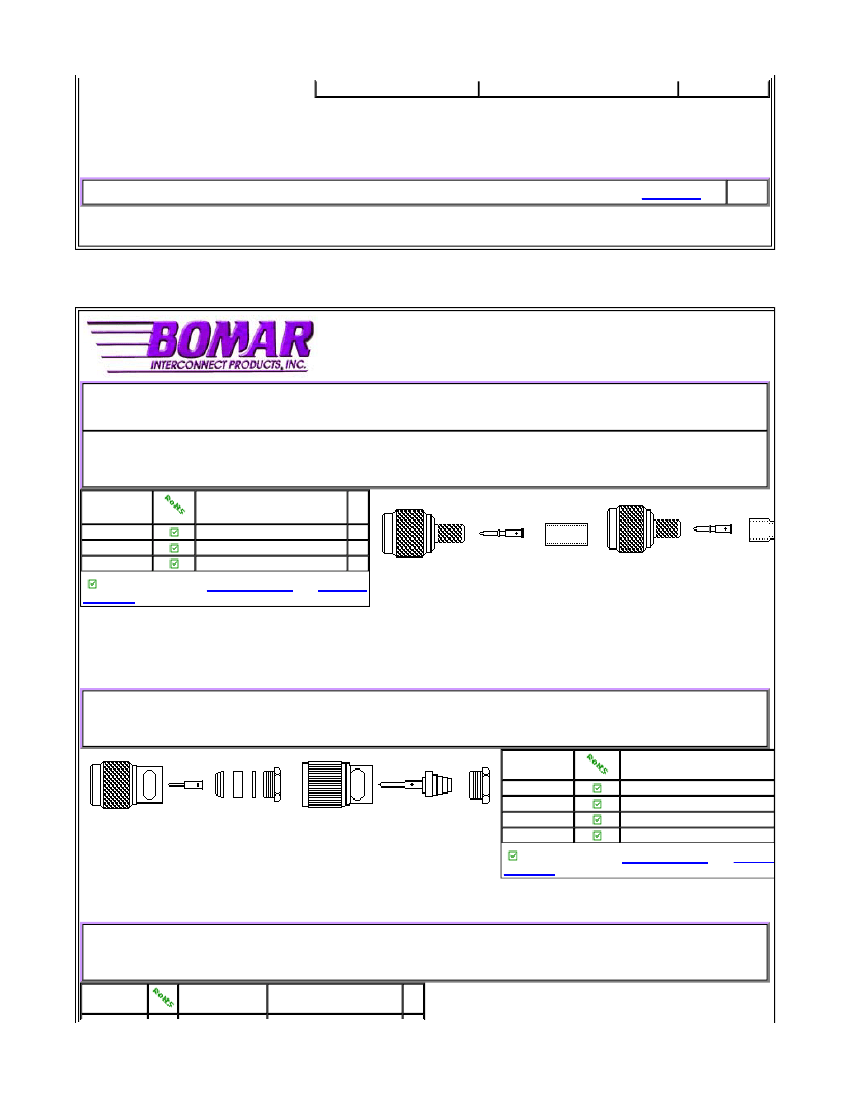

3 Piece Crimp
TNC three piece crimp connectors feature the same semi-captive contacts as the BNC which “click” into place assuring
perfect installation. Each crimp pin has a vent hole for optional soldering. Soldering is recommended for all stranded
conductors 26 AWG or smaller.
Part Number
510A205F
510A204G
510A204FV
RoHS compliant
DRAWING
RG/U Cable
58A/U, 58C/U, Stranded, 141/U
59/U, 62/U, 210/U
58A/U, 58C/U, 141/U Plenum
REQUEST QUOTE
Fig.
No.
57
57
58
Fig. 57
Fig. 58
REQUEST
s
Standard Clamp and Taper Grip
TNC standard clamp style is a simplified version of the original military style. It is required that the contact be soldered
to the center conductor of the cable. The Taper Grip style connectors require little cable preparation. Strip off all but a
length of center conductor, push the taper under the cable’s shield, solder the contact, and assemble.
Part Number
510A104F
510A104G
510A304F
510A304G
RoHS compliant
DRAWING
RG/U Cable
58A/U, 58C/U, Stranded, 141/U
59/U, 62/U, 210/U
58A/U, 58C/U, Stranded, 141/U
59/U, 62/U, 210/U
REQUEST QUOTE
REQUES
Fig. 51
Fig.50
Twist-On
TNC Twist-On connectors are field installable and require no tooling other than a stripping tool for the cable preparation.
The center conductor is inserted into Bomar’s unique Posi-Con™ contact, as the connector twists firmly onto the cable’s
outer jacket.
Part Number
Gender
RG/U Cable
Fig.
No.
510A405F
510A405G
520A405F
520A405G
RoHS compliant
Male
Male
Female
Female
58A/U, 58C/U, Stranded,
141/U
59/U, 62/U, 210/U
58A/U, 58C/U, Stranded,
141/U
59/U, 62/U, 210/U
REQUEST DRAWING
53
53
52
52
Fig. 53
Fig. 52
REQUEST QUOTE
s
Bulkhead Jacks
Versions are available for front mounting (F/M), rear mounting (R/M) , crimp types, bulkhead mount grounded, or
bulkhead mount isolated. These jacks are held into the panel by a hex-nut and lock washer. All units feature nickel
plated, brass bodies, and gold plated phosphor bronze contacts.
Part
Number
521A245F
521A245G
Fig. 54
526A515
526R515
RG/U Cable
58A/U, 58C/U, Stranded,
141/U
RG59/U, RG62/U, RG210
Any Cable Size Non Isolated
Any Cable Size Isolated
REQUEST
Fig.
No.
56
56
54
55
RoHS compliant
REQUEST QUOTE
DRAWING
Fig. 56
s
s
Fig. 55
s
s
________________________
FOR TECHNICAL SUPPORT:
PHONE 973-347-4040 / FAX 973-347-2111
Back to Index
12
- Page 12 -
- Page 13 -

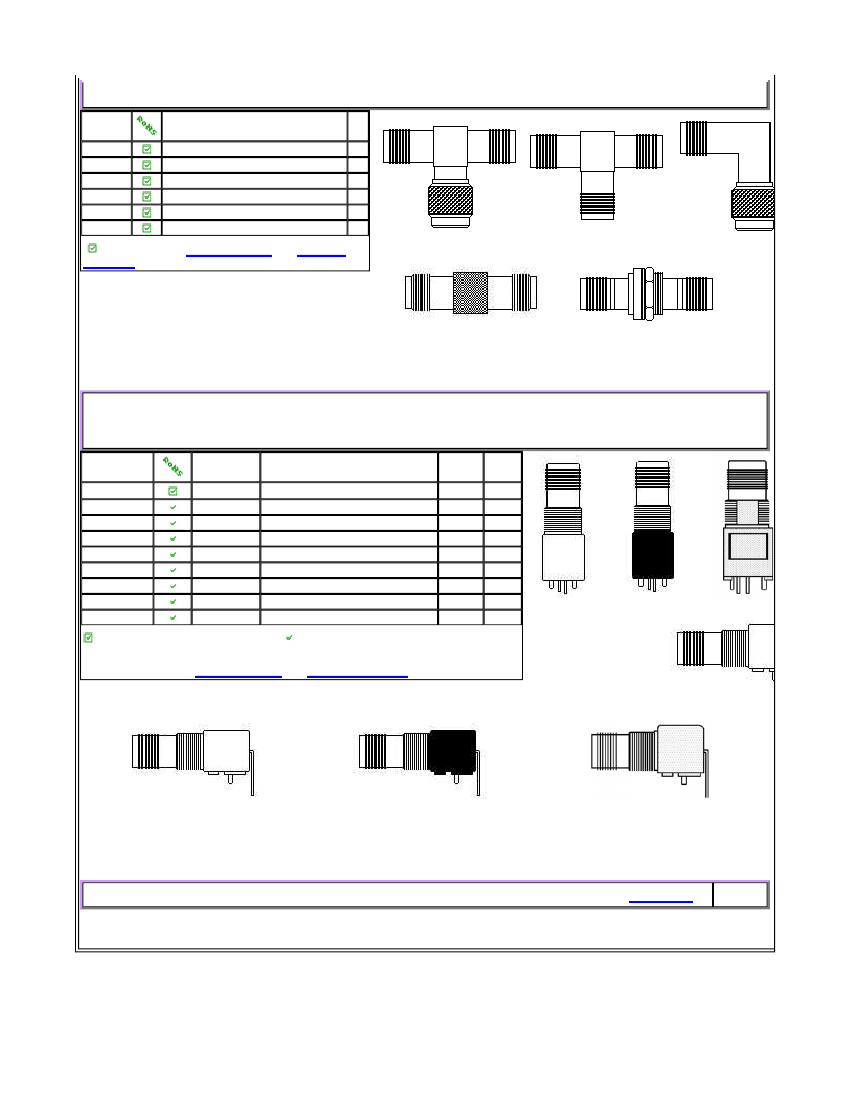

TNC Connectors
Adapters
These sturdy within-series TNC adapters are available in all standard designs. All connector bodies are plated with bright
nickel. Male contacts are brass, female contacts are phosphor bronze. All contacts are plated with 5 micro-inches of gold.
Part
Number
532A505
535A544
535R544
543A505
545A505
551A505
Description
Female/Female Inline Splice
Female/Female Bulkhead Inline
Female/Female Bulkhead Inline, Isolated
Female/Male/Female “T” Adapter
Female/Female/Female “T” Adapter
Female/Male Right Angle"
REQUEST QUOTE
REQUEST
Fig.
No.
60
61
61
62
63
64
Fig. 62
Fig. 63
Fig. 64
RoHS compliant
DRAWING
Fig. 60
Fig. 61
PC Board Jacks
These TNC jacks are manufactured to the highest standards to assure stability in maintaining impedance matching at
rated frequencies. Applications are in cellular communications, broadcast, and computer data. Contacts are phosphor
bronze and will remain resilient even after 500 insertions.
Part Number
561V504E
564A595
564A595B
564A595BL
564A595BLB
564A595M
564S595
564S595B
564S595M
Body
Material
Metal
White Valox
BlackValox
White Valox
BlackValox
Metal
White Valox
BlackValox
Metal
Description
V-Bite
W/ Teflon Reflow Solder
Standard Profile W/ Posts
Standard Profile W/ Posts
Low Profile W/ Posts
Low Profile W/ Posts
Standard Profile W/ Posts
Vertical Mounting
Vertical Mounting
Vertical Mounting
RoHS compliant wave solder only
REQUEST DRAWING
Contact
Plating
Gold
Gold
Gold
Gold
Gold
Gold
Gold
Gold
Gold
Fig.
No.
66
67
68
69
70
71
72
73
Fig. 71
Fig. 72
Fig. 73
RoHS compliant reflow or wave solder
REQUEST QUOTE
Fig. 66
Fig. 68
Fig. 69
Fig. 70
________________________
FOR TECHNICAL SUPPORT: PHONE 973-347-4040 / FAX 973-347-2111
Back to Index
13
- Page 13 -
