23L6410A-90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 23L6410A-90

Preview

23L6410A-90: Description64M-BIT PAGE MODE MASK ROM; File Size326KB，7 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Compare View All

23L6410A-90 Overview

64M-BIT PAGE MODE MASK ROM

Preview

Download Datasheet

View All

MX23L6410A

64M-BIT PAGE MODE MASK ROM

FEATURES

• Bit organization

- 8M x 8 (byte mode)

- 4M x 16 (word mode)

• Fast access time

- Random access:70ns (max.)

- Page access:25ns (max.)

• Page size

- 8 words per page

• Current

- Operating:20mA

- Standby:15uA

• Supply voltage

- 2.7V ~ 3.6V

• Package

- 44 pin SOP (500mil)

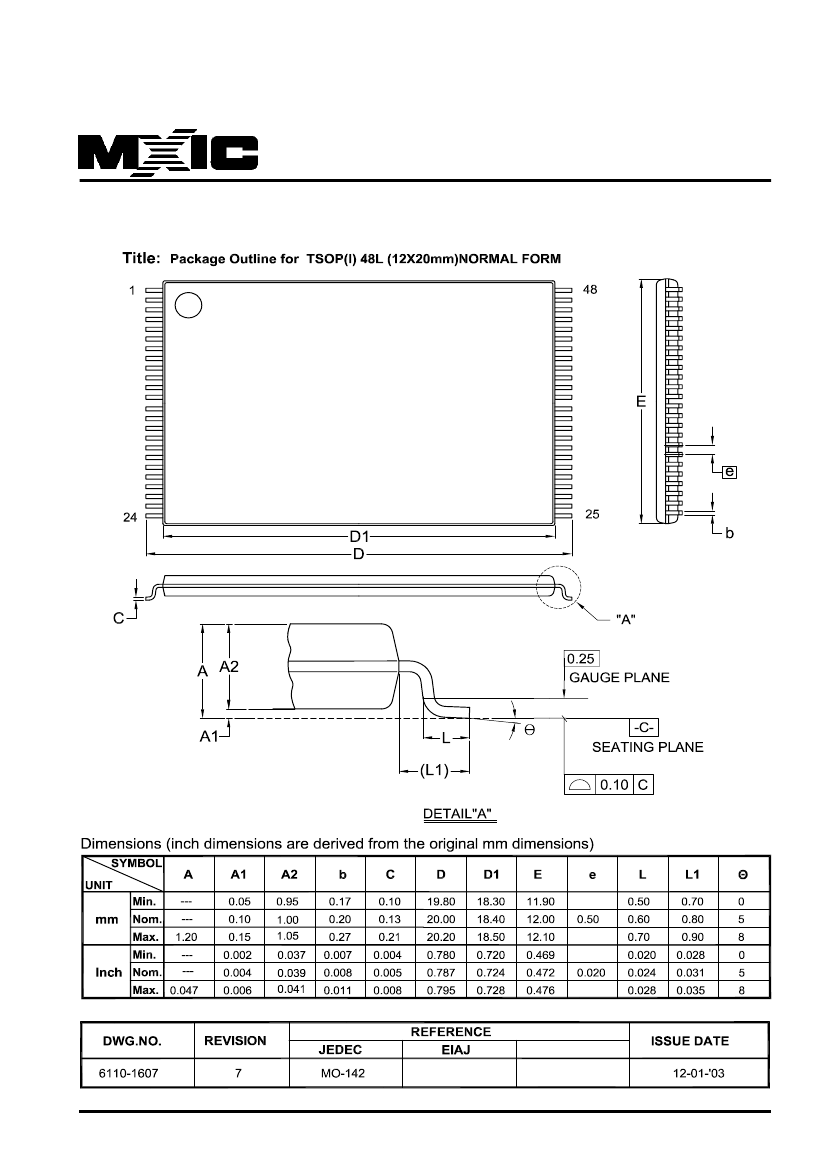

- 48 pin TSOP (12mm x 20mm)

• Temperature

- 0° C ~ 70° C

• Process

- 0.18um

PIN DESCRIPTION

Symbol

A0~A21

D0~D14

D15/A-1

CE#

OE#

BYTE#

VCC

VSS

Pin Function

Address Inputs

Data Outputs

D15 (Word Mode)/ LSB Address

(Byte Mode)

Chip Enable Input

Output Enable Input

Word/ Byte Mode Selection

Power Supply Pin

Ground Pin

No Connection

PIN CONFIGURATION

48 TSOP (Top View)

BYTE#

A16

A15

A14

A13

A12

A11

A10

A19

A21

A20

A18

A17

CE#

VSS

D15/A-1

D14

D13

D12

VCC

D11

D10

OE#

VSS

P/N:PM1195

REV. 1.0 , MAR. 04, 2005

23L6410A-90 Related Products

	23L6410A-90	MX23L6410A	MX23L6410ATC-70	MX23L6410ATC-70G	MX23L6410ATC-90	23L6410A-70	MX23L6410ATC-90G	MX23L6410AMC-90G	MX23L6410AMC-70G
Description	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM	64M-BIT PAGE MODE MASK ROM
Is it Rohs certified?	-	-	incompatible	conform to	incompatible	-	conform to	conform to	conform to
Parts packaging code	-	-	TSOP1	TSOP1	TSOP1	-	TSOP1	SOIC	SOIC
package instruction	-	-	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	-	TSOP1, TSSOP48,.8,20	SOP, SOP44,.63	SOP, SOP44,.63
Contacts	-	-	48	48	48	-	48	44	44
Reach Compliance Code	-	-	unknow	unknown	unknow	-	unknow	unknow	unknow
ECCN code	-	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Maximum access time	-	-	70 ns	70 ns	90 ns	-	90 ns	90 ns	70 ns
Spare memory width	-	-	8	8	8	-	8	8	8
JESD-30 code	-	-	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	-	R-PDSO-G48	R-PDSO-G44	R-PDSO-G44
length	-	-	18.4 mm	18.4 mm	18.4 mm	-	18.4 mm	28.5 mm	28.5 mm
memory density	-	-	67108864 bi	67108864 bit	67108864 bi	-	67108864 bi	67108864 bi	67108864 bi
Memory IC Type	-	-	MASK ROM	MASK ROM	MASK ROM	-	MASK ROM	MASK ROM	MASK ROM
memory width	-	-	16	16	16	-	16	16	16
Number of functions	-	-	1	1	1	-	1	1	1
Number of terminals	-	-	48	48	48	-	48	44	44
word count	-	-	4194304 words	4194304 words	4194304 words	-	4194304 words	4194304 words	4194304 words
character code	-	-	4000000	4000000	4000000	-	4000000	4000000	4000000
Operating mode	-	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	-	-	70 °C	70 °C	70 °C	-	70 °C	70 °C	70 °C
organize	-	-	4MX16	4MX16	4MX16	-	4MX16	4MX16	4MX16
Package body material	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	-	TSOP1	TSOP1	TSOP1	-	TSOP1	SOP	SOP
Encapsulate equivalent code	-	-	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	-	TSSOP48,.8,20	SOP44,.63	SOP44,.63
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	-	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	-	-	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL
power supply	-	-	3 V	3 V	3 V	-	3 V	3 V	3 V
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	-	1.2 mm	1.2 mm	1.2 mm	-	1.2 mm	3 mm	3 mm
Maximum standby current	-	-	0.000015 A	0.000015 A	0.000015 A	-	0.000015 A	0.000015 A	0.000015 A
Maximum slew rate	-	-	0.02 mA	0.02 mA	0.02 mA	-	0.02 mA	0.02 mA	0.02 mA
Maximum supply voltage (Vsup)	-	-	3.6 V	3.6 V	3.6 V	-	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	-	-	2.7 V	2.7 V	2.7 V	-	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	-	-	3 V	3 V	3 V	-	3 V	3 V	3 V
surface mount	-	-	YES	YES	YES	-	YES	YES	YES
technology	-	-	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	-	-	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal pitch	-	-	0.5 mm	0.5 mm	0.5 mm	-	0.5 mm	1.27 mm	1.27 mm
Terminal location	-	-	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
width	-	-	12 mm	12 mm	12 mm	-	12 mm	12.6 mm	12.6 mm
Base Number Matches	-	-	1	1	1	-	1	1	-
