Part Number

Search

5452110

Description
TERM BLOCK HDR 20POS VERT 3.5MM
CategoryThe connector
File Size92KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452110 Online Shopping

Suppliers Part Number Price MOQ In stock
5452110 - - View Buy Now

5452110 Overview

TERM BLOCK HDR 20POS VERT 3.5MM

5452110 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins20
Number of pins per level20
Number of levels1
spacing0.138"(3.50mm)
Needle seat directionVertical
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC8A
Voltage - IEC160V
Current - UL8A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristic-
Material flammability rating-
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell material-
Contact tail length0.134"(3.40mm)
Insulation height0.362"(9.20mm)
https://www.phoenixcontact.com/us/products/5452110
Printed-circuit board connector - BCH-350V-20 BK - 5452110
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 20, Pitch: 3.5 mm, Color: black,
Contact surface: Tin, Mounting: Wave soldering

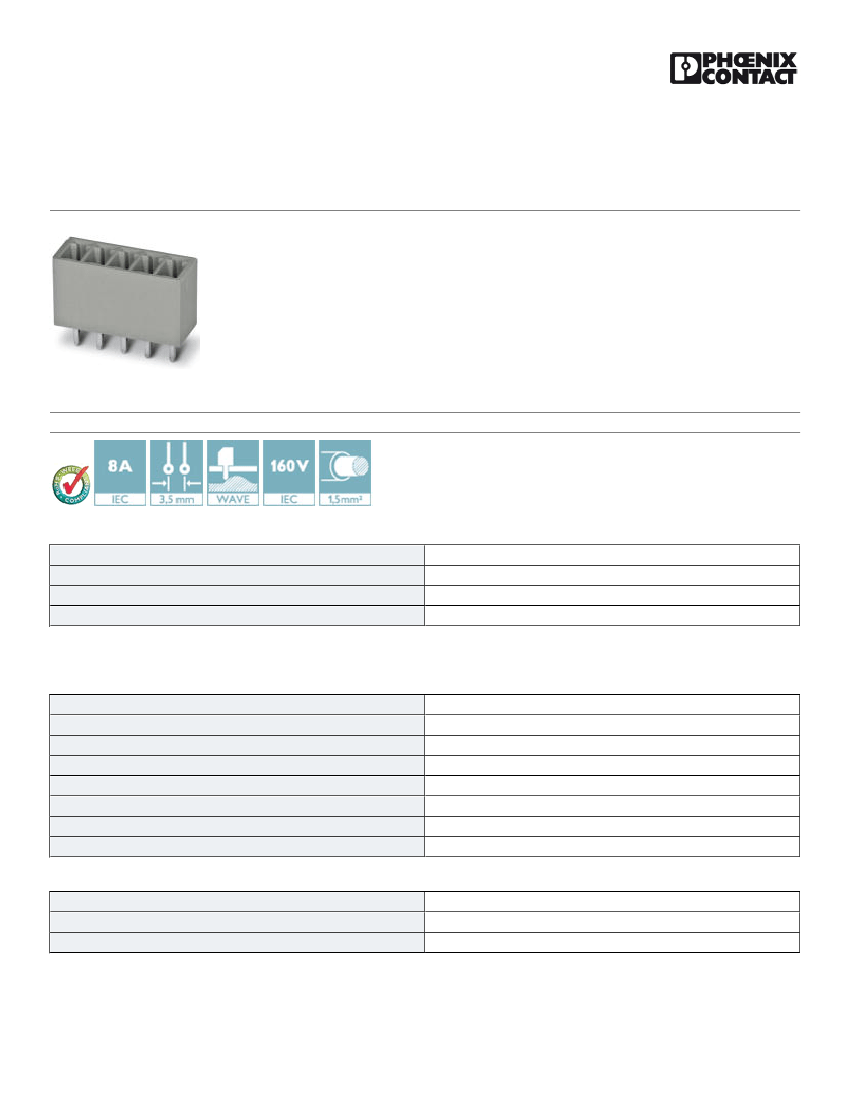

The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
China
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
04/29/2016   Page 1 / 3
