Data Sheet
500mA LOW NOISE LDO REGULATOR
General Description
The AP2213 is a 500mA output current fixed voltage
regulator which provides low noise, very low dropout
voltage (typically 350mV at 500mA), very low
standby current (1µA maximum) and excellent power
supply ripple rejection (PSRR 75dB at 100Hz) in bat-
tery powered applications, such as handsets and PDAs
and in noise sensitive applications, such as RF elec-
tronics.
The AP2213 features individual logic compatible
enable/shutdown control inputs, a low power shut-
down mode for extended battery life, over current pro-
tection, over temperature protection, as well as
reversed-battery protection.
The AP2213 has 2.5V, 3.0V and 3.3V versions.
The AP2213 is available in TO-252-2 (1) and SOIC-8
packages.
AP2213
Features
·
·
·
·
·
·
·
·
·
·
·
Up to 500mA Output Current
Low Standby Current
Low Dropout Voltage: V
DROP
=350mV at 500mA
High Output Accuracy:
±1%
Good Ripple Rejection Ability: 75dB at 100Hz
and I
OUT
=100µA
Tight Load and Line Regulation
Low Temperature Coefficient
Over Current Protection
Thermal Protection
Reversed-battery Protection
Logic-controlled Enable
Applications
·
·
·
·
Laptop, Notebook, and Palmtop Computer
CD-ROM, CD-R/RW, DVD Driver
Portable Electronic
PC Peripheral
TO-252-2 (1)
SOIC-8

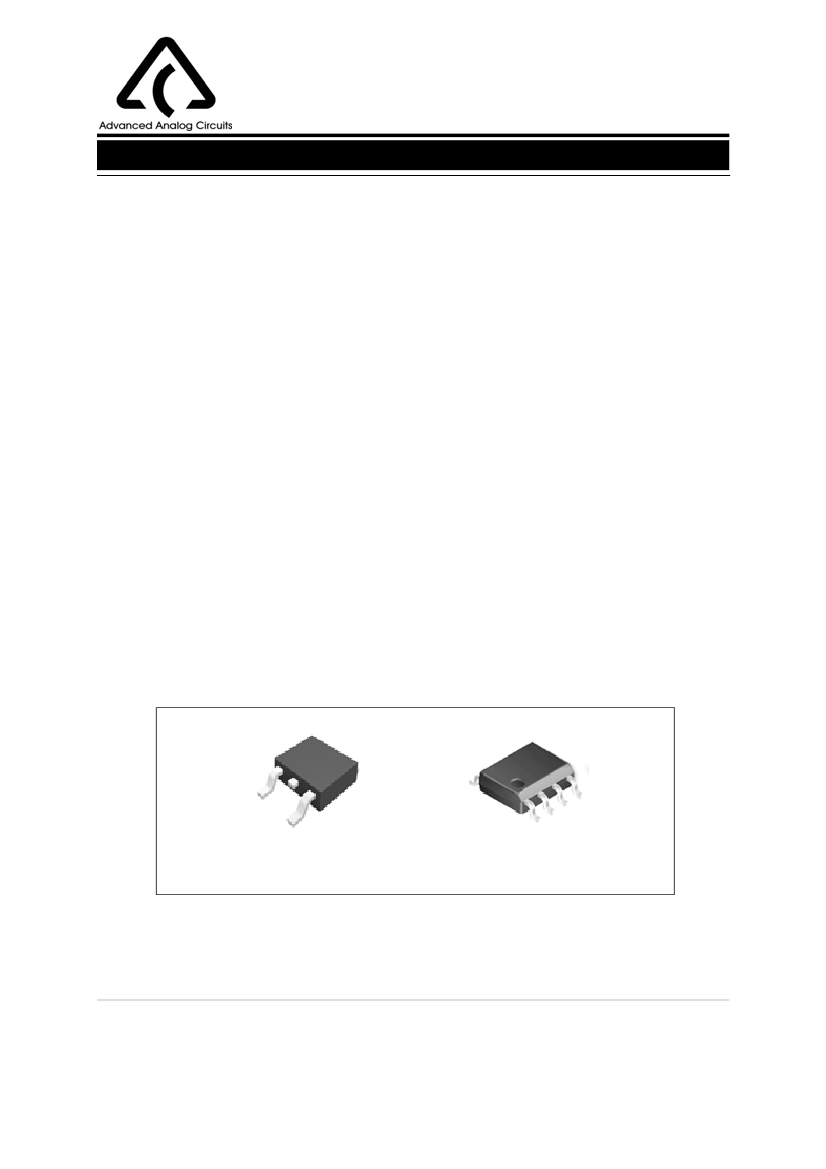

Figure 1. Package Types of AP2213
Mar. 2007 Rev. 1. 2
1
BCD Semiconductor Manufacturing Limited
Data Sheet
500mA LOW NOISE LDO REGULATOR
Pin Configuration
AP2213
D Package
(TO-252-2 (1))
M Package
(SOIC-8)
3
2
1
V
OUT
GND
EN
V
IN
V
OUT
1
2
3
4
8
7
6
5
GND
GND
GND
GND
V
IN
BYP
Figure 2. Pin Configuration of AP2213 (Top View)
Pin Description
Pin Number
Pin Name
TO-252-2 (1)
3
2
1
SOIC-8
3
5, 6, 7, 8
2
1
4
V
OUT
GND
V
IN
EN
BYP
Regulated output voltage
Ground
Input Voltage
Enable input: CMOS or TTL compatible input. Logic high=enable,
logic low=shutdown
Bypass capacitor for low noise operation
Function
Mar. 2007 Rev. 1. 2
2
BCD Semiconductor Manufacturing Limited
Data Sheet
500mA LOW NOISE LDO REGULATOR
Absolute Maximum Ratings (Note 1)
Parameter
Supply Input Voltage
Enable Input Voltage
Power Dissipation
Lead Temperature (Soldering, 10sec)
Junction Temperature
Storage Temperature
ESD (Machine Model)
Thermal Resistance (No Heatsink)
Symbol
V
IN
V
EN
P
D
T
LEAD
T
J
T
STG
ESD
TO-252-2 (1)
θ
JA
SOIC-8
Value
20
20
Internally Limited (Thermal Protection)
260
150
-65 to 150
300
90
o
AP2213
Unit
V
V
W
o
C
o
C
o
C
V
160
C/W
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Max-
imum Ratings" for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter
Supply Input Voltage
Enable Input Voltage
Operating Junction Temperature
Symbol
V
IN
V
EN
T
J
Min
2.5
0
-40
Max
18
18
125
Unit
V
V
o
C
Mar. 2007 Rev. 1. 2
