132I,BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 132I,BK

132I,BK: DescriptionBOX ABS BLACK 4.38"L X 3.25"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size554KB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

132I,BK Overview

BOX ABS BLACK 4.38"L X 3.25"W

132I,BK Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	4.380" long x 3.250" wide (111.25mm x 82.55mm)
high	2.000"（50.80mm）
Area (L x W)	14.2 in²（92 cm²）
design	Handheld, split-sided
Material	Plastic - ABS
color	black
thickness	0.100"（2.54mm）
characteristic	PCB holder
grade	IP40，NEMA 1
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.22 lbs (99.79g)

Preview

Download Datasheet

View All

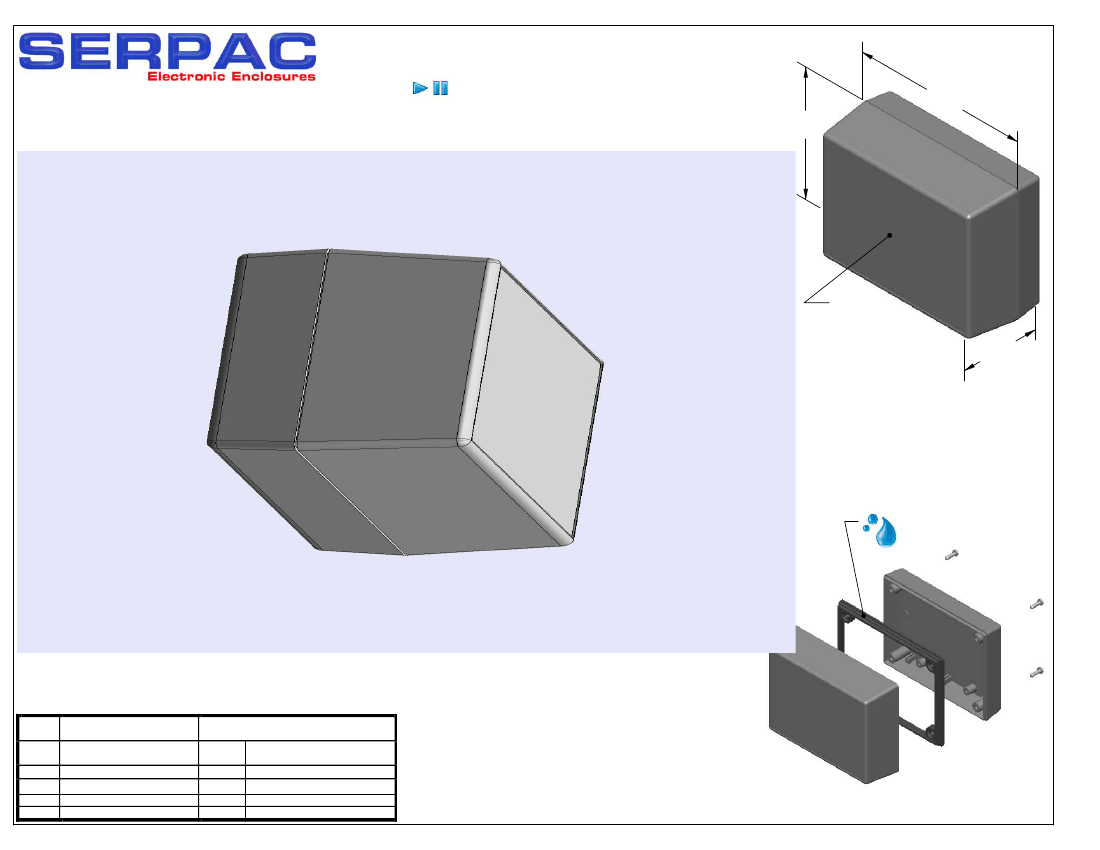

132i

(exploded isometric)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

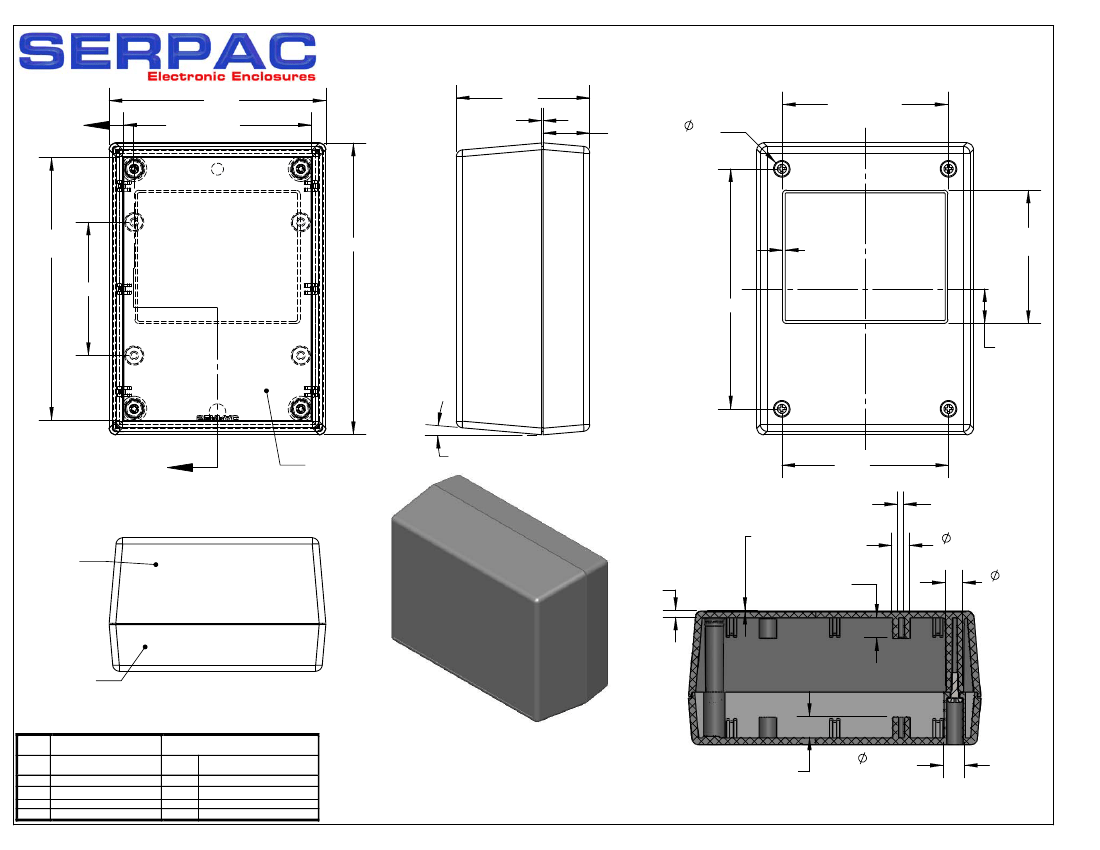

3.25

4.38

TOP

i-plate area

2.81" X 3.94"

Non-Textured

0.015" recessed

2.00

Water proofing gasket

PS13 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

3-2-i

6005

DESCRIPTION

(Included)

TOP

BOTTOM

#4X3/8” Self tapping (4)

ACCSESSORIES

(Optional)

PART

NO.

PS13

330

430

DESCRIPTION

Non-skid Feet

Perimeter Seal

Prototype grid board

Prototype clad board

Notes:

Enclosure weight .22 lbs / 100 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS13 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3) Circuit Board drawings can be download at:

ALL DIMENSIONS ARE ± .010"

3/22/10

(1 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/330-430-cbg.pdf

619 Commercial Ave. Covina, CA 91723

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

132I,BK Related Products

	132I,BK	132I,AL	132I,GY
Description	BOX ABS BLACK 4.38"L X 3.25"W	BOX ABS ALMOND 4.38"L X 3.25"W	BOX ABS GRAY 4.38"L X 3.25"W
Container type	box	box	box
size/dimensions	4.380" long x 3.250" wide (111.25mm x 82.55mm)	4.380" long x 3.250" wide (111.25mm x 82.55mm)	4.380" long x 3.250" wide (111.25mm x 82.55mm)
high	2.000"（50.80mm）	2.000"（50.80mm）	2.000"（50.80mm）
Area (L x W)	14.2 in²（92 cm²）	14.2 in²（92 cm²）	14.2 in²（92 cm²）
design	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided
Material	Plastic - ABS	Plastic - ABS	Plastic - ABS
color	black	almond color	grey
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	PCB holder	PCB holder	PCB holder
grade	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1
Material flammability rating	UL94 HB	UL94 HB	UL94 HB
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.22 lbs (99.79g)	0.22 lbs (99.79g)	0.22 lbs (99.79g)
