Pimoroni OnOff SHIM for Raspberry Pi
PRODUCT ID: 3581
Description

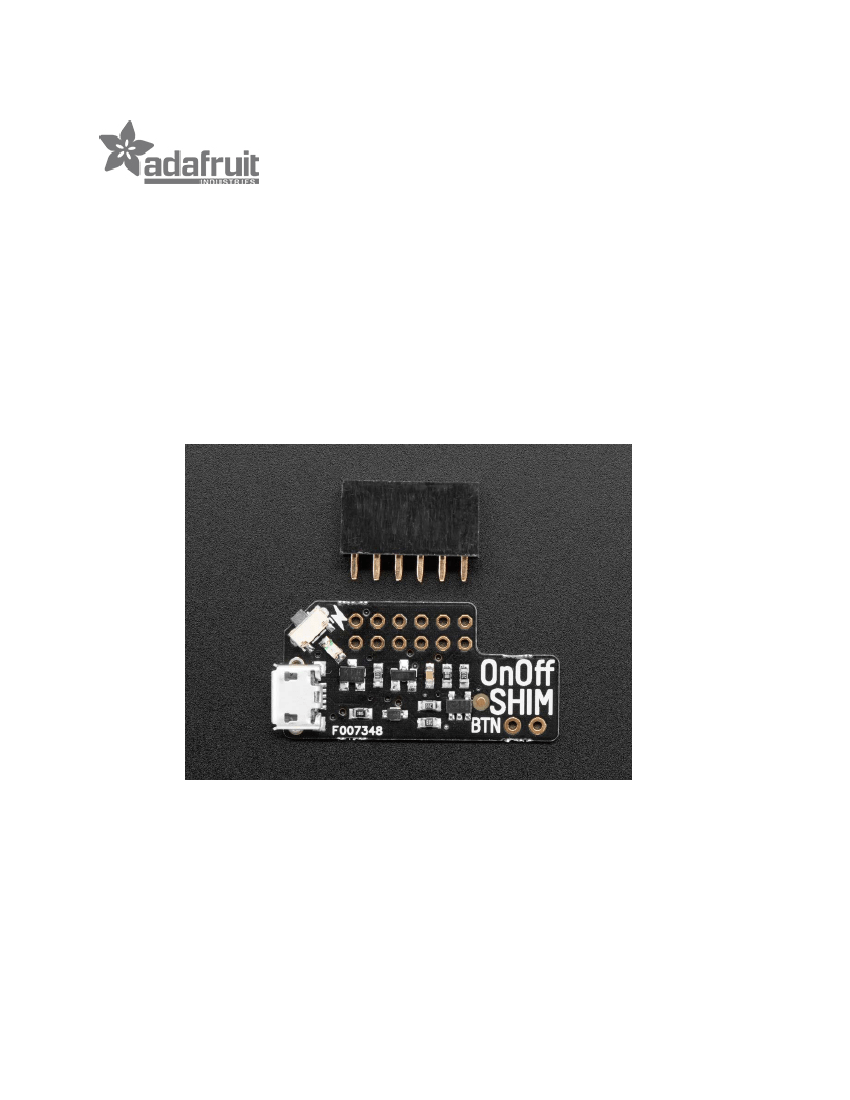

Add a tiny yet convenient power switch to your Pi with Pimoroni's On‐Off SHIM!
Pimoroni's SHIMs (Shove Hardware in the Middle) are a new range of boards designed to be small,
affordable, and handy. They're just 0.8mm thick (the bare board, not including mounted components)
and designed to be soldered straight onto the GPIO pins of your Pi, if you wish, so that you can use
them with HATs and pHATs on top.
Usage
Just plug your micro‐USB power supply into the micro‐B connector on OnOff SHIM, and then press the
button once to switch on power and boot up your Pi. After installing our software (details below), you
can press the button again to initiate a clean shutdown and completely cut the power to your Pi.
Features
o
o
o
o
o
o
o
o
o
o
o

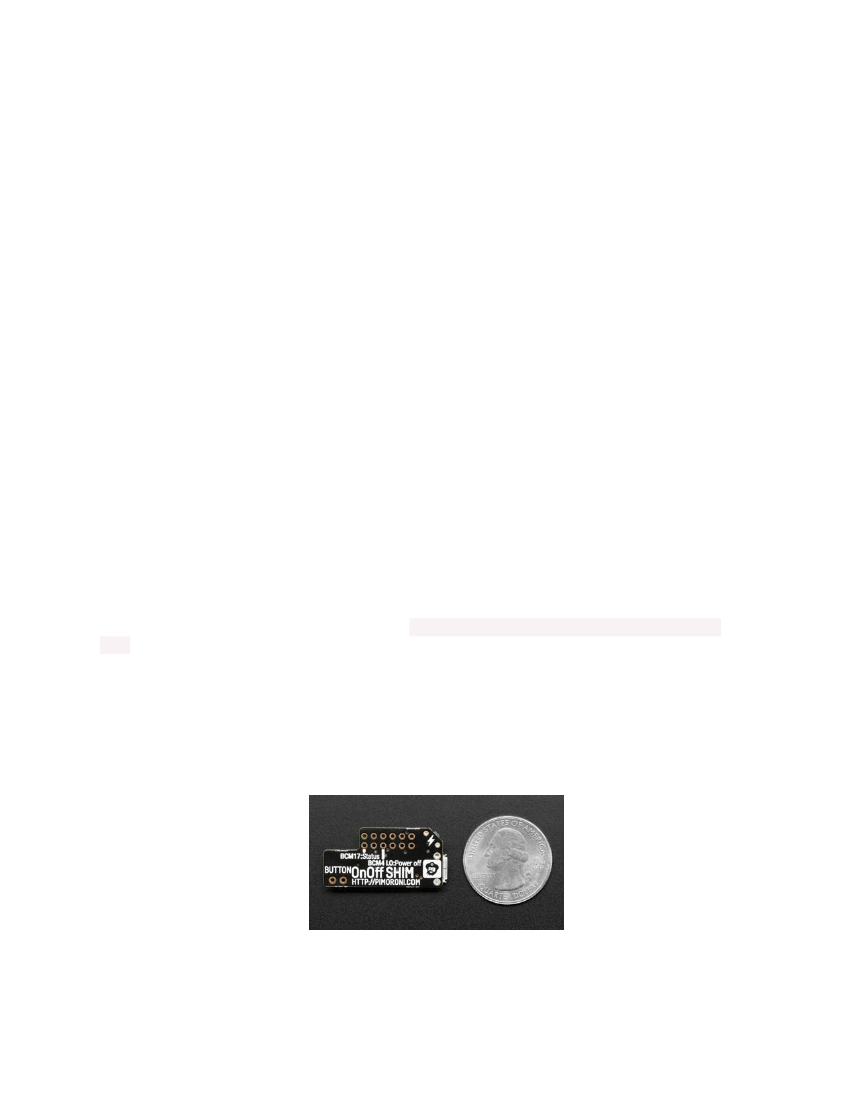

Super‐small SHIM‐format board
0.8mm thick PCB
Can be used with HATs and pHATs
Corner‐mounted push button for on/off
Micro‐B connector for power supply
Red status LED
Optional breakout pins to connect an external momentary button
2x6 female header included
Supports up to 2.5A power supply
Software daemon to shutdown cleanly
Requires soldering
Technical Details
Software
Pimoroni put together a one‐line‐installer to install the clean shutdown daemon. It watches the state of
BCM pin 17 and, when pulled low (pressed), it initiates a clean shutdown. Last thing, just before your Pi
shuts down, BCM pin 4 is pulled low to completely cut power to your Pi.
To install the software, open a terminal and type
curl https://get.pimoroni.com/onoffshim |
bash
to run the one‐line‐installer.
For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or
contact Pimoroni directly.
Product Dimensions: 33.4mm x 16.1mm x 3.6mm / 1.3" x 0.6" x 0.1"
Product Weight: 1.3g / 0.0oz
