112R,AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 112R,AL

112R,AL: DescriptionBOX ABS ALMOND 3.6"L X 2.25"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size1MB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

112R,AL Overview

BOX ABS ALMOND 3.6"L X 2.25"W

112R,AL Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	3.600" long x 2.250" wide (91.44mm x 57.15mm)
high	2.000"（50.80mm）
Area (L x W)	8.10"（52.3cm）
design	Handheld, split-sided
Material	Plastic - ABS
color	almond color
thickness	0.100"（2.54mm）
characteristic	Front access, PCB standoff
grade	IP40，NEMA 1
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.156 lbs (70.76g)

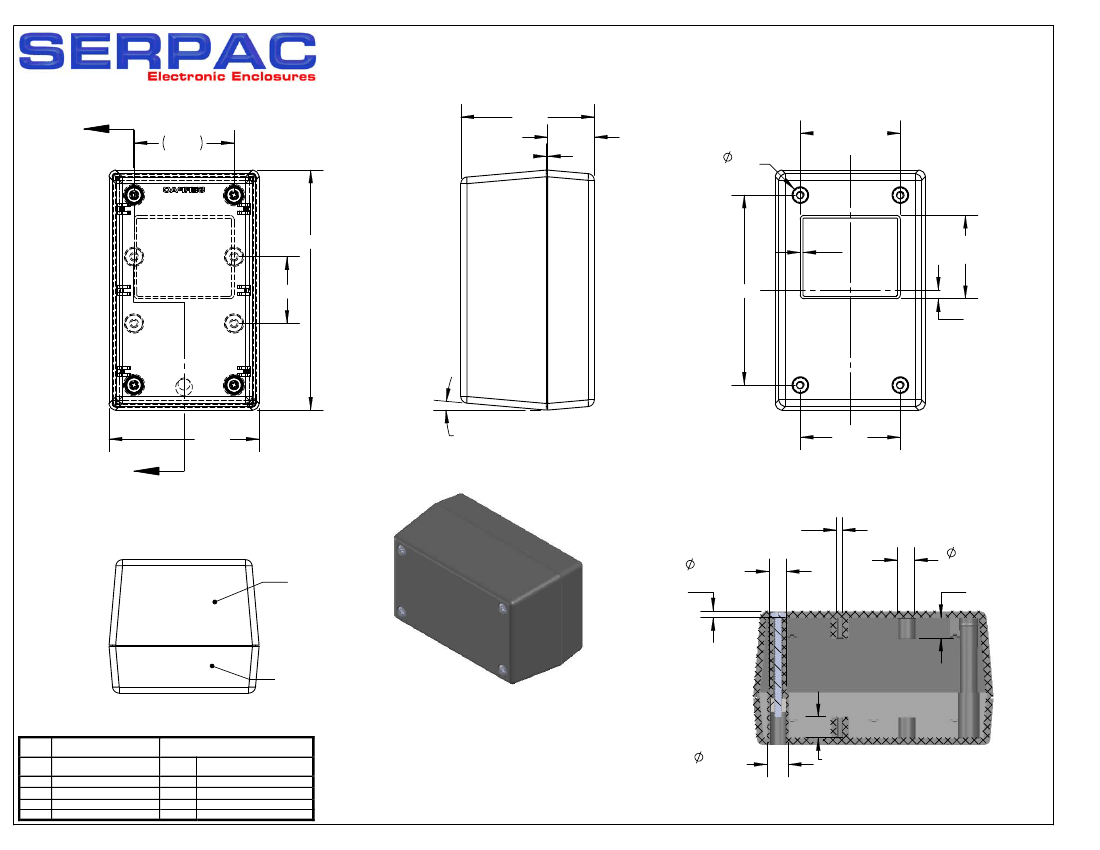

Preview

Download Datasheet

View All

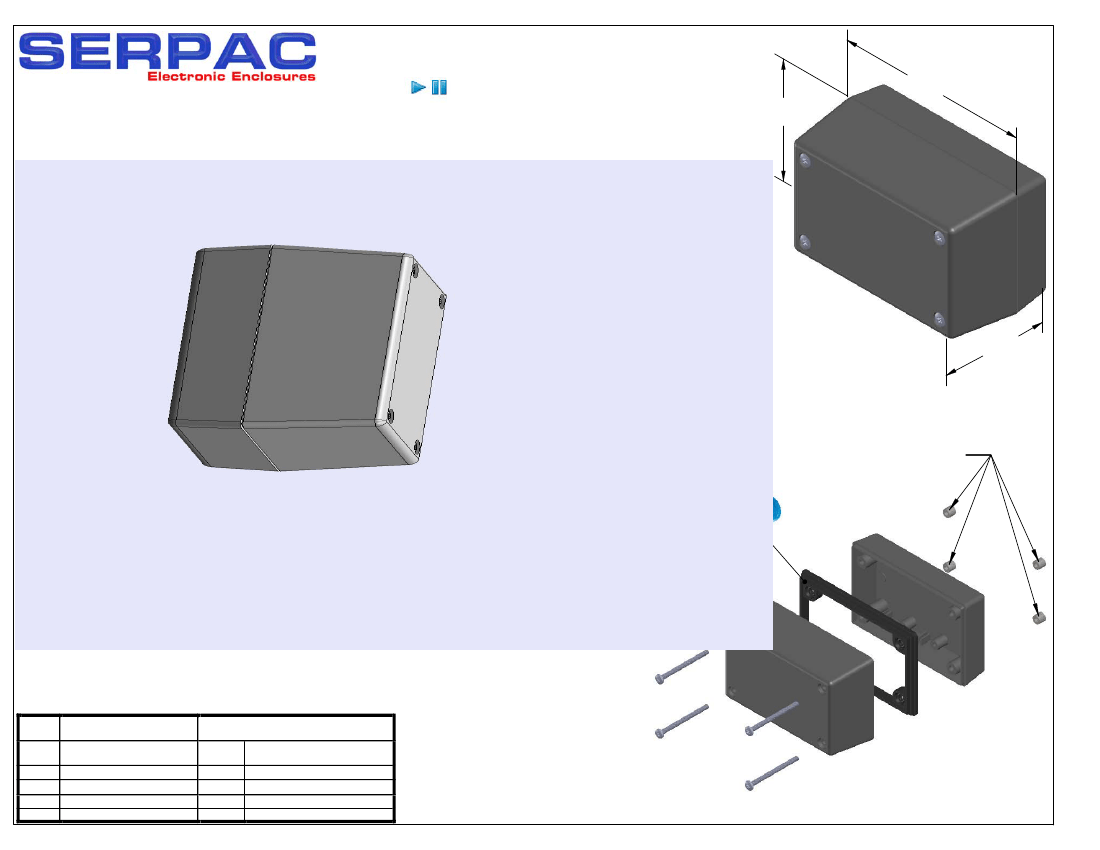

112R

(3D exploded)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

2.25

3.60

2.00

Threaded inserts only

have to be assembled

the first time.

Water proofing gasket

PS11 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

1-2R

6018

6102

DESCRIPTION

(Included)

TOP

BOTTOM

4-40 SCREW (4)

THREADED INSERTS (4)

ACCSESSORIES

(Optional)

PART

NO.

PS11

310

410

DESCRIPTION

Non-skid Feet

Perimeter Seal

Prototype grid board

Prototype clad board

Notes:

Enclosure weights .17 lb / 80 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS11 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3) Circuit Board drawings can be download at:

ALL DIMENSIONS ARE ± .010"

7/27/10

(1 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/310-410.pdf

2009 Wright Ave. La Verne, CA 91750

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

112R,AL Related Products

	112R,AL	112R,BK	112R,GY
Description	BOX ABS ALMOND 3.6"L X 2.25"W	BOX ABS BLACK 3.6"L X 2.25"W	BOX ABS GRAY 3.6"L X 2.25"W
Container type	box	box	box
size/dimensions	3.600" long x 2.250" wide (91.44mm x 57.15mm)	3.600" long x 2.250" wide (91.44mm x 57.15mm)	3.600" long x 2.250" wide (91.44mm x 57.15mm)
high	2.000"（50.80mm）	2.000"（50.80mm）	2.000"（50.80mm）
Area (L x W)	8.10"（52.3cm）	8.10"（52.3cm）	8.10"（52.3cm）
design	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided
Material	Plastic - ABS	Plastic - ABS	Plastic - ABS
color	almond color	black	grey
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	Front access, PCB standoff	Front access, PCB standoff	Front access, PCB standoff
grade	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1
Material flammability rating	UL94 HB	UL94 HB	UL94 HB
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.156 lbs (70.76g)	0.156 lbs (70.76g)	0.156 lbs (70.76g)
