316-93-144-41-008100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 316-93-144-41-008100

316-93-144-41-008100: DescriptionIC Socket, SIP44, 44 Contact(s),; CategoryThe connector socket; File Size167KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

316-93-144-41-008100 Overview

IC Socket, SIP44, 44 Contact(s),

316-93-144-41-008100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET, UL94V-0
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP44
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

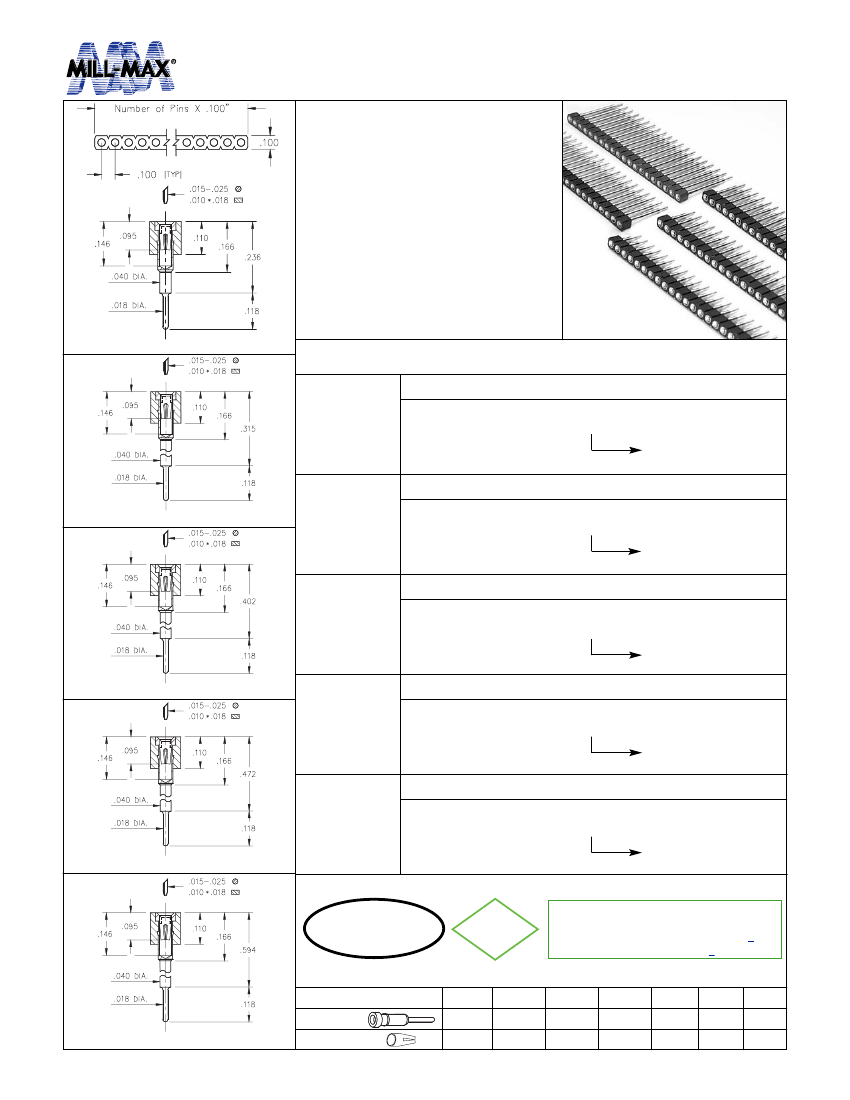

SINGLE-IN-LINE SOCKETS

Elevated

Single Row

•

Elevated socket strips are

available in 5 different heights.

316...006 uses pin # 0153-1

316...003 uses pin # 0153-2

316...007 uses pin # 0153-3

316...008 uses pin # 0153-4

316...001 uses pin # 0153-5

•

Hi-Rel, 4-finger BeCu #30 clip

rated at 3 amps. See page 208

for details.

Fig. 1

Series 316

Ordering Information

Series 316...006

Standoff Height = .236

Fig. 1

316-XX-1_ _-41-006000

Specify # of pins

Series 316...003

01-64

Standoff Height = .315

Fig. 2

316-XX-1_ _-41-003000

Specify # of pins

Series 316...007

01-64

Standoff Height = .402

Fig. 3

316-XX-1_ _-41-007000

Specify # of pins

01-64

Standoff Height = .472

Fig. 3

Series 316...008

Fig. 4

316-XX-1_ _-41-008000

Specify # of pins

Series 316...001

01-64

Standoff Height = .594

Fig. 5

Fig. 4

316-XX-1_ _-41-001000

Specify # of pins

01-64

XX=Plating Code

See Below

For RoHS compliance, select plating code.

For the all gold option (XX=13) also change

part number from 316-XX-1XX-41-00X000

to 316-13-1XX-41-00X100

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
