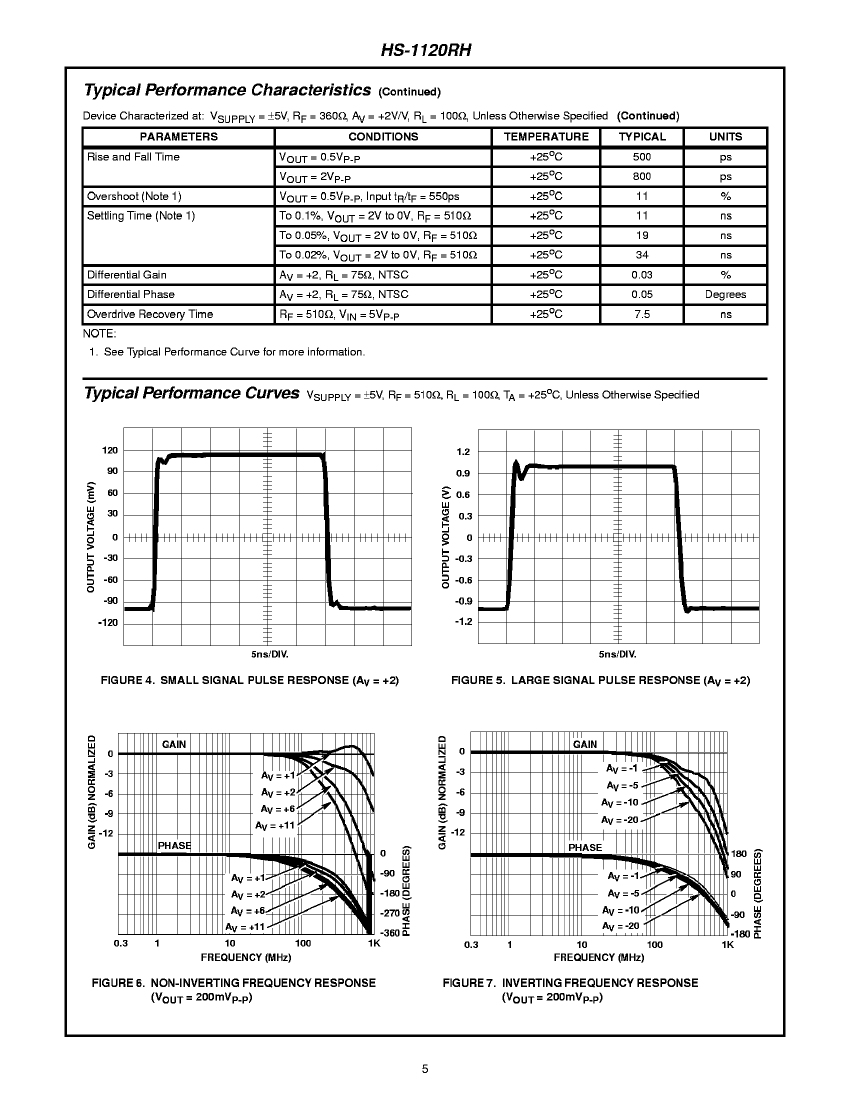

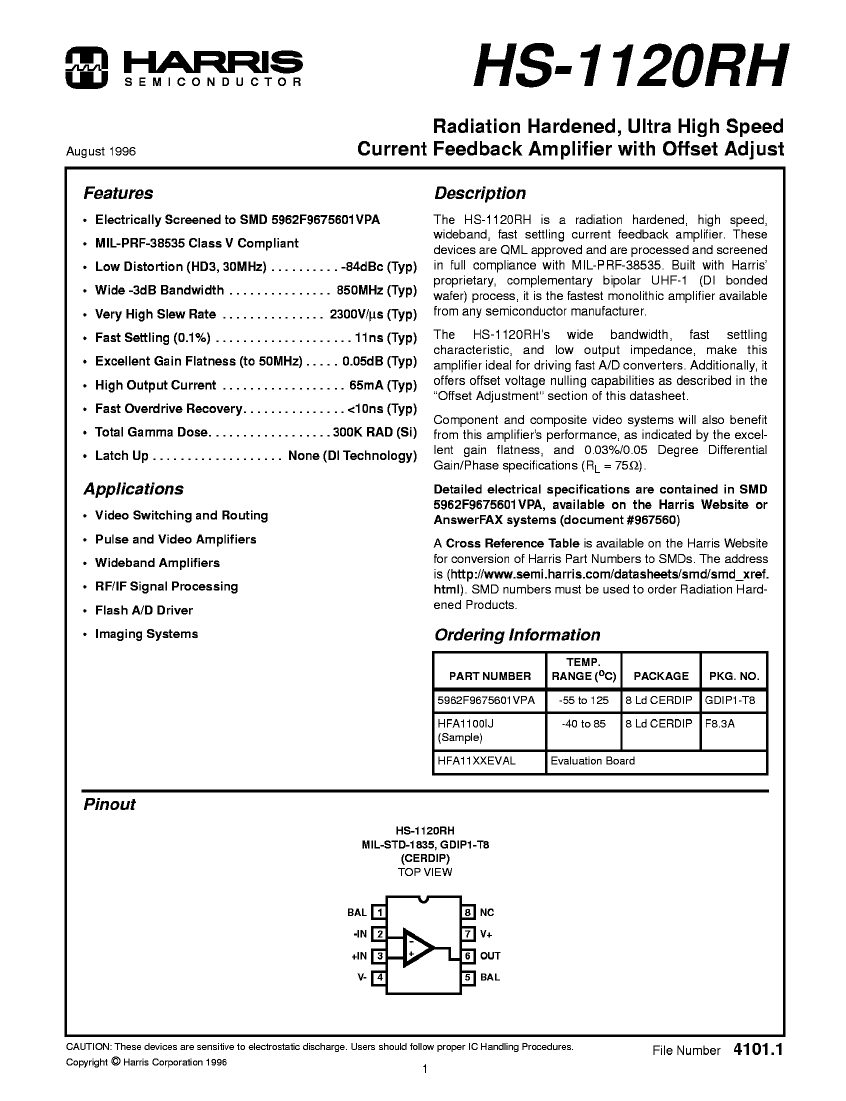

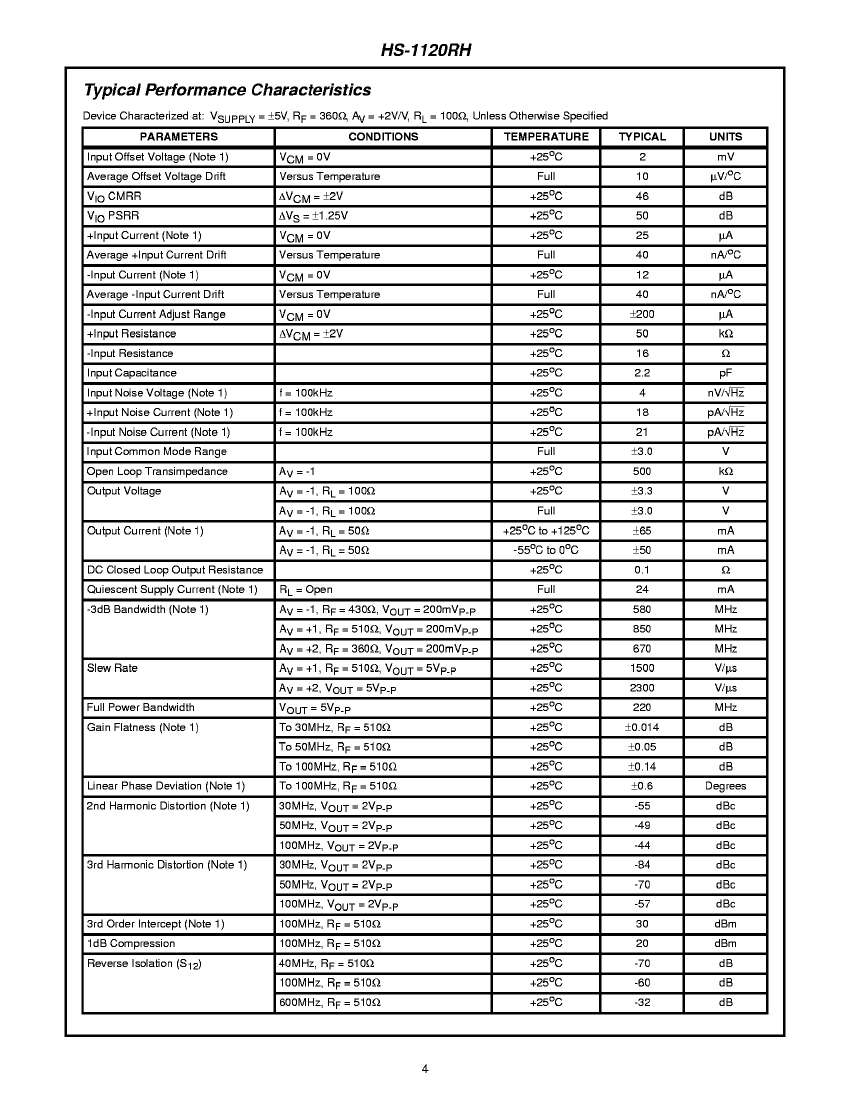

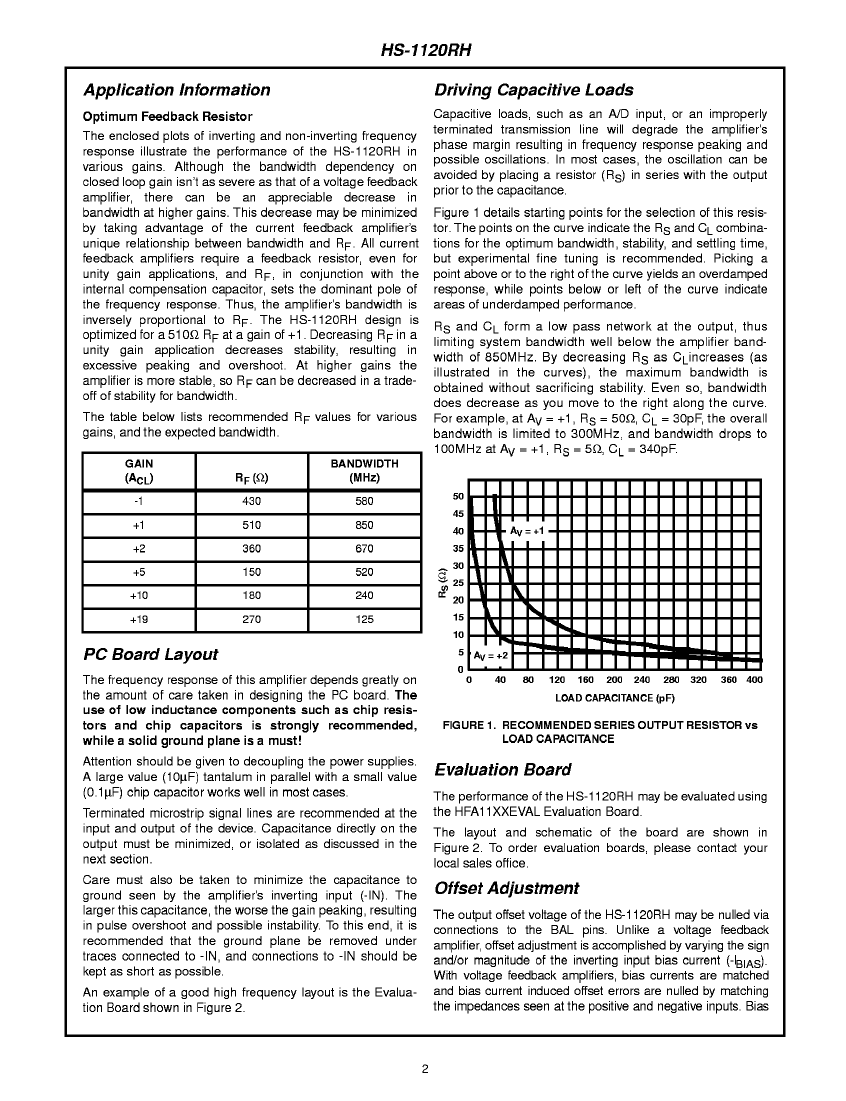

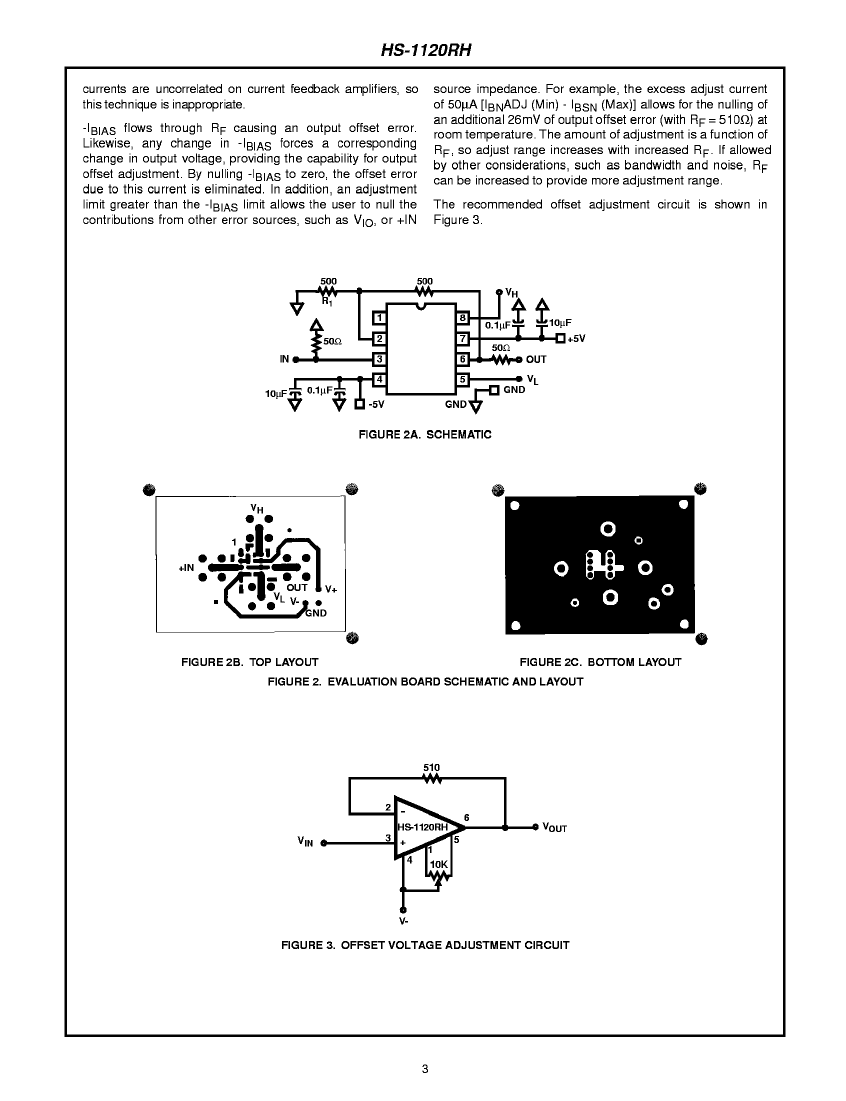

Preview

5962F9675601VPA: Description5962F9675601VPA amplifier basic information: The commonly used packaging method is DIP, 5962F9675601VPA amplifier core information: The minimum operating temperature of 5962F9675601VPA is -55 °C and the maximum operating temperature is 125 °C. Related dimensions of 5962F9675601VPA: 5962F9675601VPA has 8 terminals. Its terminal position type is: DUAL. 5962F9675601VPA amplifier other information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-CDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of 5962F9675601VPA is: DIP. The materials used in the 5962F9675601VPA package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The 5962F9675601VPA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryConsumption circuit; File Size303KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/; Alternative parts：5962F9675601VPA

Download Datasheet Parametric View All

5962F9675601VPA Overview

5962F9675601VPA amplifier basic information:

The commonly used packaging method is DIP,

5962F9675601VPA amplifier core information:

The minimum operating temperature of 5962F9675601VPA is -55 °C and the maximum operating temperature is 125 °C.

Related dimensions of 5962F9675601VPA:

5962F9675601VPA has 8 terminals. Its terminal position type is: DUAL.

5962F9675601VPA amplifier other information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-CDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of 5962F9675601VPA is: DIP. The materials used in the 5962F9675601VPA package are mostly CERAMIC, METAL-SEALED COFIRED.

The package shape is RECTANGULAR. The 5962F9675601VPA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

5962F9675601VPA Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Commercial integrated circuit types	VIDEO AMPLIFIER
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	300k Rad(Si) V
Base Number Matches	1
